MiLAN MIL-S16000T Bedienungsanleitung

MIL-S16000T

16-Port 1000BASE-T

Gigabit Ethernet Switch

USER GUIDE

Regulatory Approval

- FCC ClassA

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)

issued by the Commission of the European Community Compliance with these directives imply conformity to the following

European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference

EN61000-X - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products,

and

all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

MiLAN Technology makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall MiLAN Technology be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. MiLAN Technology will in no case cover

damages arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the

United States and/or other countries.

To Contact MiLAN Technology

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach MiLAN Technology technical support at:

E-mail: [email protected]

Telephone: +1.408.744.2751

Fax: +1.408.744.2771

MiLAN Technology

1329 Moffett Park Drive

Sunnyvale, CA 94089

United States of America

Telephone: +1.408.744.2775

Fax: +1.408.744.2793

http://www.milan.com

[email protected]

Table of Contents

1. Introduction

Gigabit Ethernet Technology

Switching Technology

Features

Package Contents

2. Hardware Description

Front Panel

Rear Panel

LED Indicators

3. Hardware Installation

Desktop Installation

Rack mounted Installation

Power On

4. Technical Specifications

General Specifications

Physical and Environmental Specifications

Performance Specifications

Appendix A: Regulatory Information

Introduction

Gigabit Ethernet Technology

Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet

structure, format, and support for CSMA/CD protocol, full duplex, flow control, and

management objects, but with a tenfold increase in theoretical throughput over

100-Mbps Fast Ethernet and a hundredfold increase over 10-Mbps Ethernet.

Since it is compatible with all 10-Mbps and 100-Mbps Ethernet environments,

Gigabit Ethernet provides a straightforward upgrade without wasting a company’s

existing investment in hardware, software, and trained personnel.

The increased speed and extra bandwidth offered by Gigabit Ethernet are

essential to coping with the network bottlenecks that frequently develop as

computers and their busses get faster and user applications generate more traffic.

Upgrading key components, such as your backbone and servers to Gigabit

Ethernet can greatly improve network response times, as well as significantly

speed up the traffic between your subnets.

Gigabit Ethernet supports video conferencing, complex imaging, and similar

data-intensive applications. Likewise, since data transfers occur 10 times faster

than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to

perform 10 times the number of operations in the same amount of time.

Switching Technology

Another key development pushing the limits of Ethernet technology is in the field

of switching technology. A switch bridges Ethernet packets at the MAC address

level of the Ethernet protocol transmitting among connected Ethernet or fast

Ethernet LAN segments.

Switching is a cost-effective way of increasing the total network capacity available

to users on a local area network. A switch increases capacity and decreases

network loading by making it possible for a local area network to be divided into

different segments which do not compete with each other for network transmission

capacity, giving a decreased load on each.

The switch acts as a high-speed selective bridge between the individual segments.

The switch automatically forwards traffic that needs to go from one segment to

another, without interfering with any other segments. This allows the total network

capacity to be multiplied, while still maintaining the same network cabling and

adapter cards.

Switching LAN technology is a marked improvement over the previous generation

of network bridges, which were characterized by higher latencies. Routers have

also been used to segment local area networks, but the cost of a router and the

setup and maintenance required make routers relatively impractical. Today’s

switches are an ideal solution to most kinds of local area network congestion

problems.

Features

The MIL-S1600T Gigabit Ethernet Switch was designed for easy installation and

high performance in an environment where traffic on the network and the number

of users increase continuously.

16 1000BASE-T Gigabit Ethernet ports

Auto-Negotiation for 10/100/1000Mbps and duplex mode

Auto-MDI/MDIX for each port

Full/Half duplex transfer mode for 10 and 100Mbps

Full duplex transfer mode for 1000Mbps

Full wire speed reception and transmission

Store-and-Forward switching method

IEEE 802.3x flow control for full-duplex mode

Integrated address Look-Up Engine, supports 4K absolute MAC addresses

Supports 272K Bytes data buffer per device

Extensive front-panel diagnostic LEDs

Package Contents

Unpack the contents of the package and verify them against the checklist below.

MIL-S16000T Gigabit Ethernet Switch

AC Power Cord

Rack Mount Ears

Four Adhesive Rubber Feet

User's Guide

Warranty Card

If any item is missing or damaged, please contact your local dealer for service.

Hardware Description

Front Panel

The front panel of the Gigabit Ethernet Switch consists of 16 1000BASE-T Gigabit

Ethernet ports and the LED Indicators for the unit, which displays the conditions of

the Gigabit Ethernet Switch and the status of the network.

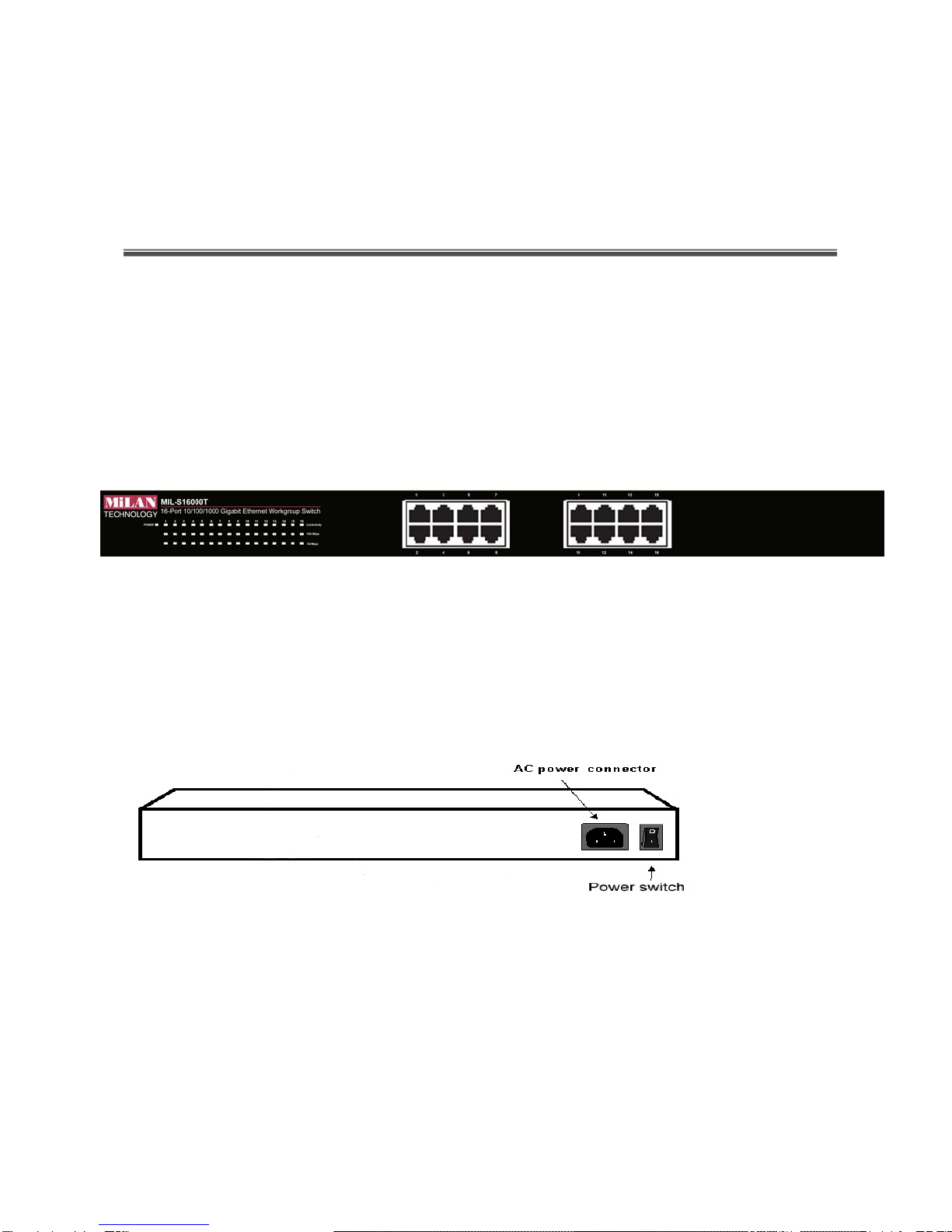

Figure 2-1. Front Panel view of the MIL-S16000T Gigabit Ethernet Switch

Rear Panel

The rear panel of the Gigabit Ethernet Switch consists of an AC power connecter

and a power switch.

Figure 2-2. Rear Panel view of the MIL-S16000T Gigabit Ethernet Switch

The AC Power Connector is a three-pronged connector that supports the power

cord. Plug the female connector of the provided power cord into this connector, and

the male into a power outlet. Supported input voltages range from 100 - 240 VAC

at 50/60 Hz.

LED Indicators

The LED indicators of the Gigabit Ethernet Switch provide a real-time indication of

system operating statuses. There are three LED-indicators for each Gigabit

Ethernet port and one Power LED for the Unit.

Figure 2-3. LED Indicators on the MIL-S16000T Gigabit Ethernet Switch

POWER

The Power LED indicator is solid green when the Gigabit Ethernet Switch is

receiving power.

Link/Act

The Link/Act LED indicators are solid when there is a secure connection (or link)

to the desired port. A blinking LED indicator signifies reception or transmission (i.e.

Activity—Act) of data occurring on a port.

1000Mbps

The 1000Mbps LED indicators are solid when there is a secure connection (or link)

to a 1000Mbps Gigabit Ethernet device at the desired port.

100Mbps

The 100Mbps LED indicators are solid when there is a secure connection (or link)

to a 100Mbps Fast Ethernet device at the desired port.

Note: When the connection (or link) is 10Mbps, both the 1000Mbps and

100Mbps LED indicators are off.

Hardware Installation

Desktop Installation

Set the switch on a sufficiently large flat space with a power outlet nearby. The

surface where you put your switch should be clean, smooth, level, and sturdy.

Provide enough clearance around the switch to allow attachment of cables, power

cord and air circulation.

Attaching Rubber Feet

A. Make sure the mounting surface on the bottom of the Switch is grease and

dust free.

B. Remove adhesive backing from the rubber feet.

C. Apply the rubber feet to each corner on the bottom of the switch.

These footpads can prevent the Switch from shock/vibration.

Figure 3-1. Attaching Rubber Feet to each corner on the bottom of the Switch

Rack-mounted Installation

The MIL-S16000T comes with a rack-mounted kit and can be mounted in an EIA

standard size, 19-inch rack. The Switch can be placed in a wiring closet with other

equipment.

Perform the following steps to rack mount the switch:

A. Position one bracket to align with the holes on one side of the switch and

secure it with the smaller bracket screws. Then attach the remaining bracket

to the other side of the Switch.

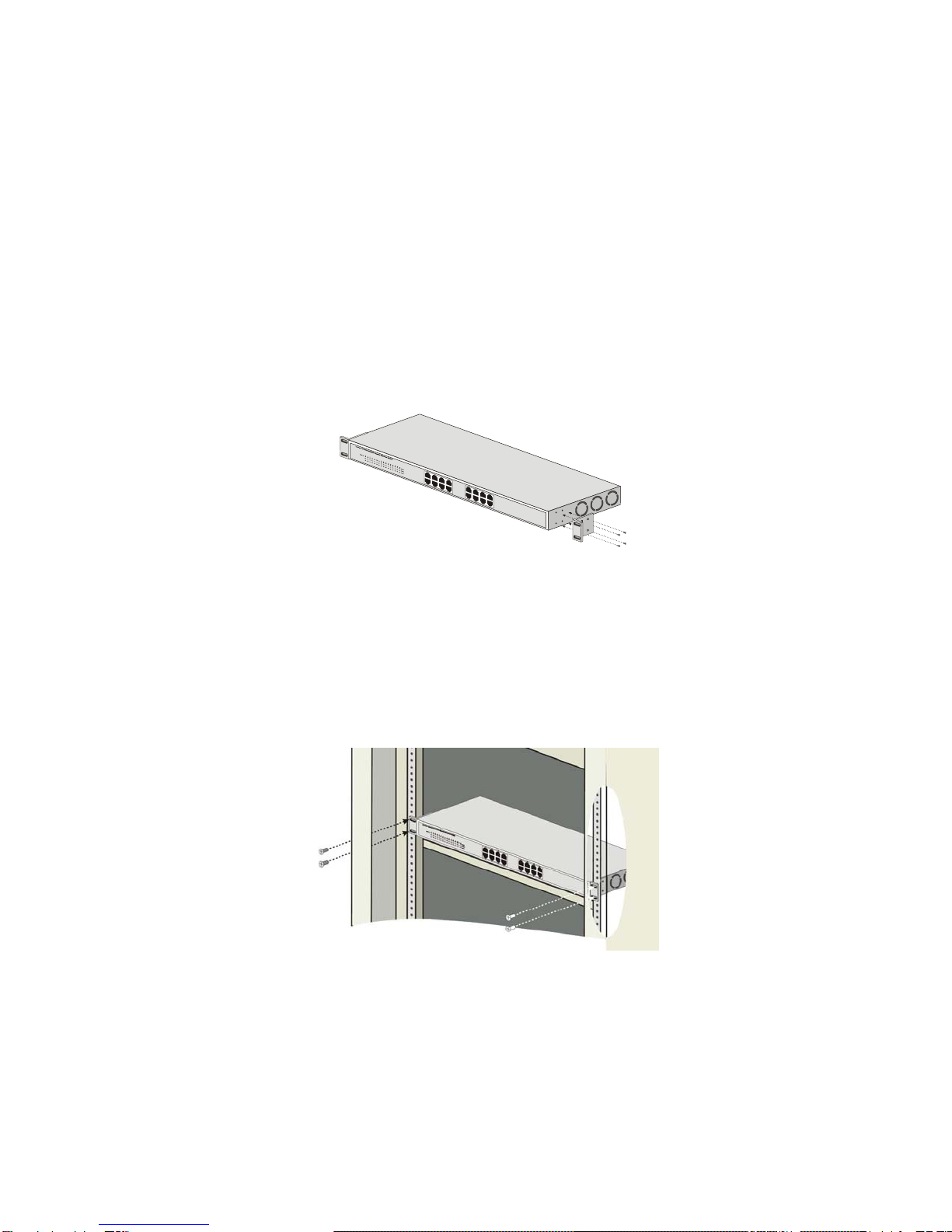

Figure 3-2. Attach mounting brackets with screws

B. After attaching both mounting brackets, position the MIL-S16000T in the rack

by lining up the holes in the brackets with the appropriate holes on the rack.

Secure the Switch to the rack with a screwdriver and the rack-mounting

screws.

Figure 3-3. Mount the MIL-S16000T in an EIA standard 19-inch Rack

Note: For proper ventilation, allow at least 4 inches (10 cm) of clearance on the

front and 3.4 inches (8 cm) on the back of the Switch. This is especially important

for enclosed rack installation.
