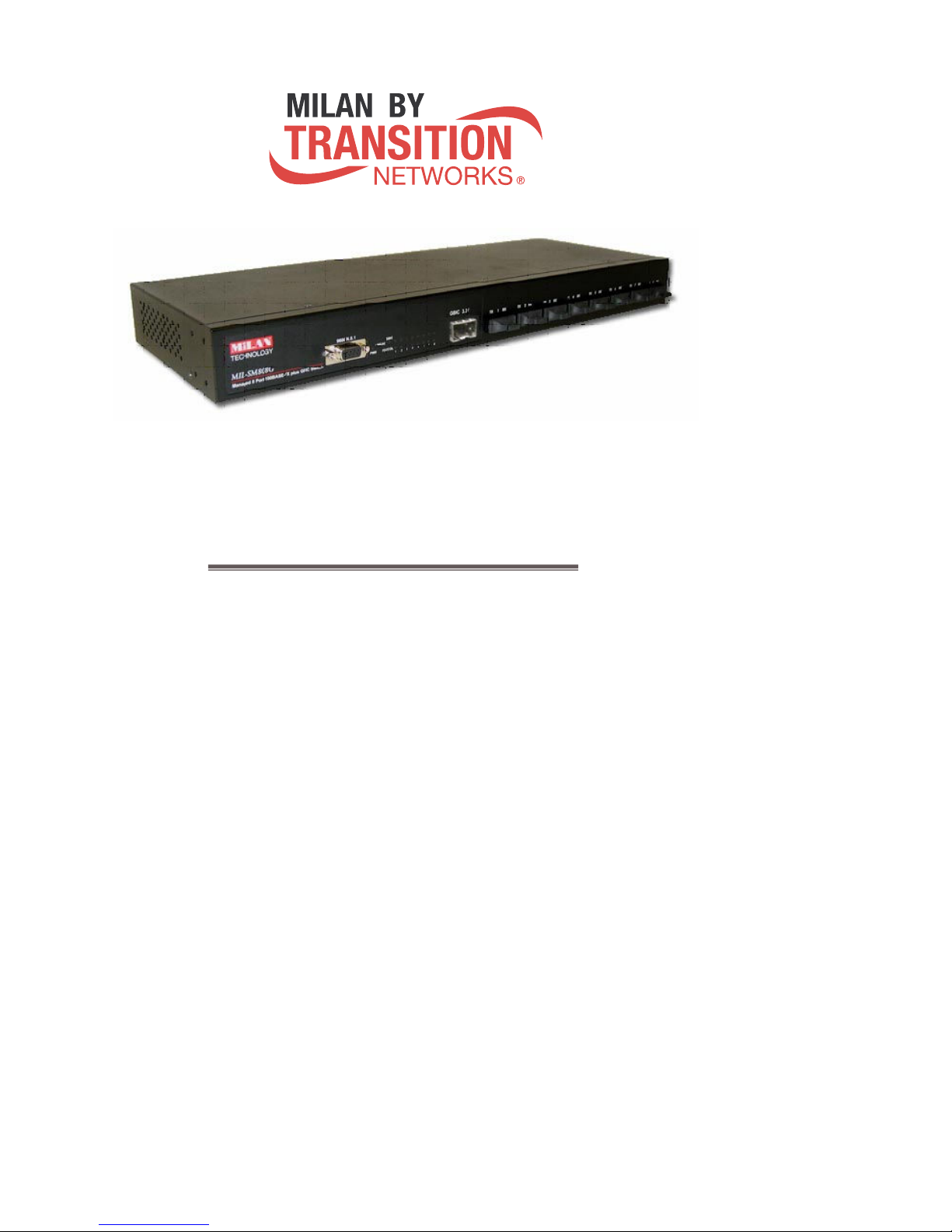

MiLAN MIL-SM808GPxx Bedienungsanleitung

8 Port 100BASE-FX

Plus One SFP

Intelligent Fiber Switch

MIL-SM808GPxx

USER GUIDE

Regulatory Approval

- FCC Class A

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC)

issued by the Commission of the European Community Compliance with these directives imply conformity to the following

European Norms:

- EN55022 (CISPR 22) - Radio Frequency Interference

- EN61000-X - Electromagnetic Immunity

- EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

MiLAN Technology warrants to the original consumer or purchaser that each of it's products, and

all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

MiLAN Technology makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall MiLAN Technology be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. MiLAN Technology will in no case cover damages

arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and MiLAN Technology trademarks are registered trademarks of MiLAN Technology in the

United States and/or other countries.

iii

To Contact MiLAN Technology

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach MiLAN Technology technical support at:

E-mail: support@milan.com

Telephone: +1.408.744.2751

Fax: +1.408.744.2771

MiLAN Technology

1329 Moffett Park Drive

Sunnyvale, CA 94089

United States of America

Telephone: +1.408.744.2775

Fax: +1.408.744.2793

http://www.milan.com

[email protected]

Table of Contents

1. Introduction

Features

Intelligent Management Features

Package Contents

Management Methods

Console and Telnet Management

Web-based Management

SNMP Network Management

2. Hardware Description

Front Panel

LED Indicators

Rear Panel

Desktop Installation

3. Network Application

Segment Application

4. Network Configuration

Connecting a Terminal or PC to the Console Port

Console - Menu

4-1. Main Menu

4-2. Status and Counters

4-2-1. Port Status

4-2-2. Port Counters

4-2-3. System Information

4-3. Switch Static Configuration

4-3-1. Administration Configuration

4-3-1-1. Device Information

4-3-1-2. IP Configuration

4-3-1-3. Change Username

4-3-1-4. Change Password

4-3-2. Port / Trunk Configuration

4-3-3. Port Mirroring Configuration

4-3-4. VLAN Configuration

4-3-4-1. VLAN Configure

4-3-4-2. Create a VLAN Group

4-3-4-3. Edit / Delete a VLAN Group

4-3-5. Priority Configuration

4-3-6. MAC Address Configuration

4-3-6-1. Static MAC Address

4-3-6-2. Filtering MAC Address

4-3-7. Misc. Configuration

4-3-7-1. Port Security

4-3-7-2. MAC Age Interval

4-3-7-3. Broadcast Storm Filtering

4-3-7-4. Max Bridge Transmit Delay Bound

4-4. Protocol Related Configuration

4-4-1. STP

4-4-1-1. STP Enable

4-4-1-2. System Configuration

4-4-1-3. STP Port Configuration

4-4-2. SNMP

4-4-2-1. System Options

4-4-2-2. Community Strings

4-4-2-3. Trap Managers

4-4-3. GVRP

4-4-4. LACP

4-4-4-1. Aggregator Setting

4-4-4-2. State Activity

4-4-4-3. LACP Status

4-5. Switch Reboot

4-6. Updating Firmware using the Console Port

5. Web-Based Management

5-1. Web Management Home Overview

5-2. Port Status

5-3. Port Statistics

5-4. Administrator

5-4-1. IP Address

5-4-2. Switch Settings

5-4-2-1. Basic

5-4-2-2. Advanced

5-4-3. Console Port Information

5-4-4. Port Controls

5-4-5. Trunking

5-4-5-1. Aggregator Setting

5-4-5-2. Aggregator Information

5-4-5-3. State Activity

5-4-6. Filter Database

5-4-6-1. IGMP Snooping

5-4-6-2. Static MAC Address

5-4-6-3. Port Security

5-4-6-4. MAC Filtering

5-4-7. VLAN Configuration

5-4-7-1. Basic

5-4-7-2. Port VID

5-4-8. Set Spanning Tree

5-4-9. Port Mirroring

5-4-10. SNMP

5-4-11. Security Manager

5-4-12. TFTP Update Firmware

5-4-13. Configuration Backup

5-4-13-1. TFTP Restore Configuration

5-4-13-2. TFTP Backup Configuration

5-4-14. Reset System

5-4-15. Reboot

6. Technical Specifications

7. Troubleshooting

Incorrect connections

Diagnostic LED Indicators

Introduction

The MIL-SM808G managed compact desktop switch is an ideal solution

for a Fiber network infrastructure. It provides wire-speed, Fast Ethernet

switching providing high-performance data transfer. The switch features a

store-and-forward architecture with auto-learning of source addresses

with an 8K-entry MAC address table.

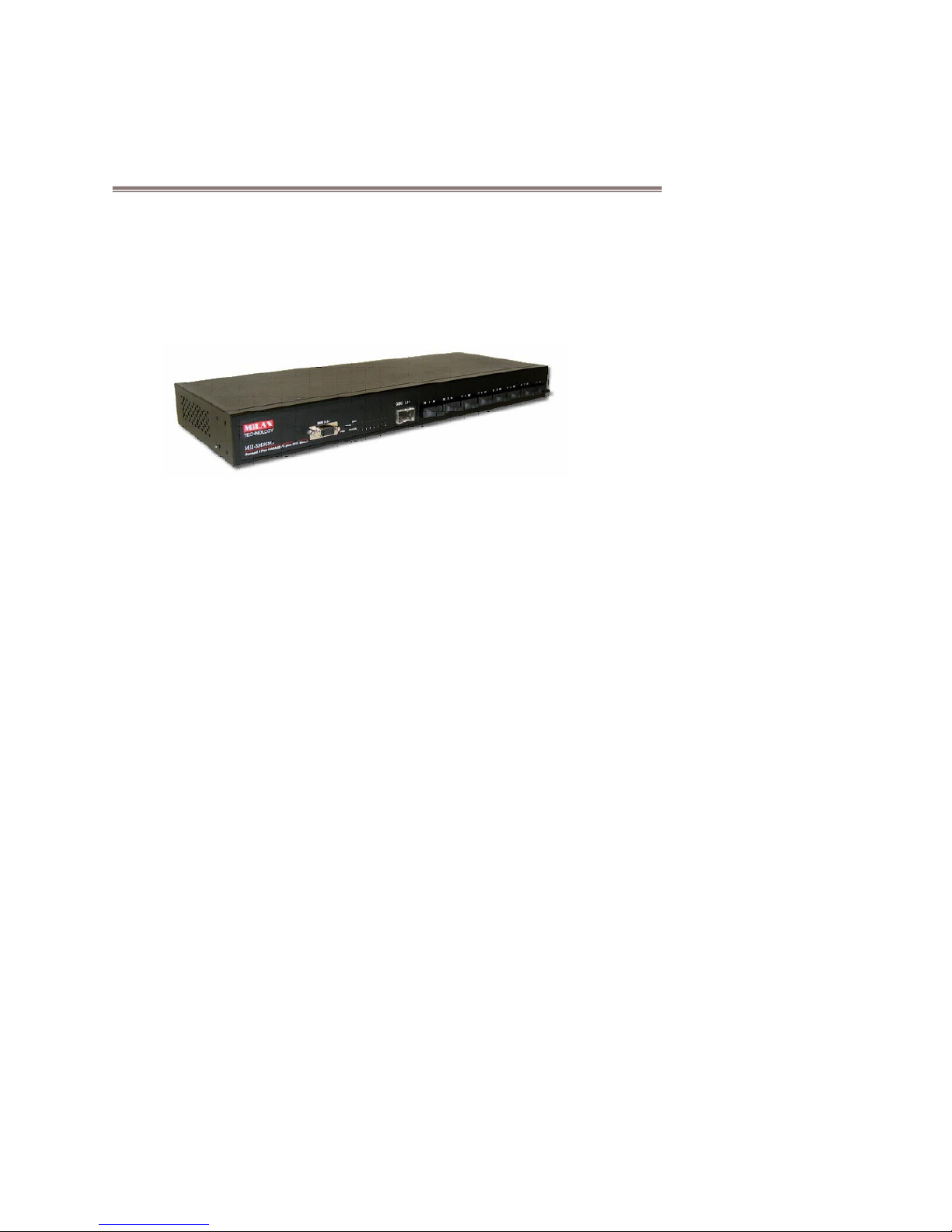

Figure 1-1. The MIL-SM808G switch

The switch provides eight switched 100Mbps Fast Ethernet Fiber ports

and one SFP slot for a SFP transceiver. The fiber port connectors are

available in either SC (single mode or multi-mode) or ST (multi-mode).

With built-in Web-based Management, managing and configuring the

switch is simplified. The Web Browser may be used to configure and

manage the network, from cabinet level management to port level control

and monitoring. Use of a mouse replaces typing of command strings. The

switch can also be managed via Telnet, Console, or SNMP Management.

Features

Conforms to IEEE802.3u, IEEE802.3z and IEEE802.3x Ethernet

Standards

Eight 100Mbps Fast Ethernet Fiber ports and one SFP port

One Console port on the front for switch software configuration

Half-duplex mode for back pressure and flow control for

full-duplex

Store-and-forward switching architecture

Automatic address learning, address migration

8K-entry MAC address table

2Mbit memory buffer sharing

Non-blocking full wire speed performance

LED-indicators for Power, LNK/ACT, FDX/COL, LNK/ACT(SFP)

19-inch design for desktop or rackmount

Intelligent Management Features

Web-based management

SNMP network management

Console and Telnet management

Port Based VLAN and IEEE 802.1q Tag VLAN, and VLAN group

up to 256 , VLAN ID up to 4K

IEEE 802.3ad Port Trunk with LACP( Link Aggregation Control

protocol) supported

IEEE 802.1d Spanning Tree

MIB II ( RFC1213 ) supported

IGMP Query, IGMP Snooping, up to 256 IGMP groups

Quality of Service (system provides 8 levels) and Class of

service (per port Hi/Low Queue)

Port Mirroring

Broadcast Filtering

Static MAC Address filtering

Port Security

GVRP

Package Contents

Unpack the contents of the package and verify them against the checklist

below.

MIL-SM808G Switch

Power Cord

Four Rubber Feet

RS-232 cable

User Guide ( CD Manual)

Warranty Card

If any item is missing or damaged, please contact your local dealer for

service.

Management Methods

The MIL-SM808G switch series support the following management

methods:





Console and Telnet Management





Web-based Management





SNMP Network Management

Console and Telnet Management

Console Management is done through the RS-232 Console Port.

Managing the switch in this method requires a direct connection between

a PC and the switch. Telnet management requires a network connection.

The default IP address is 192.168.1.77 with a subnet mask of

255.255.255.0. This default address can be used to login and change the

configuration using Telnet.

Web-based Management

The switch provides an embedded HTML web server residing in flash

memory. It offers advanced management features and allows users to

manage the switch from anywhere on the network through a standard

browser such as Microsoft Internet Explorer or Netscape.
