Milltronics MultiRanger Plus Bedienungsanleitung
MULTIRANGER
PLUS
PROGRAMMABLE
LEVEL SYSTEM
Instruction Manual
PL-443
June 1995
33454430
PRR 1.1
Table of Contents
General Information
Important 1 - 1
MultiRanger Plus 1 - 1
Specifications
MultiRanger Plus 2 - 1
Programmer 2 - 2
Transducer 2 - 2
Temperature Sensor 2 - 2
Current Output Isolator 2 - 2
Cabling 2 - 2
Installation
Multiranger Plus 3 - 1
Outline and Mounting 3 - 1
Circuit Board Layout 3 - 2
Interconnection 3 - 3
Installing the Transducer 3 - 3
Selecting Temperature Source 3 - 4
Current Output 3 - 4
Current Output Isolator 3 - 5
Synchronization 3 - 6
Power Connections 3 - 7
Programmer 3 - 8
Start Up
General 4 - 1
Programmer Keypad Run Mode 4 - 2
Program Mode 4 - 3
Legend 4 - 4
Parameter Entry 4 - 4
Common Display Messages 4 - 6
PL-443 i
Functional
Transceiver 5 - 1
Damping and Process Rate 5 - 1
Temperature Compensation 5 - 2
Sound Velocity 5 - 2
Blanking 5 - 3
Agitator Discrimination 5 - 4
Relays General 5 - 4
Function
Alarm 5 - 5
Pump 5 - 6
Miscellaneous 5 - 7
Analog Output 5 - 10
Applications 6 - 1
Simple Level Application 6 - 2
Pump Control Applications 6 - 4
Pump Run-On 6 - 8
Pump Totalizer Application 6 - 10
Volume Application 6 - 14
Common Tank Shapes 6 - 15
Custom Design Tanks 6 - 16
Compensation 6 - 19
Differential Level Application 6 - 22
OCM Applications 6 - 26
Single Exponential 6 - 33
Palmer-Bowlus 6 - 37
H Flumes 6 - 38
Other 6 - 39
Applications with Standpipes 6 - 42
PL-443 ii
Parameter Description
Parameters 7 - 1
Troubleshooting
General 8 - 1
Oscilloscope 8 - 1
Troubleshooting Guide 8 - 3
Maintenance
Maintenance 9 - 1
Appendices
Sound Velocities 10 - 1
Glossary 10 - 2
Alphabetical Parameter Listing 10 - 4
■
PL-443 iii
GENERAL INFORMATION
IMPORTANT
First and foremost it is essential that this manual be read and understood before
installation and start up of the MultiRanger Plus.
"Applications" provides a general description of the common applications found in
industry and illustrates them with examples. It is suggested that you refer to the
sub-section which most suits your application. The programming of the MultiRanger
Plus can be optimized by referring to Parameter Description or Appendices \
Alphabetical Parameter Listing.
THE MULTIRANGER PLUS
The MultiRanger Plus is a multi-purpose level monitoring system consisting
of a MultiRanger Plus in a CSA type 4 enclosure, a programmer and an
ultrasonic transducer.
The MultiRanger Plus emits an ultrasonic pulse via the transducer. The echo is
reflected from the material and received by the transducer. The echo is processed by
the MultiRanger Plus and the time at which the ultrasonic pulse hits the level or target
is extracted and compared to the time at which it was sent. The time differential is
then converted into distance, material level, volume, flow or differential level as a
basis for display, relay control, analog output and totalling.
As well as simple level measurement, the MultiRanger Plus was designed to handle
specific applications such as: pumped volume totalling, differential level and open
channel flow measurement.
■
PL-443 1 – 1
SPECIFICATIONS
MULTIRANGER PLUS
Power: » 100/115/200/230 V ±15%, stab selective
» 50/60 Hz, 15 VA
» optional: » 12 V dc model, 10 to 18 V dc
» 24 V dc model, 18 to 36 V dc
Fuse: » 1/4 amp MDL Slo-Blo or equivalent
Range: » 0.3 to 15 m (1 to 50 ft)
Accuracy: » 0.25% of range or 6 mm (0.24"), whichever is greater
Resolution: » 0.1% of range or 2 mm (0.08"), whichever is greater
Memory: » EEPROM (non-volatile) no back-up battery required
Display: » Liquid Crystal Display of 4 digits, 18mm (0.7") high
Operating Temperature: » – 20 to 60 °C (– 5 to 140 °F)
Outputs: transducer drive: » 41 KHz, 400 V peak pulses of 1 msec
max duration at a max
repetition rate of 300 msec
analog: » 0 - 20 or 4 - 20 mA
» max loading: » 350 ohms, return to ground
» 750 ohms, return to –12 V
» resolution: 0.1% of range
» optional mA isolator
relays: » 5 multipurpose relays (for alarms, pump control,...)
» 1 Form "C" SPDT contact per relay, rated 5 A at
220 V ac non-inductive
» adjustable deadband
All relays are certified for use in equipment where the short
circuit capacity of the circuits in which they are connected is
limited by fuses having ratings not exceeding the rating of the relays.
Enclosure: » CSA enclosure type 4 (similar to NEMA 4)
» 160 mm W x 250 mm H x 82 mm D
(6.3" W x 9.5"H x 3.2"D)
» polycarbonate
Approvals: » CE
Weight » 1.8 kg (4lb)
96/01/22
PL-443 2 – 1
PROGRAMMER
Enclosure: » general purpose
» 67 mm W x 100 mm H x 25mm D
(2.6" W x 4" H x 1" D)
» ABS plastic
Operating Temperature: » – 20 to 50 °C (– 5 to 122 °F)
Power: » 9 V battery (style - ANSI/NEDA 1604)
TRANSDUCER
Refer to associated Transducer manual.
TEMPERATURE SENSOR
Refer to associated Temperature Sensor manual
CURRENT OUTPUT ISOLATOR (Optional, refer to PL-293)
Model: » LIs-1 loop isolator
Input: » 4 - 20 mA dc (from MultiRanger Plus)
Output: » 4 - 20 mA dc into 600 ohm max
Isolation: » 300 V ac continuous
Common Mode Rejection » 100 dB at 60Hz
CABLING
Optional: » RG-62A/U coax
» max distance to electronics: 365 m (1200 ft)
» must be run in grounded metal conduit
Temperature Sensor: » Belden 8760, 2 wire shielded
» max distance to electronics: 365 m (1200 ft)
» can be run with transducer cable
■
PL-443 2 – 2
Inhaltsverzeichnis
Andere Milltronics Messgerät Handbücher
Milltronics
Milltronics Mercap MCP01 S series Bedienungsanleitung
Milltronics
Milltronics HydroRanger I Bedienungsanleitung
Milltronics
Milltronics miniranger plus Bedienungsanleitung
Milltronics

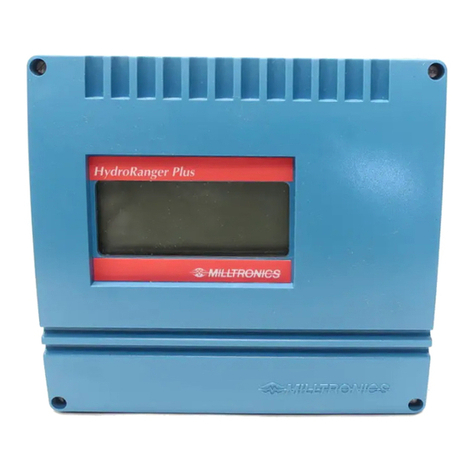

Milltronics HydroRanger Plus Bedienungsanleitung
