MINOURA SS-700 Bedienungsanleitung

Bicycle Maintenance & Display Stand – instructions manual

MINOURA NORTH AMERICA MINOURA JAPAN

(for U.S. residents only) (for all customers)

1996 East Avenue, Hayward, CA 94541 U.S.A. 1197-1 Godo, Anpachi, Gifu 503-2305 Japan

Phone: 1-510-538-8599 / Fax: 1-510-538-5899 Phone: +81-584-27-3131 / Fax: +81-584-27-7505

Email: [email protected] Email: [email protected]

www.minourausa.com www.minoura.jp

Made in Japan

SS-700

Important Notes

• Only for normal 2-wheel bicycle with 125 - 140mm rear hub. Any internal transmission rear

hub cannot be used on SS-700. Nut type hub and old narrow bike frame require replacing

the left side coupling bolt to the optional longer one.

• Any quick release skewer of your bicycle must be replaced to the supplied one.

• SS-700 cannot be upgraded to be an indoor bicycle trainer by adding a resistance unit.

If you have any questions or need help, you should contact the dealer where you purchased or the Minoura distributor in your country rst.

The distributor can be found on our web site. Only when you cannot get enough service from them, you can contact us;

Contact

Spinning-Stand

(Ver.1.0 2009/08)

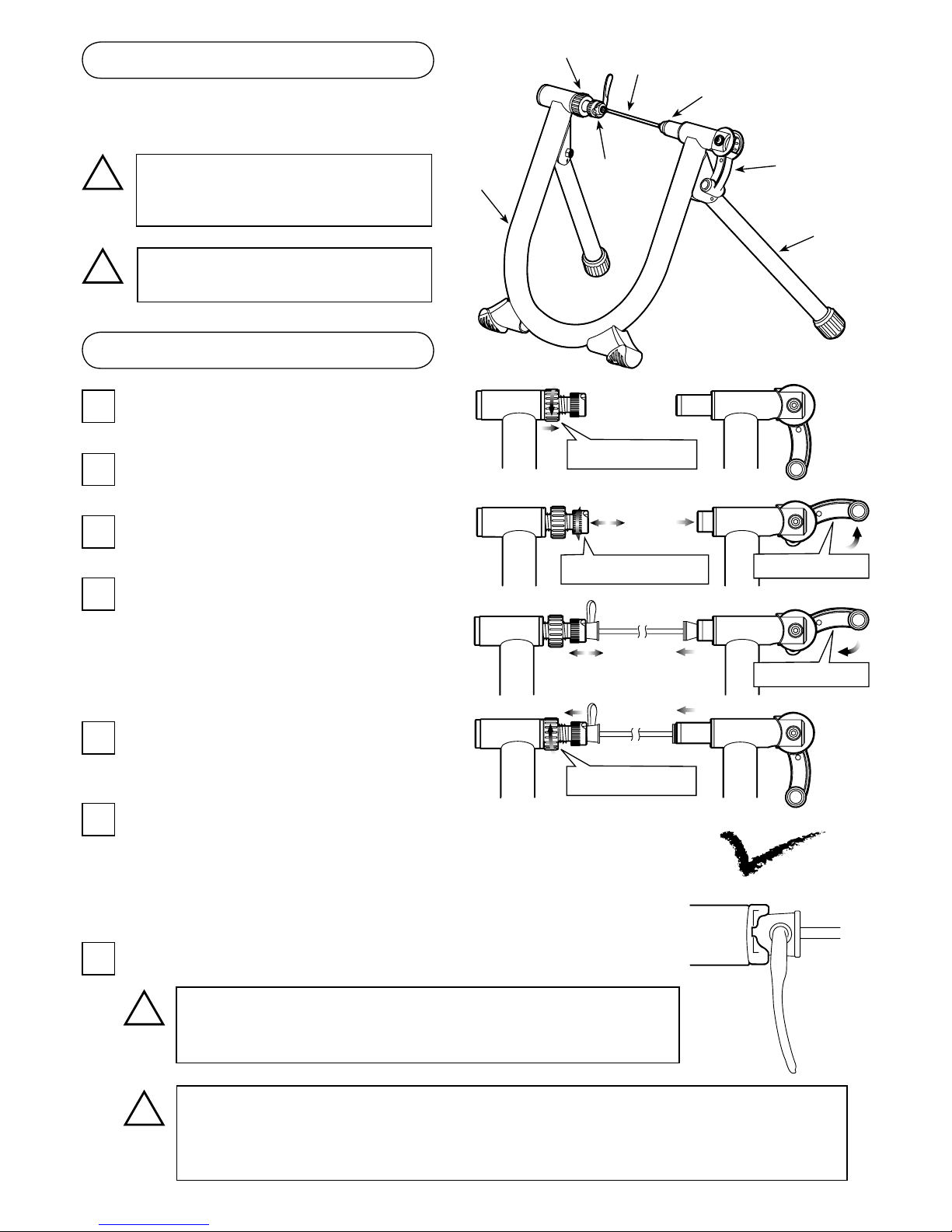

At rst, replace your rear wheel quick release

skewer to the supplied one.

Loosen the Lock Ring to allow the Left Side

Coupling be free. (see Fig. A)

Pull up the Quick Hub Clamp Lever to retract the

Right Side Coupling. (see Fig. B)

Insert the left side (quick lever side) skewer into the

Left Side Coupling rst.

The quick lever shaft must be inserted into the cut-

out on the coupling (see Fig. E) to hold the bike

stable. Turn the coupling to adjust the cut-out

position.

While keeping this position, slowly come down the

bike to align the right side acorn nut to the Right

Side Coupling. (see Fig. C)

(Fig. A)

(Fig. B)

(Fig. C)

(Fig. D)

Both left and right side couplings are designed to suit the

supplied quick release skewer. The left side coupling must t

perfectly in the skewer head to get correct stability. (Fig. E)

(Fig. E)

Precisely adjust the left side coupling position to keep the correct thightness of rear

hub clamping.

Too tight setting will cause damage to both SS-700 and your bike frame.

Too loose setting may cause the bike to come out of the trainer during use.

Push down the Quick Hub Clamp Lever to hold the rear wheel. (see Fig. C)

If you start feeling resistance when the lever comes at 4 o'clock position, it's

correct.

If clamping the hub is too tight or too loose due to wrong position of the

Left Side Coupling, pull up the lever to release the bike, adjust the Left Side

Coupling position, and try clamping the hub again.

Lastly, tighten the Lock Ring to x the Left Side Coupling position. (see Fig. D)

Quick Release Skewer

Lock Ring

Left Side

Coupling

Right Side Coupling

Quick Hub

Clamp Lever

Leg

Frame

How To Install Your Bike on SS-700

Loosen Lock Ring

Turn to adjust position

Tighten Lock Ring

Push down lever

Pull up lever

Fully open the Legs and place on at and level oor.

Check if all 4 leg points are touching the oor stably at once.

Do not use SS-700 on any sloping

ground. The bike stability will be

disturbed and may fall down.

Be careful not to pinch your nger

when opening and closing the legs.

How To Setup Your SS-700
