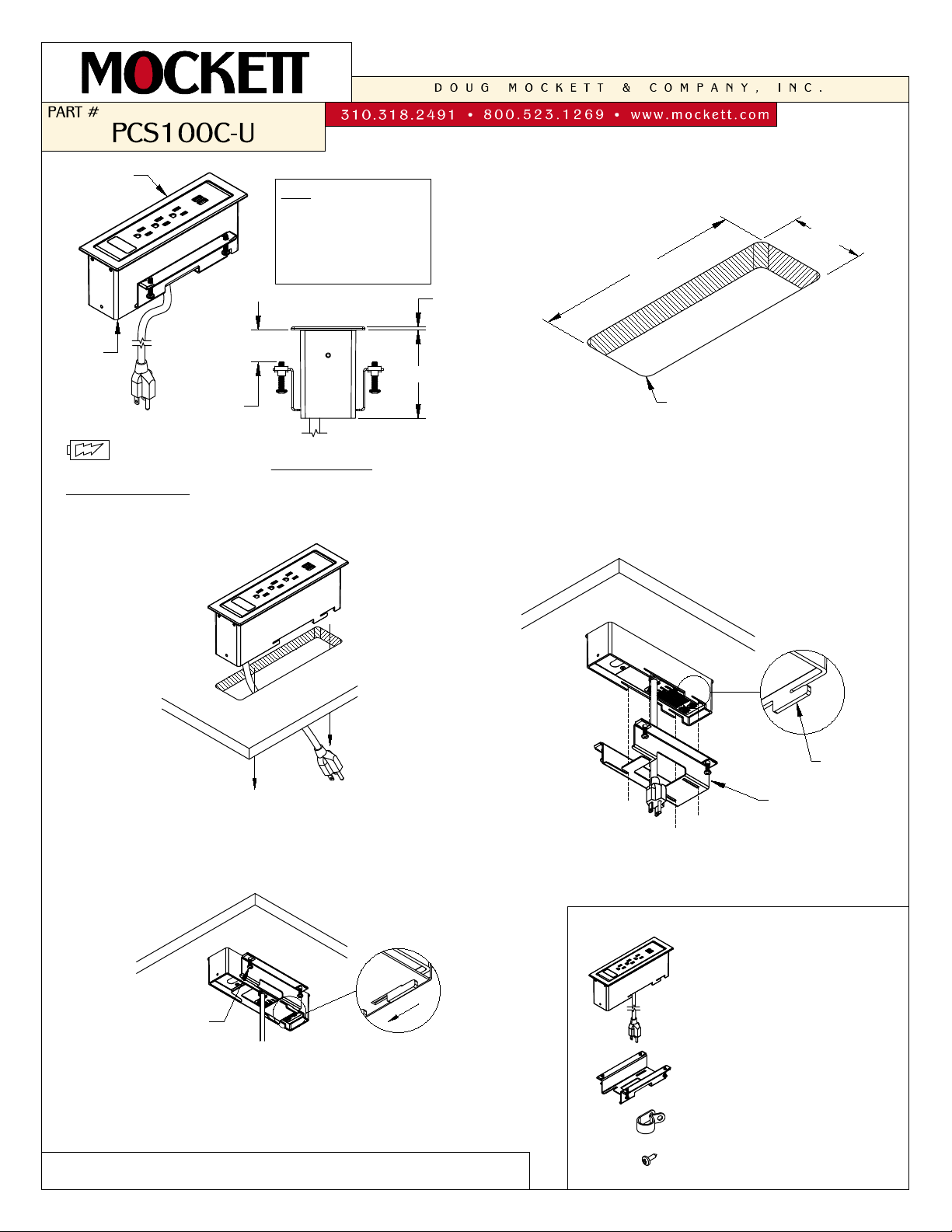

NOTE:
PLEASE USE APPLICABLE
DATA BEZEL. (SEE DATA
INSTALLATION FOR MORE
INFORMATION.)
RIGHT VIEW
3-5/32"
3/4" MIN.
1-1/8" MAX.
TABLE
THICKNESS
3/32"
USB plugs for
CHARGING USE ONLY.
8-27/32" X
2-5/8"
8-1/2" X
2-1/8"
CUT OUT
1
2-1/8"
4 X
1/4" RAD.
Make a cut out in the desired work surface.
(NOTE: Cut out corners must contain 1/4" radius.)
8-1/2"
6 ft. CORD
2
Guide the power cord through the cut out. Install
the PCS100C into the cut out and make sure it
is fully leveled onto surface.
TABLE OF CONTENTS:
...................1 X PCS100C-U
(3 POWER,
1 DATA, &
1 DUAL USB)
...................1 X Clamp
...................2 X Wire Guides
...................2 X Screws
Loosen the clamp screws. Align the clamp from the
bottom mounting tabs.
3
Mounting
Tab
Clamp
Lock the clamp by sliding to the edge of the
mounting tab. Secure the unit by tightening the
(4) screws. Plug the unit into nearby outlet (outlet
should be close enough to where power cord is
not taut or strained) and unit is ready for use.
4
Screws
(SEE REVERSE SIDE FOR DATA JACK INSTALLATION INSTRUCTIONS)
