MONOPRICE
HDMI® 1080p to 4K Upscaler
with Digital Optical Audio Splitter
Model 14599
User's Guide
2
SAFETY WARNINGS AND GUIDELINES
This device is intended for indoor use only.
Do not expose this device to water or moisture of any kind. Do not place drinks or
other containers with moisture on or near the device. If moisture does get in or on
the device, immediately unplug it from the power outlet and allow it to fully dry
before reapplying power.
Do not expose this device to excessively high temperatures. Do not place it in, on,
or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct
sunlight.
Unplug this device from the power source when not in use.
Prior to operation, check the unit and power cord for physical damage. Do not use if
physical damage has occurred.
Before plugging the unit into a power outlet, ensure that the outlet provides the
same type and level of power required by the device.
Do not allow the power cord to be crimped, pinched, stepped on, etc. Ensure that
the power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord. Always grasp the connector
head or adapter body.
Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
In the event of serious operating problem, stop using the unit immediately.
Keep out of reach of children.
Keep away from corrosive materials.
3
INTRODUCTION
Thank you for purchasing this HDMI® Scaler!
This device accepts a High Speed HDMI signal at up to 1080p resolution (1920x1080p) and
upscales it to 4K @ 24/30Hz (3840x2160p) for display on 4K monitors or UHD televisions.
The output is switchable between a pass-through signal, which outputs the original video
without modification, unscaled with different audio options, or scaled. The HDMI input is
MHL™compatible, so you can connect it directly to your MHL-equipped phone or tablet. It
supports high-definition multichannel audio signals and provides a dedicated S/PDIF digital
optical audio output for connection to an AV receiver.
FEATURES
Upscales 1080p input to 4K resolution
Supports 3D video
Switchable pass-through or upscaled output
HDMI input port is compliant with the MHL 2.0 specification
Extracts the audio signal and outputs S/PDIF digital optical audio for use with a
standalone AV receiver
Supports Deep Color up to 12-bits per channel (36-bits total) at 1080p@30Hz
resolution
Supports compressed and uncompressed multichannel audio, including PCM, Dolby
Digital™, and DTS Digital Surround™
Supports HDCP and CEC pass-through
Can reliably transmit 4K@30Hz video to 15 meters or 4K@24Hz to 20 meters
4
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to ensuring that your ordering,
purchasing, and delivery experience is second to none. If you have any problem with your
order, please give us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our website
www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed
below. If anything is missing or damaged, please contact Monoprice Customer Service for a
replacement.
1x HDMI® scaler 2x Mounting ears
1x AC power adapter 4x Mounting screws
1x User's manual

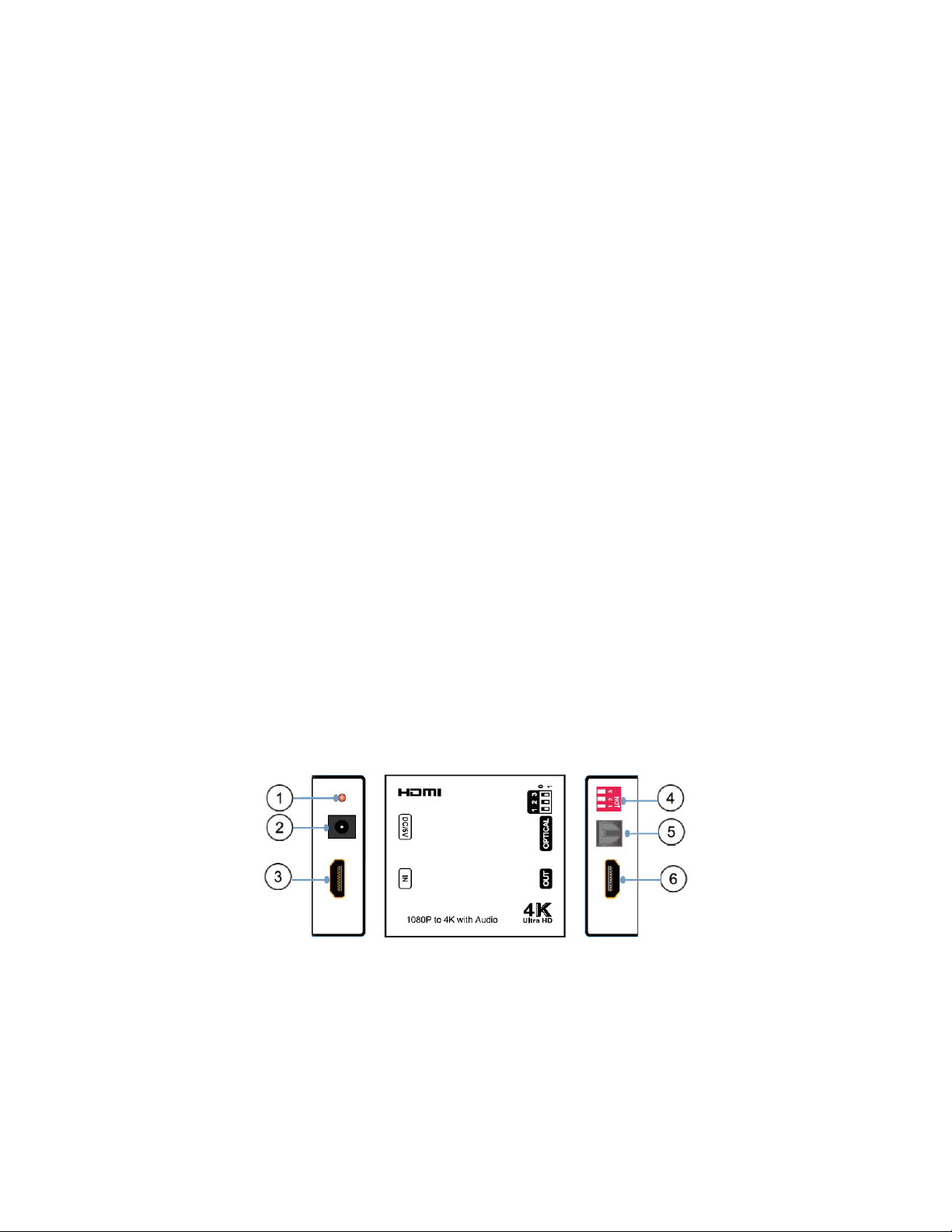

PRODUCT OVERVIEW
1. HDMI output LED indicator 4. EDID DIP switches
2. DC input power jack 5. S/PDIF digital optical audio output
3. HDMI input 6. HDMI output
5
EDID DIP SWITCH SETUP
The DIP switches on the side are used to set the Extended Display Identification Data,
which is used to inform the source device of the display capabilities of the output device.
This scaler uses DIP switches to manually set the EDID value. Before making any changes to
the DIP switch settings, unplug the scaler from its power source.
Refer to the diagram on top of the scaler and the label on the DIP switches to identify
which position is the ON (1) position and which is OFF (0). Set the DIP switches according
to the following table.
DIP Switches
Video and Audio Settings
1
2
3
0
0
0
1080p 3D pass-through
0
0
1
1080p 3D with 2.0-channel PCM
0
1
0
1080p 3D with 5.1-channel AC3/DTS audio output
0
1
1
Reserved
1
0
0
Reserved
1
0
1
Reserved
1
1
0
Reserved
1
1
1
Upscale 1080p@24/30Hz to 4K@24/30Hz
6

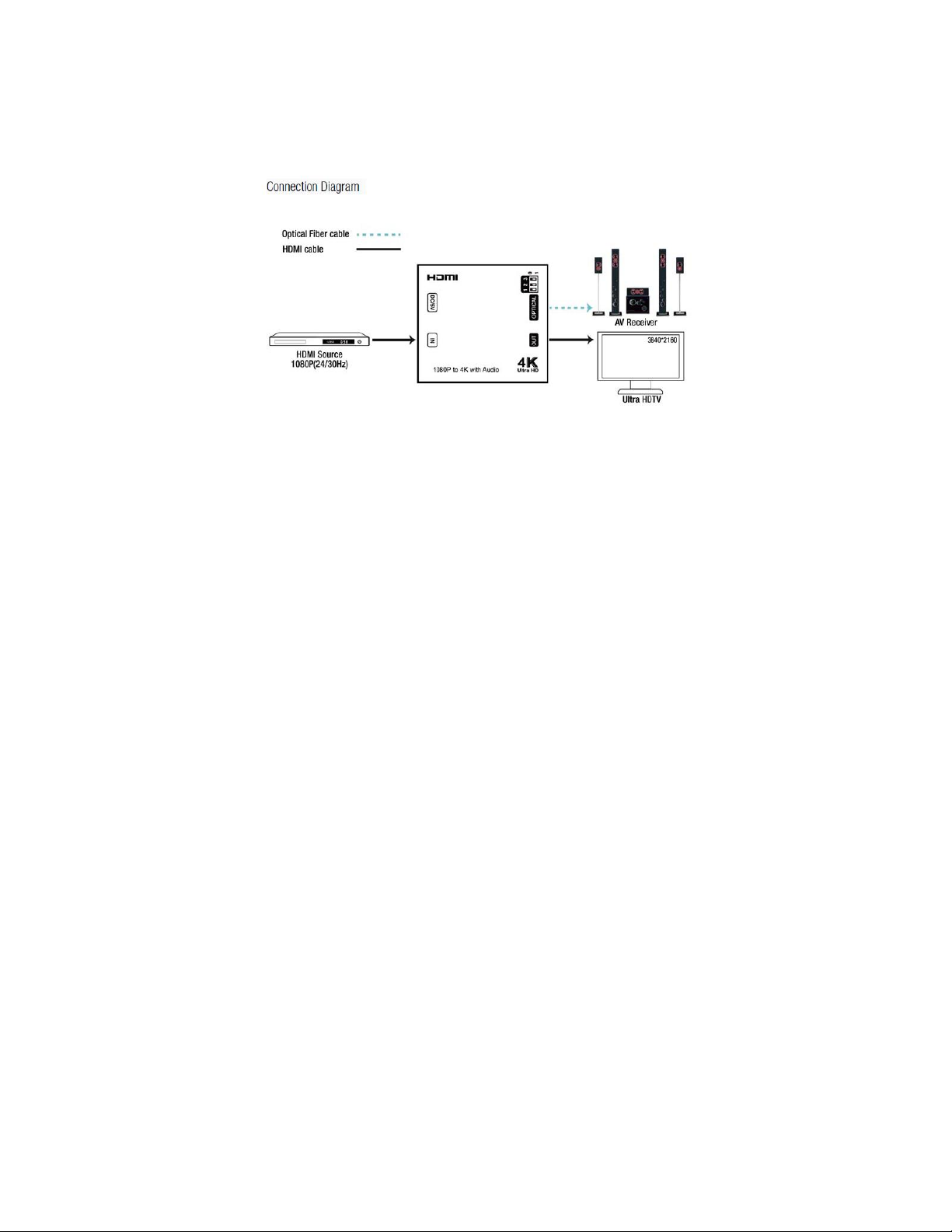

CONNECTION
1. Ensure that all devices that will be connected are powered off and unplugged from
their power sources.
2. Refer to the
EDID DIP SWITCH SETUP
section above and set the DIP switches for the
desired output.
3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input
on your 4K monitor or UHD television. Plug the other end into the HDMI OUT port
on the scaler.
4. Using a High Speed HDMI Cable (not included), plug one end into the HDMI IN port
on the scaler. Plug the other end into the HDMI output of your video source device.
5. (Optional) Using an S/PDIF Digital Optical Audio Cable (not included), plug one end
into the optical audio input on your AV receiver/amplifier. Plug the other end into
the OPTICAL output on the scaler.
6. Plug the DC barrel connector on the included AC adapter into the DC5V port on the
scaler, then plug the adapter into a nearby AC power outlet. The LED indicator next
to the DC5V port should flash once then go out.
7. Plug in and power on all connected equipment. Start your video source and verify
the outputs are correct.
Note: The HDMI output LED indicator illuminates whenever an HDMI signal with
HDCP is detected. If the HDMI signal does not contain HDCP, the indicator will
remain off.
7
TROUBLESHOOTING
Q1: No video output.
A1: Perform the following checks:
Verify that the AC power adapter is plugged into a live AC outlet by plugging a
different device into the power outlet (e.g., a lamp).
Verify that the video source device is powered on and that video content is being
played.
Ensure that the display is powered on and set to the correct video input.
If using the Optical audio output, check to see if audio exists to indicate whether a
valid input signal is present.
If you have set the DIP switches to anything other than the default (000, all off), try
setting them to 000.
Try swapping out the HDMI output cable for a known good one.
Try swapping out the HDMI input cable for a known good one.
Q2: Video is present, but no audio can be heard.
A2: If you have set the DIP switches to anything other than the default (000, all off), try
setting them to 000.
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to assist you with any
questions you may have about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your new product, please come online
to talk to one of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website www.monoprice.com
during regular business hours, 7 days a week. You can also get assistance through email by
sending a message to tech@monoprice.com
8
SPECIFICATIONS
Inputs
1x High Speed HDMI®
Outputs
1x High Speed HDMI
1x S/PDIF digital optical audio
Maximum Input Resolution
1920x1080p@30Hz
Pass-Through Output Resolution
1920x1080p@30Hz
Maximum Scaled Output Resolution
3840x2160p@24/30Hz
Bandwidth
10.2Gbps
Maximum Transmission Distance
20 meters using 26AWG passive HDMI cable
Input Power
5 VDC, 1A
AC Adapter Input Power
100 ~ 240 VAC, 50/60Hz, 0.2A
Power Consumption
up to 1.5 watts
Operating Temperature
+23 ~ +95°F (-5 ~ +35°C)
Operating Humidity
5 ~ 90% RH, noncondensing
Dimensions
2.8" x 2.6" x 0.8" (72 x 65 x 22 mm)
Weight
5.1 oz. (145g)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
9
Modifying the equipment without Monoprice’s authorization may result in the equipment no
longer complying with FCC requirements for Class B digital devices. In that event, your right to use
the equipment may be limited by FCC regulations, and you may be required to correct any
interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
MHL™ is a trademark of MHL, LLC in the United States and/or other countries.
Dolby and Dolby Digital are trademarks of Dolby Laboratories.
DTS is a registered trademark and DTS Digital Surround is a trademark of DTS, Inc.
