Monoprice 11749 Bedienungsanleitung
HDMI® to 3G SDI Converter
P/N 11749
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device,
paying extra attention to these safety warnings and
guidelines. Please keep this manual in a safe place for future
reference.
This device is intended for indoor use only.
Do not expose this device to water or moisture of
any kind. Do not place drinks or other containers with
moisture on or near the device. If moisture does get
in or on the device, immediately unplug it from the
power outlet and allow it to fully dry before
reapplying power.
Do not touch the device, the power cord, or any
other connected cables with wet hands.
Do not expose this device to excessively high
temperatures. Do not place it in, on, or near a heat
3
source, such as a fireplace, stove, radiator, etc. Do
not leave it in direct sunlight.
Prior to operation, check the unit and power cord for
physical damage. Do not use if physical damage has
occurred.
Before plugging the unit into a power outlet, ensure
that the outlet provides the same type and level of
power required by the device.
Unplug this device from the power source when not
in use.
Take care to prevent damage to the power cord. Do
not allow it to become crimped, pinched, walked on,
or become tangled with other cords. Ensure that the
power cord does not present a tripping hazard.
Never unplug the unit by pulling on the power cord.
Always grasp the connector head or adapter body.
4
Ensure that power is turned off and disconnected
before making any electrical connections.
Clean using a soft, dry cloth only. Do not use
chemical cleaners, solvents, or detergents. For
stubborn deposits, moisten the cloth with warm
water.
This device has no user serviceable parts. Do not
attempt to open, service, or modify this device.
INTRODUCTION
This HDMI® to 3G SDI Converter allows you to view HDMI
video signals on two SDI displays. It supports HDMI
resolutions up to 1080p@60Hz, 675Mbps video bandwidth,
and operated at 2.970 Gbps, 2.970//1.001 Gbps, 1.485 Gbps,
1.485/1.001 Gbps, and 270 Mbps.
5
FEATURES
Displays an HDMI® video source on two SDI displays
Supports HDMI resolutions up to 1080p@60Hz
Operates at 2.970 Gbps, 2.970//1.001 Gbps, 1.485 Gbps,
1.485/1.001 Gbps, and 270 Mbps
Supports SDI signal input and output distances up to
300m for SD signals, 200m for HD signals, and 100m
for 3G signals
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated
to ensuring that your ordering, purchasing, and delivery
experience is second to none. If you have any problem with
your order, please give us an opportunity to make it right.
You can contact a Monoprice Customer Service
6
representative through the Live Chat link on our website
www.monoprice.com or via email at
[email protected]. Check the website for support
times and links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure
you have all the items listed below. If anything is missing or
damaged, please contact Monoprice Customer Service for a
replacement.
1x HDMI® to 3G SDI Converter
1x AC Power Adapter (5 VDC, 1A)
1x User's Manual
7
PRODUCT OVERVIEW
1. DC5V: DC barrel connector for connecting the
included AC power adapter.
2. POWER: The LED illuminates when power is applied.
3. HDMI IN: HDMI® connector for connecting the HDMI
video source.
4. OUT2: BNC connector for connecting an SDI display.
5. OUT1: BNC connector for connecting an SDI display.
8

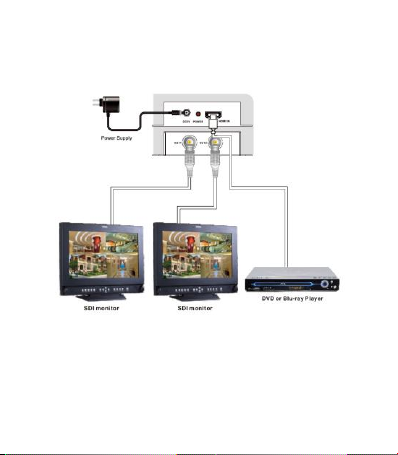

SAMPLE CONNECTION DIAGRAM
9
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical
support to assist you with any questions you may have
about installation, setup, troubleshooting, or product
recommendations. If you ever need assistance with your
new product, please come online to talk to one of our
friendly and knowledgeable Tech Support Associates.
Technical support is available through the online chat
button on our website www.monoprice.com or through
the website for support times and links.
Model
11749
Input
1x HDMI®
Outputs
2x SDI BNC
HDMI Version
1.3
10
HDMI Video Bandwidth
225 MHz/channel
675 MHz total
Supported HDMI Video
Resolutions
480i@60, 576i@50,
720p@50/59.94/60,
1080i@50/59/94/60,
[email protected]/24/25/29.97/
30/50/59/94/60
SDI Transmission Rates
2.970 Gbps and 2.970/1.001
Gbps
Audio Formats
LPCM 48kHz
Input Power
5 VDC, 1A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Power Consumption
2.5 watts
Operating Temperature
+32 ~ +104°F (0 ~ +40°C)
Storage Temperature
-4 ~ +140°F (-20 ~ +60°C)
