Monoprice 33822 Bedienungsanleitung

32" QHD 1440p VA Frameless Aluminum

Desktop Monitor Adaptive Sync 144hz with

Height Adjustable Stand

P/N 33822

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

-This monitor is intended for indoor use only.

-Do not expose this monitor to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

-Do not touch the monitor, the power cord, or any other connected cables with wet

hands.

-Do not place the monitor on an unstable surface where it could fall and cause either

personal injury or damage to the monitor and/or other equipment.

-Do not subject the monitor to extreme force, shock, or fluctuations in temperature

or humidity.

-Do not block the ventilation holes in the monitor's casing. Do not place the monitor

in a confined space with inadequate ventilation. Periodically check the ventilation

holes to ensure they do not become clogged with dust, debris, or nearby items.

-Do not place the monitor near a heat source, such as a fireplace, heating vent,

radiator, etc.

-Do not place or install this monitor in an area where it can be exposed to excessive

amounts of dust, humidity, oil, smoke, or combustible vapors.

-Prior to operation, check the monitor and power cord for physical damage. Do not

use if physical damage has occurred.

-Unplug this monitor from the power source when not in use.

-Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

-Never unplug the monitor by pulling on the power cord. Always grasp the

connector head or adapter body.

-Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

-This monitor has no user serviceable parts. Do not open the case or otherwise

attempt to modify this monitor.

-Do not leave a single image on the display for a long period of time. Doing so could

cause "burn-in" of the image. It is recommended to use a variable desktop

background and to use a screen saver to prevent "burn-in". Alternatively, ensure

that the monitor is powered off for at least 2 hours out of every 12.

PACKAGE CONTENTS

1 x 32” QHD 1440p Monitor

-1x Base

-1x Stand

-1x Thank You Card and User Manual

-1x Power Cable

-1x DP to Mini DP cable

-8x Screws

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at s[email protected]

HARDWARE INSTALLATION

Wall Mounting (Optional)

NOTE: For use only with a UL Listed Wall Mount Bracket.

To obtain a wall-mounting kit or height adjustment base, contact

Monoprice . Refer to the instructions that come included or along

with the base mounting kit. To convert your display from a desk-

mounted to a wall-mounted display, do the following:

1. Find VESA compatible wall-mounting kit which meets the

quaternions in section "Specifications".

2. Verify that the power button is turned Off, then disconnect the

power cord.

3. Lay the display face down on a towel or blanket.

4. Remove the base. (Screws removal might be required.)

5. Attach the mounting bracket from the wall mounting kit using

screws of the appropriate length.

6. Attach the display to the wall, following the instructions in the

wall-mounting kit.

USING THE KENSINGTON LOCK

The Kensington security connector is located on the back side of the

monitor. For more information on installation and usage please visit

the Kensington website at http://www. kensington.com.

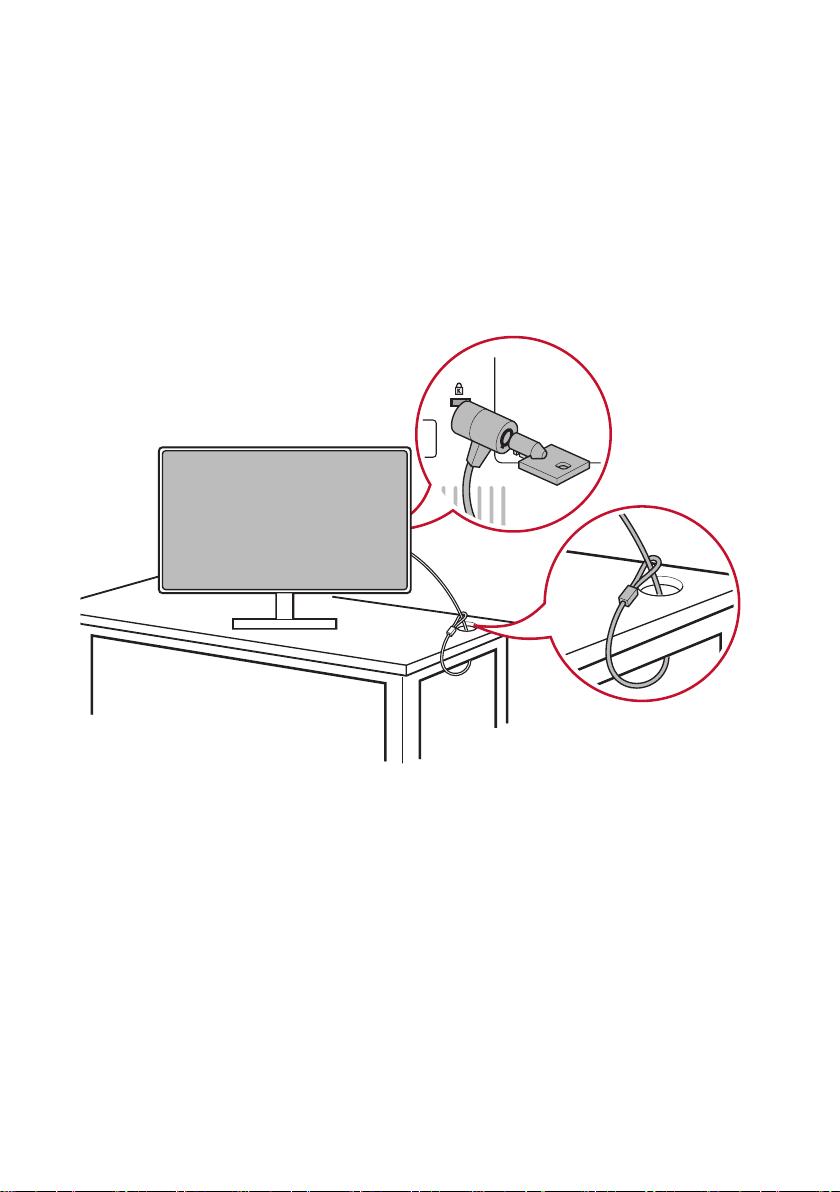

Below is an example of setting up the Kensington lock on a table for

your reference.

*This picture is for reference only

Please do not connect the DisplayPort out on the monitor

to the DisplayPort or mini DP connector on the computer.

DisplayPort out is used for daisy chain connection (Explained

in section C)

Video and Audio Cable

For a MAC with Thunderbolt output, please connect the

mini DP end of the “mini DP to DisplayPort cable” to the

Thunderbolt output of MAC. And connect the other end of the

cable to the DisplayPort connector on the rear of the monitor.

*This picture is for reference only

Power Cable (and AC/DC adapter if required)

Connect the female connector of AC power cord to the power

connector of monitor, and the AC plug of AC power cord to the

AC outlet.

POWER ON

Turn On LCD Monitor and Computer

Turn ON the LCD Monitor, then turn ON the computer. This

particular order (LCD monitor before computer) is important.

*This picture is for reference only

ADJUSTING THE SCREEN IMAGE

SETTING THE TIMING MODE

Set your monitor resolution to its recommended resolution (see

section "specification") to get the best experience possible, with

brilliant color and crisp text. Here is how:

1. Go to your display resolution settings window (each operating

system will have a different process to get there).

2. Next, adjust the display resolution setting to match your

monitor’s native resolution. This will provide you with your best

usage experience.

If you have difficulty setting the resolution or you do not see

recommended resolution as an available option, you may need

a newer video card driver. Contact your computer or video card

manufacturer to obtain the latest driver.

• If necessary, make small adjustments using H. POSITION and

V. POSITION until the screen image is completely visible. (*for

analog only). (The black border around the edge of the screen

should barely touch the illuminated “active area” of the LCD

monitor.)

USING THE CONTROL PANEL

After setting the timing mode, use the buttons on the front or

rear control panel to display and adjust OSD for screen image

adjustment.

* The postition refer to section 2.2

Bezel & OSD symbol explanation

The bezel symbol explanation is stated below:

Standby Power On/Off

NOTE: Power light

Blue = ON

Orange = Power Saving

Toggles between the various input options that are available for

that particular monitor.

Main menu icon that allows users to access the main menu.

The OSD Menu and OSD Quick-Menu Symbol explanations and

their functional uses are stated below.

Activation symbol to turn the various modes on when operating

the menu system.

Activation symbol to exit, go back or deactivate the desired

function that is selected.

Scrolls through menu options and adjusts the monitor controls.

Symbol used to go back or revert back to the previously

selected menu

Information shortcut select button, which gives users access to

the information of the monitor currently in use.

Main menu icon that allows users to access the main menu.

Hold down the icon for a few seconds to turn off the main menu

Left and right icons toggle your selected choice horizontally.

75%

The Energy Gauge displays the percentage of

maximum energy output being consumed by

the monitor in real time.
