Monster PERFECTVIEW 450M Bedienungsanleitung

PerfectView

™

400M

FlatScreen Mount

Support d’écran plat

PerfectView

™

400M

Base PerfectView

™

400M

FlatScreen para

televisores planos



USER GUIDE & WARRANTY

GUIDE ET GARANTIE D’UTILISATEUR

GUÍA DEL USUARIO Y GARANTÍA

A NOTE FROM THE HEAD MONSTER

Dear Enthusiast,

THANK YOU

for purchasing

the Monster

PerfectView 400M

® PerfectView 400M

FlatScreen Mount. The PerfectView

400M reﬂ ects our passion for

creating the most innovative and

practical AV solutions on the market,

so enthusiasts like yourself always

experience the absolute best

from their high-performance AV components. Monster

FlatScreen Mounts

™

deliver the clean, sophisticated style

you want, plus exclusive adjustment features for the

perfect view in virtually any room. Start enjoying TV on

your terms—when, where, and how you want to watch.

Noel Lee,

The Head Monster

More Great Products

from Monster FlatScreen

™

The Look You Want. The Performance You Need.

Monster FlatScreen Cables

™

Ultra slim and ﬂ exible, Monster FlatScreen

Cables ensure a clean, no-clutter hookup

to your thin display. Plus, they feature

advanced Monster Cable

technologies, so you

® technologies, so you

always get the best possible picture and sound.

Monster FlatScreen PowerProtect

™

and PowerCenters

™

Safeguard your ﬂ atscreen investment

from harmful electrical surges and

“dirty” AC power with exclusive Monster

Power

technologies, including Monster

® technologies, including Monster

SurgeGuard

™

and Monster

Clean Power

™

Monster FlatScreen Clean

™

Our safe LCD and plasma cleaning

solution instantly removes dust, dirt

and ﬁ ngerprints from your ﬂ atscreen

without drips, stains or scratches.

For more details on all our Monster FlatScreen products,

visit us at

MonsterCable.com/FlatScreen

advanced Monster Cable

always get the best possible picture and sound.

Monster FlatScreen Clean

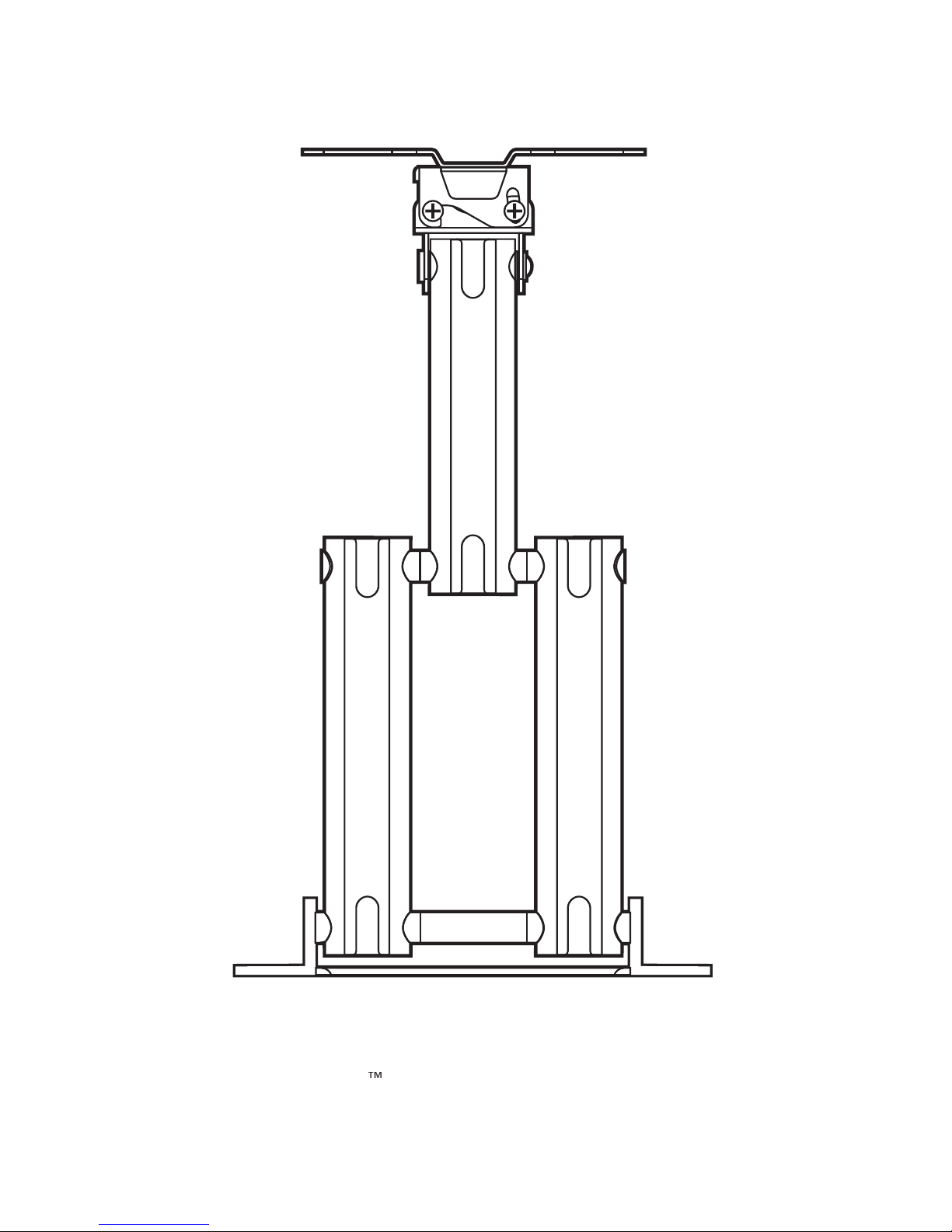

PerfectView 400M FlatScreen Mount

PerfectView 400M is designed to mount

24"

-to-

37"

ﬂ atscreen televisions to vertical walls. Maximum weight

capacity is

100 lbs.

SAFETY WARNING:

If you don’t understand these

directions, or have doubts about this product’s installation,

please call a qualiﬁ ed contractor or contact Monster Cable

Products, Inc. at

1-877-800-8989.

Before installing, carefully review the instructions

to ensure that no parts are missing or defective. Improper

installation can cause damage or serious injury. Do not use

this product for any purpose not explicitly speciﬁ ed

by Monster. Monster is not liable for damage or injury

caused by incorrect assembly, incorrect mounting

or incorrect use.

All hardware is supplied for the following wall conditions:

Wood stud, brick, solid concrete, and concrete block.

Note:

The supplied hardware

is not for steel stud walls.

If you are uncertain about the nature of your wall

construction, consult an installation contractor.





Speciﬁ cations and Notes:













 





















Monster is constantly striving to improve its products.

Speciﬁ cations are subject to change without notice.

Required Tools

Wood Stud Mounting:

Electronic stud sensor

Level (included)

Electric hand drill

3/16" drill bit

Phillips screwdriver

Combination wrenches or socket set

Masonry Mounting

(brick, solid concrete, concrete blocks):

Above tools, plus hammer

Replace 3/16" drill bit with 1/2" masonry drill bit

•

Package Contents

1 Mounting System

(VESA

™

75x75, 100x100, 100x200,

200x200 Compliant)

2 Allen

Wrenches

Phillips Screws

4 ea. M4x12

6 ea. M4x25

6 ea. M4x40

4 ea. M5x12

6 ea. M5x25

6 ea. M5x40

4 ea. M6x12

6 ea. M6x25

6 ea. M6x40

1 Bubble

Level

2 Round

Washers

2 Lag Bolts

2 Masonry

Anchors

If any parts are missing, please call 800-877-8989.

Parts in supplied hardware kit

are numbered as above.

2 Quick-Snap

Screw Caps

5 End Caps

Warnings

Forbidden Actions:

DO NOT install on a sloping surface. Install

exclusively on a vertical surface.

DO NOT mount to cabinetry made of particleboard.

DO NOT install in a room with excessively high

temperatures or high humidity. Install at least 3 ft.

from all water sources.

DO NOT install near an air conditioner.

DO NOT install in a location where there

is excessive dust, smoke or moisture.

These sources can create a ﬁ re.

DO NOT apply unnecessary stress or load

on the installed unit. Never hang on the unit.

DO NOT install the unit alone. Safe installation

requires at least two people.

DO NOT route your ﬂ atscreen TV’s power cord

in wall. Check local building/electrical codes

for more information.
