Moosoo K12 Bedienungsanleitung
Cordless Handheld Vacuum Cleaner
Model Number: K12
SAFETY INSTRUCTIONS
PRODUCT PARTS LIST
VACUUM CLEANER ASSEMBLING
PRECAUTIONARY MEASURES
VACUUM CLEANER CLEANING GUIDE
CHARGING GUIDE
TROUBLESHOOTING GUIDE
CARE AND MAINTENANCE
MOOSOO WARRANTY
CONTENTS
01
02
04
05
06
07
08
09
10
01
SAFETY INSTRUCTIONS
WARNING: To reduce the risk of injury, fire, electric shock and property damage.
Carefully observe the following instructions.
1. This appliance is for domestic use only. Please read this instruction booklet
carefully.
2. Before using this appliance, check that the mains power voltage corresponds to
the voltage shown on the rating plate.
3. All the following things can't handle by vacuum cleaner:
water and other liquids
lighted stub, hot ashes and other combustible things
sharp matter
wood pieces, gesso, cement, glass, nails, screws, or coins,etc.
flammable or combustible materials (e.g., lighter fluid, gasoline,
or kerosene)
4. Never use spirits or other solvents to clean the appliance.
5. Do not switch the vacuum on if it appears to be faulty in any way.
6. Do not use damaged vacuum or charging dock.
7. Do not incinerate vacuum, even if it is severely damaged. The battery should be
disposed safely.
8. Do not put any object into openings.
9. Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
10. Do not use the vacuum without dust cup and filter in place.
11. Make sure filter is thoroughly dry before dust cup and filter are installed.
12. This appliance can be used by children aged from 8 years and above, persons
who lack of experience and knowledge but under supervision when they use the
vacuum.
02
PRODUCT PARTS LIST
Switch button
Dust cup
release button
Brush
Dust cup
Handle
Charging port
DC head socket
Charging base
Crevice tool
Adapter
1. This appliance is for domestic use only. Please read this instruction booklet
carefully.
2. Before using this appliance, check that the mains power voltage corresponds to
the voltage shown on the rating plate.
3. All the following things can't handle by vacuum cleaner:
water and other liquids
lighted stub, hot ashes and other combustible things
sharp matter
wood pieces, gesso, cement, glass, nails, screws, or coins,etc.
flammable or combustible materials (e.g., lighter fluid, gasoline,
or kerosene)
4. Never use spirits or other solvents to clean the appliance.
5. Do not switch the vacuum on if it appears to be faulty in any way.
6. Do not use damaged vacuum or charging dock.
7. Do not incinerate vacuum, even if it is severely damaged. The battery should be
disposed safely.
8. Do not put any object into openings.
9. Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
10. Do not use the vacuum without dust cup and filter in place.
11. Make sure filter is thoroughly dry before dust cup and filter are installed.
12. This appliance can be used by children aged from 8 years and above, persons
who lack of experience and knowledge but under supervision when they use the
vacuum.
Screw
Car adapter
03
About the indicator light:
1. In working: The light is constantly blue.
2. In charging: The indicator light will flash in charging. When the indicator light
stops flashing to be blue constantly, it means that the cordless vacuum is fully
charged.
NOTE: The indicator light flashing in working means that the battery is low and
needs to be charged.
Warning:
Please read the INSTRUCATION MANUAL carefully before using this cordless
vacuum.
VACUUM CLEANER ASSEMBLING
WARNING: Always remove the plug from the power socket before fitting or remov-
ing accessories!
04
Attach the brush
To use your new Stick-Vac, attach the
brush to the body first.
Install the crevice tool as shown in the
figure.
Remove and install the dust cup
(a) To remove, rotate the dust cup in the
direction shown. (fig. A)
(b) To install, rotate the dust cup in the
direction shown. (fig.B).
Fig.A
Fig.B
MOOSOO K12 Basic Information
Model
Power
Input
Output
Working Voltage
Vacuum
Usage time
Charging period
K12
90W ( Brushless Motor )
100-240V˜50/60Hz 0.3A Max
14V 500mA
11.1V
12Kpa（High speed）/ 8Kpa（Low speed)
High speed：15min / Low speed：22min
About 4.5-5.5 hours
05
PRECAUTIONARY MEASURES
WARNING: If the vacuum cleaner becomes clogged during use, switch off the
power at once. Fully clear the blocked substance before you attempt to switch on
the vacuum cleaner again.
1. Do not operate the vacuum cleaner
in close proximity to heaters,
radiators, fireplaces, cigarette butts,
etc.
2. Before you start using the vacuum
cleaner, remove any large or sharp
objects from the floor in order to
prevent filter damage. Do not use
the vacuum to clean anything that is
flammable, such as gas and
cigarettes.
06
VACUUM CLEANER CLEANING GUIDE
How to clean the dust cup?
Method one:
Press the dust cup release button
directly, then drop the dust into waste
container. (fig .A)
Method two:
Remove the dust cup and press the
dust cup release button directly, then
drop the dust into waste container.
(fig.B)
Note: You can wash the dust cup and
filter with water. Please dry them
completely before use them again.
fig A
fig B
Dust cup
rulease
button
07
NOTES:
1. Always remove the plug from the power socket when the vacuum is not charging.
2. Never leave the vacuum unattended when it is switched on. Keep the vacuum out
of the reach of children.
3. Do not handle charger or vacuum cleaner with wet hands.
4. Only the adapter and batteries provided by the manufacturer can be used. Other
types of batteries may burst, causing injury and damage.
5. Always turn off the vacuum before connecting the charging dock.
6. The battery must be removed before the vacuum is thrown away.

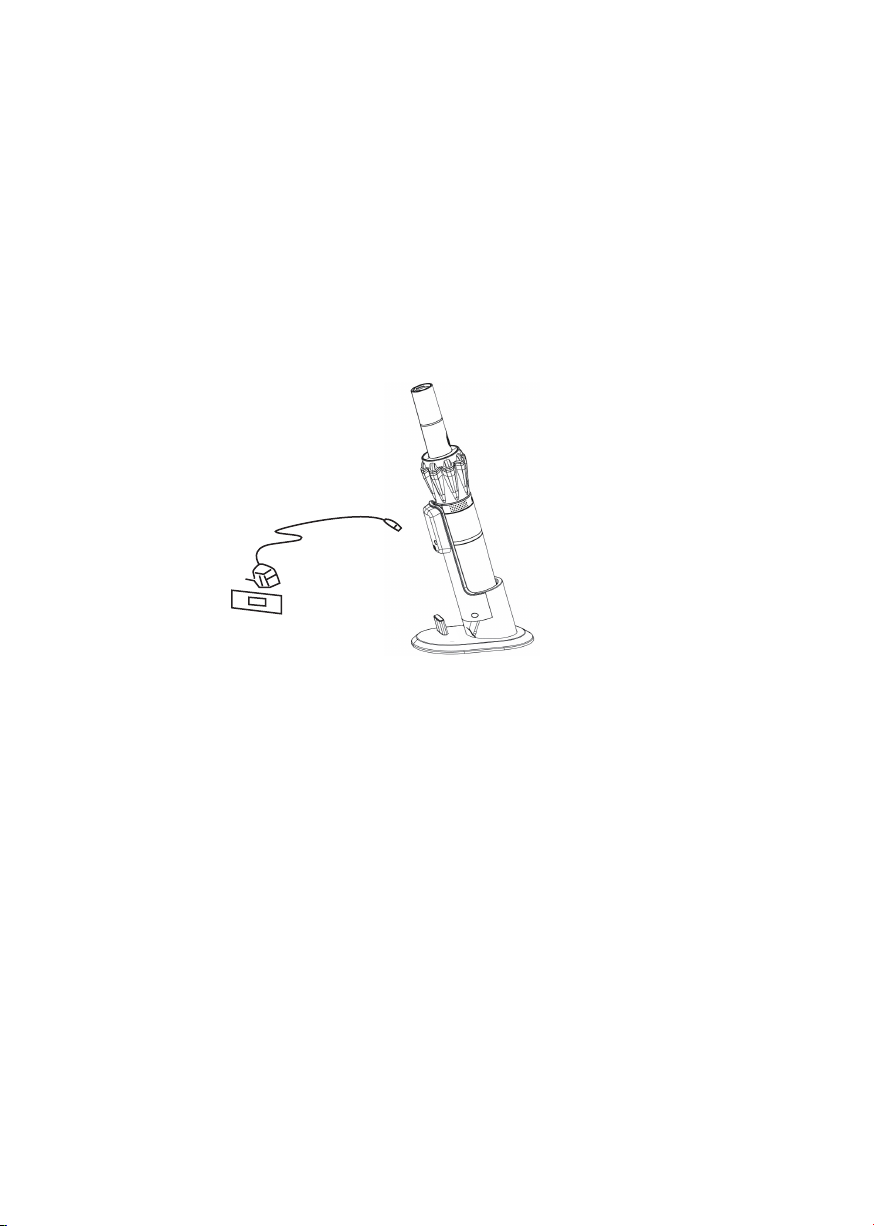

CHARGING GUIDE
1. Turn off the vacuum before charging.
2. Plug the vacuum cord into any
nearby outlet, then connect it to the
charging port on the main unit.
3. The battery temperature should not
exceed 95°F. Always unplug the
vacuum before removing the
battery.
08
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE REASON POSSIBLE SOLUTION
HAND
VACUUM WILL
NOT OPERATE
1. Electrical outage.
2. Unit needs servicing.
1. Check fuse or breaker .
2. Replace fuse or reset
breaker.
3. Battery needs to be
recharged or replaced.
HAND VACUUM
WILL NOT
PICK-UP OR
SUCTION
POWER IS
WEAK
1. Dust cup is full.
2. The filter needs clean-
ing or replacement.
3. The filter screen is
clogged and needs
cleaning.
1. Empty dust cup . Remove
dust cup filter, check for
object(s) in air duct, and
remove if necessary.
2. Open dust cup and clean
filter screen.
DUST ESCAP-
ING
FROM HAND
VACUUM
1. The filter is not installed
correctly.
2. The dust cup is not
installed correctly.
3. Puncture/hole in dust
cup filter.
1. Empty dust cup .
2. Review dust cup filter
instruction.
3. Replace dust cup filter.
