Morgan MRV-VAC 1 Bedienungsanleitung

Robot Vacuum

Cleaner

MRV-VAC 1

Parts Identification

Specifications

Safety Precautions

Operating Instructions

Care & Cleaning Care & Cleaning

Trouble Shooting

C O N T E N T S

5 - 7

3 - 4

8 - 10

5 - 7

Accessories

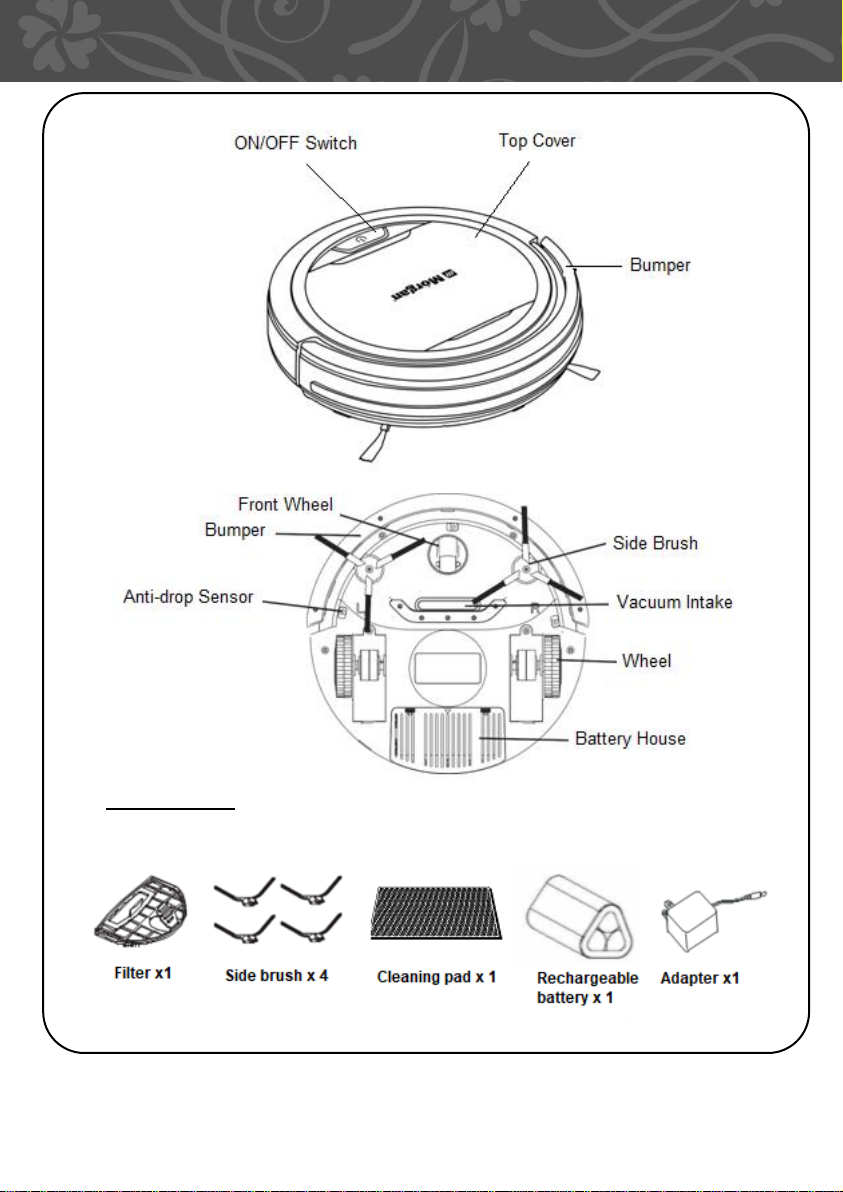

PARTS IDENTIFICATION

When using the appliance, especially when children are present,

basic safety precautions should always be followed including the

following:

1. Read all instructions carefully before using the appliance.

2. Check the voltage range given on the appliance rating label is

corresponds with your main power supply voltage.

3. This appliance is suitable for normal household use only and not

for commercial use.

4. Always place appliance on a flat sturdy surface.

5. Do not operate the appliance with a damaged cord or plug or after

the appliance malfunctions or has been dropped or damaged.

Return the appliance for examination, adjustments, or repair.

6. The use of attachments not recommended may cause fire,

electrical shock, or risk of injury.

7. Unplug the unit when not in use and whenever you clean or move

the unit.

8. To disconnect the appliance, set control to OFF, grip plug and pull

from wall outlet. Never yank on cord.

Rated Input:

100-240V~, 50/60Hz 0.5A Max

(for switching adapter)

Rated Output:

19VDC, 600mA (for robot vacuum cleaner)

Battery:

13V 1500mAh

Maximum working time:

85-95 minutes

Charging Time:

4 hours

SAFETY PRECAUTIONS

SPECIFICATIONS

9. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliances by a

person responsible for their safety.

10.Only authorized service personnel should undertake repairs on

electrical appliances. Faulty, unqualified repair work may cause

accidents or injury to the user.

11.If the supply cord is damaged, have it replaced by the

manufacturer or its service agent or a similarly qualified person in

order to avoid a hazard.

Battery and Recharging instructions

The battery is rechargeable, please use the voltage and current

specified on the packing. If you are not sure of the voltage and current

of your house, please contact the seller or local power company of a

licensed electrician. (Only use battery pack which provided by

manufacturer or specified by manufacturer, please check the polarity before

installing the battery. Battery voltage: 13V, working current: 1500mAh)

Only use the original battery and power adapter of the product for

charging.

Charging adaptor is for indoors useonly.

Do not recharge the product if the battery cord or plug is damaged.

Never touch the charger, plug or cable with damped hands.

Before cleaning the product, unplug the adaptor, switch off the unit and

take out the battery.

Please take out the battery when it is not in use for a long time.

The battery must be removed from the product before it is scrapped.

The product must be disconnected from the power source when

removing the battery. The battery is to be disposed ofsafety

SAFETY PRECAUTIONS

PRODUCT FEATURES

Thanks for purchasing the MRV-VAC 1 Robot Vacuum Cleaner!

This revolutionary Robot Vacuum Cleaner is equipped with functions suitable

for cleaning up floor surfaces of home and office, such as wood, tile, and

linoleum. The MRV-VAC 1 Robot Vacuum Cleaner is definitely a good

household helper.

Battery Installation

Before installing or removing the battery, the product must be

disconnected from the power source.

Open the battery cover，connect the end of the battery to the interface

as shown in figure A.

Insert the battery into the battery cabinet (figure B) and close the

cover. Make sure the cover clips well located in its position.

OPERATING INSTRUCTIONS

Battery Removal

Open the battery cover，disconnect the end of the battery to the

interface.

Recommended to remove the battery if won’t be using for an extended

period.

Recharging Battery

Before charging, make sure the battery is correctly installed.

The procedure of charging the product is as follows: firstly, connect the

adapter output into the DC jack, and then plug into power socket of the

other end, then blue light will flash.

After fully charged, the indicator light will turns to solid blue light.

When the product runs out of power, LED indicator will turn red, which

prompts the user to charge the product.

To ensure the best performance and life span of the battery, please

charge the product for 3- 4 hours continuously. After fully charged,

indicator light will turns to solid blue light. The product can be used to

do cleaning work after 3-4 hours charging.

OPERATING INSTRUCTIONS

Side Brush installation

1. Install the L side brush at L place and R side brush at R place on the

bottom and push to fix it.

2. To pull up the side brush for remove it from the unit.

Cleaning pad installation

1. To install the cleaning pad, push down the cleaning pad on cleaning head

until snaps into place.

2. It may used for dry mopping or wet mopping.

Starting Operation

1. Place the product in free space, and switch on to do cleaning.

2. When the product runs out of power, the LED indicator in the illumination

ring will turn red, and the product will stop working.

Note:

* This product is not suitable for long-pile carpets.

OPERATING INSTRUCTIONS

Cleaning Dust Bin

Open the upper cover by lifting the lid near the power on/off button.

Place your finger into the dust bin groove and grip to take it out.

Open the lid of dust bin.

Take out the inner filter

Empty the dirt in the dust bin.

CARE AND CLEANING

Rinse the dust bin with tap water. Do not wash it in washing machine,

dish-washing machine or other machine.

Periodically clean the filter with a soft bristle brush.

Reinstall the filter and the dust bin lid once they get dried.

Put back the dust bin into the cleaner.

NOTE:

Before put back the dust bin, please make sure the PE pad (function

as non-return valve) in the dust bin is well located. Recheck the filter

also before operate the product. If operate the product without filter, it

might cause malfunction.

CARE AND CLEANING
