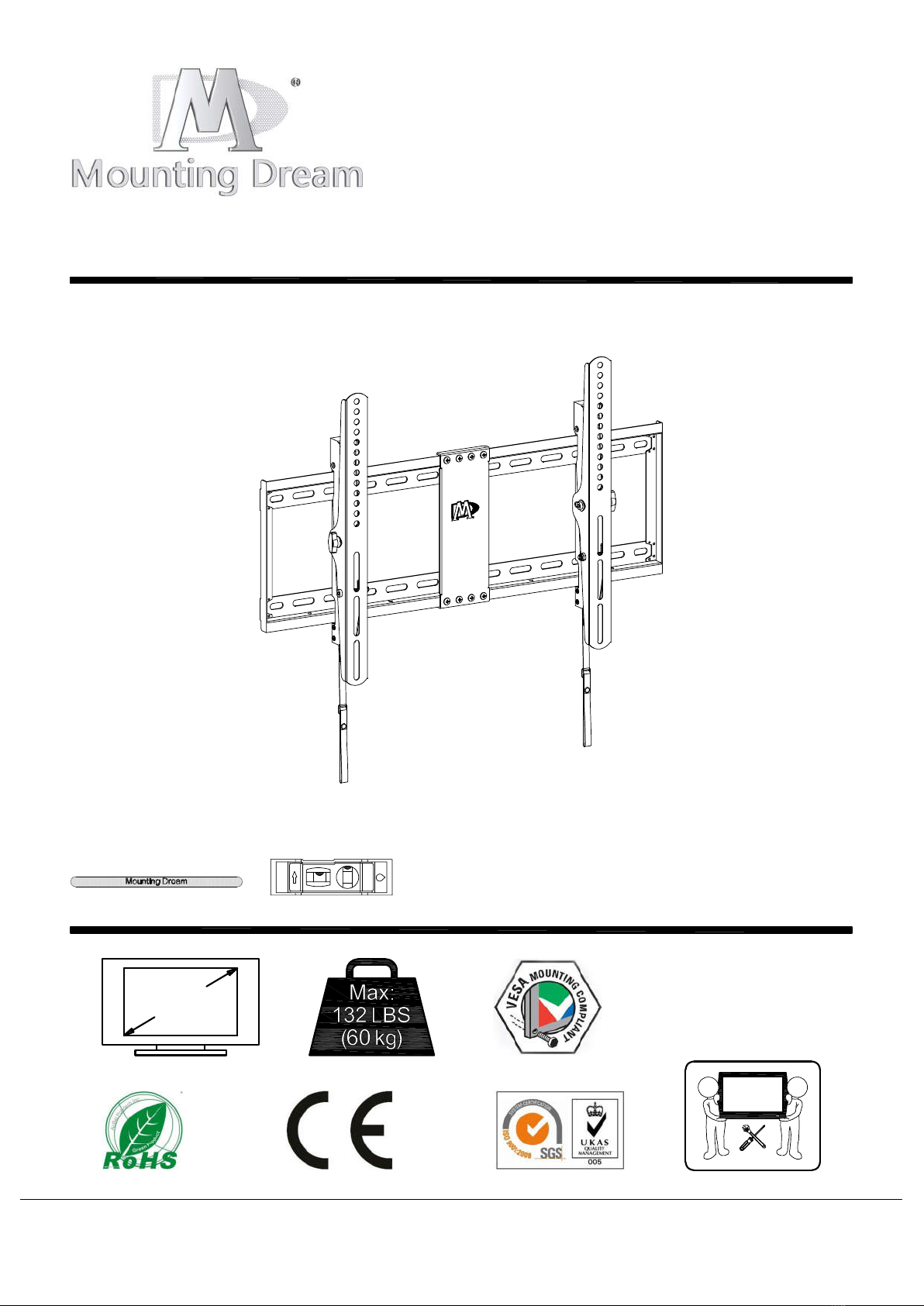

HM2122-L INSTALLATION INSTRUCTION

(A0)

37"~70" Max:600x400mm/24x16"

Min:200x100mm/8x4"

1 2

x2 x1

If you have any questions, please contact us via customerservice@hingear.com

or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).

Before getting started, let’s make sure this mount is perfect for you!

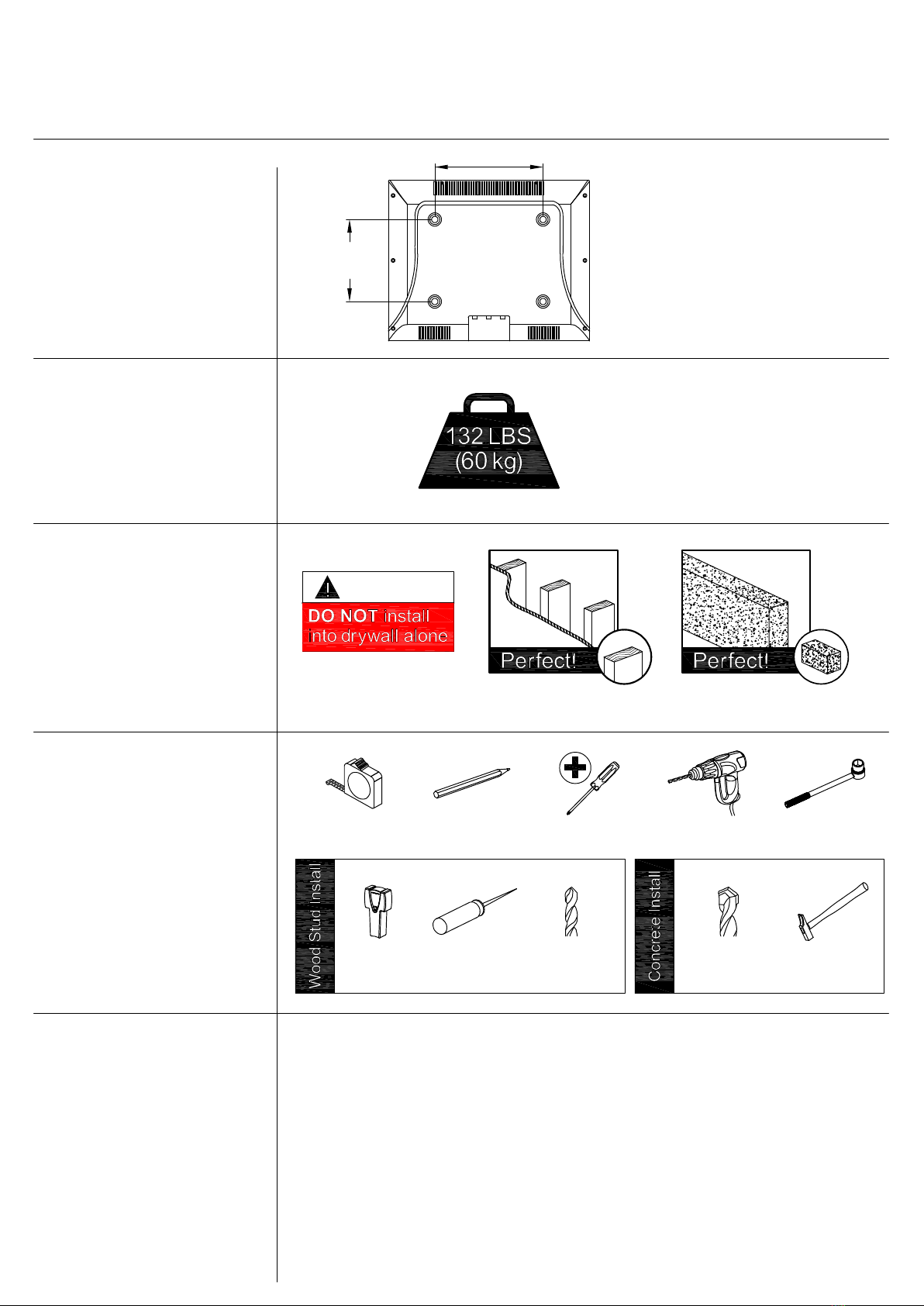

1 Is your TV VESA

equal to/greater than

200x100mm/8x4" and

equal to/less than

600x400mm/24x16"?

2 Does your TV

(including accessories)

weigh less than

132 LBS (60 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:600mm/24"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@hingear.com or call us at telephone (626) 645-7128 (USA) Mon - Fri

10am - 6pm (Pacific time).

Parts and Hardware

TV Brackets

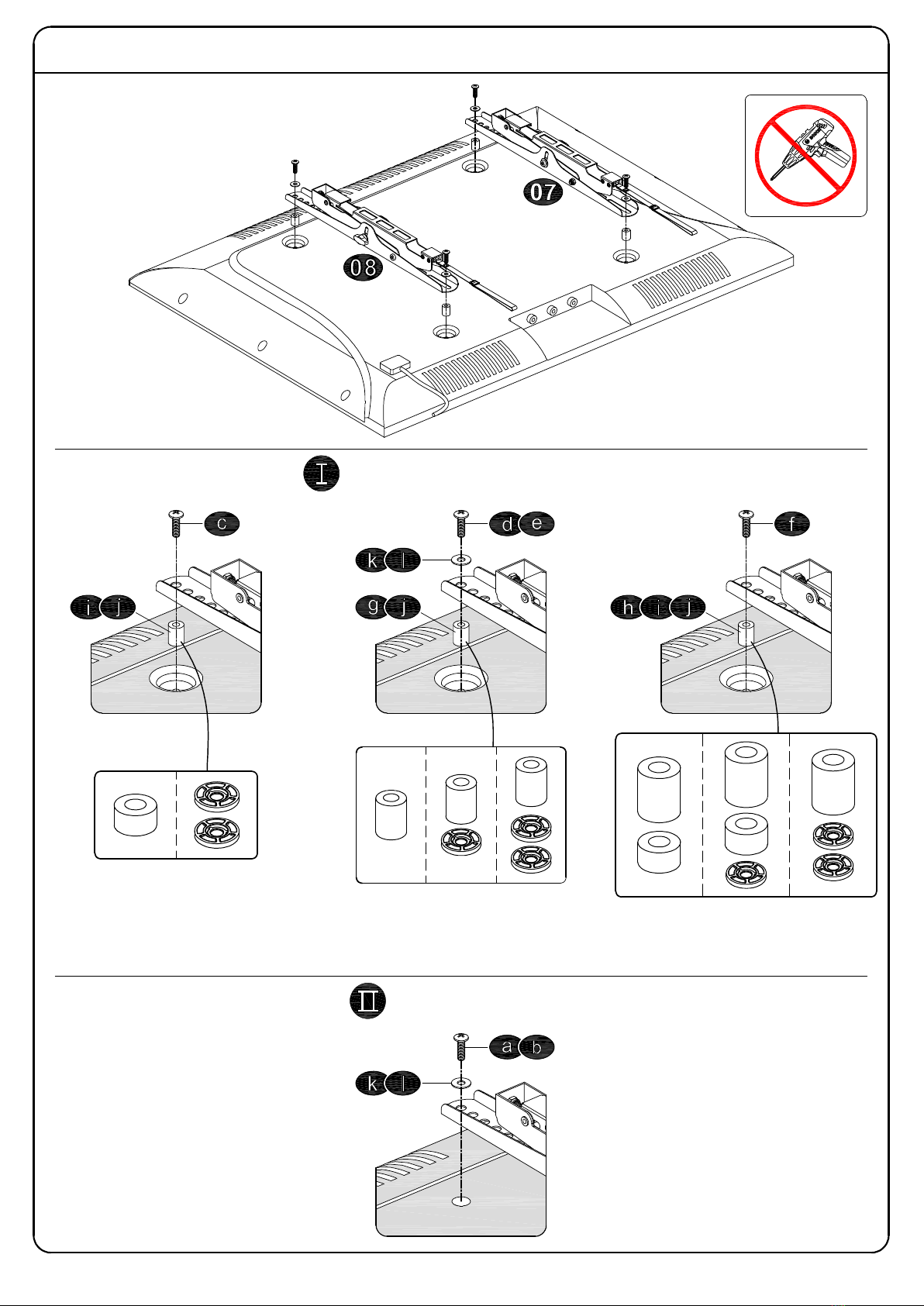

1-1 Select TV Screws

TV back

Bracket

Long Screw

Spacer

Yes, go to PAGE 3 for detailed combination.

1-2 Need Spacer?

Washer

Highly recommended to add spacers for more

spacing between wall mount and wall.

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Bracket Washer

No, go to PAGE 3 for detailed combination.

TV back

Short Screw

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@hingear.com.

NOTE: Not all hardware included will be used.

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

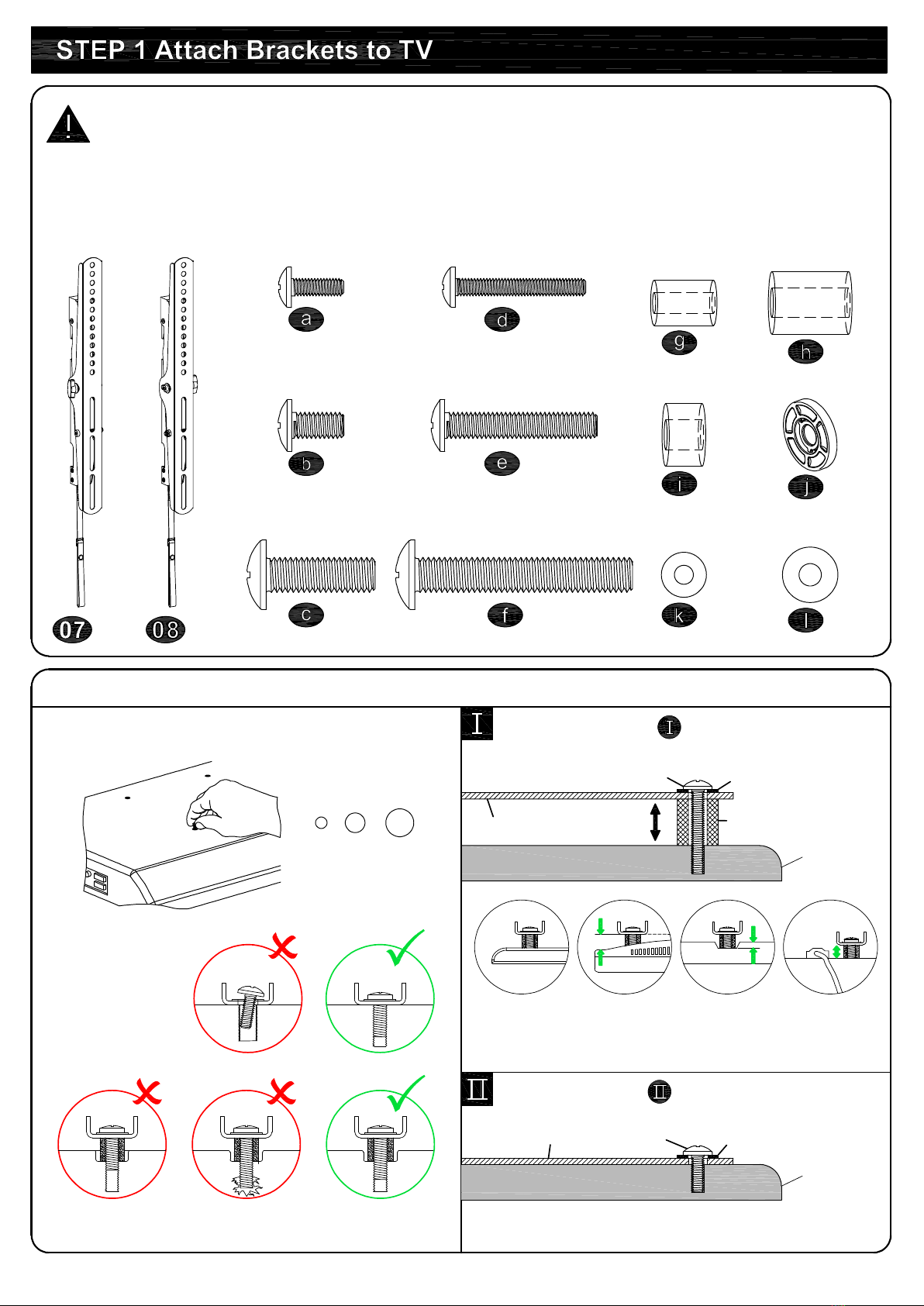

1-3 Attach the TV Brackets

Spacer(s), screw and washer

No!

Screw and washer

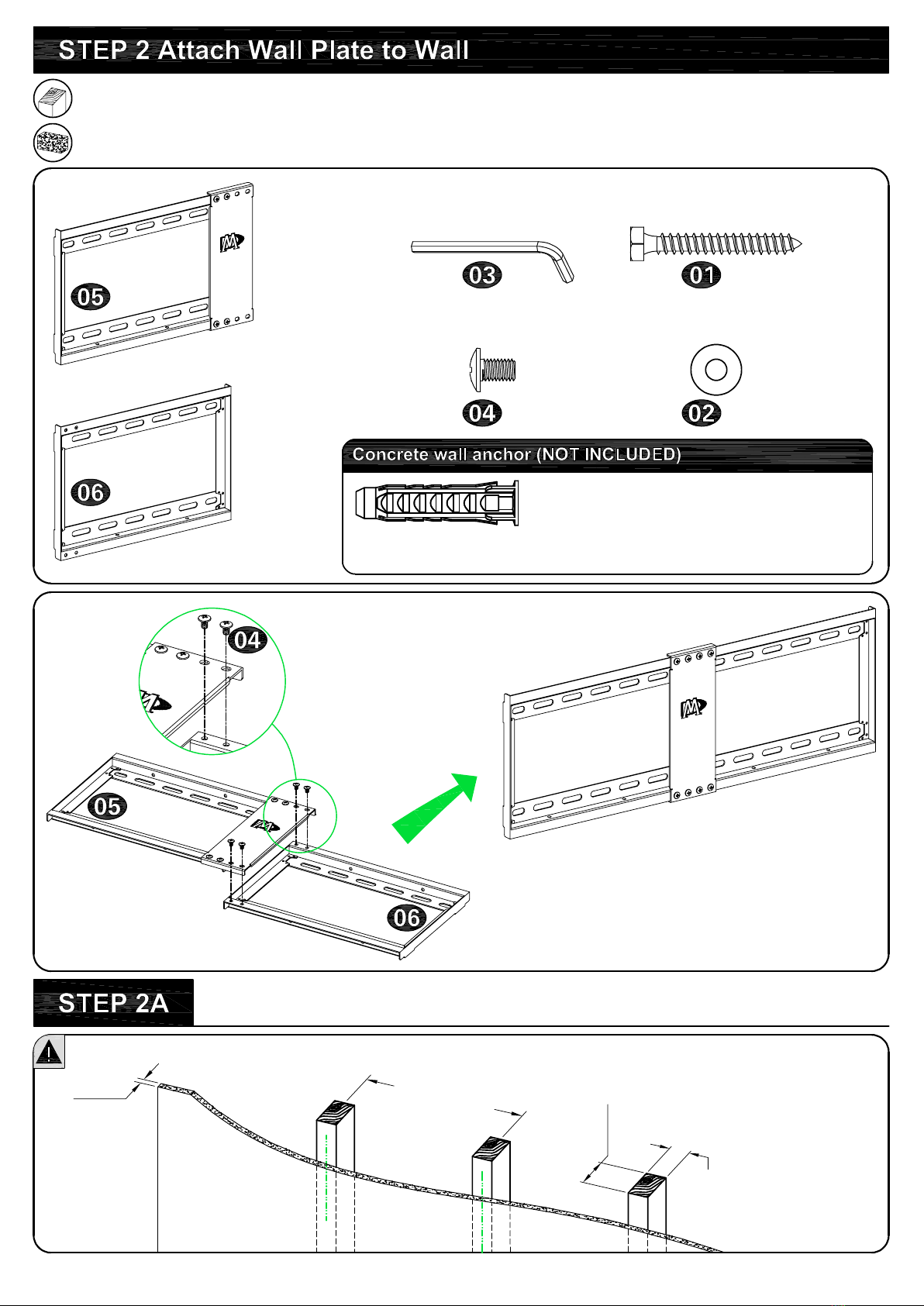

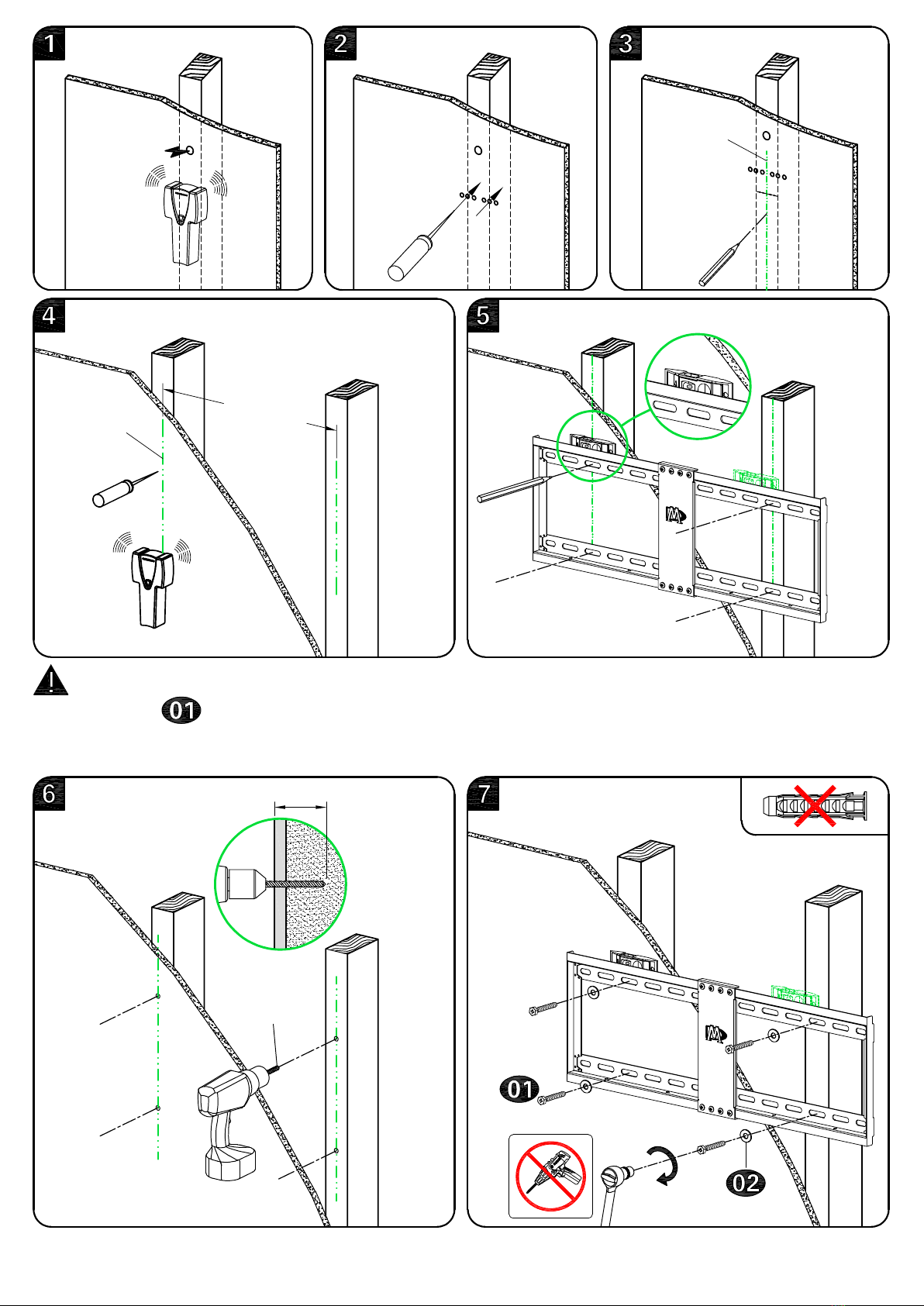

For wood stud installation, follow STEP 2A

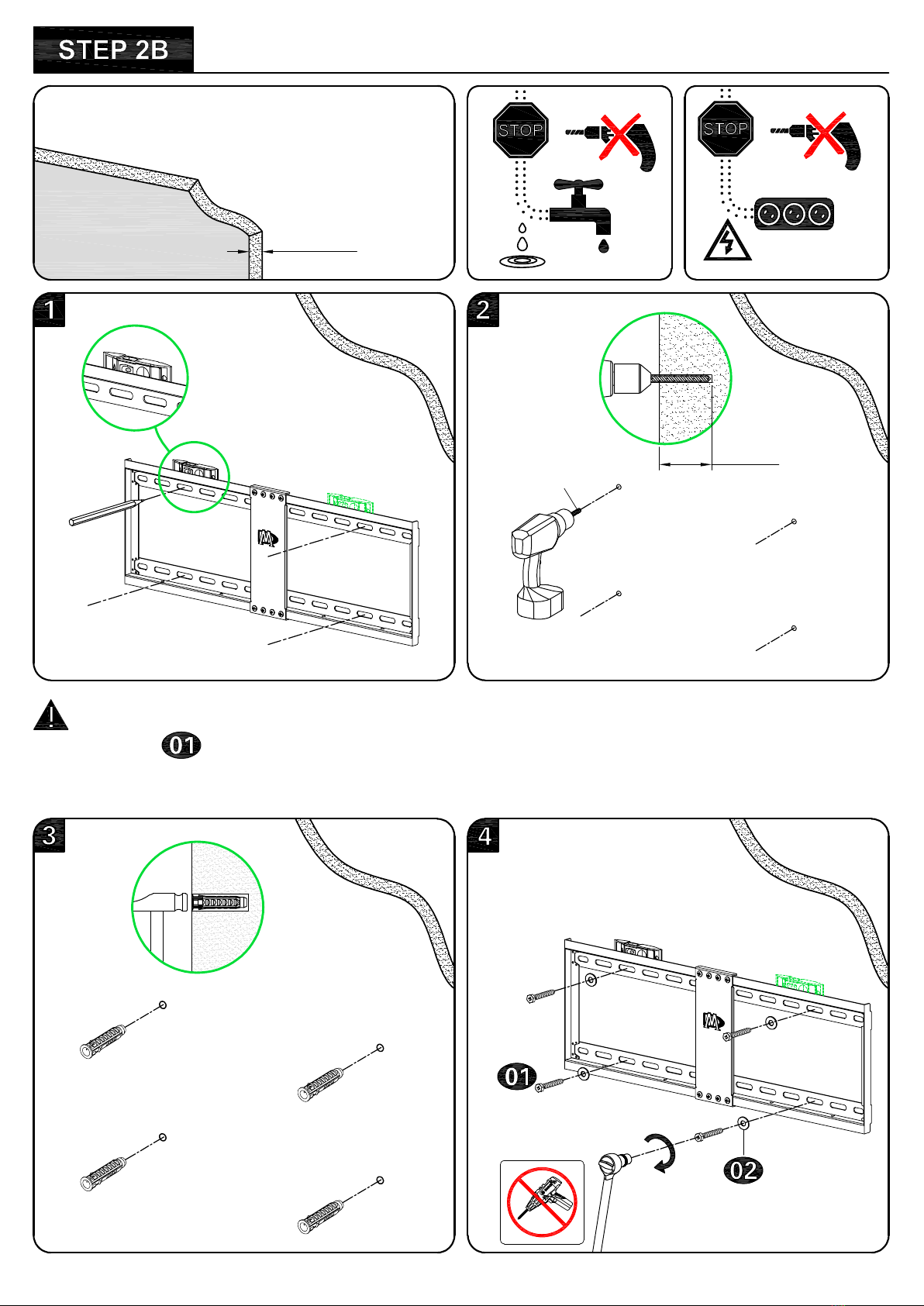

For concrete installation, follow STEP 2B on PAGE 6

<16mm

(5/8") 24"(609.6mm)

/16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installations

Lag Bolt M8x60mm

M8 Washer

Parts and Hardware

M5x8mm Bolt

Assemble Wall plate

Concrete Wall Anchor

4pcs

Wall plate(Left)

Wall plate(Right)

Wall plate unit

Allen Key

Mon - Fri 10am - 6pm (Pacific time) or email us

by customerservice@hingear.com to have

these additional pieces shipped directly to you.

Centre line

16"(406mm)

7/32"

(5.5mm)

2.5"(64mm)

Go to Step 3 on PAGE 7.

Centre line

Again, find another wood stud

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Wall plate

unit

No!

Level

Solid Concrete Wall Installation

2.5"

(64mm)

Concrete Wall

Anchor

Min.

8"(203mm)

3/8"

(10mm)

3/8"

(10mm)

DANGER

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Wall plate

unit

No!

Level

132 LBS (60 kg)

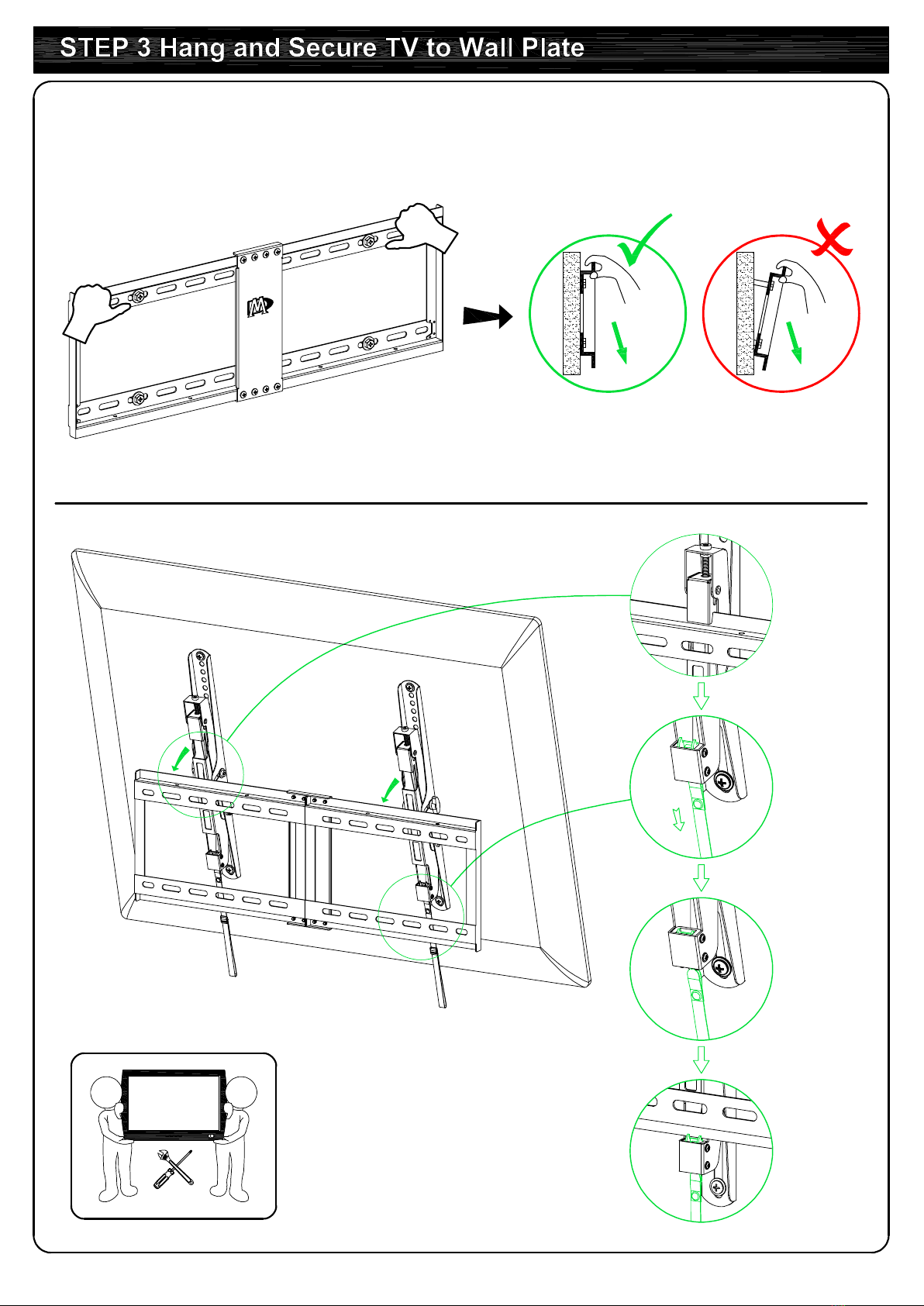

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

Pull down

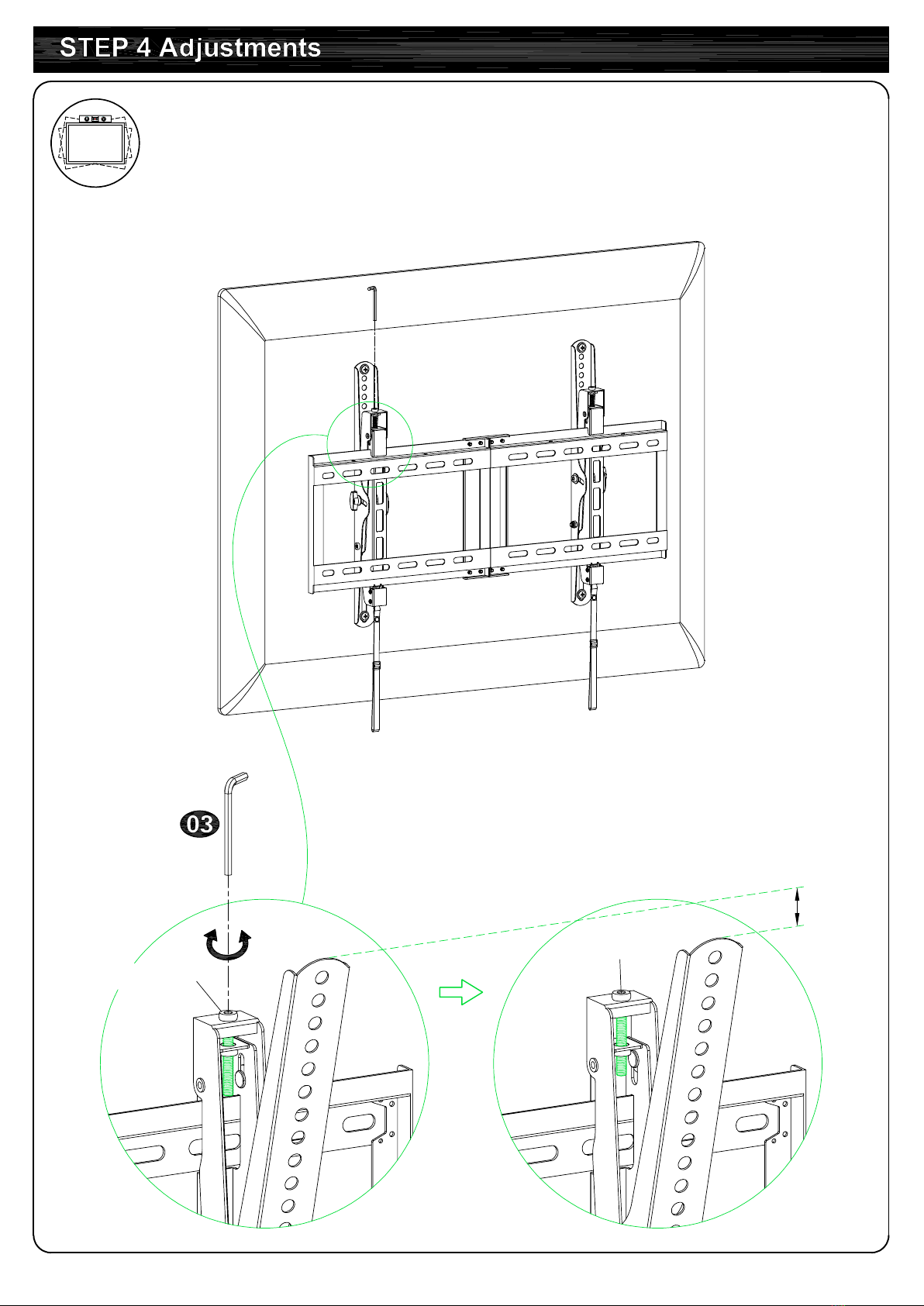

4-1 Level adjustment (10mm)：

If your TV is not level, you can adjust it by screw in/out the leveling

bolts at the top of bracket.

10mm

leveling bolt

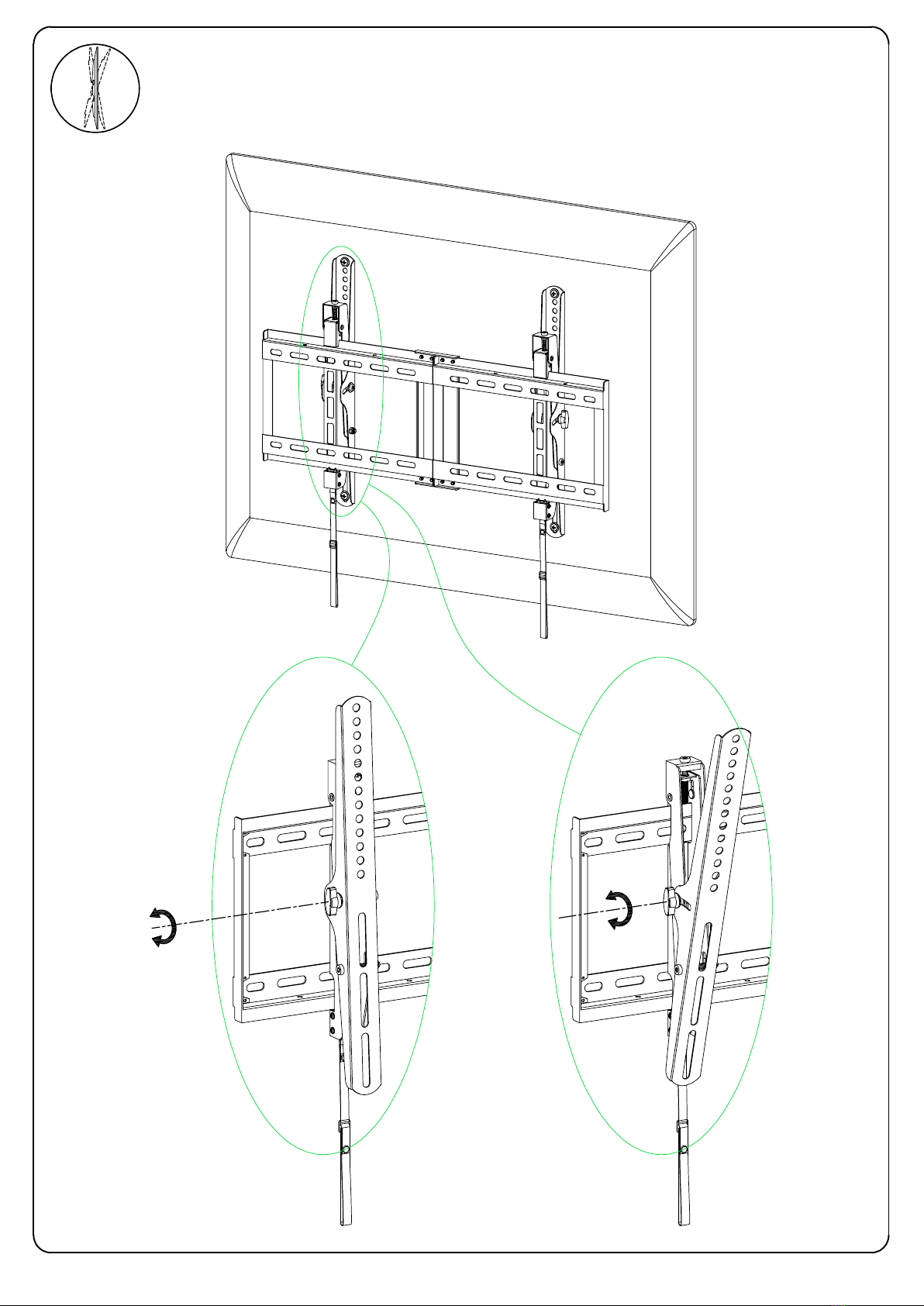

4-2 Tilting angle adjustment (+3°/-15°)：

Pull TV to your desired angle then fasten 2 handles.

3°

15°
