Mountup MU0011 Bedienungsanleitung

60LBS

27KG

Max:

Max:400x400mm/16x16"

Min:75x75mm/3x3"

26"~55"

(A1)

If you have any questions, please contact us via help@jollyholding.com

MU0011 INSTALLATION INSTRUCTION

- 1 -

Velcro cable ties X5 Bubble level X1 HDMI cable X1

- 2 -

Hammer

3/8"(10mm)

Masonry Drill Bit

7/32"(5.5mm)

Wood Drill Bit

AwlStud Finder

Socket Wrench

1/2"(13mm)

ElectrodrillScrewdriverPencil

What is your wall

made of?

Solid concrete

wall?

●This product is designed for use in wood stud or solid concrete wall.

- DO NOT install into drywall alone.

●The wall must be capable of supporting five times the weight of the TV and mount

combined.

●Do not apply this product to any purpose not indicated by MOUNTUP.

●Incorrect installation may result in product damage or body injury. MOUNTUP shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

help@jollyholding.com

Safety Caution

2M2M

Band Tape

Drywall with

wood studs?

CAUTION:

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:

400mm/16"

MAX:400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

Installation Tools

(Not Included)

2Does your TV

(including accessories)

weigh less than

60 LBS (27 KG)?

1Is your TV VESA

equal to/greater than

75x75mm /3x3" and

equal to/less than

400x400mm/16x16"?

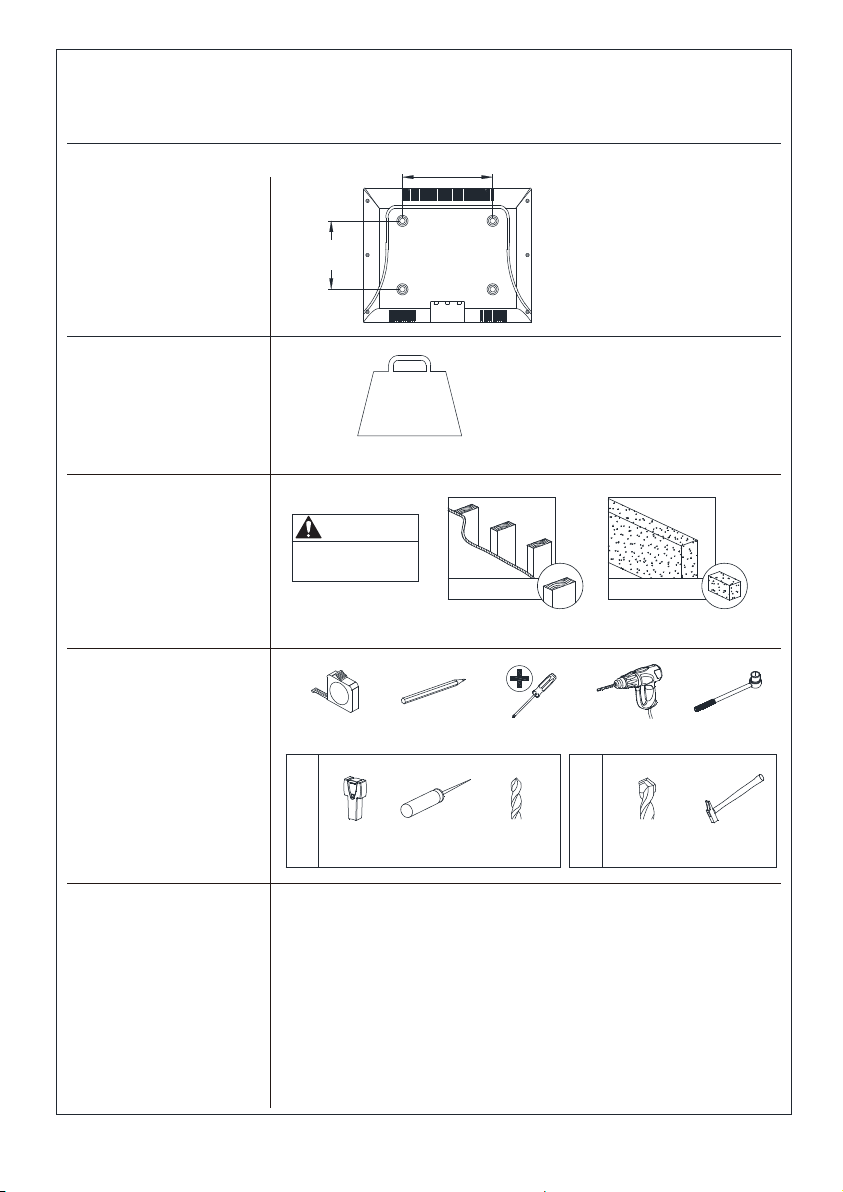

Before getting started, let’s make sure this mount is perfect for you!

60LBS

27KG

Max:

DO NOT install

into drywall alone

Perfect! Perfect!

Wood Stud Install

Concrete Install

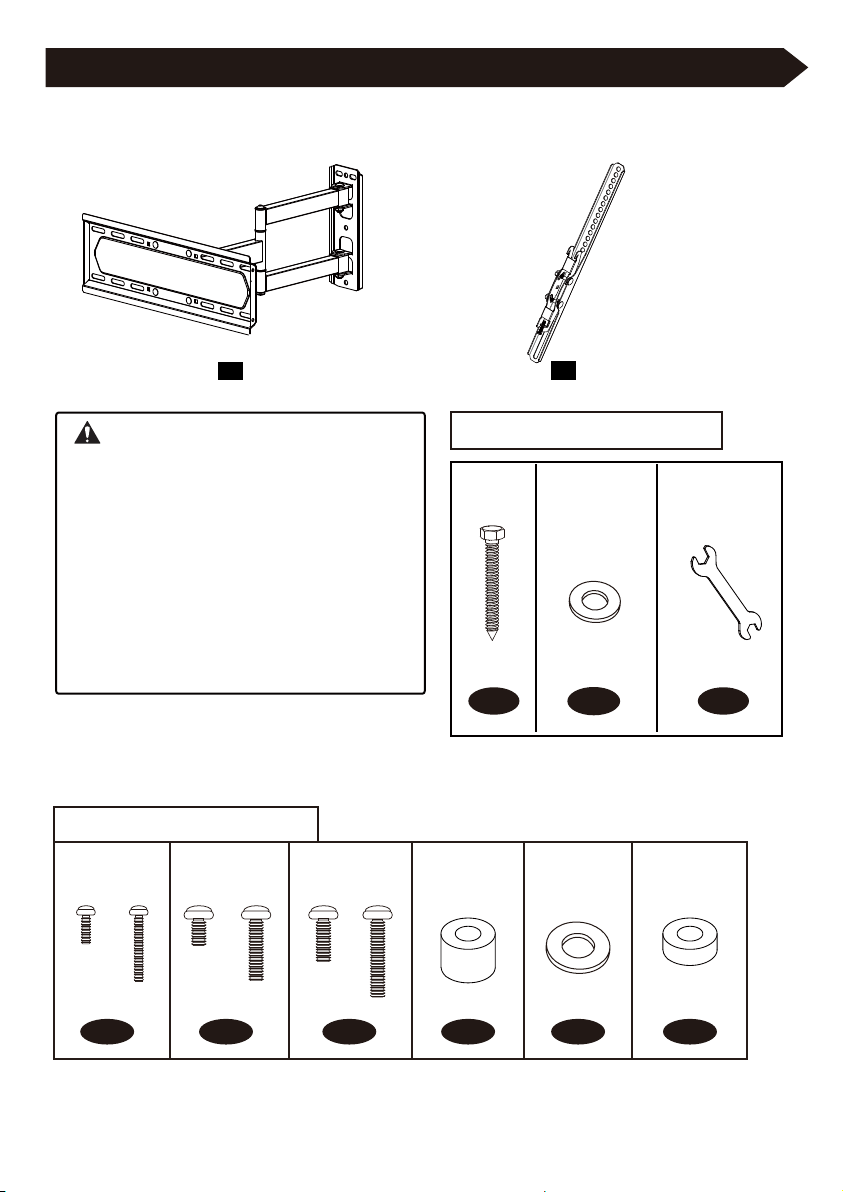

Arm and Wall Plate

Hardware Included

01 x1

Brackets

02 x2

This product contains

small items that could be a choking hazard if

swallowed. Before starting assembly, verify

all parts are included and undamaged. If

any parts are missing or damaged, do not

return the damaged item to your dealer;

please contact our customer service team.

Never use damaged parts!

NOTE: Not all parts and hardware included

will be used.

WARNING:

Philips Screws

M6 x 15mm

M6 x 30mm

Philips Screws

M4 x 12mm

M4 x 30mm

Washers

Ø6mm

M4-5-6

Spacers

L10mm

x4 x4x4

Philips Screws

M8 x 25mm

M8 x 45mm

x4 x8 x4

Spacers

L5mm

TV Screws / Washers

M-A M-B M-C M-D M-E M-F

Hardware （Wall /Product)

5/16 x 2½ in

Lag Bolts

x3 x1

Washers

Ø8mm

Open end wrench

- 3 -

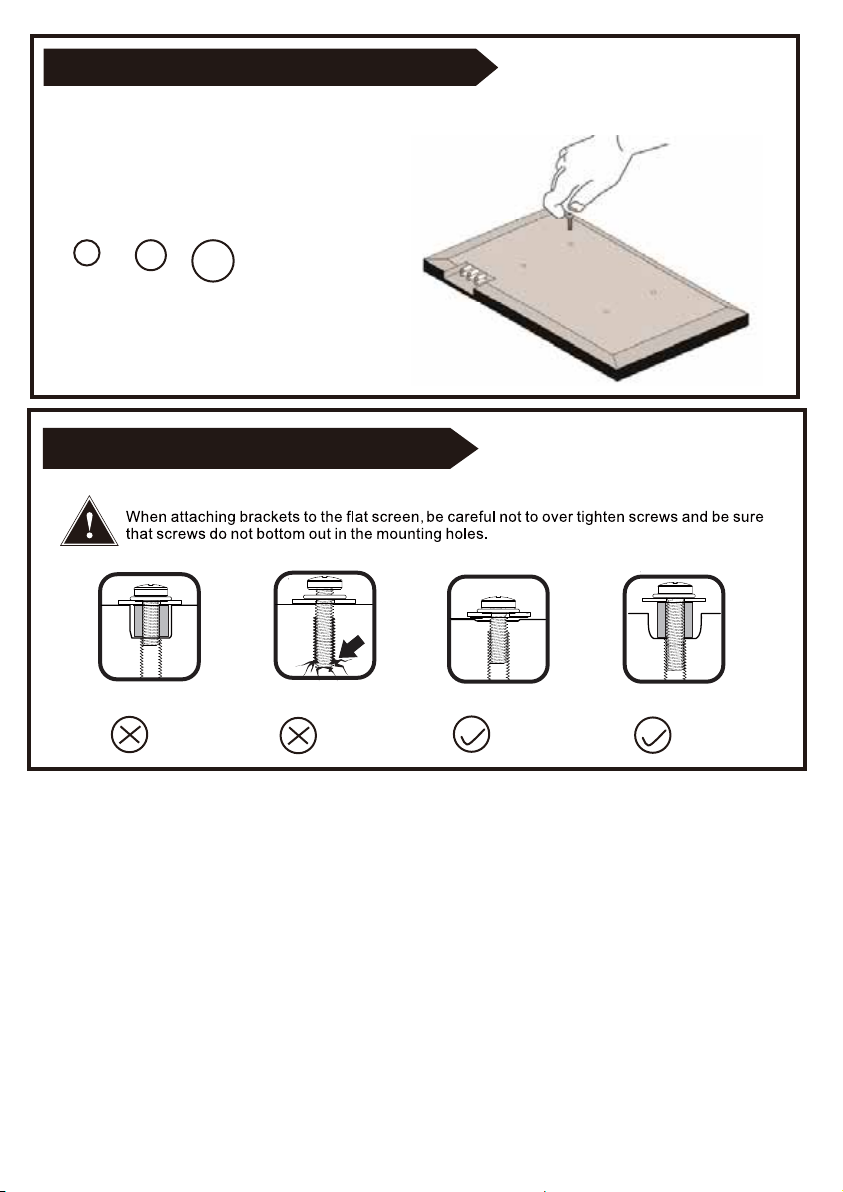

STEP 1-1 Select TVScrew Diameter

Thread screws by hand into the threaded holes on the back of your TV to select which screw

diameter fits your TV.

M6M4 M8

STEP 1-2 Select TV

Screw Length

Correct Correct

Too Long

Too Short

- 4 -

STEP 1-3

Attach the Bracket

Position your brackets over your TV hole pattern - making sure the brackets are centered

and level over the TV hole pattern.

Secure thebrackets using your screw/washer/spacer selection:

(a) for Flat Back

(b) for Round Back / Extra space

CAUTION: Ensure bracket is securely fastened before moving on to the next step.

M-E

M-FM-D

M-A

(a) Flat Back

M-E

(b) Round Back /

Extra Space

Not for M8 screws

Use the shorter screws

Not for M8 screws

- 5 -

M-B

M-C

M-A

Use the longer screws

M-B

M-C

STEP 2A Wall Plate Installation (Wood stud)

2A-1

2A-2

Locate your studs. Verify and

mark the center of the stud by

finding the stud edges using an

awl, a thin nail, or an

edge-to-edge stud finder.

Position the wall plate at

your desired height and line up

the holes with your stud center

line. Level the wall plate and

make the holes x3.

2A-3

Drill pilot holes using a 7/32 in. (5.5 mm)

diameter drill bit.

IMPORTANT: Pilot holes must be

in. (70 mm).

Be sure to drill into the center of thestud.

drilled to a depth of

7/32 in.

Ø5.5 mm

in. (70 mm)

- 6 -

2A-4

01 A

Install wall plate using lag bolts

and washer B . Tighten the lag bolts

until they are pulled firmly against the wall

plate .

- 7 -

Position the wall plate

at your desired height ,

level the wall plate and

mark the polit hole loca-

tions.

Drill pilot

holes

2B-2

2B-1

2.75in 70 mm

Ø 10 mm

STEP 2B Wall Plate Installation (Concrete or Brick)

Secure TV with brackets against the

horizontal plate with the pre-assembled

screws

Preassembled

screw

- 8 -

Concrete Wall

STEP 3 Lift and hang TV with brackets onto wall bracket.

these additional pieces shipped directly to you.

Concrete Wall Anchor

4pcs

Concrete wall anchor (NOT INCLUDED)

01 A

Install wall plate using lag bolts ,

washer and anchor (not included).

Tighten the lag bolts until they are

pulled firmly against the wall plate .

Tilting angle adjustment (+5° / -10°)

Pull TV to your desired angle then fasten tilting nuts with

open end wrench.

Leveling adjustment (-3°/+3°)

If needed, TV can be leveled ±3 degrees via adjusting the 4 nuts

with the open end wrench.

(Tilting)

(Leveling)

±3°

- 9 -

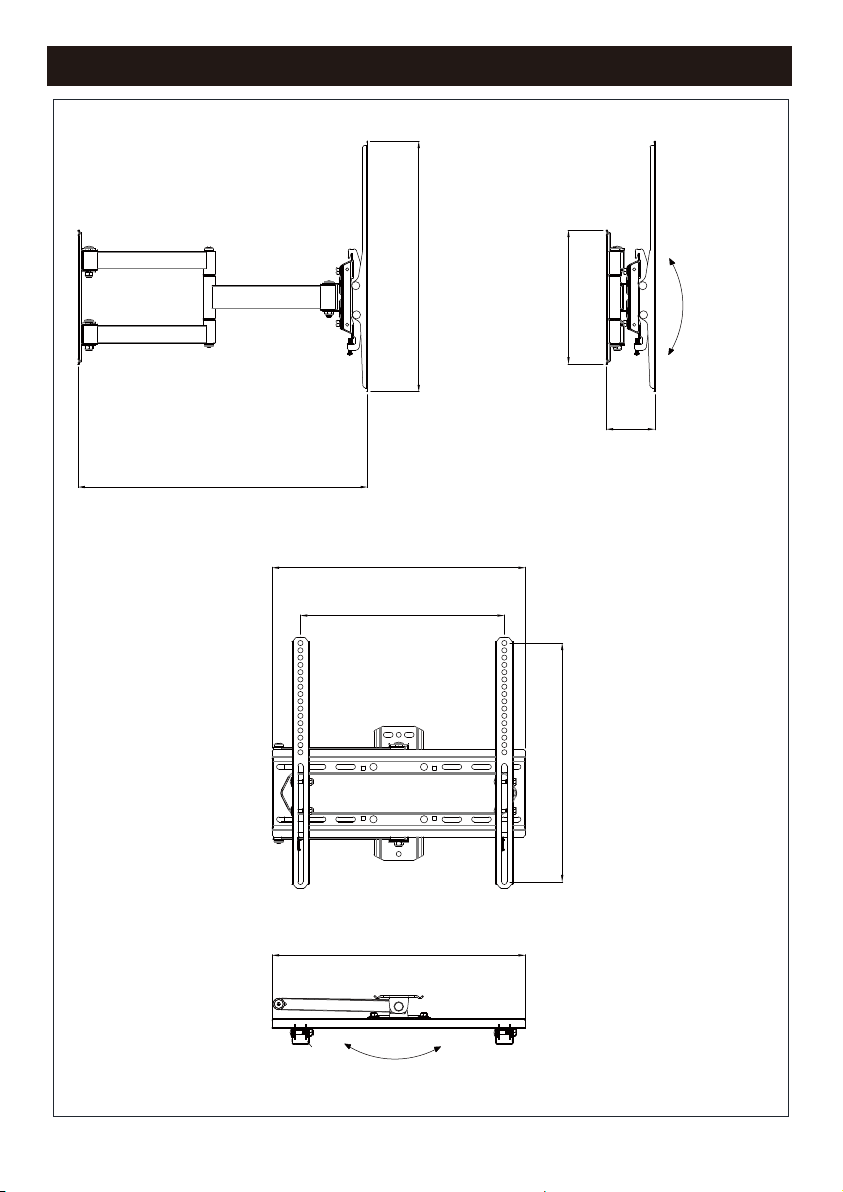

Adjustments

± 3°

Product dimensions:

10°

-3° /+3°

498mm

230mm

MAX:400mm

MIN:75mm

MAX:400mm

MIN:75mm

425mm

435mm

84mm

- 10 -
