24-Bit USB Microphone
2
Studio 24 USB
Thank you for purchasing the MXL Studio 24 USB microphone. With 24-bit
recording capability, zero latency monitoring and a custom GUI, you’ll
experience the highest level of sonic detail and the kind of audio quality
normally found in expensive, high-end multi-channel computer interfaces.
The Studio 24 USB is simple to set up and plugs directly into the USB port
of your PC or Mac computer. It also works with most of today’s popular
recording software programs, and we’ve even included free trial Reaper®
CD software so you can get started.
Please take a few minutes to familiarize yourself with the features and
functions of the Studio 24 USB in order to make the most out of your new
purchase.
3
Begin by unpacking your Studio 24 USB microphone. You should have
the following components:
• Studio 24 USB microphone
• Travel case
• Mic stand
• Mic Stand adapter
• USB cable
• Software CD
• Cleaning cloth
If any of these items are missing, contact the retailer where you purchased your
Studio 24 USB.
Note: To optimize the performance of the Studio 24 USB with Windows,
we recommend downloading and using the free Asio4All driver from www.
ASIO4ALL.com]
Handling the Studio 24 USB:
MXL USB mics are a professional quality, cardioid condenser studio microphone
designed specifically for recording. The Studio 24 USB microphone uses what is
known as a cardioid pickup pattern, which is more sensitive to sound waves arriving
at the front of the microphone as opposed to those arriving from the sides or rear.
User Manual
4
Studio 24 USB
This microphone is a USB (Universal Serial Bus) device, and interfaces directly with
Windows and Macintosh computers without the need for any special drivers. It also
carries the added benefit of not requiring an external microphone preamp. However,
unlike microphones designed for live performance or dynamic models, this instru-
ment requires careful handling. Hence, you should observe the following:
ALWAYS: handle the microphone carefully, avoiding sudden shocks such as drop-
ping or bumping the microphone into other objects.
ALWAYS: maintain a distance of approximately 4 – 6 inches when speaking or sing-
ing into the microphone. You are encouraged to use a pop filter for added
protection of the sensitive capsule and to shield the instrument from saliva
and sudden bursts of air. For outdoor performances, you would be well
advised to use a windscreen as protection for your microphone
NEVER: tap the microphone to check if it’s working. The red LED behind the micro-
phone’s protective grill will tell you it’s on and that the correct side is facing
you.
NEVER: blow into the microphone to check if it’s working. The red LED behind the
microphone’s protective grill will tell you it’s on and that the correct side is
facing you.
By following these few basic handling procedures, you can expect a long and happy
relationship with your new microphone.
5
Correct Positioning and Controls
The red LED should be facing you when you speak or sing into the microphone. If
recording instruments, the red LED should be facing the instrument. Maintain a dis-
tance of approximately 4 – 6 inches when speaking or singing into the microphone.
For instruments, experiment with the distance to find the best results.
Red LED: When the red LED
is illuminated, this indicates
that the microphone is con-
nected to USB power and
functioning correctly.
USB Connection
The square end of the USB
cable plugs in here. The
microphone is setup to be
backwards compatible with
USB 1.1 and 2.0. We do not
recommend plugging the
microphone into a hub, as
this could potentially limit the
power and audio bandwidth
the microphone needs to
operate.
Gain Control: Use this dial
to control the record level of
the microphone into the com-
puter. This control changes
the analog signal before A/D
converter.
Headphone Jack
The 1/8-inch stereo head-
phone input accepts most
headphones. Maximum
headphone volume will vary
by manufacturer and model,
so care should always be
exercised when plugging in.
User Manual
6
Studio 24 USB
Software Tips:
For PC Users:
To get started on multi-
tracking and overdub-
bing, we recommend
using the free 30-day
trial shareware version of
Reaper. The software has
already been loaded on
the included disc or you
can download a free trial
at http://www.reaper.fm.
For Macintosh Users:
Garage Band is the easi-
est way to get started if
you are using a Macin-
tosh computer. Since it’s
included on most Macin-
tosh computers, you
probably have it installed
and ready to go!
Connecting the Studio 24 to Your Computer:
The MXL Studio 24 USB will operate with both USB 2.0
(high speed USB) and USB 1.1 data buses. We recom-
mend you connect your microphone directly to the com-
puter’s USB port as opposed to using a USB hub. USB
hubs have been known to interfere with the performance
of various USB devices.
Note: Audio and video recording can be very
taxing to a computer’s resources. For this
reason, you should close any and all running
applications that are non-essential.
Please take the following steps to get
connected:
1. If open, close your audio recording application.
You will open it after the MXL Studio 24 USB is
connected and operational.
2. Connect the corresponding ends of the sup-
plied USB cable to the Studio 24 USB and the
computer’s USB port.
7
3. The red LED on the MXL Studio 24 USB will illuminate indicating it is
receiving power from the computer.
4. To take advantage of the zero latency monitoring connect a pair of head-
phones to the 1/8” headphone jack on the side of the microphone.

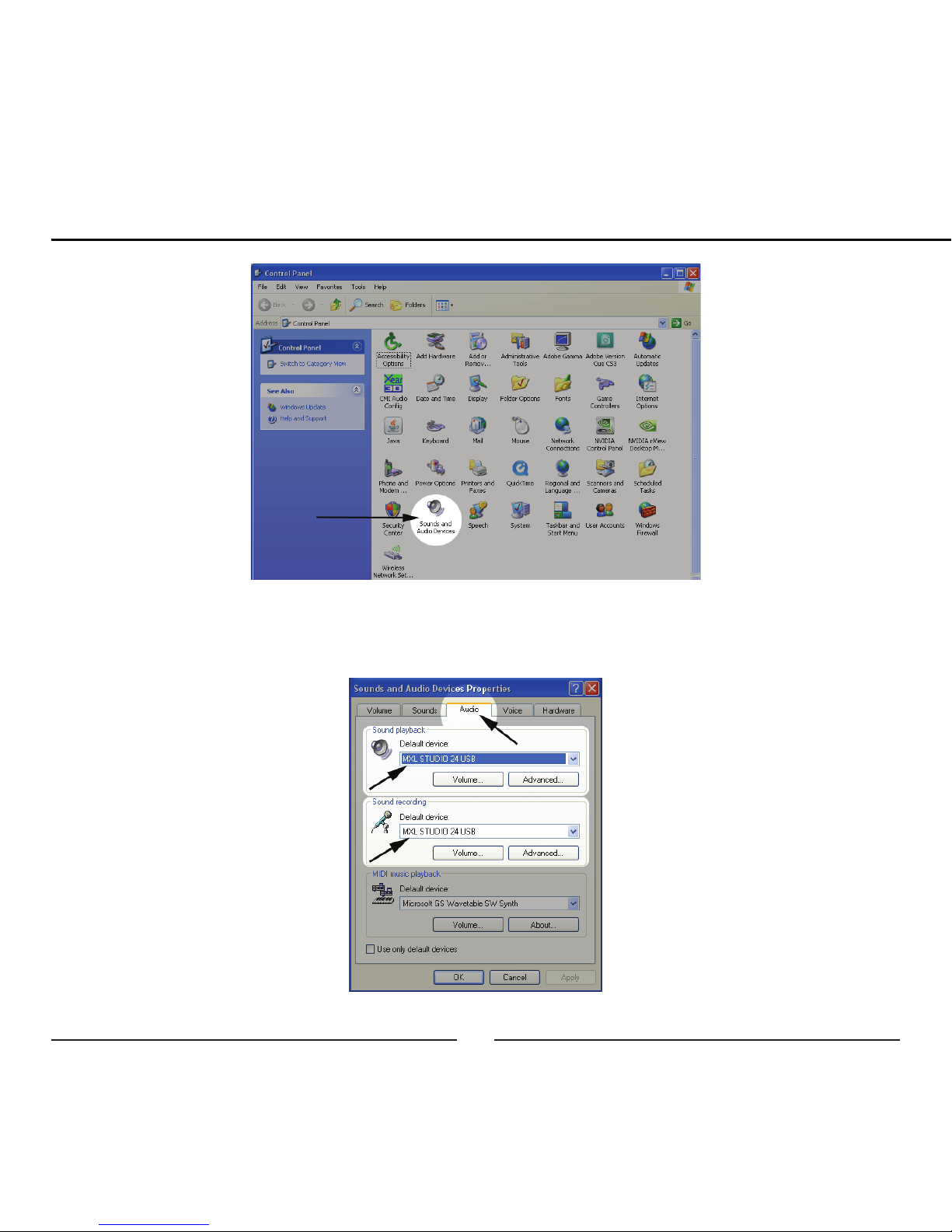

Initial Setup with Windows XP:
1. To select the MXL Studio 24 USB microphone as the default audio device,
go to the Start Menu and select Control Panel.
2. Select Sounds and Audio Devices.
Setup
8
Studio 24 USB
3. Click on the Audio tab and select MXL STUDIO 24 USB as the default
device for Sound Playback and Sound Recording.
9
4. After making changes to the audio properties click the OK button for these
changes to take effect.
Your Windows XP computer is now set up to use the MXL Studio 24 USB with
most recording applications. Some applications will require additional settings to
be changed within the program. Please see your recording software’s manual for
proper setup.
For more in advanced controls such as volume, noise gate, monitor mixing, etc go
to page xx for installation and user instructions for the Studio Control GUI.
Setup
10
Studio 24 USB
Initial Setup with Windows Vista and Windows 7:
1. To select the MXL Studio 24 USB as the default audio device, go to the
Start Menu and select Control Panel.
2. Double click the Sound icon.
