National Instruments Single-Ended Digital Waveform Generator/Analyzer Modules NI... Bedienungsanleitung

USER GUIDE

NI SMB-2163

Single-Ended Digital I/O Accessory

The NI SMB-2163 is a breakout box for National Instruments single-ended

digital waveform generator/analyzer modules. The NI SMB-2163 provides

an easy way to connect to other devices for testing and debugging.

This guide explains how to set up and use the NI SMB-2163 single-ended

digital I/O (DIO) accessory with NI single-ended digital waveform

generator/analyzer modules.

Contents

Conventions ............................................................................................ 2

What You Need to Get Started ............................................................... 2

Related Documentation........................................................................... 3

Parts Locator ........................................................................................... 3

Installing Cables...................................................................................... 4

Connecting Signals ................................................................................. 6

Cleaning the Accessory........................................................................... 8

Specifications .......................................................................................... 9

Technical Support Resources.................................................................. 10

Ρ΅νιϋΠȂ඾ུࢊβȜΐ܄ȃ

NI SMB-2163 User Guide 2 ni.com

Conventions

The following conventions are used in this manual:

<> Angle brackets that contain numbers separated by an ellipsis represent a

range of values associated with a bit or signal name—for example,

DIO <0..3>.

»The »symbol leads you through nested menu items and dialog box options

to a final action. The sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup item, and select Options

from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to

avoid injury, data loss, or a system crash. When this symbol is marked on a

product, refer to the Specifications section for information about

precautions to take.

bold Bold text denotes items that you must select or click in the software, such

as menu items and dialog box options. Bold text also denotes parameter

names.

italic Italic text denotes variables, emphasis, a cross reference, or an introduction

to a key concept. This font also denotes text that is a placeholder for a word

or value that you must supply.

monospace Text in this font denotes text or characters that you should enter from the

keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories,

programs, subprograms, subroutines, device names, functions, operations,

variables, filenames, and extensions.

What You Need to Get Started

To set up and use the NI SMB-2163, you need the following items:

❑SHC68-C68-D2 cable assembly

❑NI digital waveform generator/analyzer, installed in a PXI

or CompactPCI chassis

❑50 Ωcables with SMB connectors

©National Instruments Corporation 3 NI SMB-2163 User Guide

❑The documentation included with the digital waveform

generator/analyzer and driver software

❑(Optional) Rack Mount Kit for CA-1000 (part number 777665-01),

available from National Instruments

Related Documentation

The NI digital waveform generator/analyzer ships with several documents

designed to familiarize you with different aspects of the module. The

documentation set includes the following pieces:

•NI Digital Waveform Generator/Analyzer Getting Started

Guide—Read this printed document to set up the digital waveform

generator/analyzer and configure it to complete your first acquisition

or generation.

•NI Digital Waveform Generator/Analyzer Help—This online

document provides more in-depth information about the hardware

capabilities of the module, theory of operation, programming flow,

and software reference.

• NI digital waveform generator/analyzer specifications—This printed

document provides specifications for your module.

Parts Locator

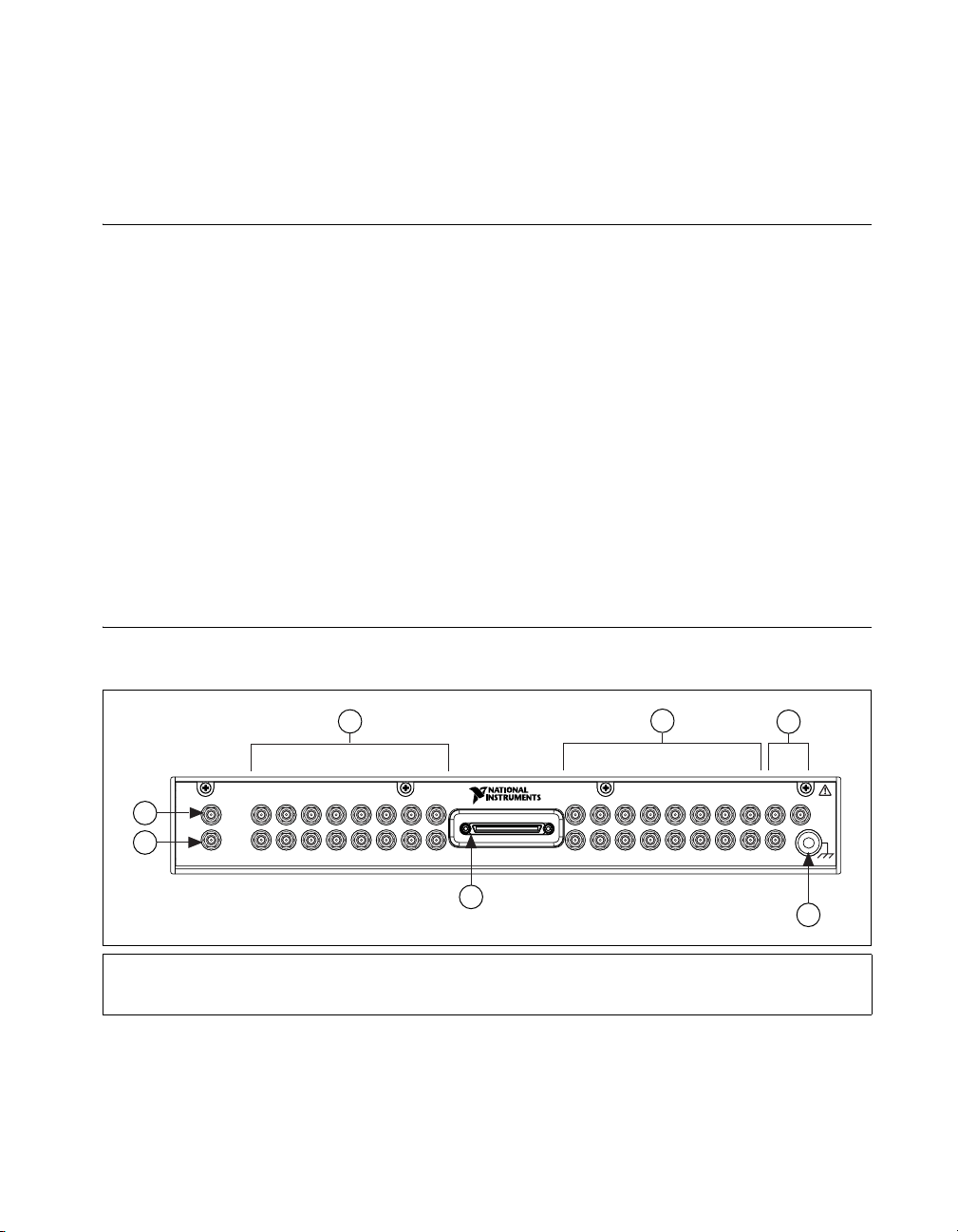

Refer to Figure 1 to locate connectors on the NI SMB-2163.

Figure 1. NI SMB-2163 Parts Locator Diagram

1STROBE

2 DDC CLK OUT

3 DIO <0..31>

4 68-Pin Digital Data & Control (DDC) Connector

5 Programmable Function Interface (PFI) <1..3>

6 Shield Ground Lug

SMB-2163

High-Speed DIO Accessory

DIO 20

DIO 24 DIO 25 DIO 26 DIO 27 DIO 28 DIO 29 DIO 30 DIO 31

PFI 1 PFI 2

PFI 3

DDC CLK OUT

STROBE DIO 1 DIO 2 DIO 3 DIO 4 DIO 5 DIO 6 DIO 7

DIO 8 DIO 9 DIO 10 DIO 11 DIO 12 DIO 13 DIO 14 DIO 15

DIO 0 DIO 16 DIO 17 DIO 18 DIO 19 DIO 21 DIO 22 DIO 23

NI SMB-2163 User Guide 4 ni.com

Installing Cables

Complete the following steps to install the NI SHC68-C68-D2 cable and

any 50 ΩSMB cables.

Caution Disconnect power from the device, accessory, and any other connected hardware

before connecting the cable to prevent damage to the hardware and personal injury. NI is

not liable for damage resulting from improper connections.

1. Install the driver software and digital waveform generator/analyzer

by following the installation procedure in the NI Digital Waveform

Generator/Analyzer Getting Started Guide.

Note Always install the module in a computer or PXI/CompactPCI chassis before

attaching any cables or accessories.

2. Attach either end of an NI SHC68-C68-D2 cable assembly to the DDC

connector of the digital waveform generator/analyzer and secure the

cable with the captive screws on the cable connector.

Notes Do not use cables other than the NI SHC68-C68-D2 cable with this accessory.

Do not use the NI SMB-2163 accessory with differential digital signals, such as the digital

pattern output of the NI PXI-5421 signal generator.

The NI SMB-2163 is not compatible with the NI 6533/6534 products.

3. Attach and secure the other end of the NI SHC68-C68-D2 cable

assembly to the DDC connector of the NI SMB-2163 and secure them

together with the captive screws on the cable connector.

©National Instruments Corporation 5 NI SMB-2163 User Guide

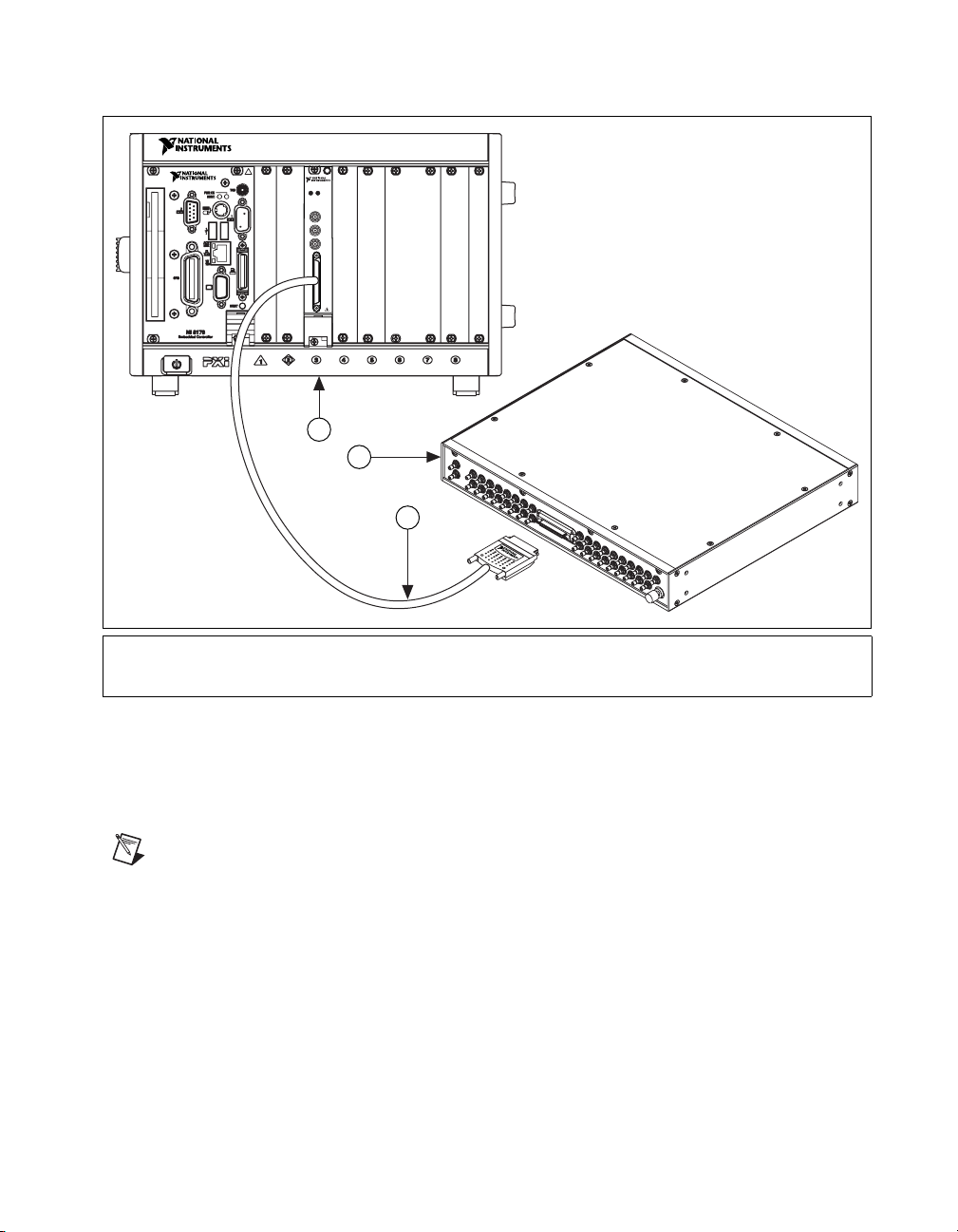

Figure 2 shows how the NI SHC68-C68-D2 cable connects the

NI SMB-2163 and the NI digital waveform generator/analyzer.

Figure 2. Connecting a Single-Ended Digital Waveform Generator/Analyzer

to the NI SMB-2163

4. Make signal connections by connecting SMB cables to NI SMB-2163

signal terminals.

Note To ensure a solid ground connection, tighten the SMB connectors by gently

snapping them into place.

1 PXI Chassis with NI Digital Waveform Generator/Analyzer

2 NI SMB-2163

3 NI SHC68-C68-D2 Cable Assembly

NI PXI-6551

50 MHz Digital I/O

DIGITAL DATA& CONTROL

PFI 0

ACCESS ACTIVE

CLK

OUT

NI PXI-1042

NI SMB-2163 User Guide 6 ni.com

Connecting Signals

The NI SMB-2163 provides connectivity to up to 32 single-ended DIO

channels, three programmable function interface (PFI) channels, and

two clock channels of an NI digital waveform generator/analyzer. You

can connect to these signals from the labeled SMB connectors on the

NI SMB-2163.

Caution Connections that exceed any of the maximum ratings for the NI SMB-2163

or the NI digital waveform generator/analyzer can damage the device and the computer.

Maximum input ratings are provided in the specifications document that shipped with the

NI digital waveform generator/analyzer. NI is not liable for any damages resulting from

such signal connections.

Figure 3 shows the pinout of the DDC connector of the accessory. Each

DIO, PFI, and clock channel is connected to a corresponding pin on the

NI SMB-2163.

Table 1 describes the DDC signals in the pinout.

©National Instruments Corporation 7 NI SMB-2163 User Guide

Figure 3. DDC Connector Pinout

Note Refer to the NI Digital Waveform Generator/Analyzer Help at Program

Files»National Instruments»NI-HSDIO»Documentation»NI Digital Waveform

Generator/Analyzer Help for information about the number of available DIO channels

on your device. DIO <20..31> may not apply to your device.

DIO 31

GND

DIO 29

GND

DIO 27

GND

DIO 25

RESERVED

DIO 23

GND

DIO 21

GND

DIO 19

GND

DIO 17

GND

DIO 15

GND

DIO 13

GND

DIO 11

GND

DIO 9

GND

DIO 7

PFI 1

DIO 5

GND

DIO 3

PFI 3

DIO 1

GND

DDC CLK OUT

GND

DIO 30

GND

DIO 28

GND

DIO 26

GND

DIO 24

GND

DIO 22

GND

DIO 20

GND

DIO 18

GND

DIO 16

GND

DIO 14

RESERVED

DIO 12

GND

DIO 10

GND

DIO 8

GND

DIO 6

RESERVED

DIO 4

GND

DIO 2

PFI 2

DIO 0

GND

STROBE

GND

NI SMB-2163 User Guide 8 ni.com

Note For additional shielding, you can connect the shield ground connector on the

NI SMB-2163 to earth/hard ground. This terminal is connected to the shielded enclosure

ground. The shield ground lug is shown in Figure 1.

Cleaning the Accessory

Disconnect all cables to the NI SMB-2163 before cleaning. To remove

light dust, use a soft, nonmetallic brush. To remove other contaminants, use

alcohol wipes. The unit must be completely dry and free from contaminants

before returning to service.

Table 1. DDC Connector Pinout Descriptions

DDC Pin Signal Description

DIO <0..31> Bidirectional digital data channels 0 though 31.

STROBE External Sample clock source for pattern

acquisition.

DDC CLK OUT Exported Sample clock signal.

PFI <1..3> Programmable function interface channels

1 through 3.

GND Ground reference for signals.

RESERVED These channels are reserved for system use.

Do not connect signals to these channels.

©National Instruments Corporation 9 NI SMB-2163 User Guide

Specifications

Digital I/O

DIO channels.......................................... 32, single-ended

Control I/O channels .............................. 5, single-ended

Typical propagation delay

through NI SMB-2163 ........................... 1.2 ns

Typical channel-to-channel skew........... ±35 ps

Typical trace

characteristic impedance ........................ 50 Ω

Power

Maximum voltage rating........................ 5.5 V

Physical

Dimensions............................................. 30.5 cm ×4.5 cm ×26.5 cm

(12.0 in. ×1.77 in. ×10.43 in.)

I/O connectors ........................................ One 68-pin DDC connector,

37 SMB jack connectors,

one banana-style connector

CE Compliance

Refer to the regulatory statement for this product for additional

compliance information. To obtain this information for this product,

visit ni.com/hardref.nsf, search by model number or product line,

and click the appropriate link in the Certification column.

Caution When connected to other test objects, this product may cause radio interference.

In a residential environment, the user may be required to take adequate measures to reduce

the radio interference.

NI SMB-2163 User Guide 10 ni.com

Environmental Management

National Instruments is committed to designing and manufacturing

products in an environmentally responsible manner. NI recognizes that

eliminating certain hazardous substances from our products is beneficial

not only to the environment but also to NI customers.

For additional environmental information, refer to the NI and the

Environment Web page at ni.com/environment. This page contains the

environmental regulations and directives with which NI complies, as well

as other environmental information not included in this document.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling

center. For more information about WEEE recycling centers and National Instruments

WEEE initiatives, visit ni.com/environment/weee.htm.

Technical Support Resources

NI Web Support

National Instruments Web support is your first stop for help in solving

installation, configuration, and application problems and questions. Online

problem-solving and diagnostic resources include frequently asked

questions, knowledge bases, product-specific troubleshooting wizards,

manuals, drivers, software updates, and more. Web support is available

through the Technical Support section of ni.com.

Worldwide Support

National Instruments corporate headquarters is located at

11500 North Mopac Expressway, Austin, Texas, 78759-3504.

National Instruments also has offices located around the world to help

address your support needs. You can access our branch office Web sites

from the Worldwide Offices section of ni.com. Branch office Web sites

provide up-to-date contact information, support phone numbers, email

addresses, and current events.

⬉ᄤֵᙃѻક∵ᶧ᥻ࠊㅵ⧚ࡲ⊩ ˄Ё೑

RoHS

Ё೑ᅶ᠋

National Instruments ヺড়Ё೑⬉ᄤֵᙃѻકЁ䰤ࠊՓ⫼ᶤѯ᳝ᆇ⠽䋼ᣛҸ (RoHS)Ǆ

݇Ѣ National Instruments Ё೑ RoHS ড়㾘ᗻֵᙃˈ䇋ⱏᔩ ni.com/environment/rohs_chinaǄ

(For information about China RoHS compliance, go to ni.com/environment/rohs_china.)

Inhaltsverzeichnis

Andere National Instruments Zubehör Handbücher

National Instruments

National Instruments FIELDPOINT CFP-CB-1 Bedienungsanleitung

National Instruments

National Instruments PXIe-5654 Bedienungsanleitung

National Instruments

National Instruments WSN-3212 Bedienungsanleitung

National Instruments

National Instruments Smart Camera Bedienungsanleitung

National Instruments

National Instruments PXIe-4844 Bedienungsanleitung

National Instruments

National Instruments D000017 Rev B Bedienungsanleitung

National Instruments

National Instruments 2 SD Card Memory Module NI 9802 Bedienungsanleitung

National Instruments

National Instruments FD-11601 Bedienungsanleitung

National Instruments

National Instruments NI-IMAQ Bedienungsanleitung

National Instruments

National Instruments WSN-3226 Handbuch

National Instruments

National Instruments PXIe-4844 Bedienungsanleitung

National Instruments

National Instruments BNC-2090 Bedienungsanleitung

National Instruments

National Instruments Portable Monitor Accessory NI PMA-1115 Bedienungsanleitung

National Instruments

National Instruments NI 9944 Bedienungsanleitung

National Instruments

National Instruments UMI-7764 Bedienungsanleitung

National Instruments

National Instruments NI MID-7604 Bedienungsanleitung

National Instruments

National Instruments WSN-3230 Bedienungsanleitung

Beliebte Zubehör Handbücher anderer Marken

Hillco

Hillco 2810 Bedienungsanleitung

Siemens

Siemens QSA2700D Bedienerhandbuch

Contours

Contours ZY024 Bedienungsanleitung

Saivod

Saivod VS621 Bedienungsanleitung

Virtuox

Virtuox VirtuCLEAN 2.0 Bedienungsanleitung

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Bedienungsanleitung

Z-Wave

Z-Wave HSD-200Z Bedienungsanleitung

turck

turck FMX-IM-2UPLI63FX Bedienungsanleitung

Decagon Devices

Decagon Devices 10HS Bedienungsanleitung

UPPAbaby

UPPAbaby Cup Holder Bedienungsanleitung

Elko

Elko SmartSensor Leakage Wireless Bedienungsanleitung

Grizzly

Grizzly H8371 Bedienungsanleitung

Panasonic

Panasonic HG-T Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 250 Series Referenzhandbuch

DigiDesign

DigiDesign 888/24 I/O Bedienungsanleitung

PROZIS

PROZIS QUAY Bedienungsanleitung

patagonia

patagonia PSI Vest Bedienungsanleitung

SFC Energy

SFC Energy EFOY GO! Bedienungsanleitung
