INSTRUCTION MANUAL

Nauticam Macro Port and Zoom Gear

Set for Olympus 12-50mm EZ

PN# 36167

Thank you for your purchase of a NAUTICAM

product.

At NAUTICAM, we pride ourselves in the ability to

recognize the requirements of professional as well

as amateur underwater photographers and fulfill

them through the innovative designs of our

products. We strive to achieve a high level of user-

friendliness by allowing stress-free installation and

easy operation of all important functions of the

camera.

Each product is individually inspected and water

pressure tested to ensure optimum quality.

Please read this manual carefully before using the

product, this will maximize its performance as well

as its lifetime.

FORWORD

Current as of 07/04/2023

All NAUTICAM Products are warranted against

any material and manufacturing defects for two

years from the date of purchase for consumer

use. This warranty only applies to products

purchased from authorized NAUTICAM dealers

and does not extend beyond the original retail

purchaser.

To return your product for service, please contact

your regional authorized service center(s). Please

note that this warranty only applies when the

product is purchased in the territory where the

service center is located.

NAUTICAM does not hold responsibility for

damage, of any nature, to any equipment used

with and/or placed within our products.

NAUTICAM accepts no liability for any loss of

captured images or the inability to capture images

even if it is due to the malfunctioning of our

products.

Unauthorized modifications and/or repairs of our

products will automatically invalidate the

warranty.

•After installation of the port combo, please

make sure the O-ring (s) are free from debris

and uneven surface issues.

•A water-tight/vacuum test without the camera

inside the housing is highly recommended after

the changing of port and O-ring(s).

•Do not use lubricants from other brands with

the silicone rubber O-ring on this housing, only

use the lubricant provided by NAUTICAM.

•Discontinue use immediately should you notice

any leakage.

•Do not open the product in a wet or sandy

environment. Protect the interior from moisture

and debris in order to prevent malfunction or

leakage.

•Defective products should be shipped to our

distributors for service, unauthorized

disassembling and/or modifications could

result in malfunction or leakage.

•When travelling by air, do not travel with any

port installed as this may lead to a pressure

difference between the atmosphere and inside

the housing.

PRECAUTIONS

PACKAGE CONTENTS

•Make sure that you have all the included items listed below before using this product.

•If some items are missing or damaged, please reach out to us or the local Nauticam dealer.

Zoom Gear Set Macro Port

Spare O-ring

Manual Notice Card

Cross Screwdriver

Lubricant

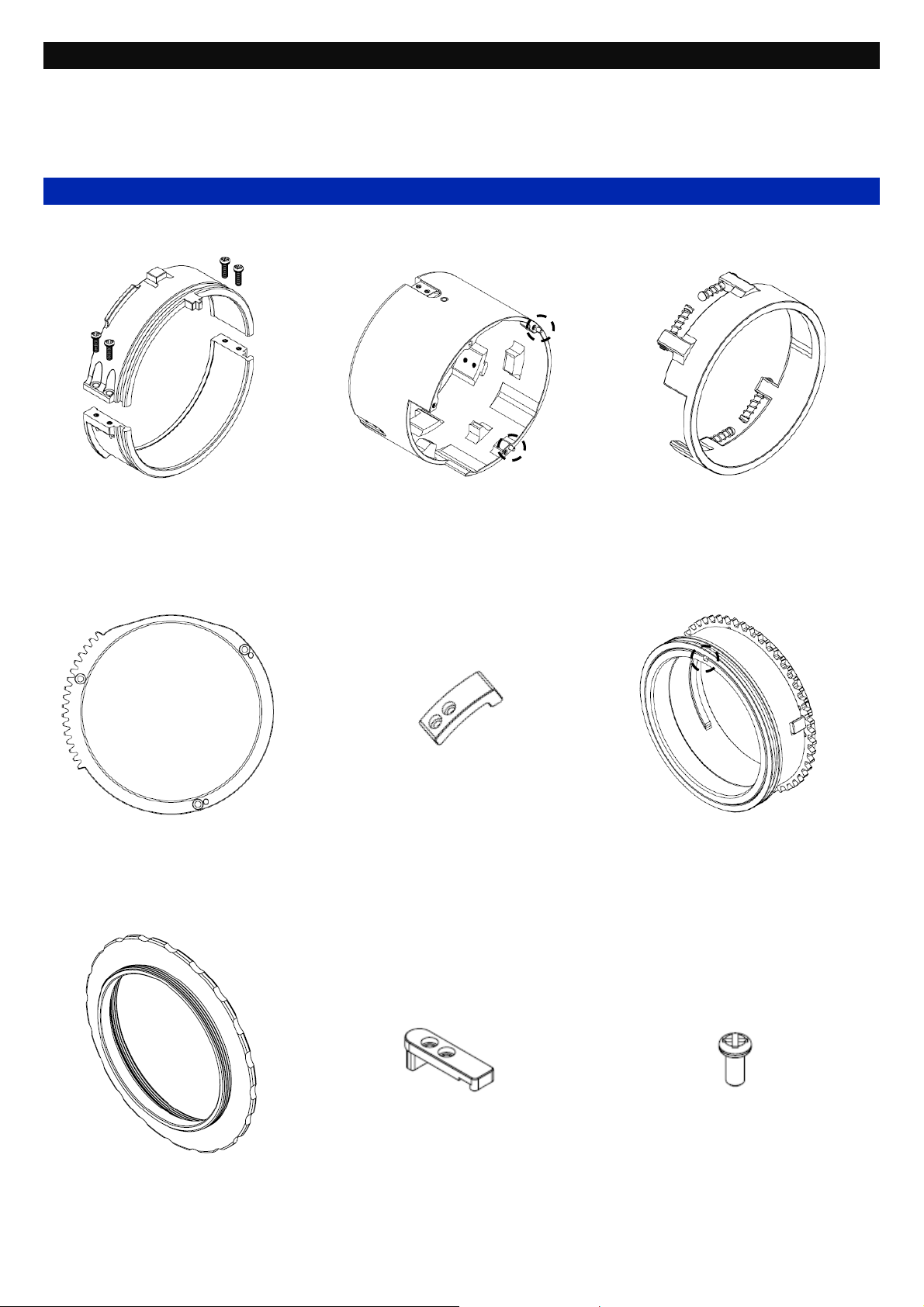

IDENTIFICATION OF ZOOM GEAR PARTS

Two half-rings - Zoom Gear Zoom gear tube - Zoom Gear Spring ring - Zoom Gear

Zoom gear ring - Zoom Gear Macro Switch Block - Zoom Gear Macro switch gear

Locking ring - Macro switch Gear Positioning Block x3

- Macro Switch Gear

Screw x11

Control knob

Plastic port cap

Rear port cap

Cold shoe

Spare O-ring

Macro Port with M77 thread

for Olympus M.Zuiko Digital

ED 12-50mm F3.5-6.3 EZ

IDENTIFICATION OF PORT PARTS

MOUNT GEARS ON LENS

1. Mount the two half-rings on the lens

zoom ring as indicated in the diagram.

2. Align the alignment index on the ring

with the dot on the lens before

tightening the four screws. While

tightening the screws, make sure that

the gaps on both sides are even and the

ring does not slip when turning at E-

ZOOM mode.

3. Align the alignment index on zoom gear

tube with the red dot on the lens and

insert the tube onto the lens.

Gap between

the two half-rings

MOUNT GEARS ON LENS

4. Align the spring ring with the lens as

indicated in the diagram. Then lightly

push the ring towards the lens until it

cannot go any further.

Tip: To remove, pull out from the cover.

5. Align the pins on the tube with the holes

in the gear ring as indicated in the

diagram. Then tighten the three screws.

6. Align and tighten the screws with the

Macro switch block pressing on the lens

MACRO button.

MOUNT GEARS ON LENS

7. Align the inner groove of the macro

switch gear with the white dot on the

zoom gear tube. Then lightly push the

gear towards the lens until it cannot

go any further.

8. Tighten the macro switch gear by

screwing the locking ring into the

thread on the front of the lens.

9. Align the positioning block onto the

two gears. With the longer ends

inserted into the hole of the zoom gear

and the shorter ends sat into the

groove of the macro switch gear. Then

tighten the two screws. Repeat this

with the other two blocks and check if

the lens can be switched between

macro mode and normal mode by

turning the macro switch gear. Repeat

the above procedure if fail to switch.

10.To un-mount, reverse the above steps.

*When mounting the Olympus 12-50mm EZ lens

with the gear on the GH5/EM1X camera, or

when removing them, the lens must be set to

the “Macro” position.

INSTALL PORT TO HOUSING

1. Make sure the control knob is at its

most outwards position before

mounting/ un-mounting the port. The

knob should be left at this position until

making sure that the lens and zoom

gear is properly installed.

2. When properly installed, the lens should

be perfectly concentric with the port. If

there is a slight misalignment, check

the position of the camera.

3. Engage the gear by pushing in the knob,

then turn the knob for about 45° both

ways to check if the camera switch

between normal mode and Macro mode.

Correctly aligned

Unlock, reverse the above procedures.

SPECIFICATIONS

#36167 Macro Port and Zoom Gear Set for

Olympus 12

-50mm EZ

Dimensions:

Gear part

: DIA102mm × 29.5mm

Port part : DIA102mm

× 49.2mm

Port

Mount:

N85

Depth rating:

100m

Remark:

Nauticam supports only e-manuals. Please download

corresponding product manuals on google drive

https://bit.ly/Nauticammanual,or contact us for e-

manuals.

CARE AND MAINTENANCE

•Soak the housing system in fresh water after

each use, during which all control buttons/knobs

should be operated a few times to avoid the

accumulation of salt residue; wipe the housing

with a towel before opening.

•After removing the housing from the rinse tank,

carefully press the housing lock safety button for

a few times to avoid the accumulation of salt

residue.

•After each day of diving, it is advisable to have

both the housing main O-ring and port O-ring

removed from its groove with the O-ring remover

and inspected for damage. Also check that the

O-ring retains its original circular shape; never

stretch the O-ring excessively or remove it with a

sharp object. The O-ring groove should be

cleaned to ensure it is free from any salt deposit

or foreign material; lightly coat the O-ring with the

provided lubricant before reinstalling it in the

groove. A damaged O-ring should be discarded

immediately and replaced only with one that is

provided by NAUTICAM.

Please refer to "Nauticam Product Care and

Maintenance Guide" for more details.
