Kit Instructions
Stand, CX7
7772-K030
Issue B
ii
The product described in this document is a licensed product of NCR Corporation.
NCR is a registered trademark of NCR Corporation. Product names mentioned in this publication may be
trademarks or registered trademarks of their respective companies and are hereby acknowledged.
Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is
permitted under the terms and conditions of an agreement you have with NCR, NCR's copyright notice
must be included.
It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software,
and firmware become available. NCR, therefore, reserves the right to change specifications without prior
notice.
All features, functions, and operations described herein may not be marketed by NCR in all parts of the
world. In some instances, photographs are of equipment prototypes. Therefore, before using this document,
consult with your NCR representative or NCR office for information that is applicable and current.
Copyright © 2021
By NCR Corporation
Global Headquarters
864 Spring St NW
Atlanta, GA 30308
U.S.A.
All Rights Reserved
Revision Record
Issue Date Remarks
ASep 2021 First Issue
BDec 2021 Added Warning statement
Stand, CX7
This kit provides a Stand for the NCR CX7 All-in-One POS (7772) or NCRCX5 All-in-
One POS(7773).

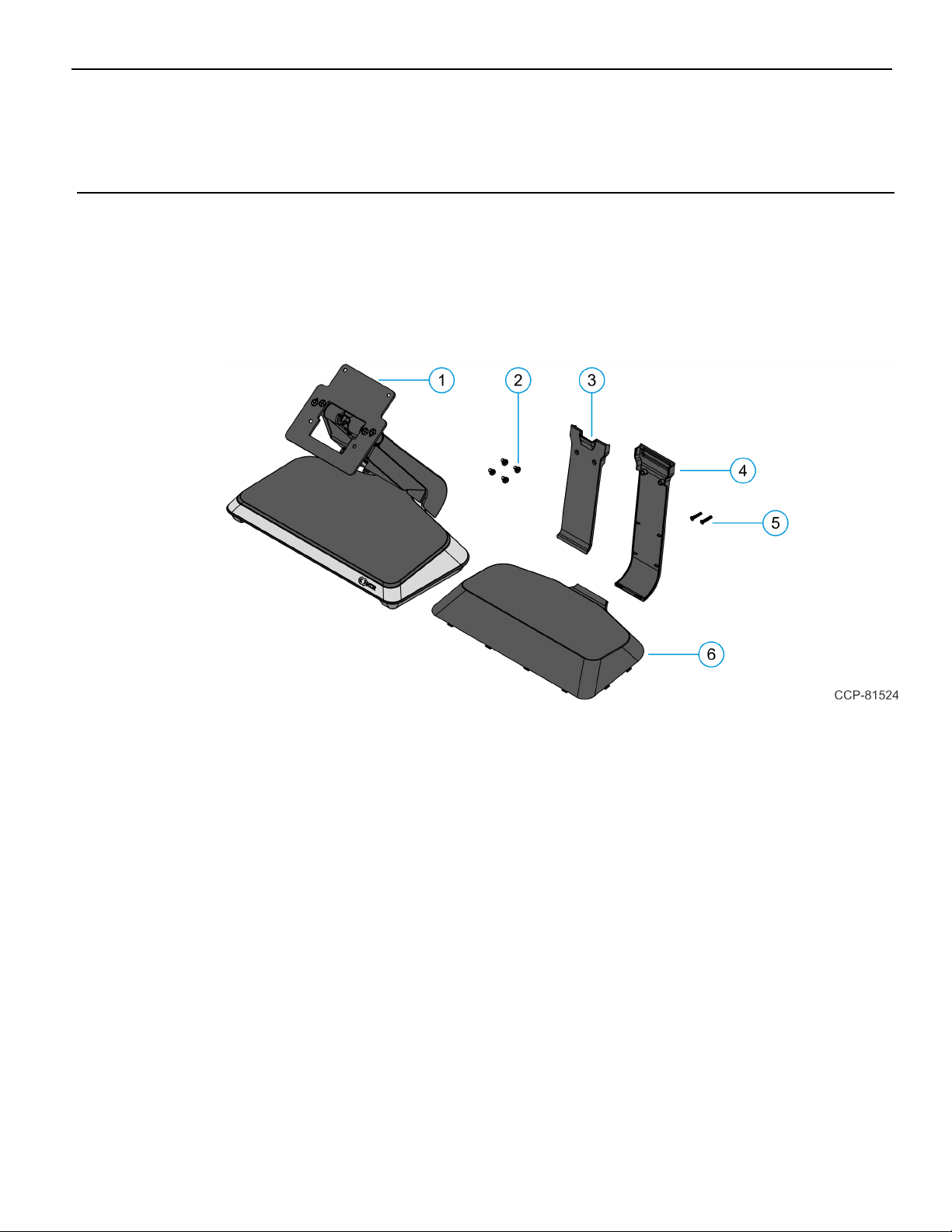

Kit Contents
2 Stand, CX7
Item Part Number Description
1Stand Assembly
497-0523815 Base, HSG, Cast, Silver
497-0523819 Neck, Center, Cast, Silver
497-0523775 Base, Trim, Bottom, Blk7
497-0523779 Base, Foot,Center, Blk7
497-0524135 Base Feet, CX7, Blk7
497-0528039 Hinge, CX, Blk7
497-0523767 Base, Cover, Top, Remote Power Supply, Blk7
497-0531326 Mounting Plate – VESA, CX7, Blk7
497-0531317 Cover – Neck, CX7, Blk7 (Neck Cover)
497-0531321 Door – Neck, CX7, Blk7 (Neck Door)
006-0654018 Screw, Metric, SEMS, Phillips, Pan Head,M4x10,
10mm length
006-8612048 Screw, M3x8, SEMS, Phillips, Pan Head, Steel, Z
006-8622885 Screw, M4–0.7 x 8mm Flat Head, Machine, Knurled
Head, Steel, Black Oxide
006-8624893 Screw, M3x5, Steel, Flat Head, Phillips, Clear Zinc, w/
NDNylon Patch
006-8625003 Screw, SEMS, M4x14, Pan Head, Phillips
006-8626665 Screw, M3x14mm, SEMS, Steel, Phillips, Pan Head,
Zinc
006-8628206 Male–Female Threaded Hex Standoff, Steel, Zinc
Plated, 16mm long, M4 x 0.70mm size, w/
NDMicrospheres Thread Lock
2 006-8622885 Screw, M4–0.7 x 8mm Flat Head, Machine, Knurled
Head, Steel, Black Oxide
3 497-0523791 Neck, Inner, Black (Front Neck Cover)
4 497-0523787 Neck, Outer, Black (Back Neck Cover)
5 006-8627391 Screw, M3x16, Flat Head, Black
6 497-0523771 Base, Cover, IntegratedPower Supply, Blk7
Stand, CX7 3
Installation Procedure
Installing the Stand
Warning: Disconnect the AC power cord from the AC outlet and wait 30 seconds
before servicing the terminal.

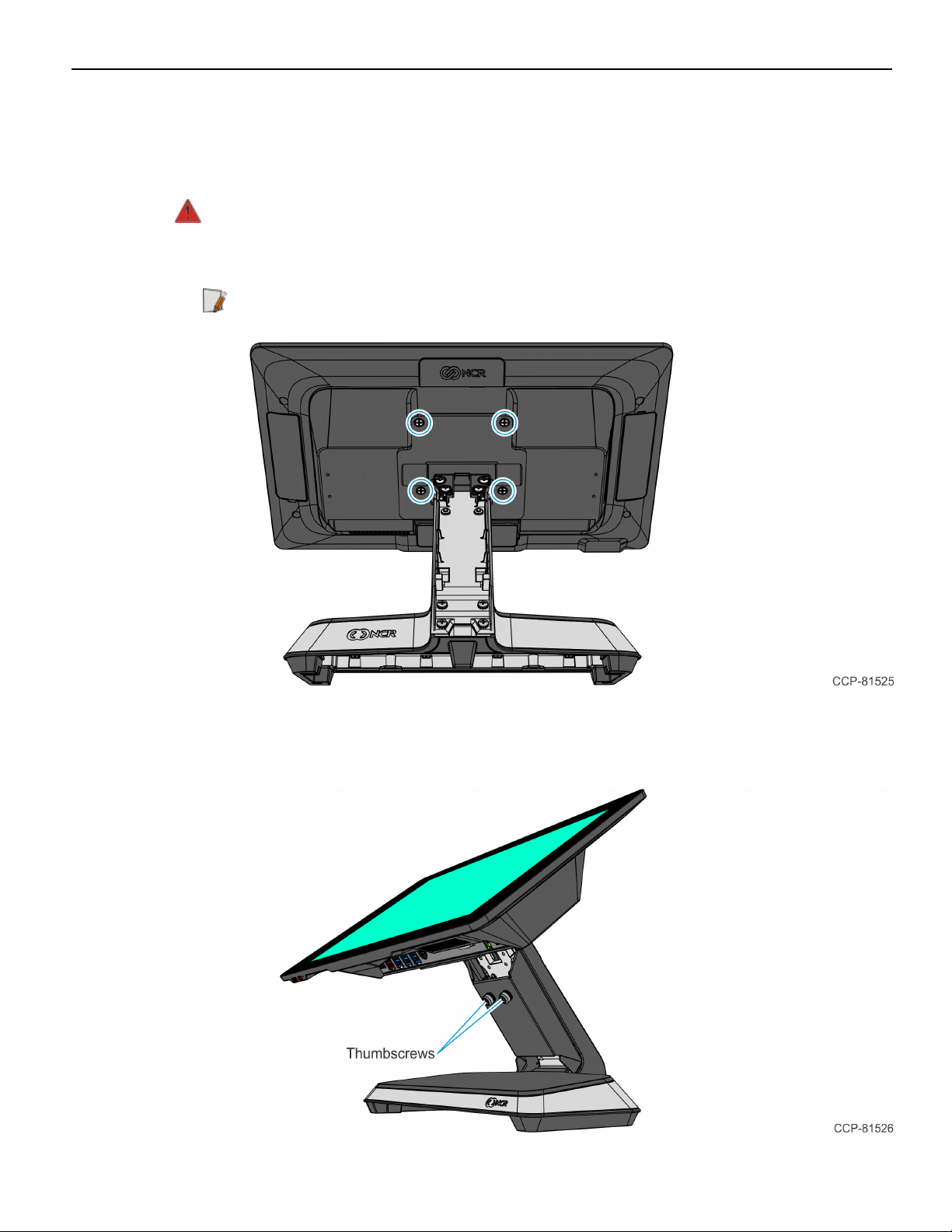

1. Install the CX7 with Integrated I/O on the Bracket (4 screws).
Note: For clarity, the Neck Cover is not shown in the illustration.
2. Remove the Neck Door.
a. Loosen the two (2) thumbscrews on the Neck Door.
4 Stand, CX7

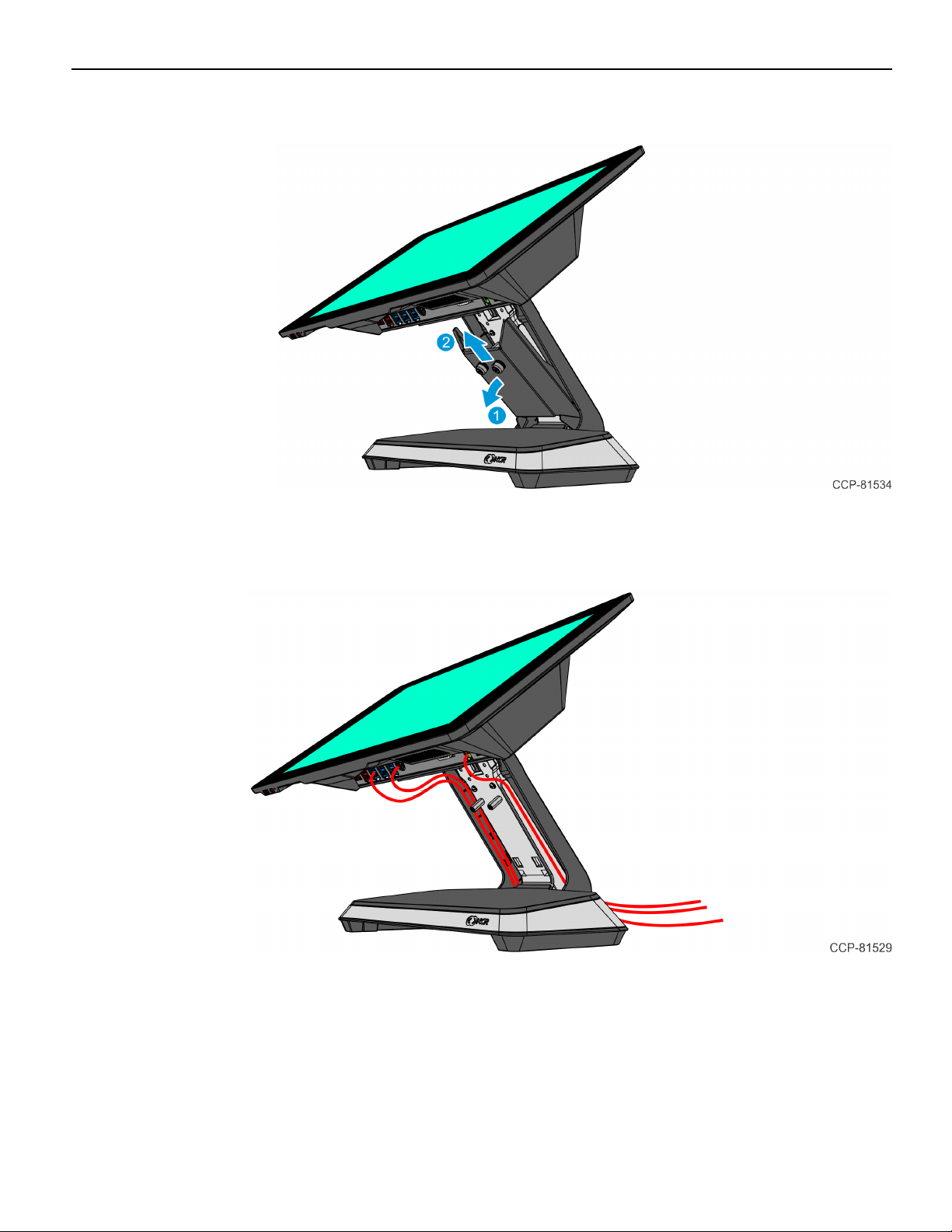

b. Rotate the Door forward and pull out to remove.
3. Connect the Cables to the I/O.
4. Route the Cables down the Neck as shown.
Stand, CX7 5

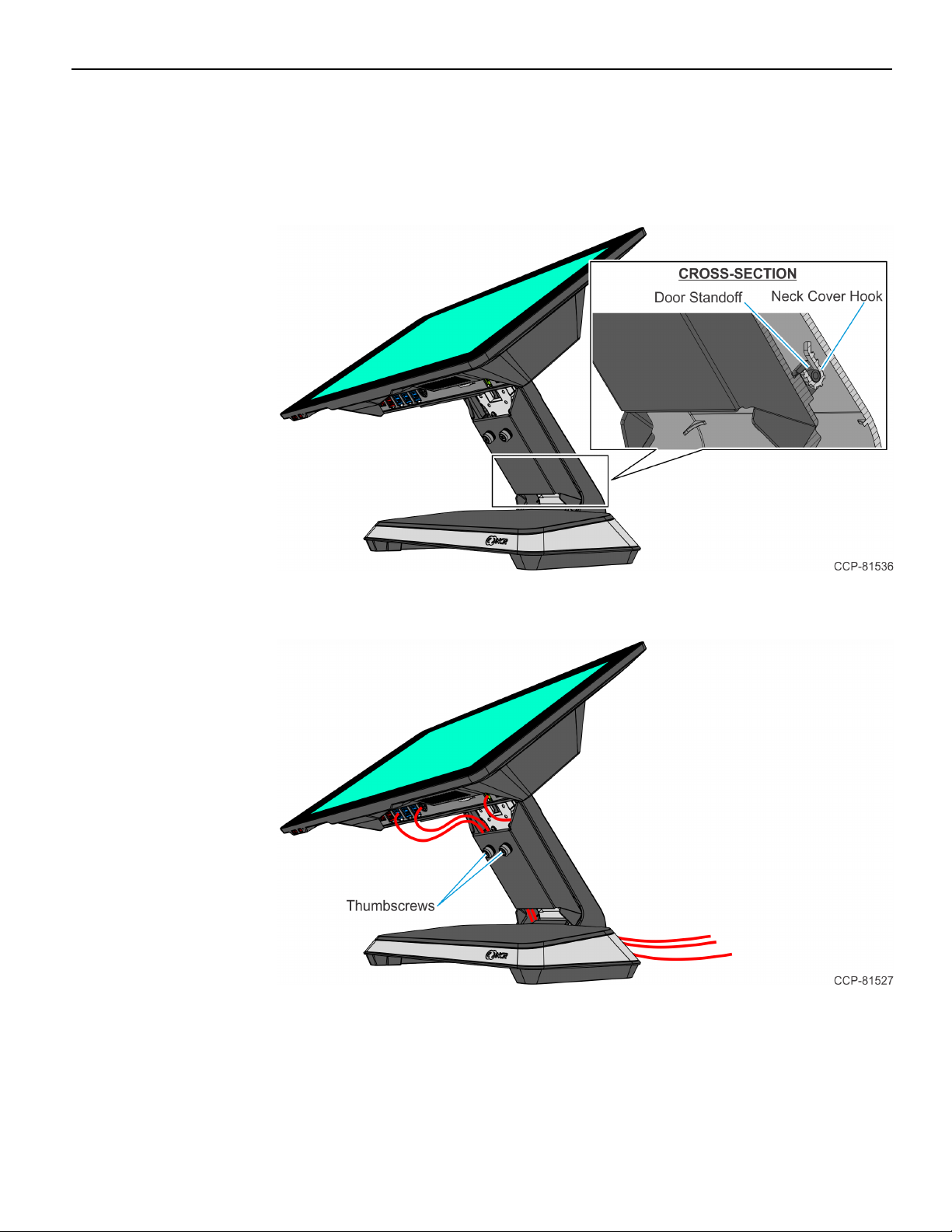

5. Reinstall the Neck Door.
a. Hook the Neck Door on the Neck Cover. Position the Door so that the door
standoffs (one on each side) sit on the hooks on the inside of the neck cover (one
on each side).
b. Tighten the two (2) thumbscrews.
6 Stand, CX7
Installing the Integrated Power Supply
Warning: Disconnect the AC power cord from the AC outlet and wait 30 seconds
before servicing the terminal.

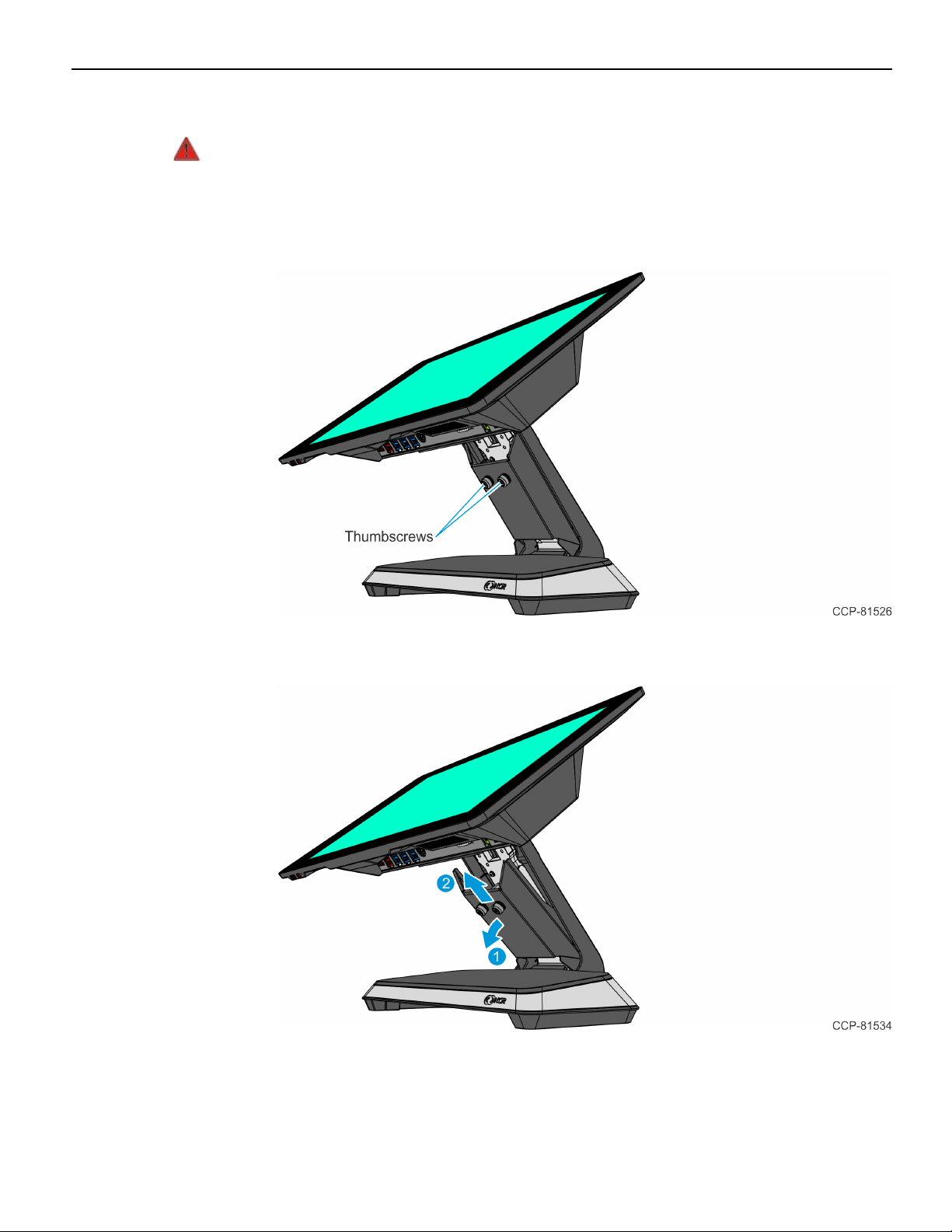

1. Remove the Neck Door.
a. Loosen the two (2) thumbscrews on the Neck Door.
b. Rotate the Door forward and pull out to remove.
Stand, CX7 7
2. Slightly push the front side of the Base Cover, then pivot the cover open.
3. Route the ACCord up through the opening in the Base.
8 Stand, CX7

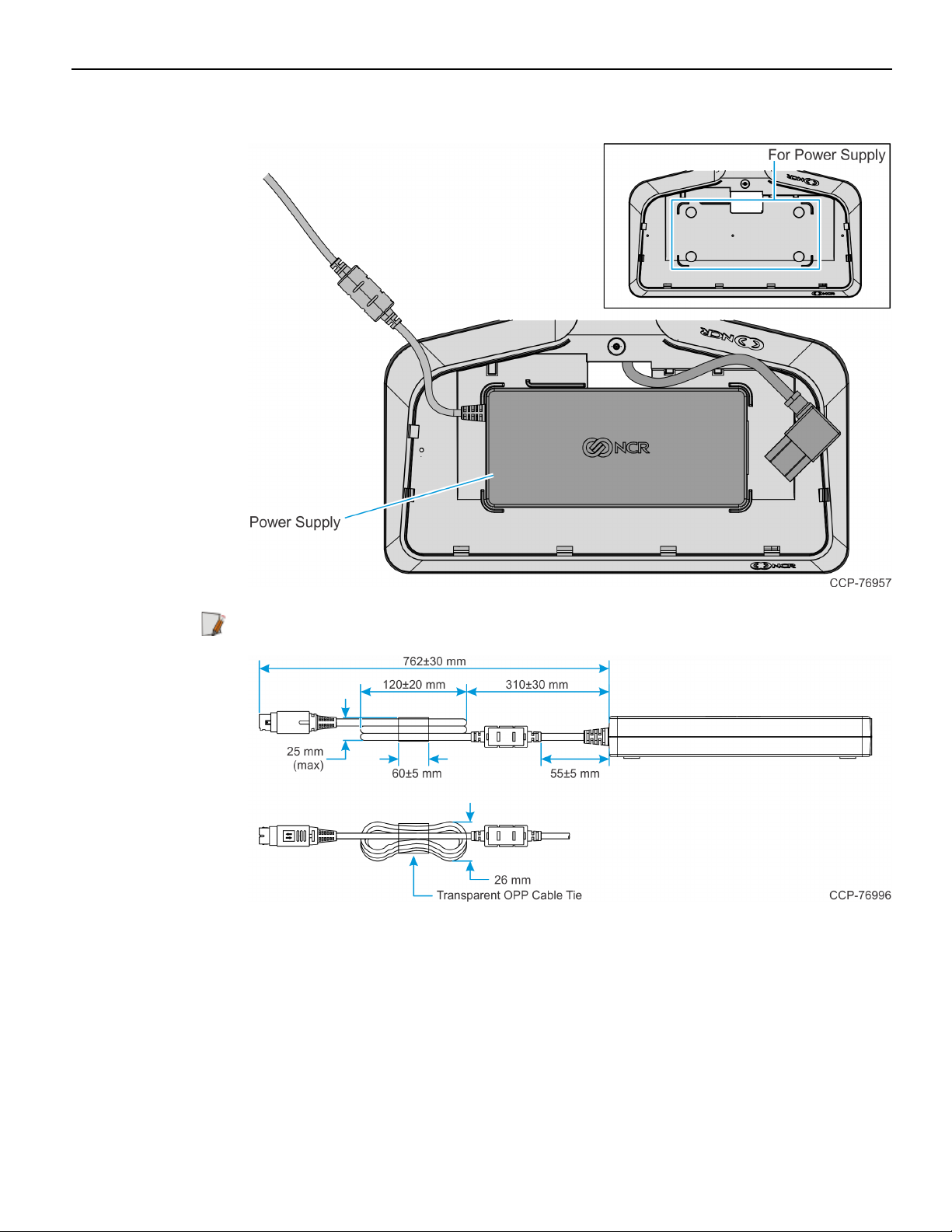

4. Position the Power Supply in the recess on the Base.
Note: The Power Supply Cable comes bundled as shown.
