NCR 7409-K073 Handbuch
7409‐K073
PedestalDoorScanner
KitInstructions
IssueA
Revision Record
Issue Date Remarks
AAug2010Firstissue
1
Introduction

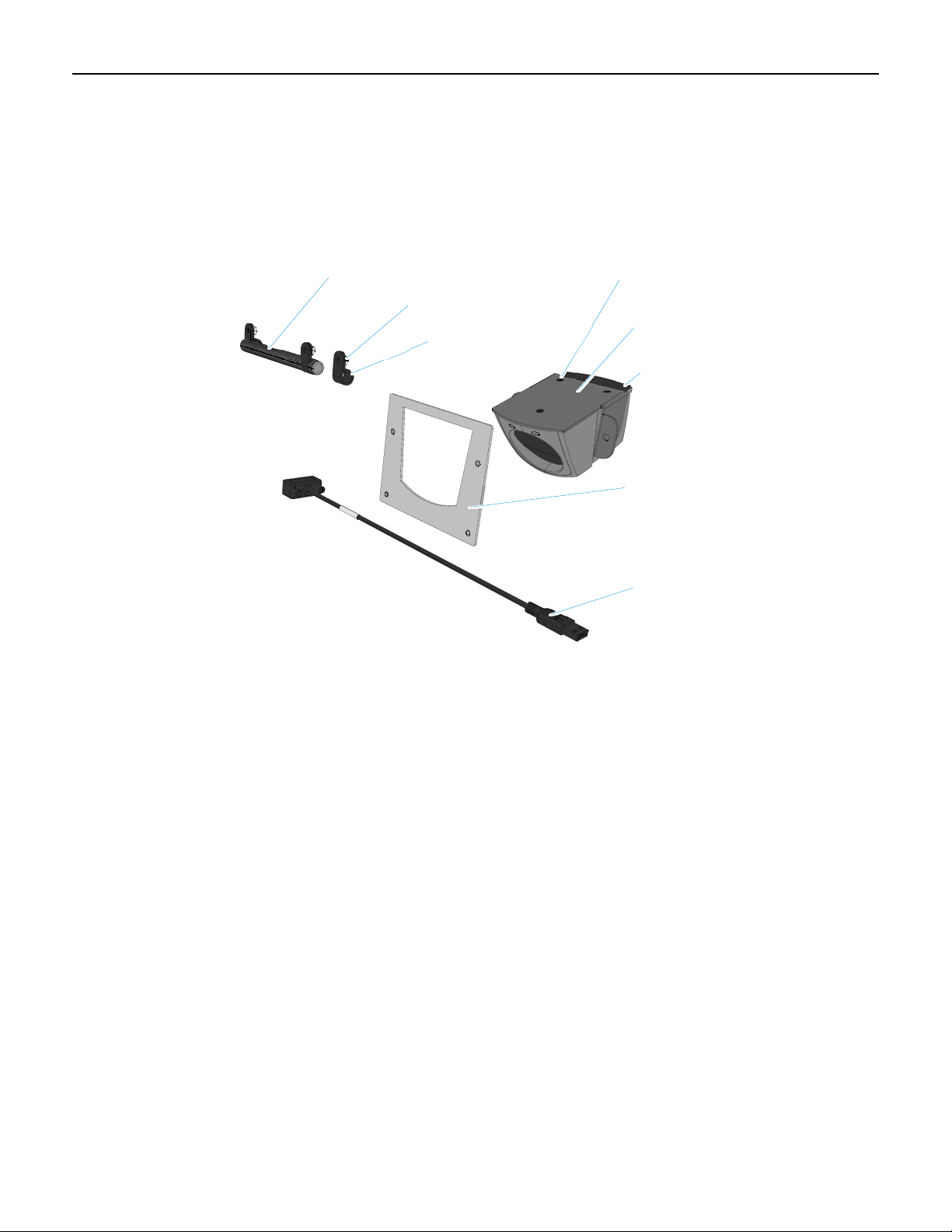

ThiskitprovidesthecomponentstoaddaBarCodeScannertotheFrontDoorofa
7409‐K066pedestal.
28740
Split Loom Tubing (1/2”)
497-0469862
5/16” Cable Clamp
006-8604575
Nut, 6-32
006-8611426
Screw, M3 x 0.5 x 6mm, Phillips, Ft Hd (3)
006-8612557
Pedestal Door Mount Scanner Bracket
795-0165400
Miniscan MS 3207-1000R Scanner
006-8612581
Pedestal Door Scanner Fit Plate
795-0165700
MS3207 Scanner Cable
497-0469023
2
Installation Procedures
1. OpenthePedestalDoor.
2. RemovethePedestalDoorScannerBlankfromthePedestalDoor(4hexnuts).
28738
Pedestal Door
Scanner Blank
Hex Nuts
3. InsertthePedestalDoorScannerFitPlateandtheMS3207Scannerinthedoor
opening.Securetheassemblyfromthebackwithhexnuts(4).
2
8
7
39
MS3207 Scanner
Pedestal Door Scanner Fit Plate
Hex Nuts (4)
3
4. ConnecttheMS3207ScannerCabletothescanner.
5. WraptheSplitLoomTubingaroundthecablewherethecablepassesthedoor
hinge.SecurethecabletothepedestalusingCableClamps.
28741
Split Loom Tubing
6. ConnecttheotherendofthecabletoaUSBportontheterminal.
