Product Guide – NEC Express5800/120Rf-2

October, 2003

PRODUCT OVERVIEW

NEC Express5800/120Rf-2

is a system designed to deliver scaleab

erformance to data centres, workgroup environments or remote site

for which space limitation is a prime consideration

It is especial

intended to ASPs/ISPs for

osting Internet and Web applications, and t

eneral corporations willing to consolidate their applications o

nfrastructure services. All these customers want to be able to grow an

deploy additional servers in the same amount of space.

NEC Express5800/120Rf-2 is housed in a compact 2U rack-

optimized

chassis, which allows up to 21 servers in an industry-

tandard 19” 42

rack. Based on the E7501 chipset from Intel supporting 533

MHz Front

Side Bus and 3-peer PCI, the Express5800/120Rf-2 takes full benefi

of the latest Xeon processors with FC-mPGA2 packaging and high-

performance DDR266 SDRAM memories.

NEC Express5800/120Rf-2 is a bi-processor design supporting Xeon

processors from 2.8BGHz with 512KB L2 cache up to 3.20GHz

with

1MB L3 cache. The Express5800/120Rf-2 offers up to 12

GB SDRAM

memory (6 DIMM sockets) with ECC protection and 6 free PCI slots

for optimal expandability. Embedded Ultra 320 SCSI controller

integrated auto-sensing 10/100/1000

bps Ethernet also guarante

outstanding power and performance.

NEC Express5800/120Rf-

provides high availability features such a

hot-swap power supplies

nd hard disk drives to meet the demand o

usiness critical applications. Despite its small 2U form factor, th

Express5800/120Rf-2 can support up to 7 hot-swap drives (1,025.5

max) with Ultra 320 technology for transfer rates up to 320MB/s.

Designed with simplicity for easy installation and manageability, NEC

Express5800/120Rf-2 comes standard with NEC EXPRESSBUILDER

set-up and configuration software and NEC ESMPRO

anagemen

software. In addition, it incorporates unique integrated

remote

management capabilities

providing remote emergency access an

ontrol of server resources (via LAN or modem connection) in an

situation.

Designed to run demanding and business critical applications in space-

conscious environments, the Express5800/120Rf-2 is

the high density

e-business rack server your growing business can depend on.

The

HIGH DENSITY

E-business Rack Server

NEC Express5800/

Product Guide – NEC Express5800/120Rf-2

October, 2003

TARGET AUDIENCES

End User Base Configuration Price

Peer to Peer, Low-end File, Print

File, Low-end database

High

end File, Database,

Multi-user host, Low-End Computing

Intensive Computing,

Transaction processing

Key Customer Needs

•

Reliability & Security

•

High Availability

•

Manageability

•

System Performance

•

Serviceability

•

Availability

•

Scaleability

•

Manageability

•

I/O Throughput

•

Price/Performance

•

Price

•

Scaleability

•

Manageability

•

Basic performance

•

Lowest Cost

110Eg

120Lg

NEC Express5800 Servers

120Mf

180Rd-4

120Rd-1

120Ef

120Rf-2

140Rc-4

3 layer Architecture

Mobile

Internet

Firewall

Web

Mail

Cache

Security

Application

File

Backup

Database

Front-end server layer

Application server layer Back-end server layer

Product Family 1Way model

Blade Server

Appliance Server

2/4Way model

4/8Way model

Ft server

Storage

120Rf-2

Product Guide – NEC Express5800/120Rf-2

October, 2003

HIGHLIGHTS

* Standard HDD bays are six. When standard FDD/CD-ROM is removed, 7 HDD can be

mounted.

Up to two Xeon processors

(2.80BGHz/3.06GHz

/3.20GHz

)

533MHz Front Side Bus (FSB)

Up to 1,025.5GB (7x 146.5GB*) hot-swap

Embedded dual-channel Ethernet

(1000BASE

Tx 2)

6x Expansion Slots

(64-bit/100MHz PCI-X)

Slim rack mount chassis (2U)/

Full lockable front bezel

2 CPU

533 266

LAN

Connectors

2U design Key lock

Model 120Rf-2 CPU Memory

N-code

Product Guide – NEC Express5800/120Rf-2

October, 2003

KEY PRODUCT FEATURES & USER BENEFITS

Next-generation Xeon Processing and Enhanced System Architecture

NEC Express5800/120Rf-2 is built to take full advantage of the latest Xeon processors from

2.80BGHz up to 3.20GHz. These processors are packaged in the new FC-mPGA2 form factor, a

603-pin socket version of the Xeon.

The design of NEC Express5800/120Rf-2 is built upon a 533MHz Front Side Bus (FSB), the

E7501 chipset from Intel and DDR266 SDRAM memory. The Intel Xeon processor for dual-

processing servers offers users several new system performance boosts, with the Intel Netburst

microarchitecture on Intel’s 0.13-micron manufacturing process, Hyper-Threading technology, a

larger cache size and the E7501 server chipset.

The Intel E7501 chipset supports DDR memory technology and is optimized for the Intel Xeon

processor. The new chipset will accelerate memory access to increase platform performance and

deliver new levels of performance for I/O intensive server applications.

This chipset also allows increased throughput and enhanced overall system performance through

the high-performance 533MHz FSB and full-speed 266MHz memory access.

The I/O subsystem of NEC Express5800/120Rf-2 is built on a dual peer PCI bus architecture

that provides concurrency of data transfers between the different high speed I/O channels and

CPU or memory. I/O traffic is balanced as follows:

- First PCI bus (32-bit): IDE, graphics and I/O ports

- Second PCI bus (64-bit): Dual-port LAN and 3x 64-bit full-height PCI slots

- Third PCI bus (64-bit): Ultra 320 SCSI channels and 3x 64-bit low-profile PCI slots

Improved Memory Architecture

NEC Express5800/120Rf-2 offers 6 DIMM sockets for industry-standard 128MB, 256MB,

512MB, 1GB or 2GB SDRAM DDR266 DIMM. The Express5800/120Rf-2 allows easy

expansion of system’s capabilities to memory-intensive environments (scalability up to 12GB)

and comes standard with 9-bit parity/ECC 266MHz SDRAM for maximum data integrity.

High-performance Ultra 320 Disk Drives and Flexible Storage Configurations

NEC Express5800/120Rf-2 supports the latest disk drives with Ultra 320 SCSI technology

(10Krpm or 15Krpm), giving data rates of up to 320MB/s for maximum throughput.

Disk bay Device bay (-> Disk bay)

The Express5800/120Rf-2 includes a 3.5-

inch diskette drive, a CD-ROM drive, six

hot-swap SCSI hard disk drive bays, and

removable media device bay.

The hot-swap SCSI hard disk drive bays

support up to seven 1-inch SCSI hard disk

drives that can be swapped in or out of the

system without powering it down, if RAID

functionality is configured in the system.

Xeon TM processor

Product Guide – NEC Express5800/120Rf-2

October, 2003

Integrated Ultra 320 I/O Controller

NEC Express5800/120Rf-2 system board features an integrated dual-channel SCSI

controller providing Ultra 320 SCSI interfaces for the support of Ultra 320 hard disk

drives and SCSI media devices (DAT, AIT).

The system board also includes a single channel EIDE controller providing support for the

internally mounted CD-ROM.

Multiple RAID Options

NEC Express5800/120Rf-2 comes with a complete range of optional high-performance Ultra 320

RAID boards. These boards give top levels of performance, maximum reliability and fault

tolerance when running demanding server applications.

•The 64bit RAID controller features 2x Ultra 320 SCSI channels, Intel GC80303 processor

and 128MB of cache with battery backup unit.

•The 64bit RAID controller features 1x Ultra 320 SCSI channel, Intel GC80302 processor and

64MB of cache without battery backup unit. It is possible to add optional battery backup unit.

Embedded Auto-sensing 10/100/1000Mbps Ethernet

NEC Express5800/120Rf-2’s system board includes a dual-channel gigabit network interface

controller based on the Intel 82546EB. The 82546EB is a highly integrated PCI LAN controller

in a 21 mm2PBGA package. The controller supports 10/100/1000 operation on both the channels

and it supports alert-on-LAN functionality.

The 82546EB controller supports the following features:

-64-bit, 100MHz PCI-X interface

-Integrated IEEE 802.3 10Base-T, 100BASE-TX, and 1000Base-T compatible PHY

-IEEE 820.3u auto-negotiation support

-Chained memory structure similar to the 82559, 82558, 82557 and 82596

-Full duplex support at both 10 Mbps, 100Mbps and 1000Mbps operation

-Low power +3.3 V device

The auto-sensing PRO/100+ Server Adapter from Intel can also be supported on NEC

Express5800/120Rf-2. By installing multiple PRO/100+ boards, high-availability (load balancing,

fault tolerance) and top performance features are provided for the most demanding networking

environments.

Product Guide – NEC Express5800/120Rf-2

October, 2003

Integrated Video

NEC Express5800/120Rf-2 has an integrated ATI Rage XL PCI graphics accelerator with 8 MB

of video SDRAM. The embedded SVGA video subsystem supports:

- Resolution up to 1600 x 1200 under 2D and 1024 x 768 under 3D

- CRT and LCD monitors up to 100Hz vertical refresh rate

6 Expansion Slots

The server’s expansion capabilities meet the needs of workgroup and department servers for high-

performance I/O by providing 6 free 64bit PCI-X slots including 3x LowProfile.

2U Rack-Optimized Design

NEC Express5800/120Rf-2’s compact and practical 2U

packaging is ideal for space-constrained environments. Up to

22 systems can fit in an industry-standard 19-inch 44U

rackframe, occupying a limited floor space. In addition, the

chassis allows tool-free access, simplifying upgrades even more.

Finally, NEC Express5800/120Rf-2 is part of a comprehensive

portfolio of rackable NEC Express5800 servers, rack

enclosures and accessories for optimal flexibility.

External Device Connectors

The external I/O connectors of NEC Express5800/120Rf-2 provide support for a PS/2-

compatible mouse and a keyboard, connectors for VGA monitor, two serial port connectors

(RJ-45 x1, D-sub 9pin x1), three USB connections and a 68-pin Wide SCSI connector.

Product Guide – NEC Express5800/120Rf-2

October, 2003

Redundant Hot-Swap Power Supplies

NEC Express5800/120Rf-2 supports redundant hot-swap power supplies to ensure system

operation even if one of the power supplies fails. The system comes standard with one 500W

power supply and a second one is optional for redundancy.

Each power supply has auto-ranging input 50/60Hz, automatic voltage sensing (100-240V) and

comes with its own AC cord for better reliability.

Optional Backup Devices

NEC Express5800/120Rf-2 can accommodate optional high-performance DAT tape options for

back-up: DDS3 (12/24GB) and DDS4 (20/40GB) and AIT tape options for back-up: AIT-1A

(25GB/35GB), AIT-2 (50GB) and AIT-3 (100GB).

Operating Environments

NEC Express5800/120Rf-2 is certified for the following NOS: Windows 2000 Server / Advanced

Server; Windows Server 2003 Standard Edition/Enterprise Edition and Red Hat Linux.

Power supply slot 1 Power supply slot 2

AC inlet for

power supply slot 1

AC inlet for

power supply slot 2

AC POWER lamp

Product Guide – NEC Express5800/120Rf-2

October, 2003

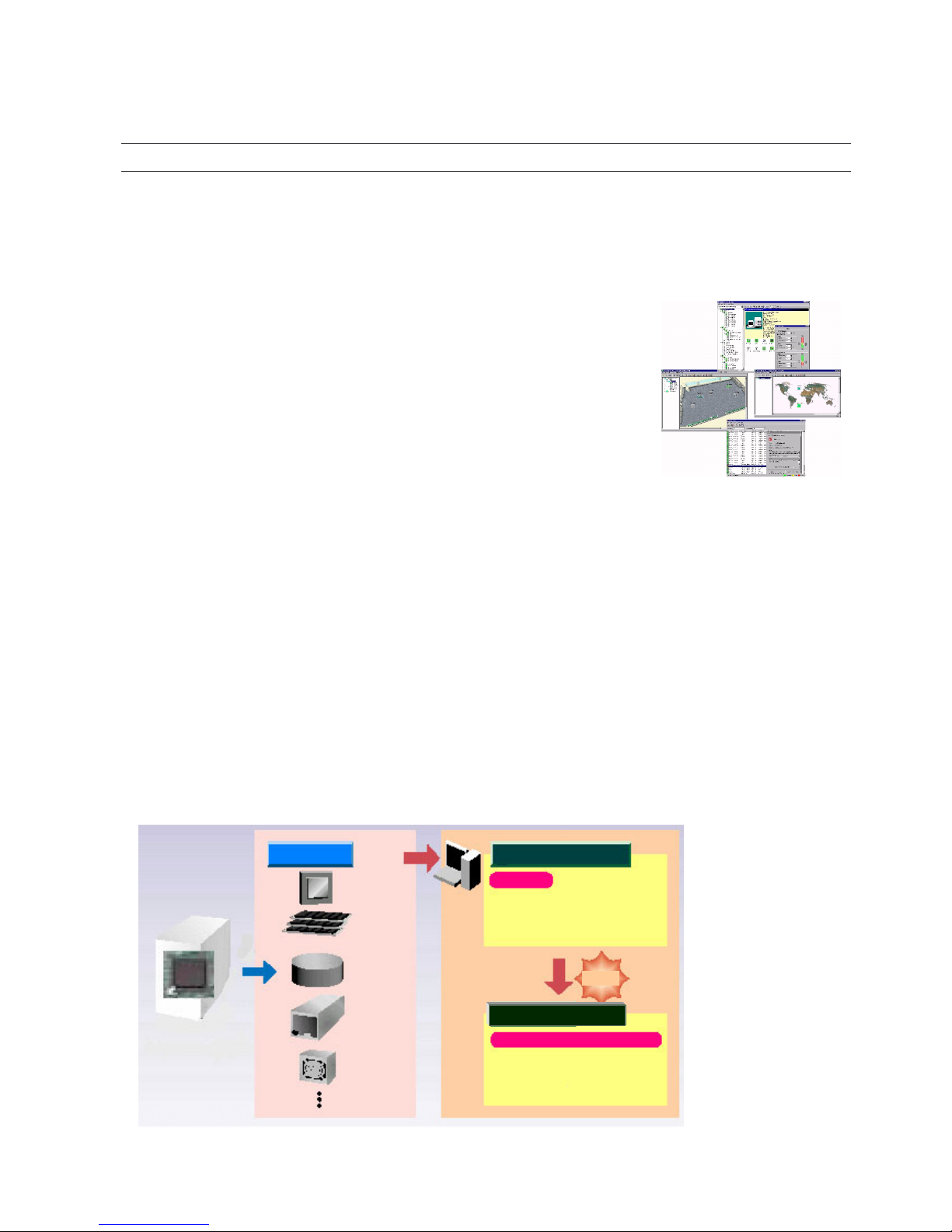

NEC ESMPRO Server Management Software

NEC Express5800/120Rf-2 includes NEC ESMPRO Server Management Software that allows

network administrators to monitor, control and manage NEC Express5800 servers and desktops

across a network from a management console or any PC with an Internet browser.

NEC ESMPRO enables:

•Local or remote management (via your network or the Web)

•Comprehensive real-time fault management

•Performance and load monitoring

•Broad configuration and asset management

It allows system administrators to optimise server operations through an

easy-to-use Windows-based graphical user interface.

NEC ESMPRO comes with SNMP agents for Microsoft Windows environments

accommodating all NEC Express5800 servers.

“Plug-in” applications are also available to comprehensively integrate NEC Express5800

systems with leading enterprise and network managers such as HP OpenView NNM for

Windows, Tivoli Enterprise, or CA Unicenter TNG.

To lower the Total Cost of Ownership even more, NEC Express5800/120Rf-2 features

hardware integrated remote management capabilities implemented through the Baseboard

Management Controller (BMC) and RomPilot (extended BIOS). This built-in solution provides

remote emergency access and control of server resources (via LAN or standard modem

connection) from a Management Workstation Application (MWA) allowing critical actions

such as remote power control, remote Event Log access or remote console redirection,

regardless of the state of the operating system or the network. In the past, this capability was

available only through an expensive emergency management ISA/PCI add-in card.

•Remote Control

•Remote Console

•Remote Drive

CPU

Main Memory

Hard Disk

Power Supply

Fan

Monitor

Express5800/100series

Baseboard

Management

Controller

Monitoring

Resource

ESMPRO

Management Workstation Application

•HW/SW inventory management

•Alert management

•Remote power-on/off

Failure

In case of trouble

Normal Condition

Andere Handbücher für 120Rf-2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NEC Server Handbücher

NEC

NEC N8800-103F Bedienungsanleitung

NEC

NEC Express5800/340Hb-R N8800-047F Bedienungsanleitung

NEC

NEC SV8500 Betriebsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Betriebsanleitung

NEC

NEC Express 5800 Series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Anleitung zur Verwendung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Express5800/320Lb FT Linux Bedienungsanleitung

NEC

NEC Univerge SV9300 Betriebsanleitung

NEC

NEC Express5800/A1080a Bedienungsanleitung

NEC

NEC iLO 5 Bedienungsanleitung

NEC

NEC LC1400 Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Express5800/R320c-E4 N8800-173F Bedienungsanleitung

NEC

NEC Express5800/180Ra-7 Bedienungsanleitung

NEC

NEC Express5800/R320d-M4 Series Bedienungsanleitung

NEC

NEC Express5800/R120f-1E Bedienungsanleitung

NEC

NEC Express5800/T110j-S Bedienungsanleitung

NEC

NEC E120e-M Bedienungsanleitung

NEC

NEC NECCare Platinum Express5800/A1160 Bedienungsanleitung

NEC

NEC Express5800/T110h Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung

Planet

Planet NAS-7410 Bedienungsanleitung
