NetApp AFF A400 Handbuch

Prepare for installation Install hardware Cable storage Complete system setup

and conﬁguration

1 2 3 4

AFF A400 Systems

Installation and Setup Instructions

Prepare for installation |Stage 1

You provide

Contents

In the box

Cables in your

shipment are

order-dependent.

Not all cables

shown may be

in your shipment.

Pre-setup

215-14510_2020_09_en-us

1. Unpack all boxes and inventory contents. For more cable information and part numbers, see the Hardware Universe.

2. If you are not already in the AFF and FAS System Documentation Center, go to AFF and FAS System Documentation Center;

click AFF A400 systems; click Installation and Setup:

- Review the NetApp ONTAP Conﬁguration Guide.

- Watch the videos listed under Setup videos.

Laptop or console

With a USB/serial connection and access to a

Web browser to conﬁgure your storage system

Rack space

4U for AFF A400

+2U for each NS224 shelf

Additional network cables

For connecting your storage system to your

network switch and laptop or console.

Part numbers:

X5585-R6 (112-00291), 3m

X6562-R6 (112-00196), 5m

RJ-45 cables

Wrench port (e0M/BMC)

(order-dependent)

Storage Cables

mini-SAS HD to

mini-SAS HD cables

Part numbers:

X66211A-05 (112-00595), 0.5m

X66211A-1 (112-00573), 1m

X66211A-2 (112-00574), 2m

X66211A-5 (112-00576), 5m

100 GbE cable (QSFP28)

Storage, cluster network, and

Ethernet data (order-dependent)

Part numbers:

X66030A (112-00435), .5m

X66031A (112-00436), 1m

X66032A (112-00437), 2m

X66033A (112-00438), 3m

Additional cables

Power cables

Ethernet cables

micro USB console cable

Slide rail kit

Cable management tray

Screwdriver

Phillips #2

16 Gb FC or 25GbE cables

Mezzanine cards (SFPs pre-installed):

Part number:

X66250-2-N-C (112-00342)

Part numbers:

X66240-2 (112-00598), 2m

X66240-5 (112-00639), 5m

25 GbE cable (SFP28s)

HA interconnect, GbE network cable.

Part numbers:

X66250-2 (112-00342), 2m

X66250-5 (112-00344), 5m

X66250-15 (112-00346), 15m

32 Gb FC (SFP+ Op)

FC optical network cable

Install hardware |Stage 2

Switchless cluster: Connect ports e3a to e3a and

ports e3b to e3b

Switched cluster: Controller 1: Connect port e3a to switch 1

and port e3b to switch 2. Controller 2: Connect port e3a to

switch 1 and port e3b to switch 2.

Connect ports e0a to e0a and ports e0b to e0b.

(HA interconnect only)

Connect ports to the 25 GbE data network switches.

(optional, conﬁguration dependent)

• Install the slide rail or telco tray kits, as needed, and then install and

secure your system using the instructions included with the kit.

• Attach cable management devices to the back of each controller (as shown).

• Place the bezel on the front of the system.

• Install any drive shelves for your system.

Install system in a rack or cabinet

LIFTING HAZARD

CAUTION

≥50.1 kg (≥110.2 lbs.)

Cable the controller for a switchless or switched cluster

See your network administrator for help connecting to your switches.

DO NOT plug the power cables into a power source yet.

The system will boot as soon as the power cables are plugged into the power source and power supplies.

100 GbE cables (cluster network)

25 GbE cables

Ethernet cables

Optical cables

Pull-tab

Attention: Be sure to check the illustration arrow for the

proper cable connector pull-tab orientation.

Note: To unplug a cable, gently pull the tab to release the locking mechanism.

Pull-tab

X1151A

X1148A

Connect ports to the FC data network switches.

(optional, conﬁguration dependent)

Connect the Wrench port (e0M/BMC) to the management

switches

Connect the mezzanine ports (e0e | 0e through e0h | 0h) to

either 25 GbE or 16 Gb FC switches; conﬁguration dependent.

Strap the cables to the cable management arms. (not shown)

25 GbE cables

FC cables

Rear view of NS224 drive shelf

e0a-e0b ports

Switched cluster To Ethernet or FC switches

(optional, conﬁguration-dependent)

To Ethernet or FC switches

(optional, conﬁguration-dependent)

To cluster

switches

To 25 GbE data

network switches

(optional, conﬁguration-dependent)

To management

network switches

To 16Gb FC or

25GbE switches

(optional, conﬁguration-dependent)

To 25 GbE data

network switches

(optional, conﬁguration-dependent)

To management

network switches

e0a e0b

Switchless cluster

To 16Gb FC or

25GbE switches

(optional, conﬁguration-dependent)

e0a

e3b e3a

e0b

e0a e0b

e3b e3a

16Gb FC or 25GbE

Rear view of AFF A400 System

Cable storage |Stage 3

Cabling an AFF A400 system

to one NS224 shelf

100 GbE QSFP28 copper cable

Connect controller A port e0c

to port e0a on NSM A on the shelf.

Connect controller A port e0d

to port e0b on NSM B on the shelf.

Connect controller B port e0c

to port e0a on NSM B on the shelf.

Connect controller B port e0d

to port e0b on NSM A on the shelf.

Pull-tab

Attention: Be sure to check the illustration arrow for the proper cable connector pull-tab orientation.

Note: To unplug a cable, gently pull the tab to release the locking mechanism.

Shelf 1

NSM A

NSM B

Controller A

Controller B

e0a

e0c e0d

e0a

e0b

Cabling an AFF A400 system

to two NS224 shelves

100 GbE QSFP28 copper cable

Shelf 1

NSM A

NSM B

Controller A

Controller B

e0a

e0c e0d

e0c

e0a

e0b

Shelf 2

NSM A

NSM B

e0a

e0a e0b

e0d

e0b

Use the table below to connect your

controllers to the two NS224 shelves.

e0c

e0d

Controller A

Onboard

Controller B

e0a

e0b

e0a

e0b

Shelf 2

NSM A

NSM B

e0a

e0b

e0a

e0b

Shelf 1

NSM A

NSM B

Slot 5

e0c

e0d

Onboard

Slot 5

Cable storage |Stage 3 cont.

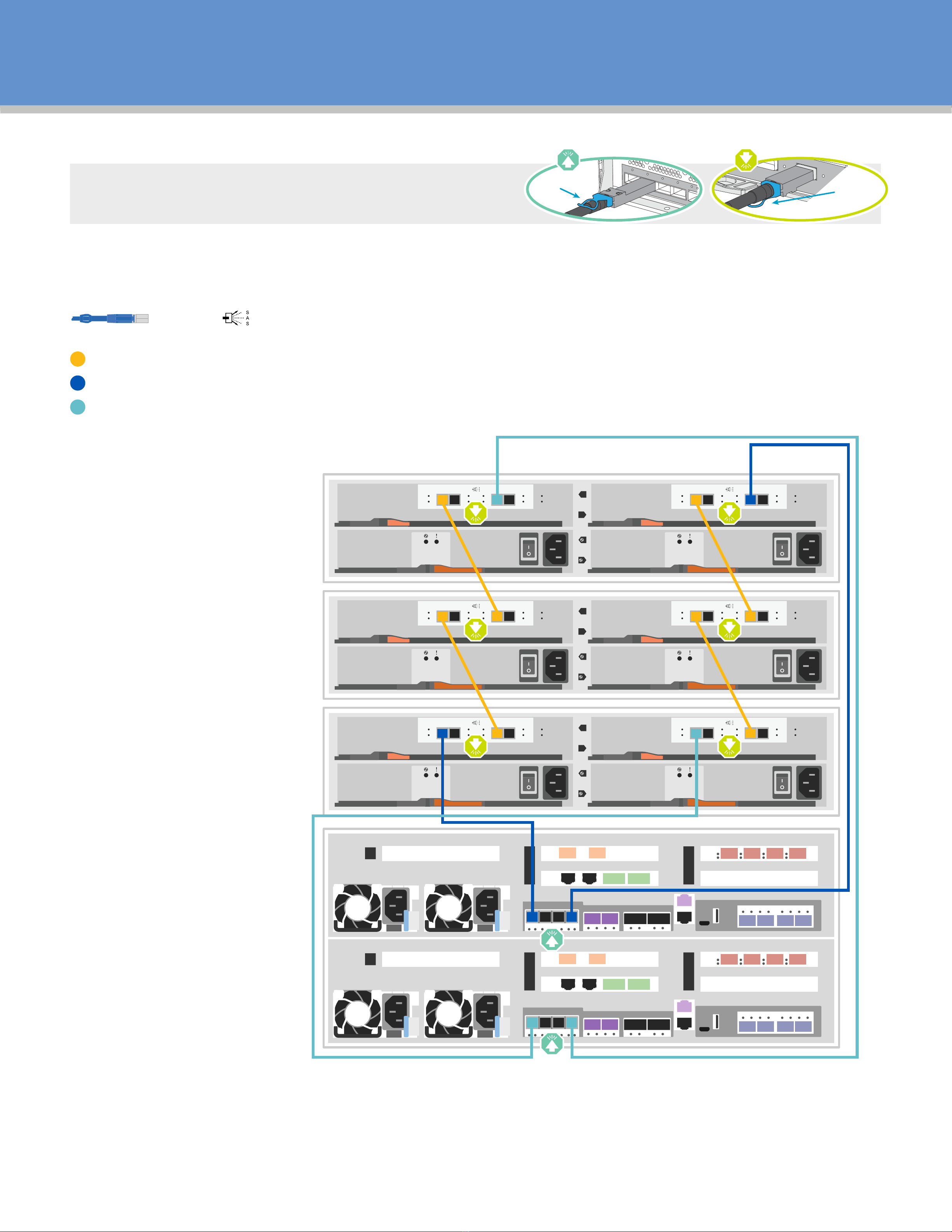

Cabling an AFF A400 system

to three DS224C shelves

Connect the shelf-to-shelf ports

Connect Controller A to the drive shelves

Connect Controller B to the drive shelves

mini-SAS HD

Shelf 1

Shelf 2

Shelf 3

IOMA IOMB

Controller A

Controller B

0a 0d

1 3

11 3

1 3

Pull-tab

Attention: Be sure to check the illustration arrow for the

proper cable connector pull-tab orientation.

Note: To unplug a cable, gently pull the tab to release the locking mechanism.

Pull-tab

Complete system setup and conﬁguration |Stage 4

3Complete initial cluster setup with network discovery:

Note: If your laptop does not support network discovery, see the Installation and setup guide.

Connect your laptop to the management switch and access the network computers and devices using substeps a through c.

Power on the shelves and set shelf IDs:

Note: For NS224 drive shelves, shelf IDs are pre-set to 00 and 01. If you want to change the shelf IDs, use the straightened end of a paperclip,

or narrow tipped ball point pen to access the shelf ID button behind the faceplate.

1. Plug the power cords into the shelf power supplies, and then connect them to power sources on dierent circuits.

Note: NS224 shelves have no power switch and will begin to boot. For all other shelf models, turn on the power switch to boot the shelves.

2. If you need to change the

shelf IDs, continue with substeps

a through e; otherwise, skip to

“Power on the controllers” below.

Repeat these steps for any

remaining drive shelves.

aOpen File Explorer

Double-click either ONTAP icon

Note: Accept any certiﬁcates displayed on your screen.

Click network in the left pane.

Then right click and select refresh.

Laptop Management Switch

5Completing setup

1. Click...

a) mysupport.netapp.com b) Create/log in to your account

c) Download and install Active IQ Conﬁg Advisor d) Register your system

2. Verify the health of your system by running Conﬁg Advisor.

3. After you have completed the initial conﬁguration, go to the NetApp ONTAP Resources

page for information about conﬁguring additional features in ONTAP.

4Use System Manager Guided Setup to conﬁgure your cluster

2Power on the controllers

Plug the power cords into the controller power supplies, and then

connect them to power sources on dierent circuits.

Note: The system begins to boot as soon as the power supplies are

connected to the power sources. Booting may take up to 8 minutes.

Remove end cap

Shelf ID number

0 0

Shelf ID number

0 9

Press and hold shelf ID button until

2nd digit blinks, then push to advance

to 0-9.

Note: The ﬁrst digit stops blinking, and

the second digit continues to blink.

Wait 10 seconds for the

Amber LED (!) to appear,

then power-cycle the

drive shelf to set shelf ID.

0 9

Replace

end cap

Shelf ID button

Faceplate

Press and hold shelf ID button until 1st

digit blinks, then push to advance to 0-9.

Note: The ﬁrst digit continues to blink.
