Maintain

Hot-swap a disk drive in a DS224C or DS212C disk shelf -

shelves with IOM12 modules

You can hot-swap a failed disk drive in a DS224C or DS212C disk shelf.

Before you begin

•The disk drive that you are installing must be supported by the DS224C or DS212C disk shelf.

NetApp Hardware Universe

•All other components in the system must be functioning properly; if not, contact technical support.

•The disk drive you are removing must be failed.

You can verify the disk drive is failed by running the storage disk show -broken command. The

failed disk drive appears in the list of failed disk drives. If it does not, you should wait, and run the

command again.

Depending on the disk drive type and capacity, it can take up to several hours for the disk

drive to appear in the list of failed disk drives.

•If you are replacing a self-encrypting disk (SED), you must follow the instructions for Replacing an SED in

the ONTAP documentation for your version of ONTAP.

Instructions in the ONTAP documentation describe additional steps you must perform before and after

replacing an SED.

NetApp encryption overview with the CLI

About this task

•You should take steps to avoid electrostatic discharge (ESD):

◦Keep the disk drive in the ESD bag until you are ready to install it.

◦Open the ESD bag by hand or cut the top off with a pair of scissors.

Do not insert a metal tool or knife into the ESD bag.

◦Always wear an ESD wrist strap grounded to an unpainted surface on your storage enclosure chassis.

If a wrist strap is unavailable, touch an unpainted surface on your storage enclosure chassis before

handling the disk drive.

•You should take steps to handle disk drives carefully:

◦Always use two hands when removing, installing, or carrying a disk drive to support its weight.

Do not place hands on the disk drive boards exposed on the underside of the disk drive

carrier.

◦You should place disk drives on cushioned surfaces, and never stack disk drives on top of each other.

◦You should be careful not to bump disk drives against other surfaces.

•Disk drives should be kept away from magnetic devices.

Magnetic fields can destroy all data on the disk drive and cause irreparable damage to the

disk drive circuitry.

•The best practice is to have the current version of the Disk Qualification Package (DQP) installed before

hot-swapping a disk drive.

Having the current version of the DQP installed allows your system to recognize and utilize newly qualified

disk drives; therefore, avoiding system event messages about having non-current disk drive information.

You also avoid the possible prevention of disk partitioning because disk drives are not recognized. The

DQP also notifies you of non-current disk drive firmware.

NetApp Downloads: Disk Qualification Package

•The best practice is to have the current versions of disk shelf (IOM) firmware and disk drive firmware on

your system before adding new disk shelves, shelf FRU components, or SAS cables.

Current versions of firmware can be found on the NetApp Support Site.

NetApp Downloads: Disk Shelf Firmware

NetApp Downloads: Disk Drive Firmware

•Disk drive firmware is automatically updated (nondisruptively) on new disk drives with non current firmware

versions.

Disk drive firmware checks occur every two minutes.

•If needed, you can turn on the disk shelf’s location (blue) LEDs to aid in physically locating the affected disk

shelf: storage shelf location-led modify -shelf-name shelf_name -led-status on

A disk shelf has three location LEDs: one on the operator display panel and one on each IOM12 module.

Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same command,

but using the off option.

•If needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and

location of disk shelf LEDs on the operator display panel and FRU components.

Steps

1. If you want to manually assign disk ownership for the replacement disk drive, you need to disable

automatic drive assignment if it is enabled; otherwise, go to the next step.

You need to manually assign disk ownership if disk drives in the stack are owned by both

controllers in an HA pair.

You manually assign disk ownership and then reenable automatic drive assignment later in

this procedure.

a. Verify if automatic drive assignment is enabled:storage disk option show

If you have an HA pair, you can enter the command at the console of either controller.

If automatic drive assignment is enabled, the output shows “on” (for each controller) in the “Auto

Assign” column.

b. If automatic drive assignment is enabled, you need to disable it:storage disk option modify

-node node_name -autoassign off

You need to disable automatic drive assignment on both controllers in an HA pair.

2. Properly ground yourself.

3. Unpack the new disk drive, and set it on a level surface near the disk shelf.

Save all packaging materials for use when returning the failed disk drive.

NetApp requires that all returned disk drives be in a ESD-rated bag.

4. Physically identify the failed disk drive from the system console warning message and the illuminated

attention (amber) LED on the disk drive.

The activity (green) LED on a failed disk drive can be illuminated (solid), which indicates the

disk drive has power, but should not be blinking, which indicates I/O activity. A failed disk

drive has no I/O activity.

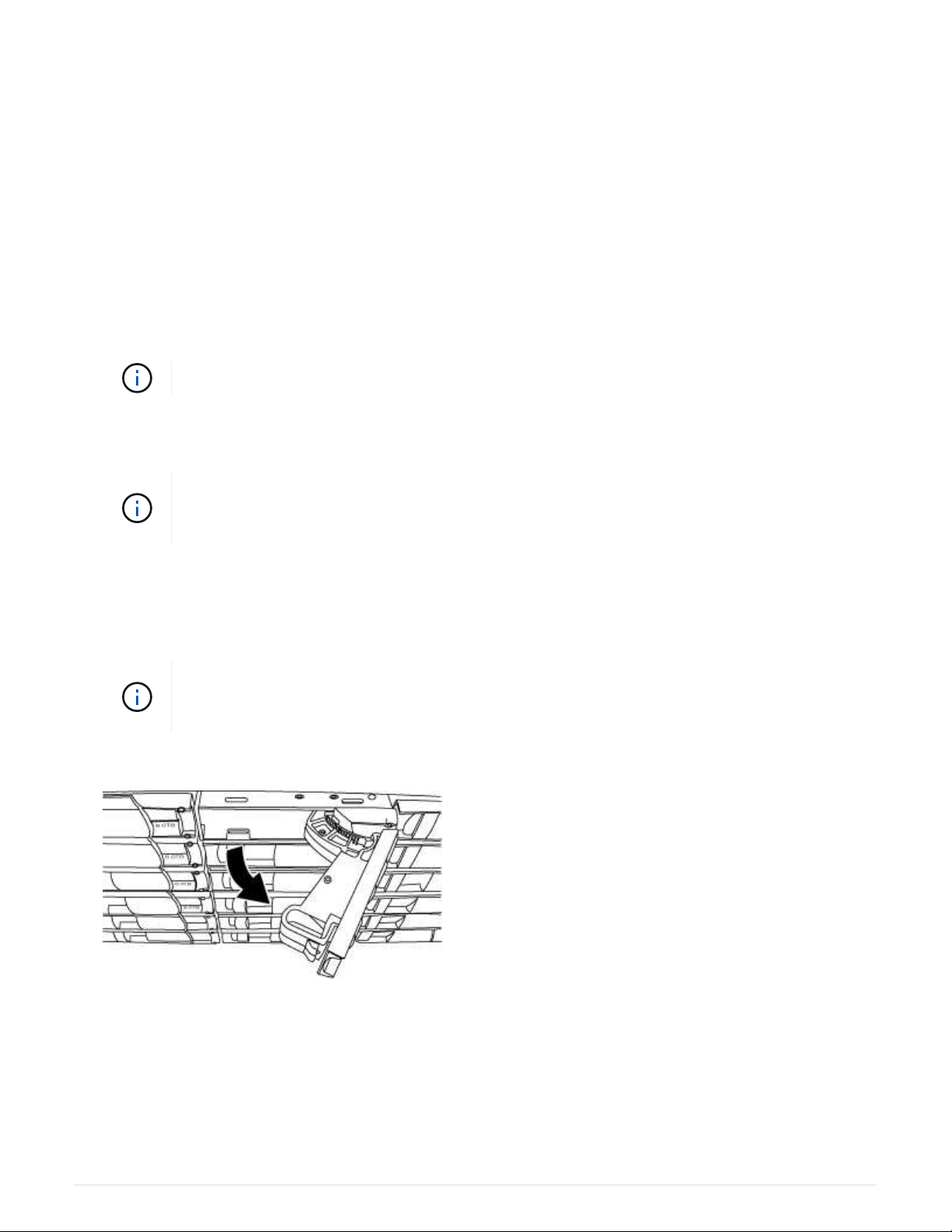

5. Press the release button on the disk drive face, and then pull the cam handle to its fully open position to

release the disk drive from the mid plane.

When you press the release button, the cam handle on the disk drive springs open partially.

Disk drives in a DS212C disk shelf are arranged horizontally with the release button located

on the left of the disk drive face. Disk drives in a DS224C disk shelf are arranged vertically

with the release button located at the top of the disk drive face.

The following shows disk drives in a DS212C disk shelf:

The following shows disk drives in a DS224C disk shelf:

6. Slide out the disk drive slightly to allow the disk to safely spin down, and then remove the disk drive from

the disk shelf.

An HDD can take up to one minute to safely spin down.

When handling a disk drive, always use two hands to support its weight.

7. Using two hands, with the cam handle in the open position, insert the replacement disk drive into the disk

shelf, firmly pushing until the disk drive stops.

Wait a minimum of 10 seconds before inserting a new disk drive. This allows the system to

recognize that a disk drive was removed.

Do not place hands on the disk drive boards that are exposed on the underside of the disk

carrier.

8. Close the cam handle so that the disk drive is fully seated into the mid plane and the handle clicks into

place.

Be sure to close the cam handle slowly so that it aligns correctly with the face of the disk drive.

9. If you are replacing another disk drive, repeat Steps 3 through 8.

10. Verify the disk drive’s activity (green) LED is illuminated.

When the disk drive’s activity LED is solid green, it means the disk drive has power. When the disk drive’s

activity LED is blinking, it means the disk drive has power and I/O is in progress. If the disk drive firmware

is automatically updating, the LED will be blinking.

11. If you disabled automatic drive assignment in Step 1, manually assign disk ownership, and then reenable

automatic drive assignment if needed:

a. Display all unowned disks:storage disk show -container-type unassigned

b. Assign each disk:storage disk assign -disk disk_name -owner owner_name

You can use the wildcard character to assign more than one disk at once.

c. Reenable automatic drive assignment if needed:storage disk option modify -node

node_name -autoassign on

You need to reenable automatic drive assignment on both controllers in an HA pair.

12. Return the failed part to NetApp, as described in the RMA instructions shipped with the kit.

Contact technical support at NetApp Support, 888-463-8277 (North America), 00-800-44-638277 (Europe),

or +800-800-80-800 (Asia/Pacific) if you need the RMA number or additional help with the replacement

procedure.

Hot-swap a disk drive in a DS460C disk shelf - shelves with

IOM12 modules

You can hot-swap a failed disk drive in a DS460C disk shelf.

Before you begin

•The replacement disk drive must be supported by the DS460C disk shelf.

NetApp Hardware Universe

•All other components in the system must be functioning properly; if not, contact technical support.

•The disk drive you are removing must be failed.

You can verify the disk drive is failed by running the storage disk show -broken command. The

failed disk drive appears in the list of failed disk drives. If it does not, you should wait, and run the

command again.

Depending on the disk drive type and capacity, it can take up to several hours for the disk

drive to appear in the list of failed disk drives.

•If you are replacing a self-encrypting disk (SED), you must follow the instructions for Replacing an SED in

the ONTAP documentation for your version of ONTAP.

Instructions in the ONTAP documentation describe additional steps you must perform before and after

replacing an SED.

NetApp encryption overview with the CLI

About this task

•You should take steps to avoid electrostatic discharge (ESD):

◦Keep the disk drive in the ESD bag until you are ready to install it.

◦Open the ESD bag by hand or cut the top off with a pair of scissors.

Do not insert a metal tool or knife into the ESD bag.

◦Always wear an ESD wrist strap grounded to an unpainted surface on your storage enclosure chassis.

If a wrist strap is unavailable, touch an unpainted surface on your storage enclosure chassis before

handling the disk drive.

•You should take steps to handle disk drives carefully:

◦Always use two hands when removing, installing, or carrying a disk drive to support its weight.

Do not place hands on the disk drive boards exposed on the underside of the disk drive

carrier.

◦You should place disk drives on cushioned surfaces, and never stack disk drives on top of each other.

◦You should be careful not to bump disk drives against other surfaces.

•Disk drives should be kept away from magnetic devices.

Magnetic fields can destroy all data on the disk drive and cause irreparable damage to the

disk drive circuitry.

•The best practice is to have the current version of the Disk Qualification Package (DQP) installed before

hot-swapping a disk drive.

Having the current version of the DQP installed allows your system to recognize and utilize newly qualified

disk drives; therefore, avoiding system event messages about having non-current disk drive information.

You also avoid the possible prevention of disk partitioning because disk drives are not recognized. The

DQP also notifies you of non-current disk drive firmware.

NetApp Downloads: Disk Qualification Package

•The best practice is to have the current versions of disk shelf (IOM) firmware and disk drive firmware on

your system before adding new disk shelves, shelf FRU components, or SAS cables.

Current versions of firmware can be found on the NetApp Support Site.

NetApp Downloads: Disk Shelf Firmware

NetApp Downloads: Disk Drive Firmware

•Disk drive firmware is automatically updated (nondisruptively) on new disk drives with non current firmware

versions.

Disk drive firmware checks occur every two minutes.

•If needed, you can turn on the disk shelf’s location (blue) LEDs to aid in physically locating the affected disk

shelf: storage shelf location-led modify -shelf-name shelf_name -led-status on

A disk shelf has three location LEDs: one on the operator display panel and one on each IOM12 module.

Location LEDs remain illuminated for 30 minutes. You can turn them off by entering the same command,

but using the off option.

•If needed, you can refer to the Monitoring disk shelf LEDs section for information about the meaning and

location of disk shelf LEDs on the operator display panel and FRU components.

•The DS460C drive shelf consist of five drive drawers (drive drawer 1 at the top through drive drawer 5 at

the bottom) that each contain 12 drive slots.

•The following illustration shows how the drives are numbered from 0 to 11 in each drive drawer within the

shelf.

Steps

1. If you want to manually assign disk ownership for the replacement disk drive, you need to disable

automatic drive assignment if it is enabled; otherwise, go to the next step.

You need to manually assign disk ownership if disk drives in the stack are owned by both

controllers in an HA pair.

You manually assign disk ownership and then reenable automatic drive assignment later in

this procedure.

a. Verify if automatic drive assignment is enabled:storage disk option show

If you have an HA pair, you can enter the command at the console of either controller.

If automatic drive assignment is enabled, the output shows “on” (for each controller) in the “Auto

Assign” column.

b. If automatic drive assignment is enabled, you need to disable it:storage disk option modify

-node node_name -autoassign off

You need to disable automatic drive assignment on both controllers in an HA pair.

2. Properly ground yourself.

3. Unpack the new disk drive, and set it on a level surface near the disk shelf.

Save all packaging materials for use when returning the failed disk drive.

NetApp requires that all returned disk drives be in a ESD-rated bag.

4. Identify the failed disk drive from the system console warning message and the illuminated amber attention

LED on the drive drawer.

The 2.5-inch and 3.5-inch SAS drive carriers do not contain LEDs. Instead, you must look at the Attention

LEDs on the drive drawers to determine which drive has failed.

The drive drawer’s Attention LED (amber) blinks so you can open the correct drive drawer to identify which

drive to replace.

The drive drawer’s Attention LED is on the front-left side in front of each drive, with a warning symbol on

the drive handle just behind the LED.

5. Open the drawer containing the failed drive:

a. Unlatch the drive drawer by pulling on both levers.

b. Using the extended levers, carefully pull the drive drawer out until it stops.

c. Look at the top of the drive drawer to find the Attention LED that resides on the drawer in front of each

drive.

6. Remove the failed drive from the open drawer:

a. Gently pull back the orange release latch that is in front of the drive you want to remove.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NetApp Lagerung Handbücher

NetApp

NetApp DS4243 Montage- und Wartungsanleitung

NetApp

NetApp StorageGRID Webscale SG5700 Series Merkblatt

NetApp

NetApp FAS8200 Series Handbuch

NetApp

NetApp H410S Betriebsanleitung

NetApp

NetApp AltaVault Cloud Integrated Storage 4.1 Montage- und Wartungsanleitung

NetApp

NetApp FAS8300 Bedienungsanleitung

NetApp

NetApp StorageGRID SD100 Bedienungsanleitung

NetApp

NetApp AFF A320 Bedienungsanleitung

NetApp

NetApp AltaVault System Handbuch

NetApp

NetApp DE6600 Bedienungsanleitung

NetApp

NetApp SG100 Merkblatt

NetApp

NetApp FAS8700 Merkblatt

NetApp

NetApp FAS9500 Bedienungsanleitung

NetApp

NetApp AFF A400 Handbuch

NetApp

NetApp H600S Series Handbuch

NetApp

NetApp E Series Bedienungsanleitung

NetApp

NetApp StorageGRID Webscale SG5700 Series Betriebsanleitung

NetApp

NetApp StorageGRID Webscale SG6000 Series Betriebsanleitung

NetApp

NetApp FAS500f Bedienungsanleitung

NetApp

NetApp DiskShelf14mk4 FC Bedienungsanleitung

NetApp

NetApp StorageGRID SG5600 Series Betriebsanleitung

NetApp

NetApp FAS26 Series Handbuch

NetApp

NetApp AltaVault AVA400 Bedienungsanleitung

NetApp

NetApp FAS9000 Handbuch

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
