NOCO Genius Boost GB30 Bedienungsanleitung

Welcome. Thank you for buying the NOCO Genius®

Boost™ GB30. Read and understand the User Guide

before operating the product. For questions regarding our

jump starter, view our comprehensive support information

at www.no.co/support. To contact NOCO for personalized

support (not available in all areas), visit www.no.co/connect.

What’s In The Box.

• GB30 Lithium Jump Starter

• 40-Inch Micro USB Cable

• 12V USB Charger

• X Connect HD Battery Clamps

• User Guide & Information Guide and Warranty

User Guide

GB30

PRIOR TO USE, READ AND UNDERSTAND

PRODUCT SAFETY INFORMATION.

Failure to follow the instructions may result

in ELECTRICAL SHOCK, EXPLOSION,

or FIRE, which may result in SERIOUS

INJURY, DEATH, DAMAGE TO DEVICE or

PROPERTY. Do not discard this information.

DANGER

BOOST™

INT

Contacting NOCO.

About GB30. The NOCO Genius®Boost™ GB30 is

an ultra-compact and portable lithium-ion jump starter

for cars, boats, motorcycles, ATVs, lawn mowers, RVs,

tractors, trucks and more. It’s extremely safe for anyone to

use. It features spark proof technology and reverse polarity

protection. The GB30 can instantly jump start most single-

battery applications, up to 20 times on a single charge. The

GB30 is also equipped with a USB battery pack and LED

ashlight, making it the ultimate emergency tool.

Getting Started. The GB30 comes partially charged

out of the box and needs to be fully charged prior to use.

Carefully read and understand the vehicle owner’s manual

on specic precautions and recommended methods for

jump starting the vehicle. Make sure to determine the

voltage and chemistry of the battery by referring to your

battery owner’s manual prior to using this product. The

GB30 is for jump starting 12-volt lead-acid batteries only.

Connecting to the Battery.

Before connecting to the battery, verify that you have a 12-

volt lead-acid battery. The GB30 is not suitable for any other

type of battery. Identify the correct polarity of the battery

terminals on the battery. The positive battery terminal is

typically marked by these letters or symbol (POS,P,+).

The negative battery terminal is typically marked by these

letters or symbol (NEG,N,-). Do not make any connections

to the carburetor, fuel lines, or thin, sheet metal parts. The

below instructions are for a negative ground system (most

common). If your vehicle is a positive ground system (very

uncommon), follow the below instructions in reverse order.

1.) Connect the positive (red) HD battery clamp to the

positive (POS,P,+) battery terminal.

2.) Connect the negative (black) HD battery clamp to the

1.800.456.6626

[email protected]

30339 Diamond Parkway, #102

Glenwillow, OH 44139

United States of America

Phone:

Email:

Mailing Address:

negative (NEG,N,-) battery terminal or vehicle chassis.

3.) When disconnecting, disconnect in the reverse

sequence, removing the negative rst (or positive rst

for positive ground systems).

Jump Starting.

1.) Verify the voltage and chemistry of the battery.

2.) Conrm the HD battery clamps are connected to

the correct polarity battery terminals.

3.) Connect the HD X Connector to the GB30.

4.) Make sure all of the vehicle’s power loads

(headlights, radio, air conditioning, etc.) are turned off

before attempting to jump start the vehicle.

5.) Press the Power Button to begin jump starting. All

LEDs will ash, indicating that all LEDs are properly

functioning. If you are properly connected to the

battery, the White Boost LED will illuminate. If the

battery clamps are connected in reverse, the Red Error

LED will illuminate. Reverse the connections to clear

this error and then the White Boost LED will illuminate.

The White Boost LED is illuminated, when the GB30 is

ready to jump start your vehicle.

6.) Try starting the vehicle. Most vehicles will

immediately start. Some vehicles may require the

GB30 to be connected for up to 30 seconds before

starting. If the vehicle does not start right away, wait

20-30 seconds and try again. Do not attempt more

than ve (5) consecutive jump starts within a fteen

(15) minute period. Allow the GB30 to rest for fteen

(15) minutes before attempting to jump start the

vehicle again.

7.) Once you have started your vehicle, disconnect the

battery clamps, and remove the GB30.

Low Voltage Batteries & Manual Override

The GB30 is designed to jump start 12-volt lead-acid

batteries down to 2-volts. If your battery is below 2-volts,

the Boost LED will be “Off”. This is an indication that the

GB30 can not detect a battery.

If you need to jump start a battery below 2-volts there is a

Manual Override feature, which allows you to force “On” the

jump start function.

CAUTION. USE THIS MODE WITH EXTREME CARE. THIS

MODE IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY.

BOTH THE SPARK PROOF AND REVERSE POLARITY

PROTECTION FEATURES ARE DISABLED. PAY VERY

CLOSE ATTENTION TO THE POLARITY OF THE BATTERY

BEFORE USING THIS MODE. DO NOT ALLOW THE

POSITIVE AND NEGATIVE BATTERY CLAMPS TO TOUCH

OR CONNECT TO EACH OTHER AS THE PRODUCT WILL

GENERATE SPARKS. THIS MODE USES VERY HIGH

CURRENT (UP TO 400 AMPS) THAT CAN CAUSE SPARKS

AND HIGH HEAT IF NOT USED PROPERLY. IF YOU ARE

UNSURE ABOUT USING THIS MODE, DO NOT ATTEMPT

AND SEEK PROFESSIONAL HELP.

Before using the Manual Override feature, make sure the

HD battery clamps are connected to the correct polarity

battery terminals and the HD X Connect is connected to

the GB30. To use the Manual Override feature, press and

hold the Manual Override Button (a red exclamation point

icon inside a red circle) for three (3) seconds. The White

Boost LED will ash “On” and “Off” indicating you have

successfully entered into Manual Override and it is ready to

jump start your vehicle. If connected in reverse polarity, the

Red Error LED will illuminate and the unit will not operate.

CAUTION: POWER THE GB30 “OFF” BEFORE

DISCONNECTING THE BATTERY CLAMPS. THIS WILL

ENSURE YOUR SAFETY. REMEMBER BOTH THE

SPARK PROOF AND REVERSE POLARITY PROTECTION

FEATURES ARE DISABLED.

Most vehicles will immediately start. Some vehicles may

require the GB30 to be connected for up to 30 seconds

before starting. If the vehicle does not start right away,

wait 20-30 seconds and try again. Do not attempt

more than ve (5) consecutive jump starts within a

fteen (15) minute period. Allow the GB30 to rest for

fteen (15) minutes before attempting to jump start the

vehicle again.

Understanding Charge LEDs.

The GB30 has four (4) Charge LEDs - 25%, 50%, 75%

and 100%. These Charge LEDs indicate the internal

battery’s state-of-charge (SOC). See below:

LED Explanation

25%

Red LED The 25% Charge LED will be solid

Red when the internal battery is less

than 25% charged.

50%

Red LED

75%

Yellow LED

The 50% Charge LED will be solid

Red when the internal battery is less

than 50% charged.

The 75% Charge LED will be solid

Yellow when the internal battery is

less than 75% charged.

The 100% Charge LED will be solid

Green when the internal battery is

fully charged. No other LEDs will be

illuminated.

100%

Green LED

25% 50% 75% 100%

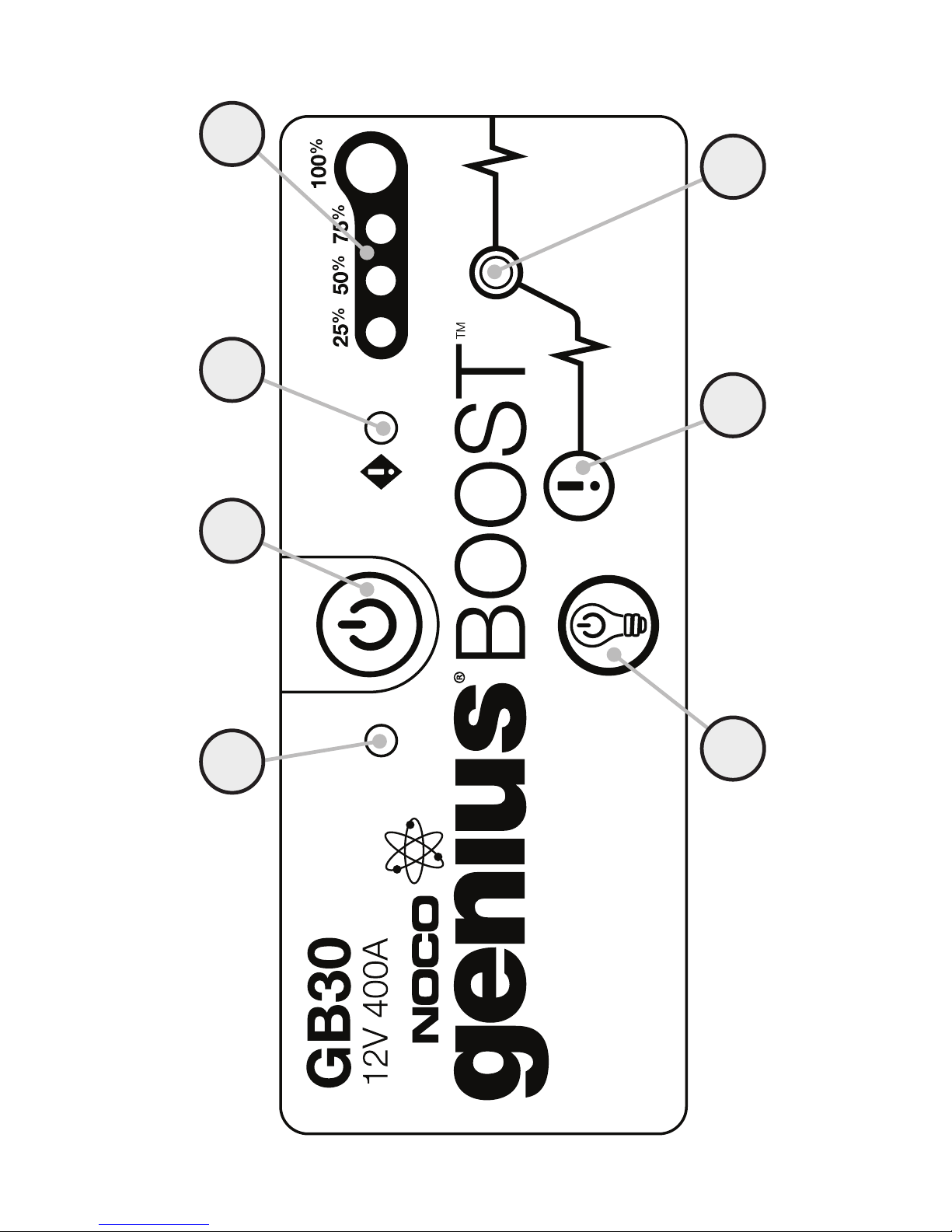

User Interface.

1. Internal Battery Level

Indicates the charge level of the internal battery.

2. Error LED

Illuminates Red if reverse polarity is detected, or blinks

“On” and “Off” when the internal battery temperature is

too high.

3. Power Button

Push to turn unit “On” & “Off”.

4. Power LED

Illunimates White when unit is “On”.

5. Boost LED

Illuminates White when Boost is active. If the unit is

connected properly to a battery, the GB30 will automatically

detect a battery and go into Boost mode (LED ashes White

when Manual Overide feature is active).

6. Manual Override Button

To enable, push and hold for three (3) seconds.

WARNING: Disables safety protection and manually

forces Boost “On”. Only for use when a battery is too

low to be detected.

7. Light Mode Button

Toggles the ultra-bright LED light through 7 light modes:

100% > 50% > 10% > SOS > Blink > Strobe > Off

When Recharging the GB30.

Understanding Error Conditions.

The GB30 shall display an Error Condition when a reverse

polarity condition is present a battery below two (2) volts,

or the internal battery overheating. When one of these Error

Conditions are present, the following will happen:

LED Explanation

25%

Red LED The 25% Charge LED will slowly

pulse “On” and “Off”, when the

battery is less than 25% charged.

When the battery is 25% charged,

the Red Charge LED will be solid.

50%

Red LED

75%

Yellow LED

The 50% Charge LED will slowly

pulse “On” and “Off”, when the

battery is less than 50% charged.

When the battery is 50% charged,

the Red Charge LED will be solid.

The 75% Charge LED will slowly

pulse “On” and “Off”, when the

battery is less than 75% charged.

When the battery is 75% charged,

the Yellow Charge LED will be solid.

The 100% Charge LED will slowly

pulse “On” and “Off”, when the battery

is less than 100% charged. When the

battery is fully charged, the Green LED

will be solid, and the 25%, 50% and

75% Charge LEDs will turn “Off”.

100%

Green LED

25% 50% 75% 100%

Error Reason/Solution

Error LED

Solid Red

Reverse polarity/

Reverse the battery

connections.

Charging the GB30.

Connect the GB30 using the included USB Charge

Cable to the USB IN port and the USB car charger. It

can also be recharged from any USB powered port,

like an AC adapter, car charger, laptop and more. The

USB IN port is rated at 2.1 Amps to ensure safe and

efcient charging of the internal lithium battery. Due to

FCC regulations, we recommend not to charge and

discharge the unit at the same time.

Charging Times.

The time to recharge a GB30 will differ based on the

discharge level and the power source used. Actual

results may vary due to battery conditions.

Charging Your USB Devices.

You can recharge virtually any USB device, like a

smartphone. Connect the included USB Charge Cable

to the USB OUT port and connect to your USB device.

Error Reason/Solution

Error LED

Blinking Red

w/Cables Connected

Properly

The internal battery is too

hot/

Allow the unit to cool.

Bring the unit into cooler

environment.

Time

USB Charger Rating

12hr

.5A

6hr

3hr

Boost Light Does

Not Come On

w/Cables Connected

Properly

Connected battery is below

2-volts/

Remove all loads, and

try again, or use Manual

Override Mode.

The number of times you can recharge a USB device will

vary between devices. For recharge times, contact your

device manufacturer.

LED Flashlight.

The GB30 has an integrated ultra-bright LED ashlight. It

has seven (7) light modes that effect its performance and

longevity: 100%, 50%, 10%, SOS, Blink, Strobe, and Off.

To turn the ashlight “On” and “Off”, use the Power button

with the light bulb icon. Press once to turn the ashlight

“On” at 100% luminosity, again for 50% luminosity (within

3 seconds), again for 10% luminosity (within 3 seconds),

again for SOS (within 3 seconds), again for Blink (within 3

seconds), again for Strobe (within 3 seconds) and again

for “Off”. If a light mode is not selected within 3 seconds,

it will remain “On” in the current light mode, and the next

selection will turn the ashlight “Off”.

Depending on the mode selection, the GB30 will have

various levels of output and runtime. Selecting a lower

power level when using the GB30 for extended periods of

time will prolong battery life.

Modes:

100% > 50% > 10% > SOS > Blink > Strobe > Off

Energy Saving Auto Shut Off.

The GB30 has a built in energy saving feature that will

automatically turn the unit off after seven (7) hours. To

continue using, simply power on the unit again.

Inhaltsverzeichnis

Andere NOCO Genius Fernstartsystem Handbücher

NOCO Genius

NOCO Genius Boost HD GB70 Bedienungsanleitung

NOCO Genius

NOCO Genius Boost HD GB70 Technisches Handbuch

NOCO Genius

NOCO Genius BoostPro GB150 Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST MAX GB251+ Bedienungsanleitung

NOCO Genius

NOCO Genius GBX75 Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST X GBX55 Bedienungsanleitung

NOCO Genius

NOCO Genius Boost X GBX155 Technisches Handbuch

NOCO Genius

NOCO Genius BOOST XL GB50 Technisches Handbuch

NOCO Genius

NOCO Genius Boost HD GB70 Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST PRO GB150 Technisches Handbuch

NOCO Genius

NOCO Genius Boostsport GB20 Bedienungsanleitung

NOCO Genius

NOCO Genius Boost HD GB70 Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST X GBX45 Technisches Handbuch

NOCO Genius

NOCO Genius Boost Sport GB20 Technisches Handbuch

NOCO Genius

NOCO Genius Boost HD GB70 Bedienungsanleitung

NOCO Genius

NOCO Genius Boostsport GB20 Bedienungsanleitung

NOCO Genius

NOCO Genius Boost X GBX75 Technisches Handbuch

NOCO Genius

NOCO Genius Boost+ GB40 Bedienungsanleitung

NOCO Genius

NOCO Genius Boost Max GB500+ Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST X GBX55 Technisches Handbuch

NOCO Genius

NOCO Genius BOOST MAX GB250+ Bedienungsanleitung

NOCO Genius

NOCO Genius GBX45 Bedienungsanleitung

NOCO Genius

NOCO Genius Boostsport GB20 Bedienungsanleitung

NOCO Genius

NOCO Genius BOOST X Technisches Handbuch

Beliebte Fernstartsystem Handbücher anderer Marken

AstroStart

AstroStart 803U Bedienungsanleitung

Durite

Durite 0-649-20 Handbuch

EINHELL

EINHELL BT-PS 1000 Handbuch

Linear

Linear ACCESS AK-21 Technische Daten

Soundstream

Soundstream TARANTULA RS.2 Bedienungsanleitung

Jaycar Electronics

Jaycar Electronics MB3752 Bedienungsanleitung

Ultra Start

Ultra Start 72 Series Bedienungsanleitung

ADS

ADS FLASHLOGIC FLRSVW1 Bedienungsanleitung

Selecta

Selecta JS012 Bedienungsanleitung

Black Widow Security

Black Widow Security BW RAS 400 Bedienungsanleitung

Vector

Vector Power City DK080706 Beilage

Code Alarm

Code Alarm CA-535 Bedienungsanleitung

Ozito

Ozito OJS-800 Bedienungsanleitung

Profi-Partner

Profi-Partner 46387 Bedienungsanleitung

EZ STARTER

EZ STARTER EZ-45 Bedienungsanleitung

Viper

Viper 4204 Bedienungsanleitung

Essex Electronics

Essex Electronics KE-1701 Bedienungsanleitung

EINHELL

EINHELL EGS 3600 Handbuch
