NOCO Genius Boost+ GB40 Bedienungsanleitung
Welcome. Thank you for buying the NOCO Genius®
Boost™ GB40. Read and understand the User Guide
before operating the product. For questions regarding our
jump starter, view our comprehensive support information
at www.no.co/support. To contact NOCO for personalized
support (not available in all areas), visit www.no.co/connect.
What’s In The Box.
• GB40 Lithium Jump Starter
• Micro USB Cable
• 12V USB Charger
• X Connect HD Battery Clamps
• User Guide & Information Guide and Warranty
User Guide
GB40
PRIOR TO USE, READ AND UNDERSTAND
PRODUCT SAFETY INFORMATION.
Failure to follow the instructions may result
in ELECTRICAL SHOCK, EXPLOSION,
or FIRE, which may result in SERIOUS
INJURY, DEATH, DAMAGE TO DEVICE or
PROPERTY. Do not discard this information.
DANGER
INT
Contacting NOCO.
About GB40. The NOCO Genius®Boost™ GB40 is
an ultra-compact and portable lithium-ion jump starter
for cars, boats, motorcycles, ATVs, lawn mowers, RVs,
tractors, trucks and more. It’s extremely safe for anyone to
use. It features spark proof technology and reverse polarity
protection. The GB40 can instantly jump start most single-
battery applications, up to 20 times on a single charge. The
GB40 is also equipped with a USB battery pack and LED
flashlight, making it the ultimate emergency tool.
Getting Started. The GB40 comes partially charged
out of the box and needs to be fully charged prior to use.
Carefully read and understand the vehicle owner’s manual
on specific precautions and recommended methods for
jump starting the vehicle. Make sure to determine the
voltage and chemistry of the battery by referring to your
battery owner’s manual prior to using this product. The
GB40 is for jump starting 12-volt lead-acid batteries only.
Connecting to the Battery.
Before connecting to the battery, verify that you have a 12-
volt lead-acid battery. The GB40 is not suitable for any other
type of battery. Identify the correct polarity of the battery
terminals on the battery. The positive battery terminal is
typically marked by these letters or symbol (POS,P,+).
The negative battery terminal is typically marked by these
letters or symbol (NEG,N,-). Do not make any connections
to the carburetor, fuel lines, or thin, sheet metal parts. The
below instructions are for a negative ground system (most
common). If your vehicle is a positive ground system (very
uncommon), follow the below instructions in reverse order.
1.) Connect the positive (red) HD battery clamp to the
positive (POS,P,+) battery terminal.
2.) Connect the negative (black) HD battery clamp to the
1.800.456.6626
30339 Diamond Parkway, #102
Glenwillow, OH 44139
United States of America
Phone:
Email:
Mailing Address:
negative (NEG,N,-) battery terminal or vehicle chassis.
3.) When disconnecting, disconnect in the reverse
sequence, removing the negative first (or positive first
for positive ground systems).
Jump Starting.
1.) Verify the voltage and chemistry of the battery.
2.) Confirm the HD battery clamps are connected to
the correct polarity battery terminals.
3.) Connect the HD X Connector to the GB40.
4.) Make sure all of the vehicle’s power loads
(headlights, radio, air conditioning, etc.) are turned off
before attempting to jump start the vehicle.
5.) Press the Power Button to begin jump starting. All
LEDs will flash, indicating that all LEDs are properly
functioning. If you are properly connected to the
battery, the White Boost LED will illuminate. If the
battery clamps are connected in reverse, the Red Error
LED will illuminate. Reverse the connections to clear
this error and then the White Boost LED will illuminate.
The White Boost LED is illuminated, when the GB40 is
ready to jump start your vehicle.
6.) Try starting the vehicle. Most vehicles will
immediately start. Some vehicles may require the
GB40 to be connected for up to 30 seconds before
starting. If the vehicle does not start right away, wait
20-30 seconds and try again. Do not attempt more
than five (5) consecutive jump starts within a fifteen
(15) minute period. Allow the GB40 to rest for fifteen
(15) minutes before attempting to jump start the
vehicle again.
7.) Once you have started your vehicle, disconnect the
battery clamps, and remove the GB40.
Low Voltage Batteries & Manual Override
The GB40 is designed to jump start 12-volt lead-acid
batteries down to 2-volts. If your battery is below 2-volts,
the Boost LED will be “Off”. This is an indication that the
GB40 can not detect a battery.
If you need to jump start a battery below 2-volts there is a
Manual Override feature, which allows you to force “On” the
jump start function.
CAUTION. USE THIS MODE WITH EXTREME CARE. THIS
MODE IS FOR 12-VOLT LEAD-ACID BATTERIES ONLY.
BOTH THE SPARK PROOF AND REVERSE POLARITY
PROTECTION FEATURES ARE DISABLED. PAY VERY
CLOSE ATTENTION TO THE POLARITY OF THE BATTERY
BEFORE USING THIS MODE. DO NOT ALLOW THE
POSITIVE AND NEGATIVE BATTERY CLAMPS TO TOUCH
OR CONNECT TO EACH OTHER AS THE PRODUCT
WILL GENERATE SPARKS. THIS MODE USES VERY
HIGH CURRENT (UP TO 1000 AMPS) THAT CAN CAUSE
SPARKS AND HIGH HEAT IF NOT USED PROPERLY. IF
YOU ARE UNSURE ABOUT USING THIS MODE, DO NOT
ATTEMPT AND SEEK PROFESSIONAL HELP.
Before using the Manual Override feature, make sure the
HD battery clamps are connected to the correct polarity
battery terminals and the HD X Connect is connected to
the GB40. To use the Manual Override feature, press and
hold the Manual Override Button (a red exclamation point
icon inside a red circle) for three (3) seconds. The White
Boost LED will flash “On” and “Off” indicating you have
successfully entered into Manual Override and it is ready to
jump start your vehicle. If connected in reverse polarity, the
Red Error LED will illuminate and the unit will not operate.
CAUTION: POWER THE GB40 “OFF” BEFORE
DISCONNECTING THE BATTERY CLAMPS. THIS WILL
ENSURE YOUR SAFETY. REMEMBER BOTH THE
SPARK PROOF AND REVERSE POLARITY PROTECTION
FEATURES ARE DISABLED.
Most vehicles will immediately start. Some vehicles may
require the GB40 to be connected for up to 30 seconds
before starting. If the vehicle does not start right away,
wait 20-30 seconds and try again. Do not attempt
more than five (5) consecutive jump starts within a
fifteen (15) minute period. Allow the GB40 to rest for
fifteen (15) minutes before attempting to jump start the
vehicle again.

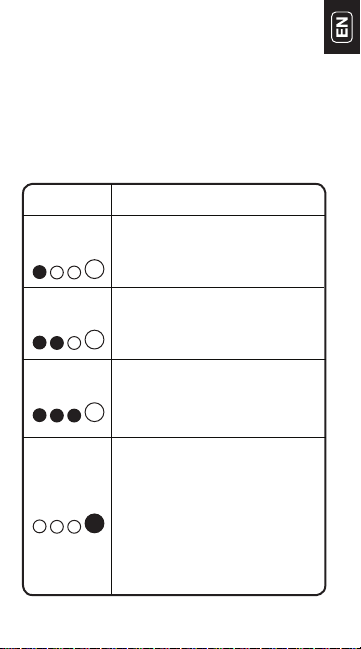

Understanding Charge LEDs.
The GB40 has four (4) Charge LEDs - 25%, 50%, 75%
and 100%. These Charge LEDs indicate the internal
battery’s state-of-charge (SOC). See below:
LED Explanation
25%
Red LED The 25% Charge LED will ‘breath’
on/off while charging and will be solid
Red when the internal battery is 25%
charged.
50%
Red LED
75%
Yellow LED
The 50% Charge LED will ‘breath’
on/off while charging and will be solid
Red when the internal battery is 50%
charged.
The 75% Charge LED will ‘breath’ on/
off while charging and will be solid
Yellow when the internal battery is
75% charged.
The 100% Charge LED will ‘breath’
on/off while charging and will be solid
Green when the internal battery is fully
charged.
When connected to a USB charger,
no other charge LEDs will be
illuminated. Once disconnected from
the charger, all four (4) Charge LEDs
will be illuminated when the internal
battery is between 75%-100%, and
the unit is powered “ON”.
100%
Green LED
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
7
6
5
1
2
3
4
User Interface.
1. Internal Battery Level
Indicates the charge level of the internal battery.
2. Error LED
Illuminates Red if reverse polarity is detected, or blinks
“On” and “Off” when the internal battery temperature is
too high.
3. Power Button
Push to turn unit “On” & “Off”.
4. Power LED
Illunimates White when unit is “On”.
5. Boost LED
Illuminates White when Boost is active. If the unit is
connected properly to a battery, the GB40 will automatically
detect a battery and go into Boost mode (LED flashes White
when Manual Overide feature is active).
6. Manual Override Button
To enable, push and hold for three (3) seconds.
WARNING: Disables safety protection and manually
forces Boost “On”. Only for use when a battery is too
low to be detected.
7. Light Mode Button
Toggles the ultra-bright LED light through 7 light modes:
100% > 50% > 10% > SOS > Blink > Strobe > Off
When Recharging the GB40.
Understanding Error Conditions.
The GB40 shall display an Error Condition when a reverse
polarity condition is present, a battery below two (2) volts,
or the internal battery overheating. When one of these Error
Conditions are present, the following will happen:
LED Explanation
25%
Red LED The 25% Charge LED will slowly
pulse “On” and “Off”, when the
battery is less than 25% charged.
When the battery is 25% charged,
the Red Charge LED will be solid.
50%
Red LED
75%
Yellow LED
The 50% Charge LED will slowly
pulse “On” and “Off”, when the
battery is less than 50% charged.
When the battery is 50% charged,
the Red Charge LED will be solid.
The 75% Charge LED will slowly
pulse “On” and “Off”, when the
battery is less than 75% charged.
When the battery is 75% charged,
the Yellow Charge LED will be solid.
The 100% Charge LED will slowly
pulse “On” and “Off”, when the battery
is less than 100% charged. When the
battery is fully charged, the Green LED
will be solid, and the 25%, 50% and
75% Charge LEDs will turn “Off”.
100%
Green LED
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
25% 50% 75% 100%
Error Reason/Solution
Error LED
Solid Red
Reverse polarity/
Reverse the battery
connections.
Charging the GB40.
Connect the GB40 using the included USB Charge
Cable to the USB IN port and the USB car charger. It
can also be recharged from any USB powered port,
like an AC adapter, car charger, laptop and more. The
USB IN port is rated at 2.1 Amps to ensure safe and
efficient charging of the internal lithium battery. Due to
FCC regulations, we recommend not to charge and
discharge the unit at the same time.
Charging Times.
The time to recharge a GB40 will differ based on the
discharge level and the power source used. Actual
results may vary due to battery conditions.
Charging Your USB Devices.
You can recharge virtually any USB device, like a
smartphone. Connect the included USB Charge Cable
to the USB OUT port and connect to your USB device.
Error Reason/Solution
Error LED
Blinking Red
w/Cables Connected
Properly
The internal battery is too
hot/
Allow the unit to cool.
Bring the unit into cooler
environment.
Time
USB Charger Rating
12hr
.5A
6hr
1A
3hr
2A
Boost Light Does
Not Come On
w/Cables Connected
Properly
Connected battery is below
2-volts/
Remove all loads, and
try again, or use Manual
Override Mode.
The number of times you can recharge a USB device will
vary between devices. For recharge times, contact your
device manufacturer.
LED Flashlight.
The GB40 has an integrated ultra-bright LED flashlight. It
has seven (7) light modes that effect its performance and
longevity: 100%, 50%, 10%, SOS, Blink, Strobe, and Off.
To turn the flashlight “On” and “Off”, use the Power button
with the light bulb icon. Press once to turn the flashlight
“On” at 100% luminosity, again for 50% luminosity (within
3 seconds), again for 10% luminosity (within 3 seconds),
again for SOS (within 3 seconds), again for Blink (within 3
seconds), again for Strobe (within 3 seconds) and again
for “Off”. If a light mode is not selected within 3 seconds,
it will remain “On” in the current light mode, and the next
selection will turn the flashlight “Off”.
Depending on the mode selection, the GB40 will have
various levels of output and runtime. Selecting a lower
power level when using the GB40 for extended periods of
time will prolong battery life.
Modes:
100% > 50% > 10% > SOS > Blink > Strobe > Off
Energy Saving Auto Shut Off.
The GB40 has a built in energy saving feature that will
automatically turn the unit off after seven (7) hours. To
continue using, simply power on the unit again.
Andere Handbücher für Boost+ GB40
3
Inhaltsverzeichnis
Andere NOCO Genius Fernstartsystem Handbücher
NOCO Genius
NOCO Genius Boost HD GB70 Bedienungsanleitung
NOCO Genius
NOCO Genius BOOST X Technisches Handbuch
NOCO Genius
NOCO Genius BOOST X GBX45 Technisches Handbuch
NOCO Genius
NOCO Genius BOOST XL GB50 Technisches Handbuch
NOCO Genius
NOCO Genius Boost X GBX75 Bedienungsanleitung
NOCO Genius
NOCO Genius Boost HD GB70 Bedienungsanleitung
NOCO Genius
NOCO Genius BOOST X GBX55 Technisches Handbuch
NOCO Genius
NOCO Genius genius BOOSTMAX GB500 Technisches Handbuch
NOCO Genius
NOCO Genius Boost X GBX75 Technisches Handbuch
NOCO Genius
NOCO Genius BOOST PRO GB150 Bedienungsanleitung
NOCO Genius
NOCO Genius Boostsport GB20 Bedienungsanleitung
NOCO Genius
NOCO Genius Boost Plus GB40 Technisches Handbuch
NOCO Genius
NOCO Genius Boostsport GB20 Bedienungsanleitung
NOCO Genius
NOCO Genius GBX75 Bedienungsanleitung
NOCO Genius
NOCO Genius BOOST MAX GB251+ Technisches Handbuch
NOCO Genius
NOCO Genius Boost X GBX155 Bedienungsanleitung
NOCO Genius
NOCO Genius BOOST MAX GB251+ Bedienungsanleitung
NOCO Genius
NOCO Genius Boost X GBX155 Technisches Handbuch
NOCO Genius
NOCO Genius Boostsport GB20 Bedienungsanleitung
NOCO Genius
NOCO Genius BOOST X GBX55 Bedienungsanleitung
