Norac UC4.5 Bedienungsanleitung

AGCO TerraGator Standard Control

Benson Boom

Installation Manual

TG1

Printed in Canada

Reorder P/N: UC4.5-BC-TG1-INST Rev B (AGCO TerraGator Standard Control Benson

Boom)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and

without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information

contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction................................................................................................................ 1

2General UC4.5 System Layout................................................................................. 2

3Kit Parts ...................................................................................................................... 3

4Ultrasonic Max™ Sensor Installation ...................................................................... 5

5Electrical Installation ................................................................................................. 6

6Software Setup........................................................................................................... 9

7Cable Drawings ........................................................................................................ 10

1Introduction

Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This

system is manufactured with top quality components and is engineered using the latest

technology to provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Every effort has been made to ensure the accuracy of the information contained in

this manual. All parts supplied are selected to specially fit the sprayer to facilitate

a complete installation. However, NORAC cannot guarantee all parts fit as

intended due to the variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2General UC4.5 System Layout

Figure 1 illustrates the general layout of the UC4.5 system components:

Figure 1: General UC4.5 System Layout

3Kit Parts

3.1 Kit Overview

Figure 2: TG1 System Parts

3.2 List of Parts

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B06 44971-05 U-BOLTS WITH HARDWARE FOR LP BRACKET MOUNTING 2

B21 44973 SENSOR MOUNTING BRACKET LOW PROFILE 16 GA LARGE FLANGE 2

C05 43210-15 CABLE UC5 NETWORK 18 AWG 15M 2

C06 43220-10 CABLE UC5 NETWORK 14 AWG 10M 1

C09 44651-55 CABLE UC4.5 CABIN ENTRY TERRAGATOR STANDARD CONTROL 1

C10 44650-61 CABLE UC4.5 POWER TERRAGATOR STANDARD CONTROL 1

C11 44651-54 CABLE UC4.5 EXTENSION TERRAGATOR STANDARD CONTROL 1

C16A 44658-69 CABLE UC4 INTERFACE ROLL DT 1

C16B 44658-118 CABLE UC4.5 INTERFACE ROLL MP280 1

C19A 44658-114 CABLE UC4.5 INTERFACE STANDARD DT 1

C19B 44658-115 CABLE UC4.5 INTERFACE STANDARD MP280 1

C30 43250-04 CABLE UC5 BATTERY AMP FUSED 1

E01 45100 UC4.5 BOOM CONTROL PANEL 1

E07 50100 ULTRASONIC MAX SENSOR 2

E10 43760 UC5 NETWORK COUPLER 3-WAY 1

E12 43764 UC5 NETWORK COUPLER 2-WAY 1

E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2

M01

UC4.5-BC-MANUAL-

OPERATOR

OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1

M02 UC4.5-BC-TG1-INST

MANUAL INSTALLATION UC4.5 TERRAGATOR STANDARD CONTROL BENSON WET BOOM

Do not use high speed power tools/drills when installing hardware.

The use of dielectric grease is not recommended on any NORAC electrical

connections.

To ensure all stainless steel hardware does not gall or seize apply a light coating of

the supplied Permatex Anti-seize grease to all threaded parts upon installation.

Permatex Anti-seize lubricant is preferred, but other similar anti-seize products

may be used.

4Ultrasonic Max™ Sensor Installation

1. When installing the UC5 sensors, start with the smallest serial number on the left-hand

side, and proceed to the largest serial number on the right hand side. Each UC5 sensor has

a serial number stamped on the sensor housing.

2. Mount the sensor bracket onto the boom using B06.

3. Mount the NORAC ultrasonic MAX sensor into the sensor bracket and run the sensor

cable either through hole in the back and behind the bracket. Ensure the cable is clear of

moving parts.

Apply a light coating of the supplied Permatex Anti-seize grease to all threaded

parts upon installation.

Figure 3: Sensor Serial Number Arrangement

Figure 4: Sensor Mounting Location

5Electrical Installation

1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it

will be clearly visible and within easy reach of the operator.

A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the

Roll Over Protection Bar. Four pilot holes for the screws provided need to be drilled to

facilitate the control panel mounting.

Another option is to purchase an adapter for the flexible panel mount that has a 3/8" NC

threaded stud on the end to bolt through an existing mount. These can be found at your

local outdoor store as a RAM mount part number RAM-B-236. (See http://www.ram-

mount.com/)

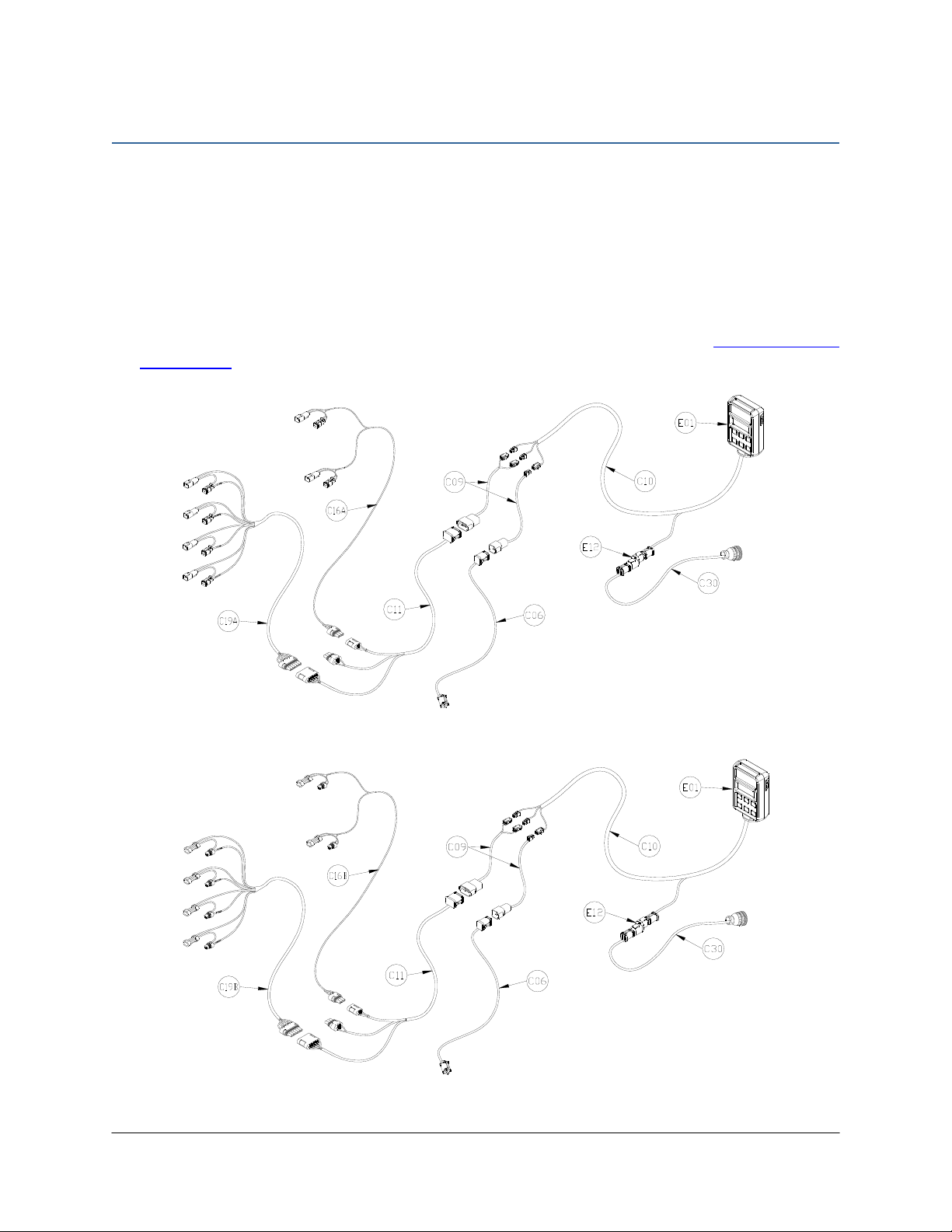

Figure 5: Cable Configuration with C16A and C19A

Figure 6: Cable Configuration with C16B and C19B

2. Connect the UC4.5 power cable (C10) to the UC4.5 control panel in the sprayer cab.

Ensure both plugs (P16 and P4) are connected to the panel. Cable tie C10 to the RAM

mount to help provide strain relief.

Ensure the UC4.5 control panel’s power is OFF for the remaining installation

(Bottom of switch pressed IN).

3. Connect the power cable connector (P6A) to C30 using a 2-way coupler (E12). Connect

C30 to an appropriate power supply.

4. Cable C09 must be installed through the cabin floor at the right rear corner of the cab.

Two 5/8” holes are required, which should already exist. They will be covered with black

tape seals. Insert the cable through the floor of the cab to connect with cable C10 using

the three 4-pin white connectors. Each connector is labelled on the wires. Match A to A,

B to B, and C to C.

Figure 7: Cab Entry Point

5. Connect cable C09 to cable C11 and cable C06. This connection point provides the

disconnect between the chassis and implement if required. Cable C09 has plugs attached to

the 12-pin and 6-pin ends. These plugs should be inserted into the connectors whenever

the cables are disconnected.

6. Two sets of interface cables (C16 and C19) are provided to support machines built before

and after 2014. Select the appropriate set and discard the others.

Table 1: Interface Cable Options

Model Yea

Connector Type

Cable C16

Cable C19

2014 and olde

2-Pin MP280

44658-118

44658-115

2015 and newe

2-Pin Deutsch

44658-69

44658-114

7. Connect the 3-pin tower on cable C16 to the 3-pin shroud on cable C11.
