Hagie
264, 284XP, DTS8, 2100, 2101, DTS10
Installation Manual
HG2
Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-HG2-INST Rev B (Hagie 264, 284XP, DTS8, 2100, 2101, DTS10)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction................................................................................................................ 1
2General UC4.5 System Layout................................................................................. 2
3Kit Parts ...................................................................................................................... 3
4Ultrasonic Sensor Installation .................................................................................. 7
5Roll Sensor Installation............................................................................................ 11
6Electrical Installation ............................................................................................... 14
7Hydraulic Installation .............................................................................................. 16
8Software Setup......................................................................................................... 19
9Cable Drawings ........................................................................................................ 20
1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2
2General UC4.5 System Layout
Figure 1 illustrates the general layout of the UC4.5 system components:
Figure 1: General UC4.5 System Layout
3
3Kit Parts
3.1 Kit Overview
Figure 2: HG2 System Parts
4
3.2 Hydraulic Plumbing
Figure 3: HG2 Hydraulic Plumbing
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2
B12 44700-03 PLATE VALVE MOUNT UC3 BOOM CONTROL HAGIE 1
C01 44653-10 CABLE UC4.5 ADAPTER MOLEX TO DEUTSCH 1
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C04 44651 CABLE VALVE EXTENSION 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C06 43210-10 CABLE UC5 NETWORK 18 AWG 10M 1
C08 43220-03 CABLE UC5 NETWORK 14 AWG 3M 1
C10 44650-56 CABLE UC4.5 POWER HAGIE 2101/2100 1
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1
E04 43741 UC5 ROLL SENSOR VER. 2 1
E05 43750 UC5 ULTRASONIC SENSOR 2
E11 43765 UC5 NETWORK COUPLER 8-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 2
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
H10 44865-14 HYDRAULICS FITTING KIT - HG2 1
M01
UC4.5-BC-MANUAL-
OPERATOR
OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-HG2-INST MANUAL INSTALLATION UC4.5 HAGIE 264, 284XP, DTS8, 2100, 2101, DTS10 1
P03 105882 UC5 NETWORK 6 PIN PLUG 3
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
3.4 Optional Main Lift Kit
An optional main lift sensor kit is available for purchase from NORAC.
Part Number Name
4570BC UC4.5 MAIN LIFT OPTION - 44743
6
3.5 Hydraulic Fitting Kit Details (P/N: 44865-14)
Item Part Number Name Quantity
F01 103195 6MJT 2
F02 104584 MALE TO FEMALE ADAPTER - 6MB 6FB 2
F03 103071 MALE 90 DEGREE ADAPTER - 8MB 6MJ90 2
F04 103814 MALE 90 DEGREE ADAPTER - 6MB 6MJ90 2
F05 103312 MALE ADAPTER - 6MB-6MJ 6
F06 44927 ORIFICE INSERT .031 IN ONE WAY 2
F08 44928 ORIFICE INSERT .047 IN ONE WAY 4
F09 104369 PLUG - 6MBP 4
F10 103839 TEE ADAPTER - 6FJXR 6MJT 2
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
7
4Ultrasonic Sensor Installation
4.1 Bracket Assembly
Assemble the breakaway sensor bracket as illustrated in Figure 4, following the instructions
below.

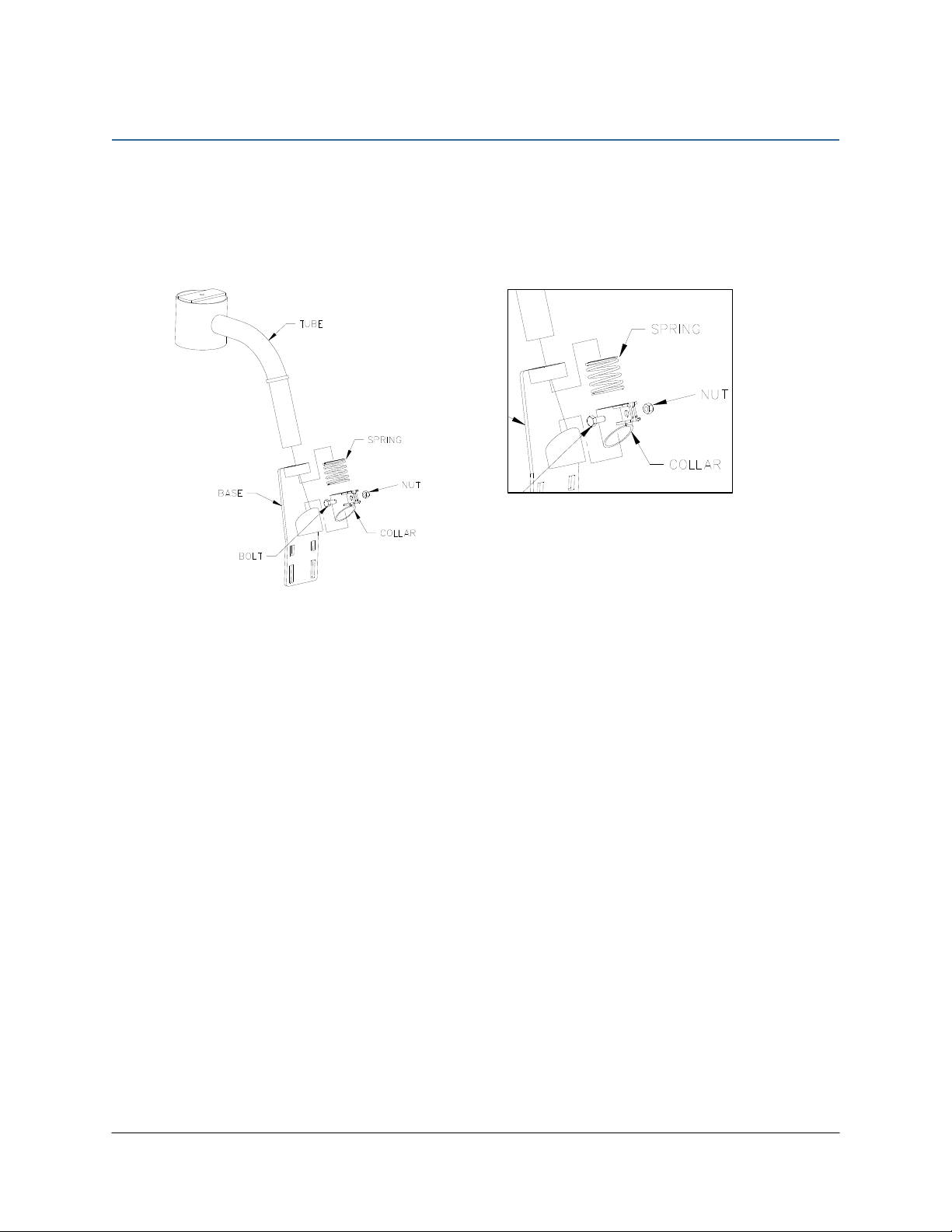

Figure 4: Breakaway Bracket Assembly
1. Compress the spring and insert it together with the collar into the base.
2. Slide the tube through the assembled part.
3. Using the bolt and nut, tighten the collar to the tube with the sensor tube centered.
4. Apply a small amount of grease to the rotating surfaces of the bracket.
