UltimusPlus Dispenser Network Connection

Instructions

Introduction

This document provides procedures for connecting the UltimusPlus™ﬂuid dispenser to a network and then sending

commands to the dispenser, including commands to remotely switch dispense programs.

Connecting the Dispenser to a Computer

1. Switch ON the dispenser power.

2. Using a standard Ethernet cable, connect a personal computer with a static IP address to the Ethernet port on the back

of the UltimusPlus dispenser.

3. To set up your computer with the correct IP settings, continue to “Setting the IP Address of a Computer” on page 2.

Power ON

Ethernet

port

UltimusPlus Dispenser Network Connection

2www.nordsonefd.com [email protected] 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.

Setting the IP Address of a Computer

Each computer in a networked system must have a unique IP address. Follow this procedure to change the IP address of a

computer.

NOTE: To change the IP address of the dispenser: Press Settings > Ethernet, enter the desired IP address, then press

Activate & Reboot.

1. On your computer, navigate to the “Network and Sharing Center.”

2. Click “Change Adapter Settings.”

Windows®7 Windows 10

3. Select “Local Area Connection” (Windows 7) or “Ethernet” (Windows 10).

Windows 7 Windows 10

4. Double-click (Windows 7) or right-click (Windows 10) to select “Properties.”

Windows 7 Windows 10

UltimusPlus Dispenser Network Connection

3www.nordsonefd.com [email protected] 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.

Setting the IP Address of a Computer (continued)

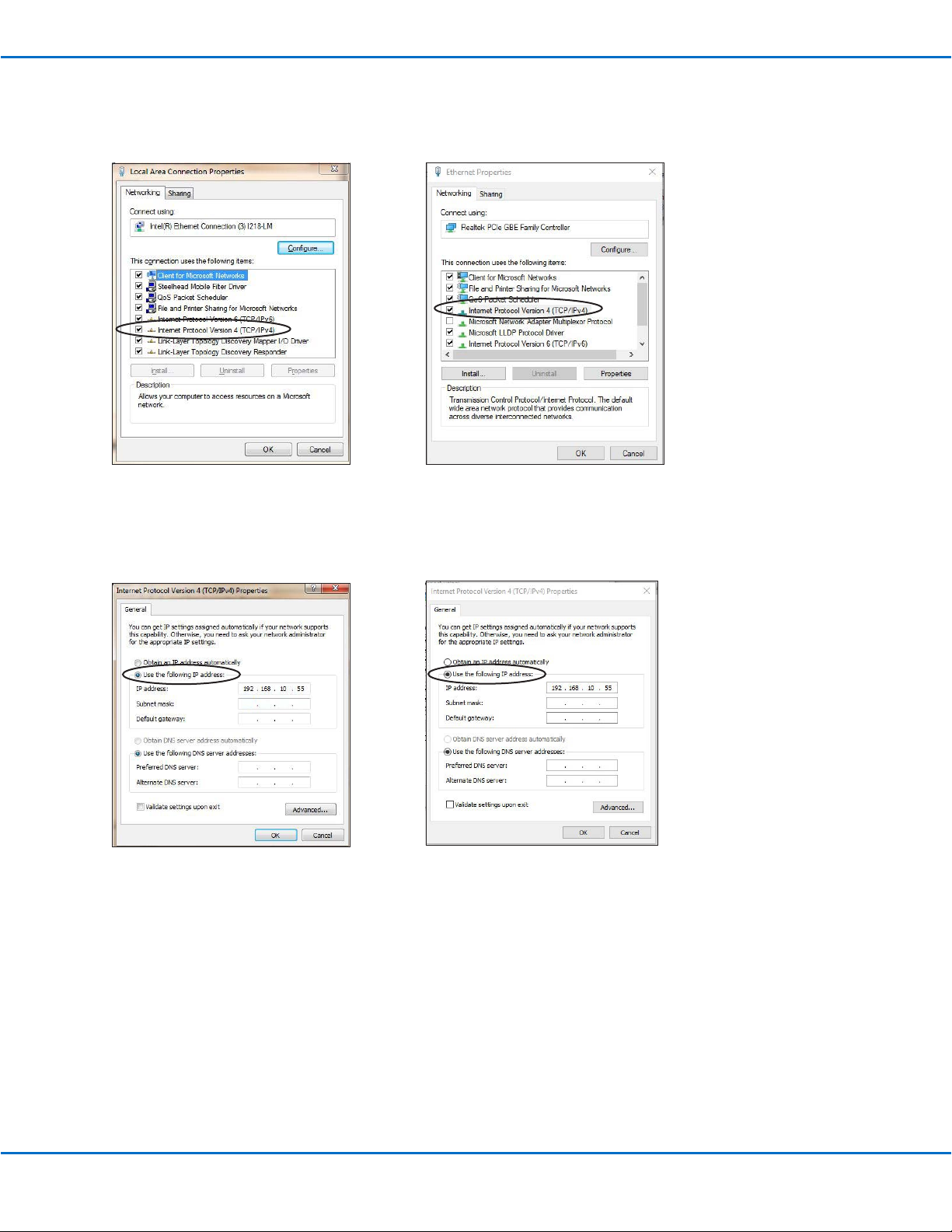

5. Double-click “Internet Protocol Version 4 (TCP/IPv4).”

Windows 7 Windows 10

6. Click “Use the following IP address” and then enter the desired IP address.

NOTE: The digit range for each ﬁeld is 1–255.

7. Click OK > OK to save the new IP address.

Windows 7 Windows 10

8. Click OK in the Local Area Connection properties window (Windows 7) or the Ethernet properties window (Windows 10).

9. Continue to “Communicating with the Dispenser” on page 4 to set up the computer to send commands to the

dispenser.

UltimusPlus Dispenser Network Connection

For Nordson EFD sales and service in over

40 countries, contact Nordson EFD or go to

www.nordsonefd.com.

800-556-3484; +1-401-431-7000

[email protected]

Communicating with the Dispenser

1. Once the computer is connected to the UltimusPlus dispenser, open a command prompt (or a terminal) and ping the

IPaddress of the UltimusPlus dispenser. The default IP address of the dispenser is 192.168.10.40.

2. If the ping is successful, use a networking tool (such as Tera Term) to create a TCP connection to port 9000 of the

dispenser.

Example of using Tera Term to communicate with an

UltimusPlus dispenser

3. Once the TCP connection is created, you can send the commands shown below to the UltimusPlus dispenser.

Command Response Result

Program1_0 Program1_0 Unit switches to program 1

Program2_0 Program2_0 Unit switches to program 2

Program3_0 Program3_0 Unit switches to program 3

Program4_0 Program4_0 Unit switches to program 4

Program5_0 Program5_0 Unit switches to program 5

Program6_0 Program6_0 Unit switches to program 6

Program7_0 Program7_0 Unit switches to program 7

Program8_0 Program8_0 Unit switches to program 8

Program9_0 Program9_0 Unit switches to program 9

Program10_0 Program10_0 Unit switches to program 10

Program11_0 Program11_0 Unit switches to program 11

Program12_0 Program12_0 Unit switches to program 12

Program13_0 Program13_0 Unit switches to program 13

Program14_0 Program14_0 Unit switches to program 14

Program15_0 Program15_0 Unit switches to program 15

Program16_0 Program16_0 Unit switches to program 16

DispenseTrigger_0 TriggeringDispense_0 If in timed mode, unit triggers a dispense
