Potential dangers from accidents during installation and use are divided into the following three

categories. Closely observe these warnings, they are critical to your safety.

Prohibited Disconnect

Power Ground Be sure to do

WARNING: If the information in this manual is not followed exactly, a ﬁre or explosion may result

causing property damage, personal injury or death.

NORITZ AMERICA

CORPORATION

Installation Manual

TANKLESS GAS WATER HEATER

NC1991-DVC (Indoor Installation)

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

DANGER

WARNING

CAUTION

Requests to Installers

• In order to use the water heater safely, read this installation manual carefully, and follow the in-

stallation instructions.

• Failures and damage caused by erroneous work or work not as instructed in this manual are not

covered by the warranty.

• Check that the installation was done properly in accordance with this Installation Manual upon

completion.

•

After completing installation, please either place this Installation Manual in a plastic pouch and

attach it to the side of the water heater (or the inside of the pipe cover or recess box if applicable),

or hand it to the customer to retain for future reference. Also, be sure to ﬁll in all of the required

items on the warranty and to hand the warranty to the customer along with the Owner's Guide.

CAUTION

SBA8873-1

Rev. 04/12

FOR USE IN RESIDENTIAL OR MANUFACTURED HOME

APPLICATIONS.

Installation must conform with local codes, or in the absence of local codes,

the National Fuel Gas Code, ANSI Z223.1/NFPA 54- latest edition and/or

CSA B149.1, Natural Gas and Propane Installation Code (NSCNGPIC).

When applicable, installation must conform with the Manufactured

Home Construction and Safety Standard, Title 24 CFR, Part 3280 or the

Canadian Standard CAN/CSA-Z240 MH Mobile Homes, Series M86.

Noritz America reserves the right to discontinue, or change at any

time, the designs and/or speciﬁcations of its products without notice.

Low NOx

Approved by

SCAQMD

14 ng/J or 20 ppm

(Natural Gas Only)

CERTIFIED

*SBA8873*

Included Accessories

The following accessories are included with the unit.

Check for any missing items before starting installation.

Q’ty

ShapePart

Tapping Screw 1

each

Part Shape Q’ty

Optional Accessories

The accessories listed below are not

included with the units, but may be necessary

for installation.

Q’ty

ShapePartPart Shape Q’ty

QuickConnect Cord

(QC-2) 1

IsolationValves

(includes pressure

reliefvalve)

Owner's Guide, Warranty,

Installation Manual

(this document)

Part No. Description

4"-CVP-4STR

12"-CVP-12STR

24"-CVP-24STR

36"-CVP-36STR

Adjustable

Part No. Description

CVT-S

Flange

Adapter

Horizontal Termination

FlangeElbow

Part No. Description

CRCAI-1

90 Elbow

Adjustable

90 Elbow

Support Strap

CVP-45ELB

CSCR-1

Standard Horizontal Kit

FP-5-OUT

RoofFlashing

(0-45 )

Straight Straight

Termination

11"-CVP-11ADJ

16"-CVP-16ADJ

40"-CVP-40ADJ

Rain Cap with Air Intake

CWF

StormCollarRing

CVP-90ELB SS5-2

CARF-1

45 Elbow Plate

CVP-90ADJELB

CWF-90ELB Horizontal Kit - CVK-H

Vertical Kit - CVK-V

Note: Additional vent pieces are available; consult the latest product catalogue for details.

Remote Controller

(See p.21) 1

System Controller

(SC-301-6M-EXT)

Drain hose

(With clamp) 1

Quick Connect

Cord

Gas Supply Piping

Cold Water Supply

Hot Water

Remote Controller

Cord

Connector Cord

Connector

Quick Connect Multi System Installation

• The Quick Connect Multi System allows the installation of two units together utilizing only the Quick

Connect Cord.

The Quick Connect Cord is 6' (2m) long. Install the units 2-18" (50-457mm) apart from each other

to ensure the cord will be able to reach between the units. (See Typical Plumbing diagram).

(If the distance between the two units is too great, not only will the cord not be able to reach,

but the water temperature may also become unstable because of the difference in pipe length

between the two units).

*1 When connecting two units, disconnect

the remote controller connector from

the other unit.

Note: Connect the remote

controller to only one

of the units.

System Diagram

• Insulate the hot water piping to prevent heat loss. Insulate and apply heating materials to the

cold water supply piping to prevent heat loss and freezing of pipes when exposed to exces-

sively cold temperatures.

Leave enough clearance around the plumbing

to apply insulation. It will be necessary to add

bends to the piping to ensure that this

clearance is available.

Size the piping to allow for the

maximum flow rates of the units.

Distance at center: 16-32" (406-812mm).

Union

Hot Water

Shutoff

Valve

Cold Water

Distance on sides

2-18" (50-457mm).

Make this distance as short as possible.

* The hot water temperature will

become unstable as the pipe

length increases.

Union

Quick Connect

Cord

Pressure

Relief

Valve Shutoff

Valve

Union

Gas

Valve

Shutoff Valve

The backflow preventer is

put up before it diverges.

Typical Plumbing

4. Before Installation

Checkup

• Check the ﬁxing brackets and vent pipe yearly for damage or wear. Replace if necessary.

DANGER

Do Not Use Equipment for Purposes Other Than Those Speciﬁed

• Do not use for other than increasing the temperature of the water supply, as unexpected accidents

mayoccur as a result.

Check Water Supply Quality

• If the water supply is in excess of 12 grains per gallon (200 mg/L) of hardness, acidic or otherwise

impure, treat the water with approved methods in order to ensure full warranty coverage.

WARNING

CAUTION

Check the Gas

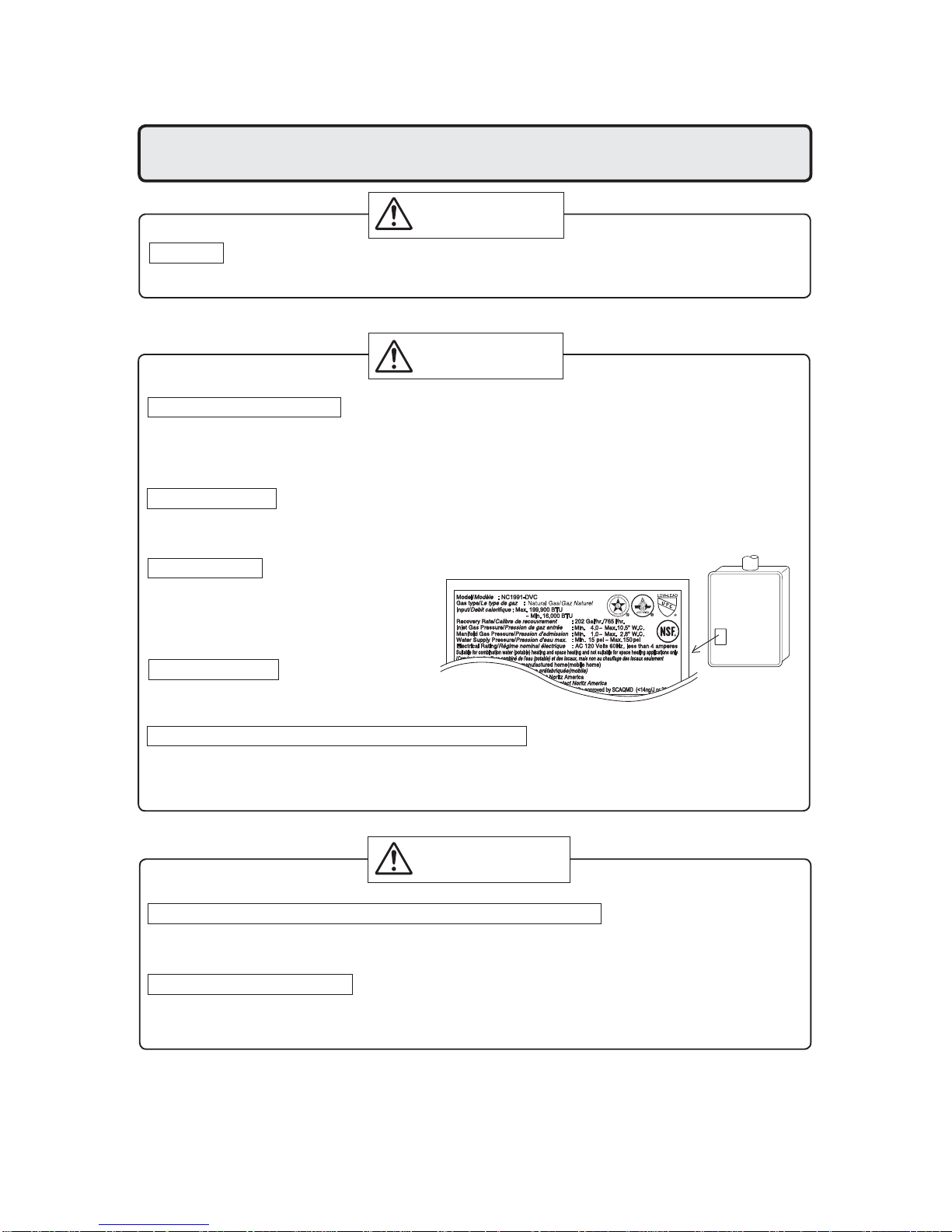

• Check that the rating plate indicates the

correct type of gas.

• Check that the gas supply line is sized for

199,900Btuh for this unit.

Check the Power

• The power supply required is 120VAC, at 60Hz.

May result in ﬁre or electric shock.

Use Extreme Caution if Using With a Solar Pre-Heater

• Using this unit with a solar pre-heater can lead to unpredictable output temperatures and

possibly scalding. If absolutely necessary, use mixing valves to ensure output temperatures do

not get to scalding levels. Do not use a solar pre-heater with the quick-connect multi-system.

Precautions on Vent Pipe

• This appliance requires the use of special concentric type vent pipe speciﬁed by Noritz America.

Do not attempt to use materials that are not speciﬁed for use on this appliance.

Improper venting may result in a ﬁre, property damage, or exposure to Carbon Monoxide.

Snow Precaution

• If this product will be installed in an area where snow is known to accumulate, protect the vent termi-

nationfrom blockage by snowdriftsor damage from snowfalling offofroofs.

5. Choosing Installation Site

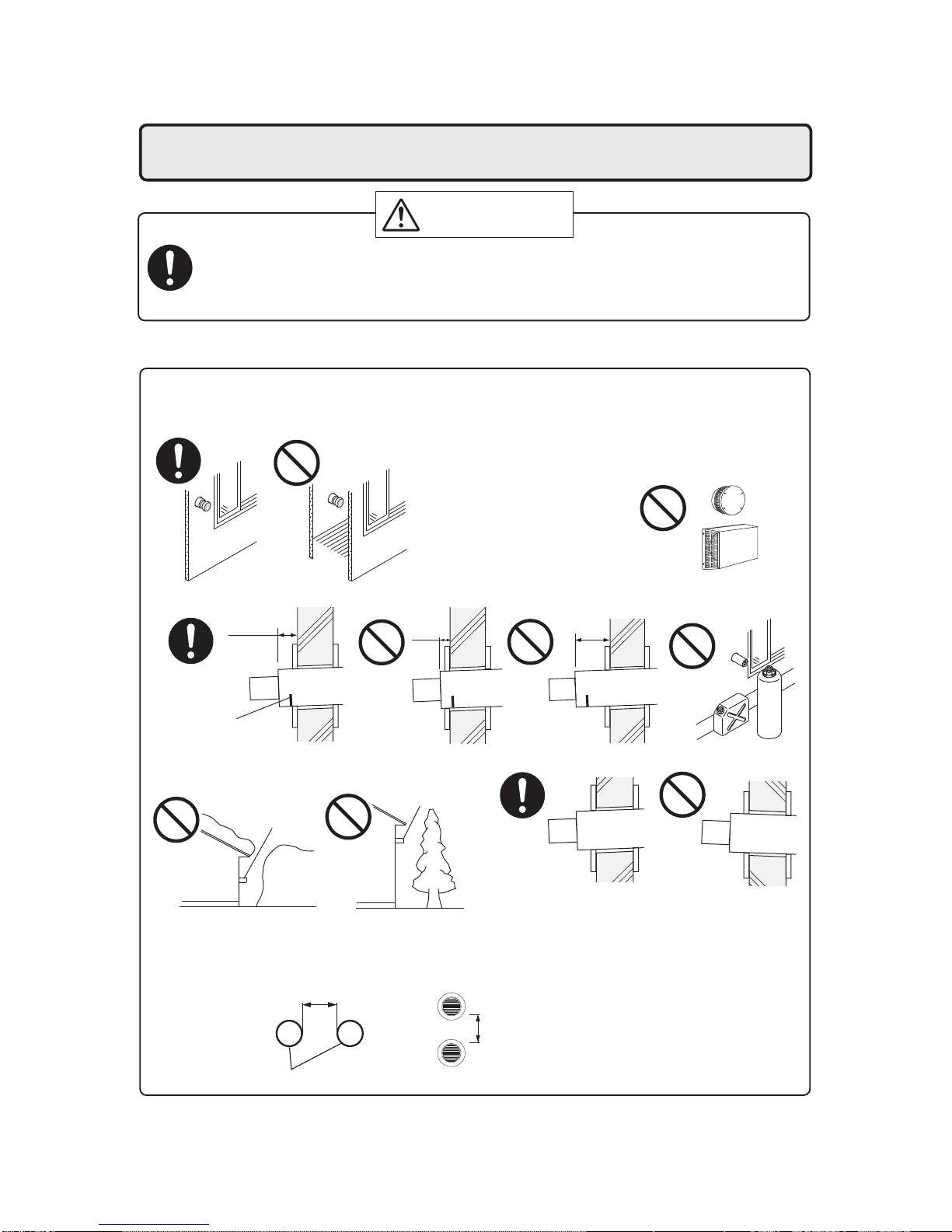

* Locate the appliance in an area where leakage from the unit or connections will not result in damage

to the area adjacent to the appliance or to the lower ﬂoors of the structure. When such locations

cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed

under the appliance. The pan must not restrict combustion air ﬂow.

• Locate the vent terminal so that there are no obstacles around the termination and so that exhaust

can't accumulate. Do not enclose the termination with corrugated metal or other materials.

• Avoid places where ﬁres are common, such as those where gasoline,

benzene and adhesives are handled, or places in which corrosive gases

(ammonia, chlorine, sulfur, ethylene compounds, acids) are present.

Using the incorrect voltage may result in ﬁre or cracking.

• Avoid installation in places where dust or debris will accumulate.

Dust may block the air-supply opening, causing the performance of the

device fan to drop and incomplete combustion to occur as a result.

• Avoid installation in places where special chemical agents

(e.g., hair spray or spray detergent) are used.

Ignition failures and malfunction may occur as a result.

• Carbon Monoxide Poisoning Hazard. Do not install this water heater in a

recreational vehicle or on a boat.

• The water heater is designed for indoor installation only. Never install it

outdoors or in a bathroom, it may be damaged or a ﬁre may be caused.

• Consult with the customer concerning the location of installation.

•Install the water heater in an area that allows for the proper clearances

to combustible and noncombustible construction. Consult the rating

plate on the appliance for proper clearances.

• Do not install the water heater in a place where it may be threatened by

falling objects, such as under shelves.

• The water heater must be installed in a place where supply and exhaust

pipes can be installed as directed.

• Do not install the water heater where the exhaust will blow on outer walls

or material not resistant to heat. Also consider the surrounding trees and

animals.

Theheat and moisture fromthe water heater maycausediscoloration of

wallsand resinous materials, orcorrosion of aluminum materials.

Prohibited

DANGER

WARNING

CAUTION

Prohibited

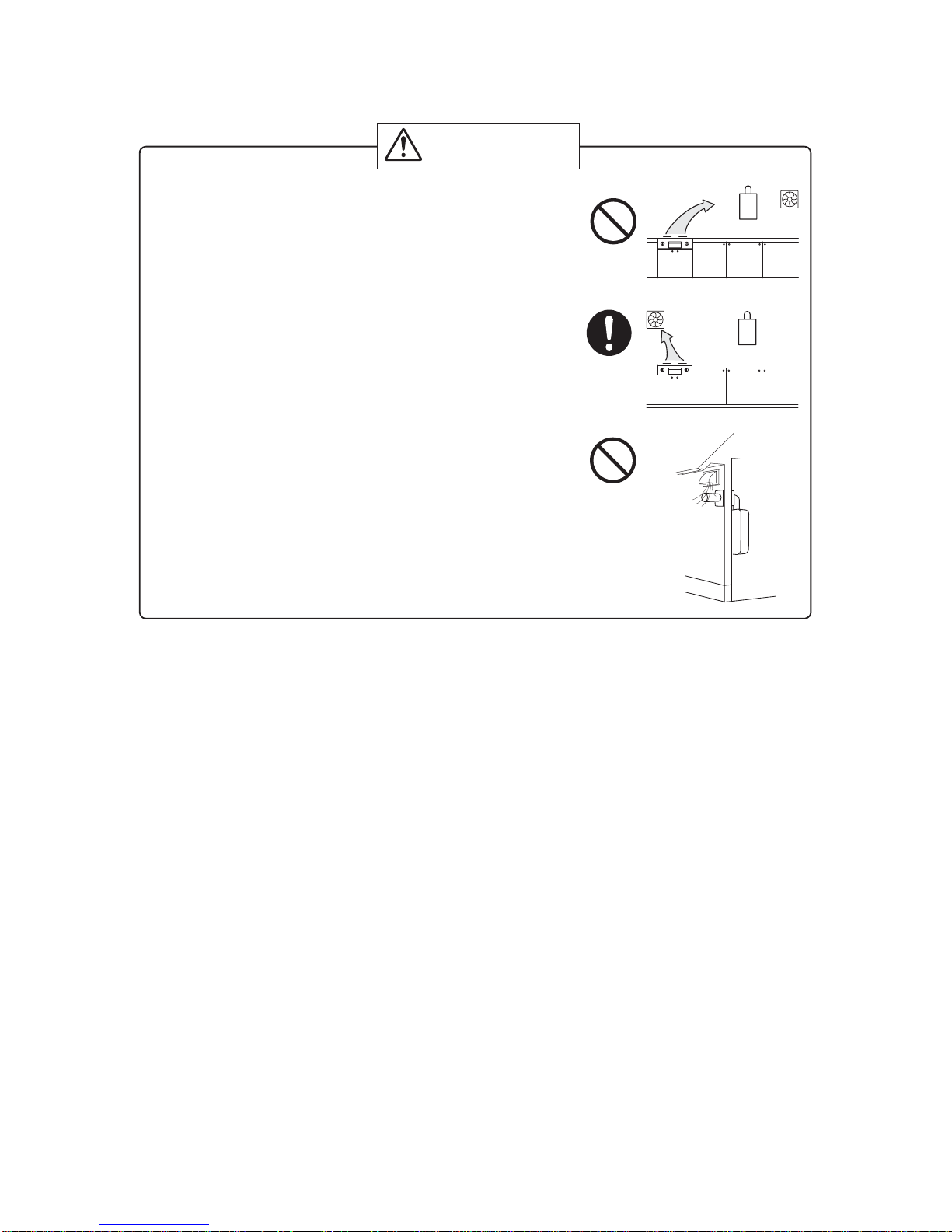

• Avoid installation above gas ranges or stoves.

• Avoid installation between the kitchen fan and stove. If oily

fumes or a large amount of steam are present in the installation

location, take measures to prevent the fumes and steam from

entering in the equipment.

• Install in a location where the exhaust gas ﬂow will not be

affected by fans or range hoods.

• Take care that noise and exhaust gas will not affect neighbors.

Avoid installation on common walls as the unit will make some

operational noises while it is running.

•Before installing, make sure that the exhaust ﬂue termination will

have the proper clearances according to the National Fuel Gas

Code(ANSI Z223.1).

State of California: The water heater must be braced, anchored or strapped to avoid moving during an

earthquake. Contact local utilities for code requirements in your area or call: 1-866-766-7489 and re-

quest instructions.

Be sure to do

Prohibited

CAUTION

The Commonwealth of Massachusetts: The water heater can be used for hot water only and not in a

combination of domestic and space heating.

For Venting Manufacturers Requirements, see websites or phone numbers listed below:

Noritz N-Vent www.noritz.com

6. Installation Clearances

Before installing, check for the following:

Install in accordance with relevant building and mechanical codes, as well as any local, state or

national regulations, or in the absence of local and state codes, to the National Fuel Gas Code

ANSI Z223.1/NFPA 54 – latest edition. In Canada, see NSCNGPIC for detailed requirements.

WARNING

Item

Distance from combustibles

• Maintain the following clearances

from both combustible and

non-combustible materials.

• There must be a clearance of 24" (600mm)

or more in front of the Flue terminal.

• This restriction will not be applied to an

area where an effective shield makes a

clearance of 24" (600mm) or more in

front of the exhaust outlet.

Check Illustration

• If possible, leave 8" (200mm) or more on

either side of the unit to facilitate inspection.

• If possible, leave 24" (600mm) or more

in front of the unit to facilitate maintenance

and service if necessary.

• If possible, leave 3" (75mm) or more

above and below the vent pipe to facilitate

inspection and repair if necessary.

Securing of space for

repair/inspection

24" (600mm)

or more

8" (200mm)

or more

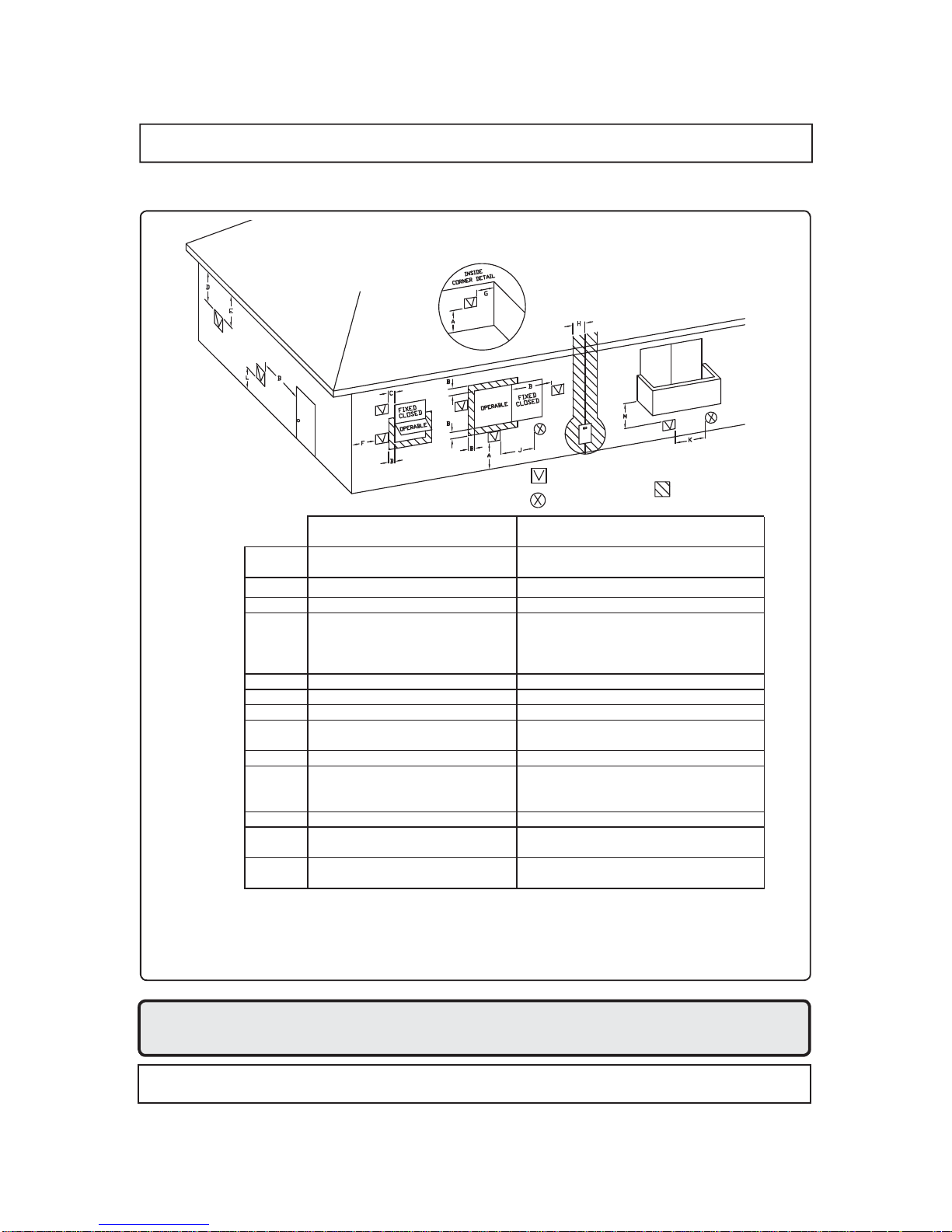

Outdoor Clearances to Opening

into Any Building

Distance from

the side

12" (300mm)

or more

2" (50mm)

or more

12" (300mm)

or more 12" (300mm)

or more

12" (300mm)

or more

There must be no

building opening

within this area. 12" (300mm)

or more

Flue terminal

3" (75mm)

or more

3" (75mm)

or more

4" (100mm)

or more

8" (200mm)

or more

7. Installation

Securing to the wall

Clearance Requirements from Vent Terminations to Building Openings

* All clearance requirements are in accordance with ANSI Z21.10.3 and the National Fuel Gas Code,

ANSI Z223.1 and in Canada, in accordance with NSCNGPIC.

Clearance

A= Above grade, veranda, porch, deck,

or balcony

B= Window or door that may be opened

C= Permanently closed window

Vertical clearance to ventilated soffit

located above the terminal within a

horizontal distance of 2' (0.6m) from

the center of the terminal *

E= Unventilated soffit *

F= Outside corner *

G= Inside corner *

H= Each side of center line extended

above meter/regulator assembly 3' (0.9m) within a height 15' (4.5m)

above meter/regulator assembly

I= Service regulator vent outlet 3' (0.9m)

J= Nonmechanical air supply inlet or

combustion air inlet to any other

appliance

12" [36" (900mm)]

K= Mechanical air supply inlet 3' above if within 10' [6'(1.8m)]

L= Above paved sidewalk or paved

driveway located on public property

Under veranda, porch, deck, or

balcony

* [7' (2.1m ***)]

[ ] = indicates clearances required in Canada

*Maintain clearances in accordance with local installation codes and the requirements of the gas supplier.

*** A vent shall not terminate directly above a sidewalk or paved driveway that is located between two

single family dwellings and serves both dwellings.

**** Permitted only if veranda,porch,deck,or balcony is fully open on a minimum of two sides beneath the floor.

* [12" (300mm)****]

12" [12" (300mm)]

12" [36" (900mm)]

Area Where Terminal

is Not Permitted

Vent Terminal

Air Supply Inlet

IllustrationCheck

6. Drill holes for the remaining four screws.

7. Hang the unit again by the ﬁrst screw, and then

insert and tighten the remaining four screws.

8. Take waterprooﬁng measures so that water does

not enter the building from screws mounting the

device.

• Make sure the unit is installed securely so that it will

not fall or move due to vibrations or earthquakes.

• The distance between the unit and the wall can be

adjusted within the range of 0.4 - 1.8" (10 - 46mm).

Adjust the brackets as necessary to accommodate

the vent system (factory default is 0.4" (10mm)).

Loosen the four screws in the mounting bracket (upper),

match the desired mark to the back of the unit, and

then tighten the screws.

Loosen the four screws in the mounting bracket (lower) and

secure it in the same position as the upper mounting bracket.

3. Drill a single screw hole, making sure to hit a stud.

4. Insert and tighten the screw and hang the unit by

the upper wall mounting bracket.

Determine the positions for the remaining four screws

(two for the top bracket and two for the bottom), and

remove the unit.

• The weight of the device will be applied to the wall. If the strength of the wall is not sufﬁ-

cient, reinforcement must be done to prevent the transfer of vibration.

• Do not drop or apply unnecessary force to the device when installing. Internal parts may

be damaged and may become highly dangerous.

• Install the unit on a vertical wall and ensure that it is level.

Locating Screw Holes

Mounting

Structure

• When installing with bare hands, take caution to

not inﬂict injury.

• Be careful not to hit electrical wiring, gas, or water

piping while drilling holes.

Item

CAUTION

Be sure to do

Mounting Bracket

(upper)

Tapping Screw

Location of Screw Hole

Locating Screw Holes

Installations at Elevations

Above 2,000 ft.(610m).

• Adjust the dip switches as illustrated in the table to

the right if this water heater is installed at an altitude

of 2000 ft. (610m) or higher.

• Disconnect power to the water heater before

changing the dip switches. Failure to perform this

step will result in a "73" code displayed on the remote

controller and a cease in operation. If this occurs,

disconnect, then reconnect power to the water heater

to reset the system.

Note : Please refer to page 21 for the location of the

dip switch bank.

0.4 - 1.8"

(10 - 46mm)

mounting bracket

(upper)

mounting bracket

(lower)

mark

(0.4" (10mm) intervals)

* Do not change an other dipswitches.

* igh elevation ad ustment.

2 001 - 4 000 ft ( 11 - 1 220m)

0 - 2 000 ft (0 - 10m)

4 001 - 000 ft (1 221 - 1 8 0m)

001 - 8 000 ft (1 8 1 - 2 440m)

> 3" (75mm)

(20-75mm)

0.8"-3"

< 0.8"

(20mm)

Straight Termination Installation Precautions.

Note the following vent terminal installation requirements.

• Do not install the vent terminal indoors

• Install the vent terminal with a downward slope

upward

slope

downward

slope

•Install with the proper length protruding through the wall •Avoid storing hazardous

objects near the terminal

Gasoline

Gas

Proper installation.

The red line can be

seen, but not more

than 2.2" (55mm)

from the wall.

Vent terminal

not far

enough too far

Snow

drift Tree

•Avoid installing the terminal where obstacles

will block it

•

Do not cover the vent terminal with any type of protective

screen or enclosure. Blocked terminals can cause abnor-

mal combustion resulting in undesired performance from

the water heater.

8. Vent Pipe Installation

• This appliance requires the use of special concentric type vent pipe speciﬁed by Noritz America.

Do not attempt to use materials that are not speciﬁed for use on this appliance.

WARNING

Be sure to do

CARBON MONOXIDE POISONING

Follow all vent system requirements in accordance with relevant local or state regulation,

or, in the absence of local or state code, in the U.S. to the National Fuel Gas Code ANSI

Z233.1/NFPA 54 – latest edition, and in Canada, in accordance with NSCNGPI.

• Clearance from vent terminal.

If multiple units are installed, the concentric vent terminals must be separated

by a minimum of either 12" (300mm) horizontally or 60" (1.5m) vertically.

Vent terminal Vent terminal

12" (300mm) or more

60" (1.5m) or more

Andere Handbücher für NC1991-DVC

Inhaltsverzeichnis

Andere Noritz Boiler Handbücher

Noritz

Noritz NRC98-OD Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC711-DV-LP Bedienungsanleitung

Noritz

Noritz NRCP98-DV Bedienungsanleitung

Noritz

Noritz THERMALUX NERC11DV Bedienungsanleitung

Noritz

Noritz EZ111DV Bedienungsanleitung

Noritz

Noritz GQ-C2859WX-FF US Bedienungsanleitung

Noritz

Noritz NR98-DVC-CA Bedienungsanleitung

Noritz

Noritz NR501-OD-NG Bedienungsanleitung

Noritz

Noritz NCC199-SV Bedienungsanleitung

Noritz

Noritz ProTouch BNR83-DVC-NG Bedienungsanleitung

Noritz

Noritz NC1991-OD-NG Bedienungsanleitung

Noritz

Noritz NC250-DV-ASME Bedienungsanleitung

Noritz

Noritz GQ-C2857WS-FF US Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC711-DV Bedienungsanleitung

Noritz

Noritz NRCR92DV Bedienungsanleitung

Noritz

Noritz NCC199CDV Bedienungsanleitung

Noritz

Noritz VCK-NRCP-1 Kurzanleitung

Noritz

Noritz GQ-C3260WXQ-FF US Bedienungsanleitung

Noritz

Noritz NR98SVNG Bedienungsanleitung

Noritz

Noritz NCC199DV-NG Bedienungsanleitung

Noritz

Noritz N-0931M-DV Bedienungsanleitung

Noritz

Noritz NR98-OD-NG Bedienungsanleitung

Noritz

Noritz GQ-C5032WZ US Bedienungsanleitung

Noritz

Noritz NC199-DVC Bedienungsanleitung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung

PVI

PVI MAXIM Bedienungsanleitung
