Potential dangers from accidents during installation and use are divided into the following three

categories. Closely observe these warnings, they are critical to your safety.

Prohibited Disconnect

Power Ground Be sure to do

Requests to Installers

• In order to use the water heater safely, read this installation manual carefully, and follow the

installation instructions.

•Failures and damage caused by erroneous work or work not as instructed in this manual are not

covered by the warranty.

• Check that the installation was done properly in accordance with this Installation Manual upon

completion.

•

After completing installation, please either place this Installation Manual in a plastic pouch and

attach it to the side of the water heater (or the inside of the pipe cover or recess box if applicable),

or hand it to the customer to retain for future reference. Also, be sure to fill in all of the required

items on the warranty and to hand the warranty to the customer along with the Owner's Guide.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result

causing property damage, personal injury or death.

NORITZ AMERICA

CORPORATION

Installation Manual

TANKLESS GAS WATER HEATER

NR111-SV (Indoor/Outdoor Installation)

DANGER indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury.

DANGER

CAUTION

WARNING

CAUTION

SBA8374-2

Rev. 03/13

Installation must conform with local codes, or in the

absence of local codes, the National Fuel Gas Code,

ANSI Z223.1/NFPA 54- latest edition and/or CSA

B149.1, Natural Gas and Propane Installation Code

(NSCNGPIC).

Noritz America reserves the right to discontinue, or

change at any time, the designs and/or specifications

of its products without notice.

CERTIFIED

*SBA8374*

Complies with

jurisdictions having

40 ng/J or 55 ppm

NOx regulations

(Natural Gas Only)

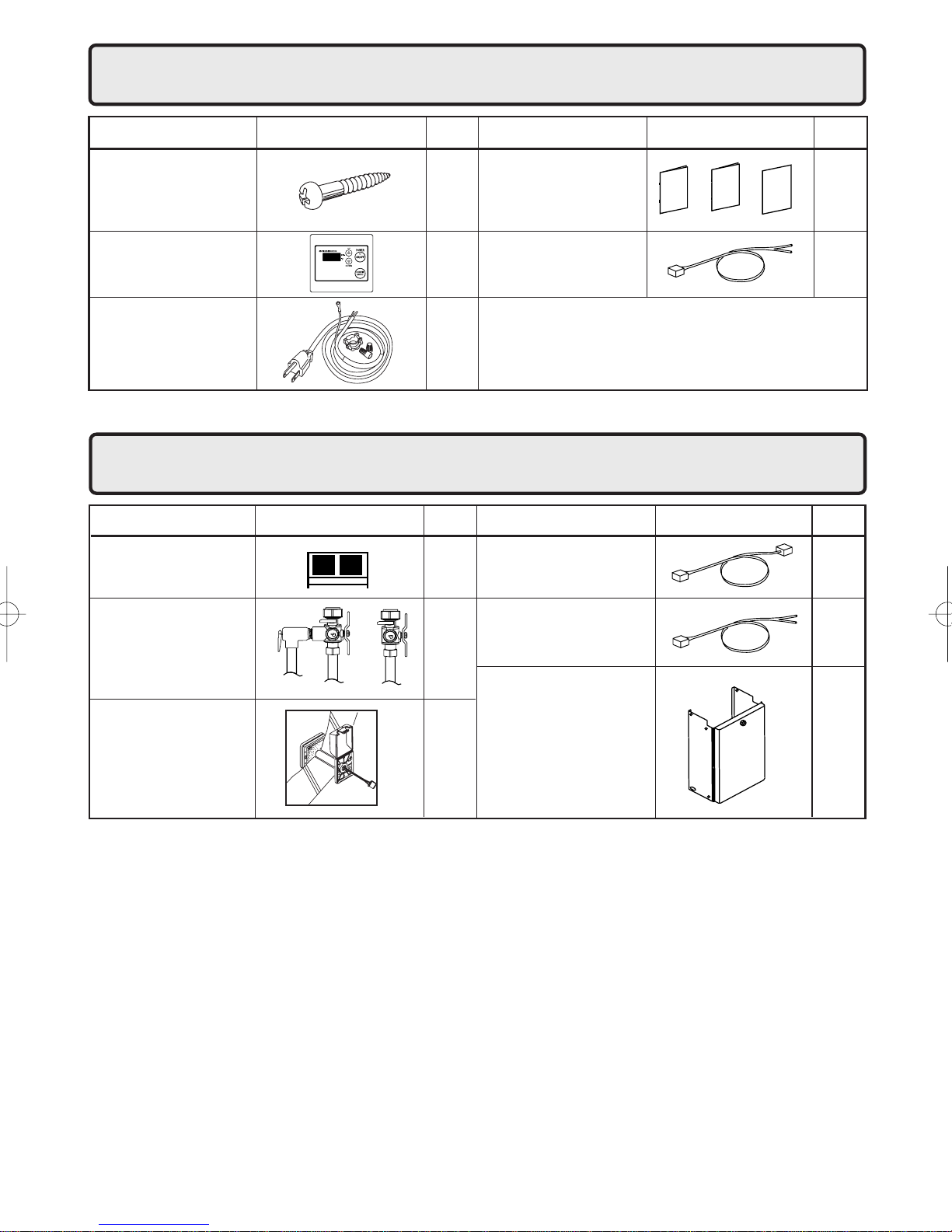

Included Accessories

The following accessories are included with the unit.

Check for any missing items before starting installation.

Q’tyShapePart

Anchoring Screw 1

each

Part Shape Q’ty

Remote Controller

(See p. 20) Remote Controller

Cord (10ft)

Optional Accessories

The accessories listed below are not

included with the units, but may be necessary

for installation.

Outdoor Vent Cap

(VC4(-1)) 1Quick Connect Cord

Q’tyShapePartPart Shape Q’ty

Remote Controller

Cord (26ft)

Isolation Valves

(includes pressure

relief valve)

Pipe Cover

(PC-3S) 1

Remote Controller

Outdoor

Junction Box

Owner's Guide, Warranty,

Installation Manual

(this document)

Power Cord 1

Quick Connect

Cord

Remote Controller Cord Gas Supply Piping

Cold Water Supply

Hot Water

Remote Controller

Terminal Block

Cord

Connector Cord

Connector

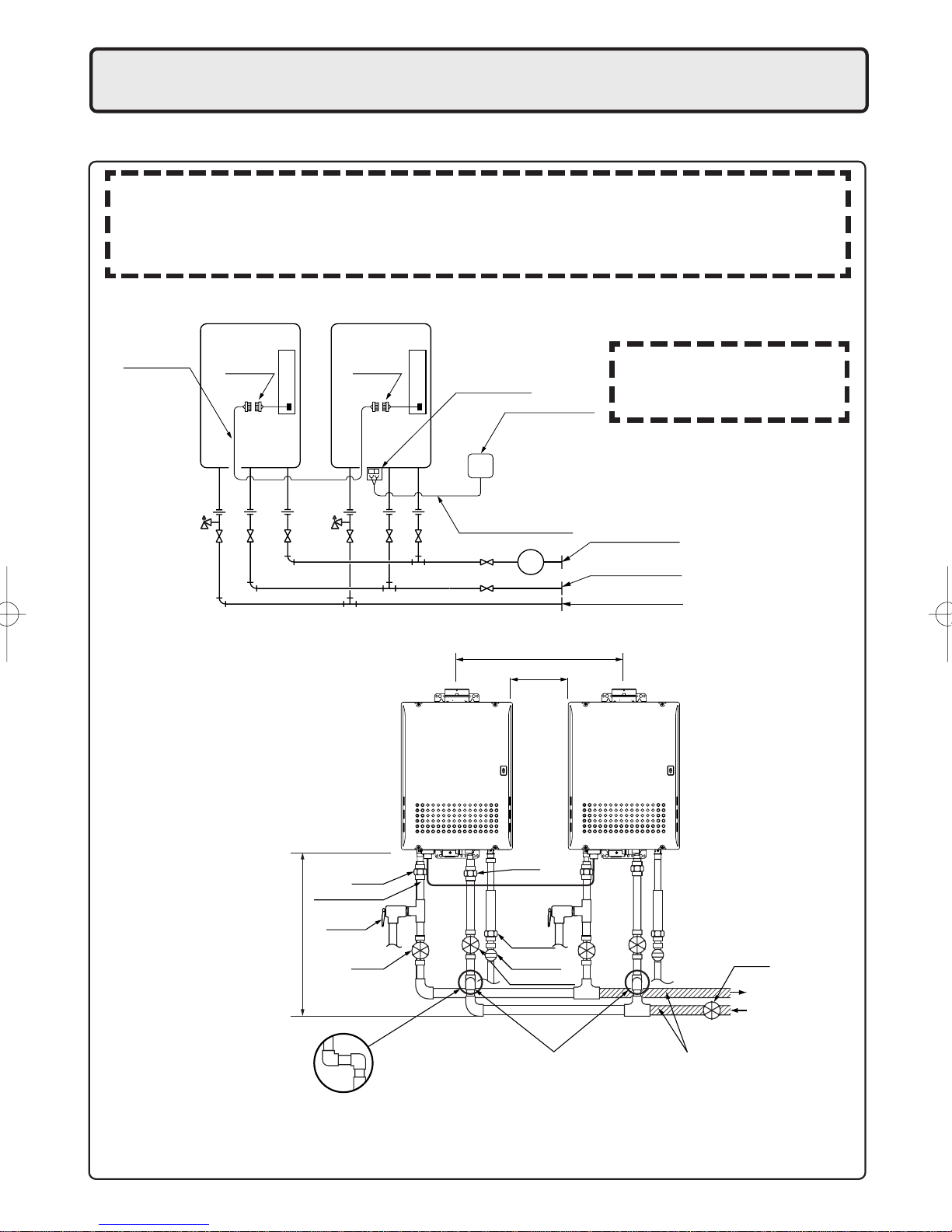

Quick Connect Multi System Installation

• The Quick Connect Multi System allows the installation of two units together utilizing only the Quick

Connect Cord.

Typical Plumbing

The Quick Connect Cord is 6 ft. long. Install the units 2-19" apart from each other to ensure the

cord will be able to reach between the units. (See Typical Plumbing diagram).

(If the distance between the two units is too great, not only will the cord not be able to reach,

but the water temperature may also become unstable because of the difference in pipe length

between the two units).

* When connecting two units, use only a

single remote controller.

Note: Connect the remote

controller to only one

of the units.

System Diagram

•Insulate the hot water piping to prevent heat loss. Insulate and apply heating materials to the cold

water supply piping to prevent heat loss and freezing of pipes when exposed to excessively cold

temperatures.

Union

Make this distance as short as possible.

* The hot water temperature will

become unstable as the pipe

length increases.

Distance at center: 20.3-37.4 in.

Quick Connect

cord

Union

Gas Valve

Union

Shutoff

Valve Shutoff Valve Hot Water

Cold Water

Shutoff

Valve

Distance on sides

2-19 in.

Leave enough clearance around the plumbing to

apply insulation. It will be necessary to add

bends to the piping to ensure that this clearance

is available.

Pressure

Relief

Valve

Size the piping to allow for the maximum

flow rates of the units.

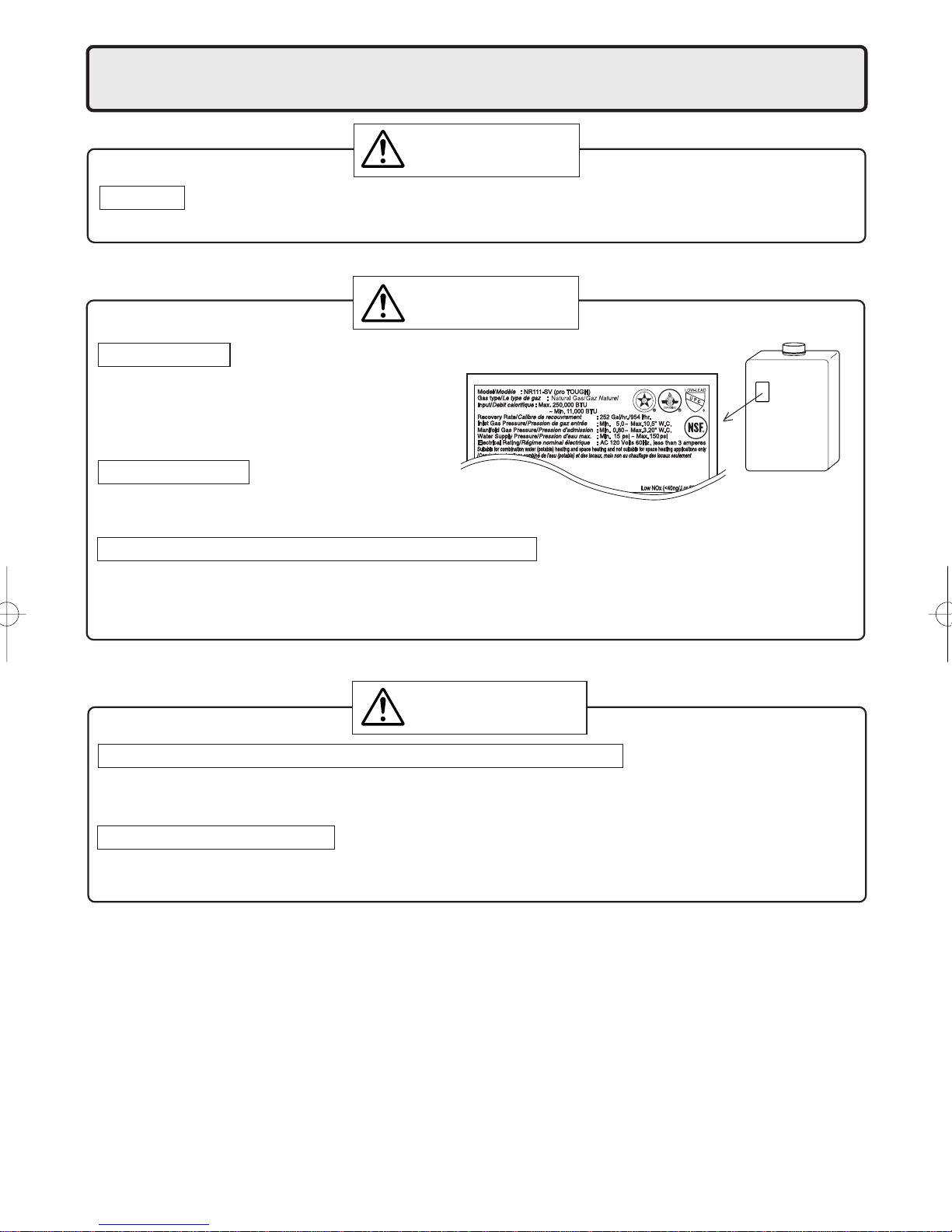

4. Before Installation

Checkup

• Check the fixing brackets and vent pipe yearly for damage or wear. Replace if necessary.

DANGER

Do Not Use Equipment for Purposes Other Than Those Specified

•Do not use for other than increasing the temperature of the water supply, as unexpected accidents

may occur as a result.

Check Water Supply Quality

•If the water supply is in excess of 12 grains per gallon (200 mg/L) of hardness, acidic or otherwise

impure, treat the water with approved methods in order to ensure full warranty coverage.

WARNING

CAUTION

Check the Gas

•Check that the rating plate indicates the

correct type of gas.

•Check that the gas supply line is sized for

250,000 Btuh for this unit.

Check the Power

•The power supply required is 120VAC, at 60Hz.

May result in fire or electric shock.

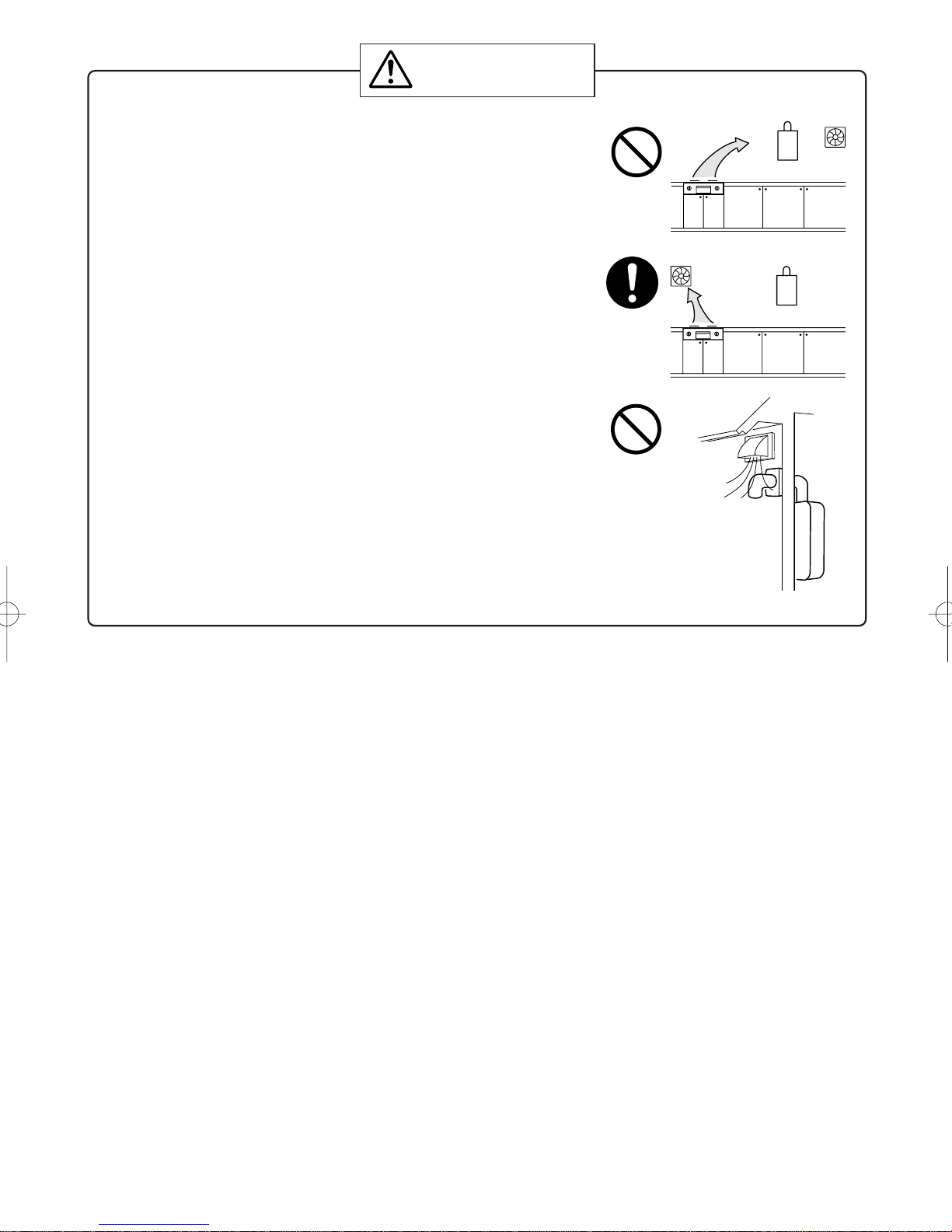

Use Extreme Caution if Using With a Solar Pre-Heater

• Using this unit with a solar pre-heater can lead to unpredictable output temperatures and

possibly scalding. If absolutely necessary, use mixing valves to ensure output temperatures do

not get to scalding levels. Do not use a solar pre-heater with the quick-connect multi-system.

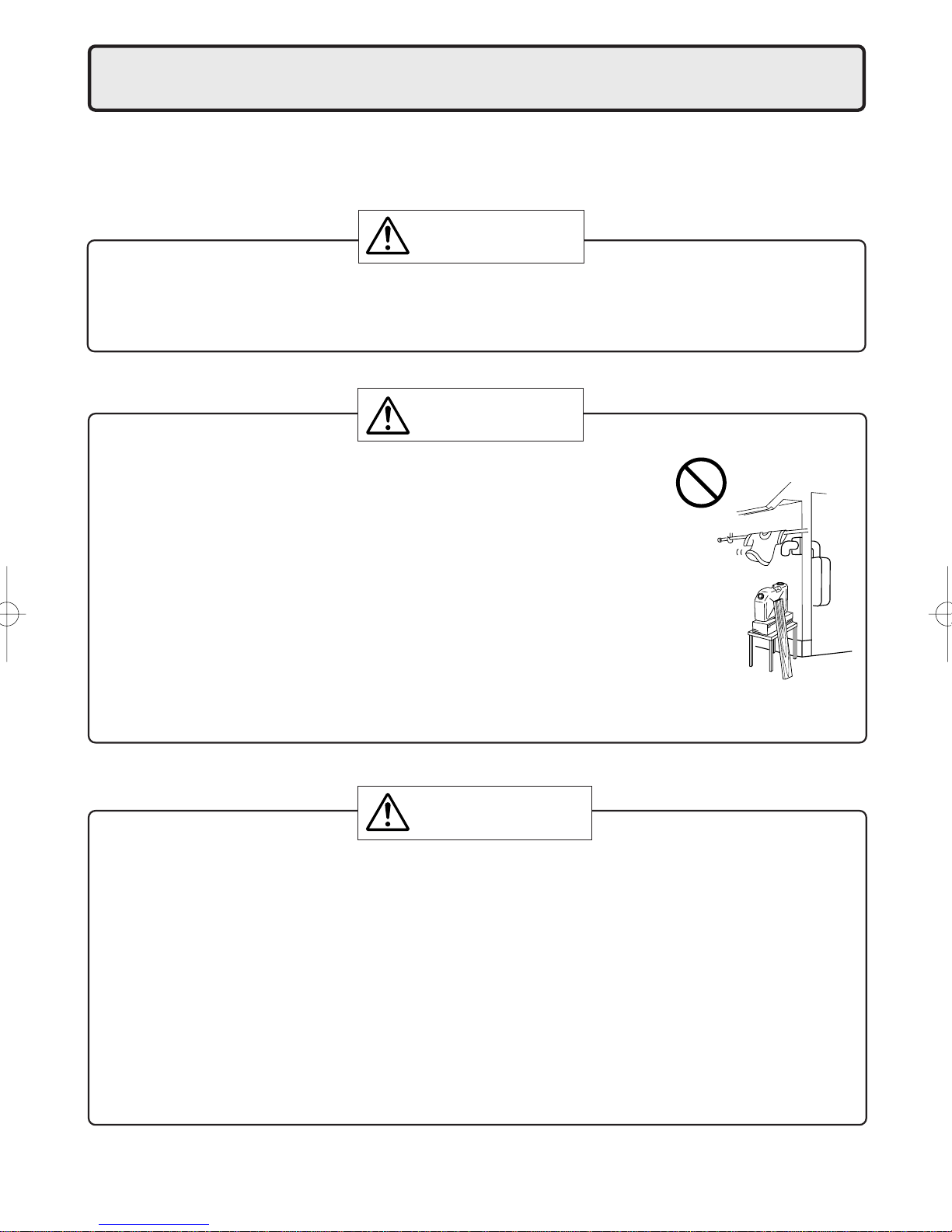

5. Choosing Installation Site

* Locate the appliance in an area where leakage from the unit or connections will not result in damage

to the area adjacent to the appliance or to the lower floors of the structure. When such locations

cannot be avoided, it is recommended that a suitable drain pan, adequately drained, be installed

under the appliance. The pan must not restrict combustion air flow.

• Install the exhaust vent so that there are no obstacles around the termination and so that

exhaust can't accumulate. Do not enclose the termination with corrugated metal or other

materials.

•Avoid places where fires are common, such as those where gasoline,

benzene and adhesives are handled, or places in which corrosive gases

(ammonia, chlorine, sulfur, ethylene compounds, acids) are present.

Using the incorrect voltage may result in fire or cracking.

•Avoid installation in places where dust or debris will accumulate.

Dust may block the air-supply opening, causing the performance of the

device fan to drop and incomplete combustion to occur as a result.

•Avoid installation in places where special chemical agents

(e.g., hair spray or spray detergent) are used.

Ignition failures and malfunction may occur as a result.

• Carbon Monoxide Poisoning Hazard. Do not install this water heater in a

mobile home, recreation vehicle or on a boat.

•Install the water heater in a location where it is free from obstacles and stag-

nant air.

•Consult with the customer concerning the location of installation.

•Do not install the water heater near staircases or emergency exits.

•Do not install the water heater where the exhaust will blow on outer walls

or material not resistant to heat. Also consider the surrounding trees and

animals.

The heat and moisture from the water heater may cause discoloration of

walls and resinous materials, or corrosion of aluminum materials.

•Do not locate the vent termination directed towards a window or any other

structure which has glass or wired glass facing the termination.

Prohibited

DANGER

WARNING

CAUTION

•Avoid installation above gas ranges or stoves.

•Avoid installation between the kitchen fan and stove. If oily

fumes or a large amount of steam are present in the installation

location, take measures to prevent the fumes and steam from

entering in the equipment.

• Install in a location where the exhaust gas flow will not be

affected by fans or range hoods.

• Take care that noise and exhaust gas will not affect neighbors.

Avoid installation on common walls as the unit will make some

operational noises while it is running.

•Make sure that the location allows installation of the exhaust

vent as specified.

•For outdoor installation, use the outdoor vent cap.

If it is necessary to vent above the roof line in an outdoor instal-

lation, use high temperature sealant around the flue collar for

rain protection.

•Avoid installation where the unit will be exposed to excessive

winds.

•Before installing, make sure that the vent termination (or the vent

cap in an outdoor installation) will have the proper clearances

according to the National Fuel Gas Code (ANSI Z223.1).

State of California: The water heater must be braced, anchored or strapped to avoid moving during an

earthquake. Contact local utilities for code requirements in your area or call: 1-866-766-7489 and request

instructions.

Be sure to do

Prohibited

CAUTION

The Commonwealth of Massachusetts: The water heater can be used for hot water only and not in a

combination of domestic and space heating.

For Venting Manufacturers Requirements, see websites or phone numbers listed below:

Noritz N-Vent www.noritz.com

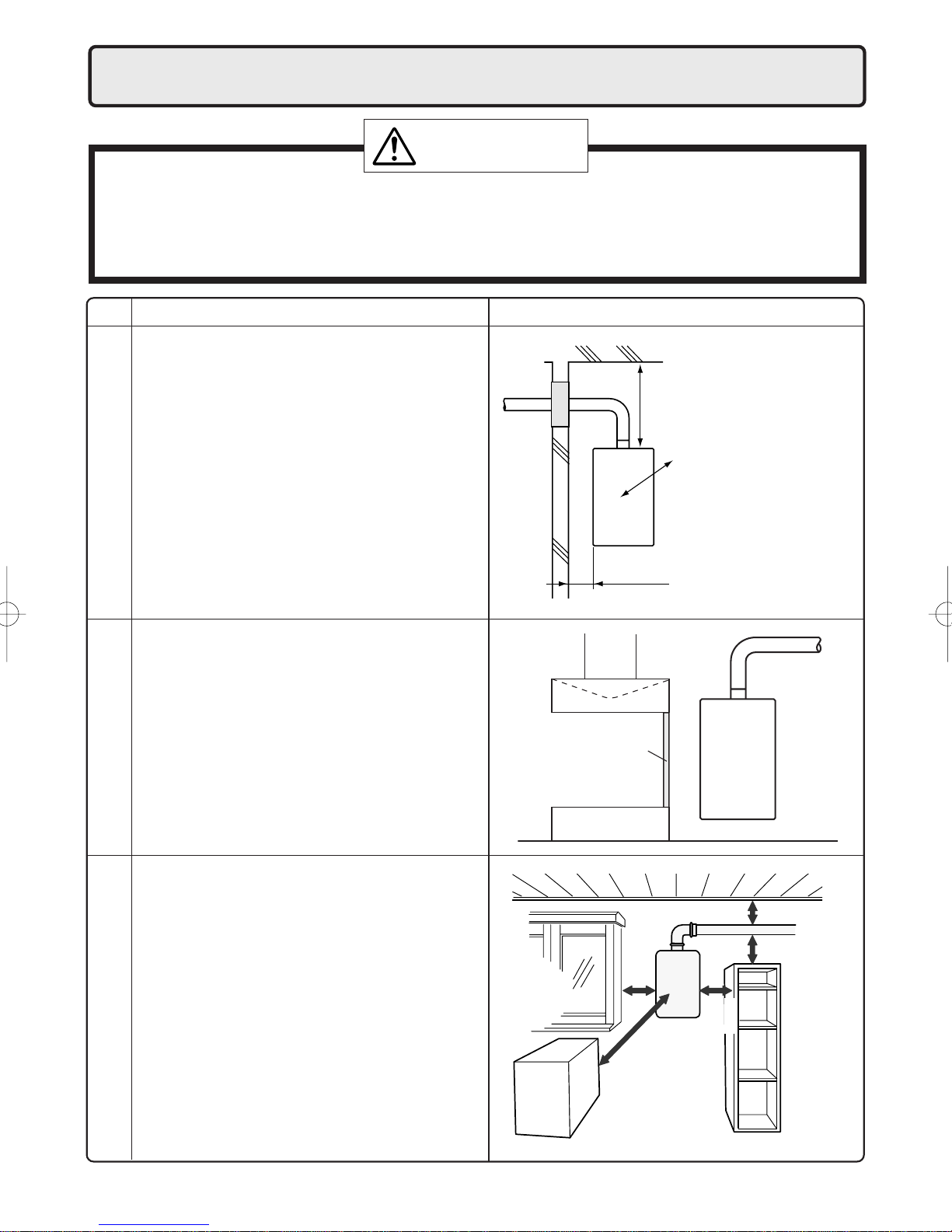

6. Installation Clearances

Before installing, check for the following:

Install in accordance with relevant building and mechanical codes, as well as any local, state or

national regulations, or in the absence of local and state codes, to the National Fuel Gas Code ANSI

Z223.1/NFPA 54 – latest edition. In Canada, see NSCNGPIC for detailed requirements.

WARNING

Item

Required Clearances

From Heater

•Maintain the following clearance from

both combustible and non-combustible

materials.

Check Illustration

12" or more(Indoor)

36" or more(Outdoor)

4" or more(Indoor)

24" or more(Outdoor)

2" or more(Indoor)

6" or more(Outdoor)

•If possible, leave 8" or more on either

side of the unit to facilitate inspection.

•If possible, leave 24" or more in front of

the unit to facilitate maintenance

and service if necessary.

•If possible, leave 3" or more above and

below the vent pipe to facilitate inspec-

tion and repair if necessary

Securing of space for

repair/inspection

24" or

8" or

or more

• If the unit will be installed in the vicinity of a

permanent kitchen range or stove that has

the possibility of generating steam that

contains fats or oils, use a dividing plate or

other measure to ensure that the unit is not

exposed to air containing such impurities.

* The dividing plate should be of noncombust-

ible material of a width greater than the

water heater.

Exhaust hood

Range

Dividing plate Water

heater

(unit: inch)

Cooking Equipment

or more

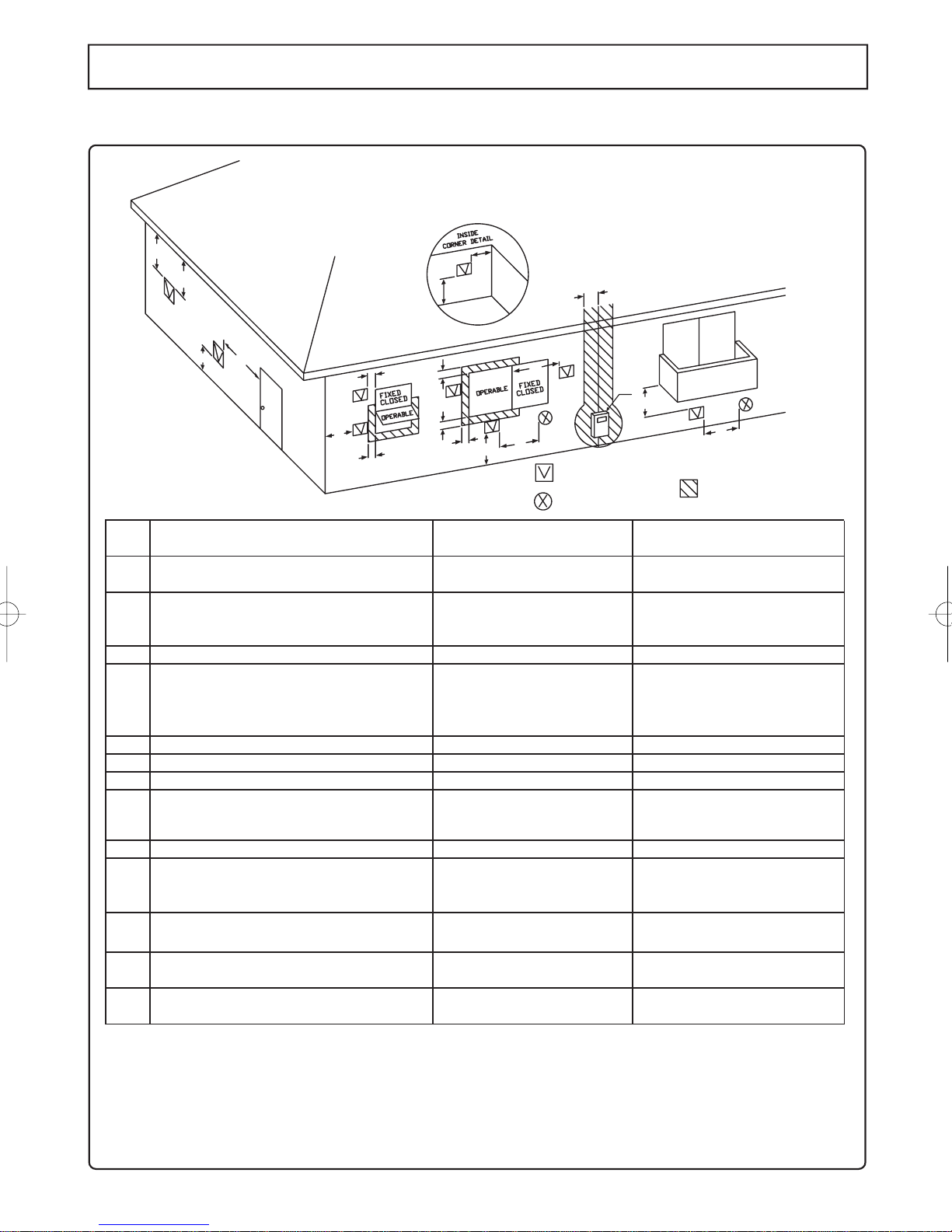

Clearance Requirements from Vent Terminations to Building Openings

*All clearance requirements are in accordance with ANSI Z21.10.3 and the National Fuel Gas Code,

ANSI Z223.1 and in Canada, in accordance with NSCNGPIC.

Vent Terminal

DescriptionRef

Clearance above grade, veranda, porch,

deck, or balcony

Clearance to window or door that may

be opened

Clearance to permanently closed window

Vertical clearance to ventilated soffit

located above the terminal within a

horizontal distance of 2 feet (61 cm)

from the center line of the terminal *

Clearance to unventilated soffit *

Clearance to outside corner *

Clearance to inside corner *

Clearance to each side of center line

extended above meter/regulator assembly

3 ft (91 cm) within a height

15 ft (4.5 m) above the

meter/regulator assembly

Clearance to service regulator vent outlet 3 ft (91 cm)

Clearance to nonmechanical air supply

inlet to building or the combustion air inlet

to any other appliance

Clearance to a mechanical air supply inlet 6 ft (1.83 m)

Clearance above paved sidewalk or paved

driveway located on public property

Clearance under veranda, porch, deck,

or balcony

7 ft (2.13 m)†

1In accordance with the current CSA B149.1 Natural Gas and Propane Installation Code

2In accordance with the current ANSI Z223.1 / NFPA 54 National Fuel Gas Code

† A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single

family dwellings and serves both dwellings.

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

* Clearance in accordance with local installation codes and the requirements of the gas supplier.

Clearance to opposite wall is 24 inches (60 cm).

12 in (30 cm)‡

12 in (30 cm)

36 in (91 cm)

Air Supply Inlet

Area Where Terminal

is Not Permitted

3 ft (91 cm) above if within

10 ft (3 m) horizontally

12 in (30 cm)

4 ft (1.2 m) below or to side

of opening; 1 ft (30 cm)

above opening

36 in (91 cm) 4 ft (1.2 m) below or to side

of opening; 1 ft (30 cm)

above opening

US Non-Direct Vent

Installations 2

Canadian Non-Direct Vent

Installations 1

Illustration

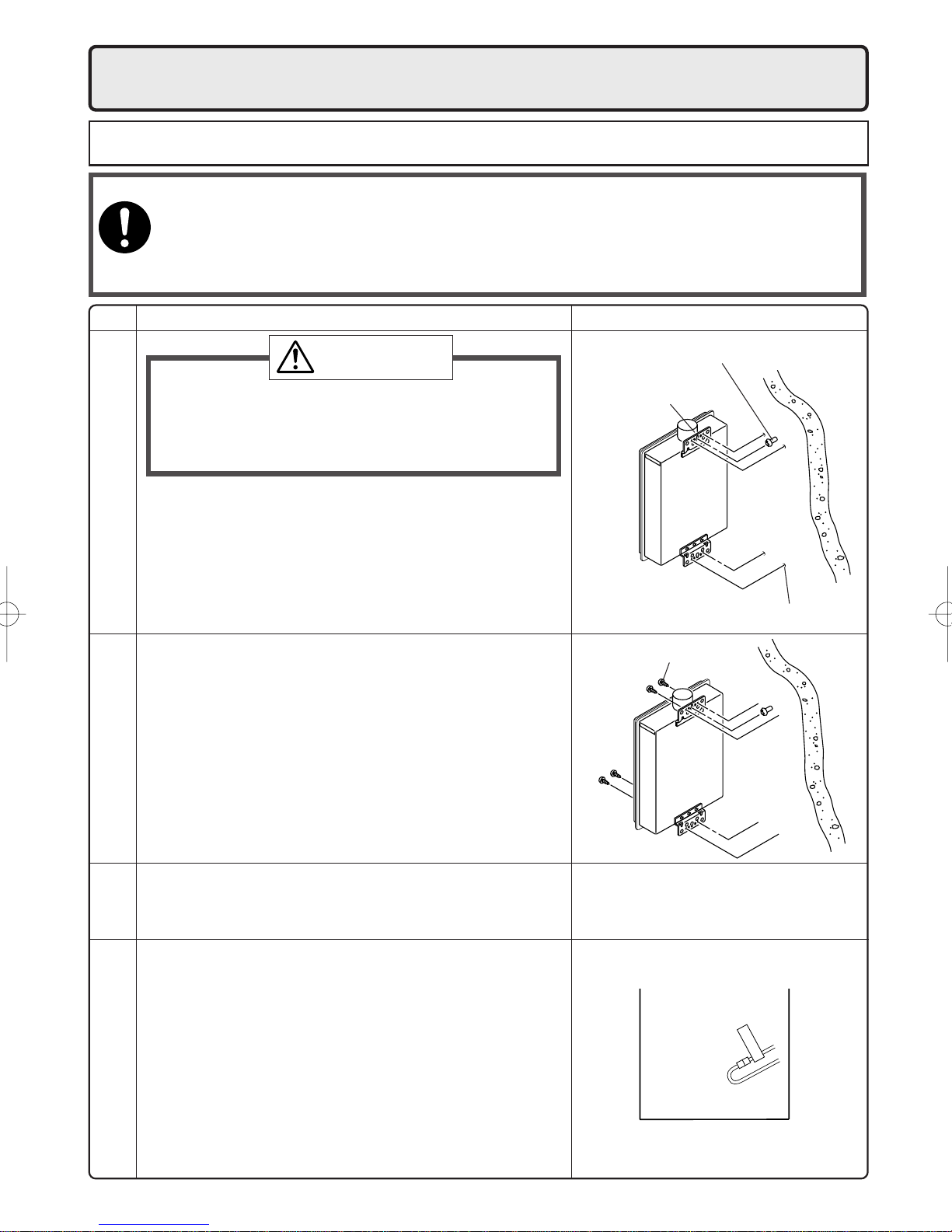

7. Installation

Check

4. Drill holes for the remaining four screws.

5. Hang the unit again by the first screw, and then

insert and tighten the remaining four screws.

6. Take waterproofing measures so that water does

not enter the building from screws mounting the

device.

•Make sure the unit is installed securely so that it will

not fall or move due to vibrations or earthquakes.

Securing to the wall

Mounting Bracket

(upper)

Anchoring Screw

Location of Screw Hole

1. Drill a single screw hole, making sure to hit a stud.

2. Insert and tighten the screw and hang the unit by

the upper wall mounting bracket.

3. Determine the positions for the remaining four screws

(two for the top bracket and two for the bottom), and

remove the unit.

• The weight of the device will be applied to the wall. If the strength of the wall is not suffi-

cient, reinforcement must be done to prevent the transfer of vibration.

•Do not drop or apply unnecessary force to the device when installing. Internal parts may

be damaged and may become highly dangerous.

• Install the unit on a vertical wall and ensure that it is level.

Locating Screw Holes

Mounting

Structure

•When installing with bare hands, take caution to

not inflict injury.

•Be careful not to hit electrical wiring, gas, or water

piping while drilling holes.

Item

CAUTION

Be sure to do

HIGH ELEVATION

DISCONNECT

•If this water heater is being installed at an elevation of

2,000 ft. (610m) or higher, disconnect the connector

labeled "High Elevation Disconnect" as illustrated on

the right. This connector is located inside the unit.

•Disconnect power to the water heater before discon-

necting this connector. Failure to perform this step will

result in a "73" code displayed on the remote controller

and a cease in operation. If this occurs, disconnect,

then reconnect power to the water heater to reset the

system.

Installations at Elevations

Above 2,000 ft.

8. Vent Pipe Installation

•The first vertical run from the top of the heater

should be no longer than 3'.

•Make sure vent pipe is gas tight and will not

leak. Use silicon sealant wherever necessary.

•Do not common vent or connect more than

one appliance to this venting system.

• The total vent length including horizontal &

vertical vent runs should be no less than 3'.

•Do not store hazardous or flammable sub-

stances near the vent termination and check

that the termination is not blocked in any way.

•Steam or condensed water may come out

from the vent termination. Select the location

for the termination so as to prevent injury or

property damage.

•If snow is expected to accumulate, take care

the end of the pipe is not covered with snow or

hit by falling lumps of snow.

•Consult the vent pipe manufacturer's install-

ation instructions for chimney connections.

Appliance Adapters

When using a vent system other than N-Vent,

an appliance adapter will be required to properly

connect the vent to this appliance. Consult the

manufacturer's instructions for the proper appli-

ance adapter.

Vent Piping

•Noritz N-Vent is suggested for the vent system.

If N-Vent is not used, a UL listed category III vent

system must be used.

•Follow the vent pipe manufacturer's installation

instructions.

* Not including the termination.

•Make the vertical section of the exhaust vent

as short as possible.

•Maintain the same vent pipe diameter from the

heater flue to the vent termination.

Pipe diameter 4"

No. of Elbows

Max. Straight Vent Length*

315'

227'

139'

Clearances

Manufacturer and Enclosed Unenclosed

Product Hor. Vert. Hor. Vert.

Noritz N-Vent 4" 1" 1"

Clearances vary by manufacturer, refer to the UL

approved clearances when using materials other

than N-Vent.

(Indoor Installation Only)

10" (sides)

15"(top)

6"(bottom)

WARNING

Be sure to do

CARBON MONOXIDE POISONING

Follow all vent system requirements in accordance with relevant local or state regulation,

or, in the absence of local or state code, in the U.S. to the National Fuel Gas Code ANSI

Z233.1/NFPA 54 – latest edition, and in Canada, in accordance with NSCNGPI.

• Exhaust the exhaust air outdoors using the separately available member for exhaust.

• Be sure to install the exhaust vent top so that it leads to outdoors.

Andere Handbücher für NR111-SV

Inhaltsverzeichnis

Andere Noritz Boiler Handbücher

Noritz

Noritz ecoTOUGH GQ-C2857WS Bedienungsanleitung

Noritz

Noritz NRC111OD Bedienungsanleitung

Noritz

Noritz N-132M Gebrauchsanweisung

Noritz

Noritz NR98-DVC-CA Bedienungsanleitung

Noritz

Noritz ecoTOUCH NRC111-DV-LP Bedienungsanleitung

Noritz

Noritz NRCR92DV Bedienungsanleitung

Noritz

Noritz NRC111-SV Bedienungsanleitung

Noritz

Noritz N-0751M-OD Bedienungsanleitung

Noritz

Noritz N-063S Bedienungsanleitung

Noritz

Noritz NR501-OD Bedienungsanleitung

Noritz

Noritz NCC199-SV Bedienungsanleitung

Noritz

Noritz N-069M Gebrauchsanweisung

Noritz

Noritz THERMALUX NERC11DV Bedienungsanleitung

Noritz

Noritz NR98-OD-NG Bedienungsanleitung

Noritz

Noritz proTough NR98SV Bedienungsanleitung

Noritz

Noritz N-0751M-OD Bedienungsanleitung

Noritz

Noritz N-0931M Bedienungsanleitung

Noritz

Noritz NC380-SV-ASME-LP Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC711-DV Bedienungsanleitung

Noritz

Noritz ecoTOUGH NRC711-DV Bedienungsanleitung

Noritz

Noritz N-0751M Bedienungsanleitung

Noritz

Noritz N-0842MC Bedienungsanleitung

Noritz

Noritz proTough NR98SV Bedienungsanleitung

Noritz

Noritz NR98-DVC-CA Bedienungsanleitung

Beliebte Boiler Handbücher anderer Marken

Kenmore

Kenmore 153.582400 Bedienungsanleitung

Applimo

Applimo Edel AIR Bedienungsanleitung

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Bedienungsanleitung

clage

clage E-Mini Series Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-180 Bedienungsanleitung

Bradford White

Bradford White EF Series Bedienungsanleitung

Eccotemp

Eccotemp 40-H Bedienungsanleitung

Dimplex

Dimplex ECSd125-580 Leitfaden

Dux

Dux 32FCR6N Bedienungsanleitung

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Fehlerbehebungshandbuch

TESY

TESY GCV7/4S 10047 Technisches Datenblatt

A.O. Smith

A.O. Smith Gphe 50 Bedienungsanleitung

Koryo

Koryo KWHZF15Y Bedienungsanleitung

Pentair

Pentair PSC-14-4-02 Bedienungsanleitung

GE 40M06AAG Montageanleitung

Thermor

Thermor AEROMAX SPLIT 2 Bedienungsanleitung

American Hometec

American Hometec AHQ-B03X Bedienungsanleitung

PVI

PVI MAXIM Bedienungsanleitung
