Numark Mixtrack Quad Bedienungsanleitung

SPECIFICATION

FUNCTION

1. Browser – Press the browser knob to open folders and cycle between the folder and file view.

2. Load – Press one of these buttons while a track is selected to assign it to a deck in the software.

3. Shift – Press and hold this button to access certain buttons' secondary functions.

4. Play/Pause – Starts and pauses playback.

5. Headphone Cue – Sends pre-fader audio to the cue channel for headphone monitoring.

6. Cue – Sets and recalls the main cue point in the current track. Press and hold this

button to play temporarily from this Cue Point. The track will play for as long as

the button is held down and return to the cue point once it is released.

7. Platter/Jog Wheel – This capacitive, touch-sensitive jog wheel controls the audio when the wheel is

touched and moved. When the Scratch button is inactive, use the wheel to bend the pitch of the track.

When the Scratch button is active, use the wheel to grab and move the audio, "scratching" the track

as you would with a vinyl record.

8. Scratch –When inactive, moving the platter will bend the pitch of the track. When active, moving the platter will "scratch"

the track.

9. Pitch Fader – Controls the tempo (speed) of the individual decks.

10. Pitch Bend - – Press and hold to momentarily reduce the speed of the track. PressShift + Pitch Bend- to set the Keylock.

11. Pitch Bend + – Press and hold to momentarily increase the speed of the track. Press Shift + Pitch Bend + to set the Key

Range.

12. Sync – Enables BPM syncing (Sync Mode) between decks for the software tracks. To manually adjust

BPM and exit Sync Mode move the pitch fader of the deck you wish to adjust.

13. Layer – Switches the hardware deck's control between the two decks in the software. Mixtrack Quad's

left deck can control VirtualDJ's Deck 1 or Deck 3, while the right deck selects Deck 2 and Deck 4. The

LED’s under the platter will change color to indicate which layer that the deck is currently controlling.

Press Shift + Layer to enter Color Selection mode.

SERVICE MANUAL

MODEL:MIXTRACK QUAD

14. FX Control – Adjusts the effect parameter in the software of the last activated effect. Hold Shift + FX

Control to select the effect.

15. Filter Adjust – Adjusts the amount of the filter. Turn the knob left to apply a low-pass filter and turn the

knob right to apply a high-pass filter.

16. Loop In – Press this pad to set the beginning of a loop when in Looping Mode. After a Loop Out point

is set, press this pad again to return the playback marker to the Loop In point.

Pressing Shift + Loop In will set the current Pad Mode as “Looping Mode”. See the Pad Mode

Commands section for information on this pad’s additional functions.

17. Loop Out – Press this pad to set the end of a loop when in Looping Mode. After a Loop Out point is

set, press this pad again to exit out of the loop. Pressing Shift + Loop Out will set the current pad

mode to “Sample (S)” Mode. See the Pad Mode Commands section for information on this pad’s

additional functions.

18. Reloop – Recalls the last set loop. When inside a loop, press this pad to turn the loop off. If a loop has

not been set, this button will create a loop from the start of the song or where Loop In was pressed.

Pressing Shift + Reloop will set the current pad mode to “Hot Cue Mode”. See the Pad Mode

Commands section for information on this pad’s additional functions.

19. Loop x1/2 – Press this pad to reduce the currently playing loop length by half when in Looping Mode. If

a loop is not playing, this will set the autoloop length. Press Shift + Loop 1/2 to double the loop length.

See the Pad Mode Commands section for information on this pad’s additional functions.

20. FX1 On/Off – Turns FX1 on and off per deck. When in Slip Mode this pad will perform a momentary

1/16 beat loop roll. Press Shift + FX1 to set and start playback of a 1-beat autoloop.

21. FX2 On/Off – Turns FX2 on and off per deck. When in Slip Mode this pad will perform a momentary

1/8 beat loop roll. Press Shift + FX2 to set and start playback of a 2-beat autoloop.

22. FX3 On/Off – Turns FX3 on and off per deck. When in Slip Mode this pad will perform a momentary

1/4 beat loop roll. Press Shift + FX3 to set and start playback of a 4-beat autoloop.

23. Filter Reset – Press this pad to reset the filter to the “0” position. When in Slip Mode this pad will

perform a momentary 1/2 loop roll. Press Shift + Filter Reset to set and start playback of a 16-beat

autoloop.

24. Channel Volume – Adjusts the volume of the individual channels in the software.

25. Master Volume – Adjusts the volume of the master mix coming from the software.

Note: This does not affect the microphone volume. Use the Mic Gain knob to control the microphone

volume.

26. Crossfader – Controls the blend between two decks.

27. High EQ – Controls the treble frequencies for the individual channels.

28. Mid EQ – Controls the mid-range frequencies for the individual channels.

29. Low EQ – Controls the bass frequencies for the individual channels.

30. Cue Gain – Adjusts the volume for headphone cueing in the software.

31. Cue Mix – Adjusts the software’s audio output to the headphones, mixing between the cue output and

the master mix output.

32. Stutter – Press this button while the music is playing to jump back to the last set cue point, creating a

"stutter" effect.

MIXER STANDARD

S/N : MORE THAN 96dB

HARMONIC DISTORTIONL : LESS THAN 0.03%

DISASSEMBLY PROCEDURES

1. REMOVAL OF TOP HOUSING AND BOTTOM HOUSING .(Fig1)

(A)TAKE OUT THE 25 PCS KNOB AND 7 PCS VR KNOB AND 15 PCS SCREWS BEFORE TAKE OUT THE

TOP AND BOTTOM HOUSING.

Fig.1

2. REMOVAL MN PCB ASS'Y . (Fig2)

(A) TAKE OUT THE 12 PCS SCREWS AND 1 PC CONNECTOR BEFORE TAKE OUT THE

MN PCB ASS'Y .

Fig.2

DISASSEMBLY PROCEDURES

3. REMOVAL I/O AND SB PCB ASS'Y. (Fig3)

(A) TAKE OUT THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE TAKE OUT THE I/O PCB ASS'Y.

(B) TAKE OUT THE 2 PCS SCREWS BEFORE TAKE OUT THE SB PCB ASS'Y.

Fig.3

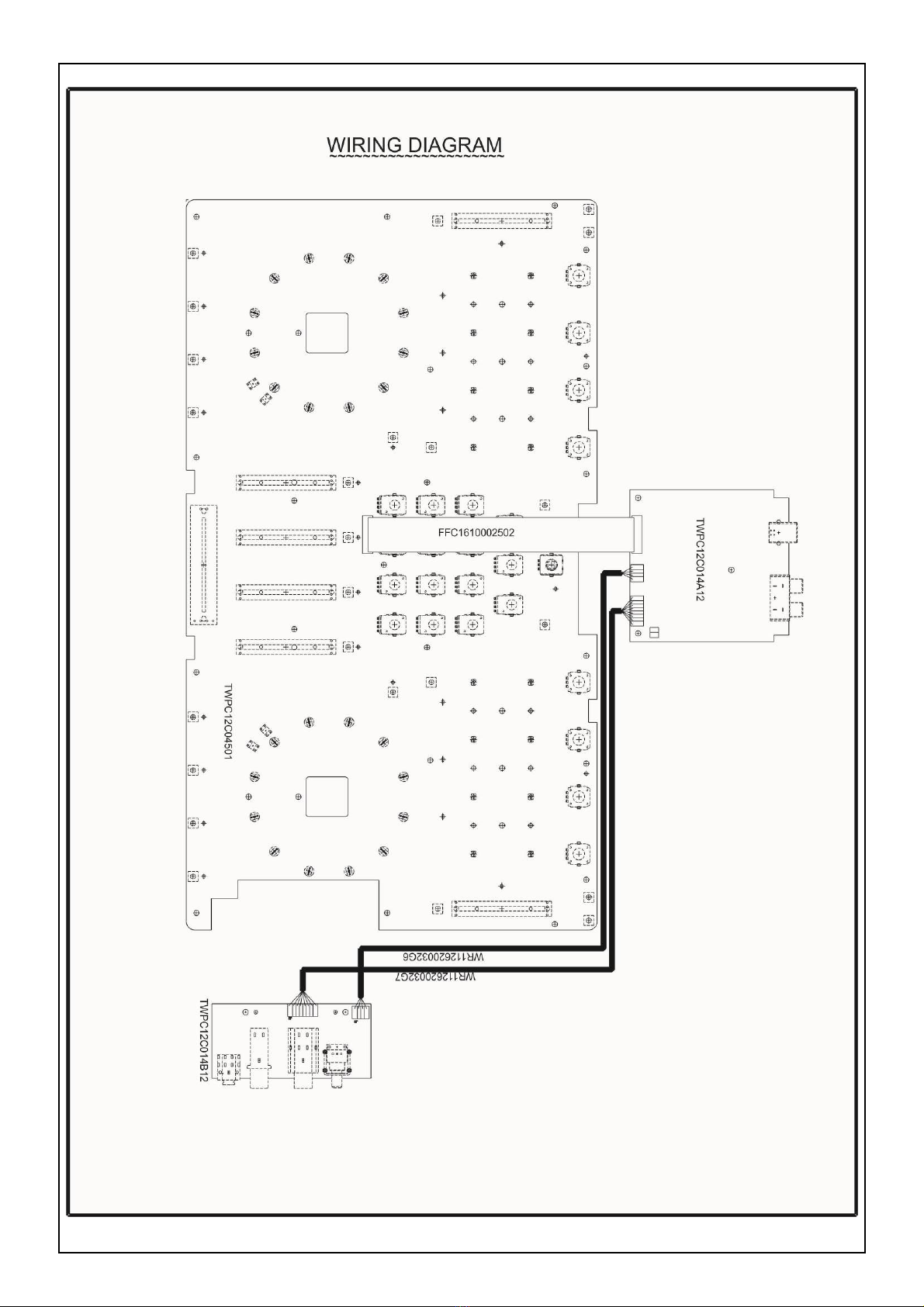

LEVEL

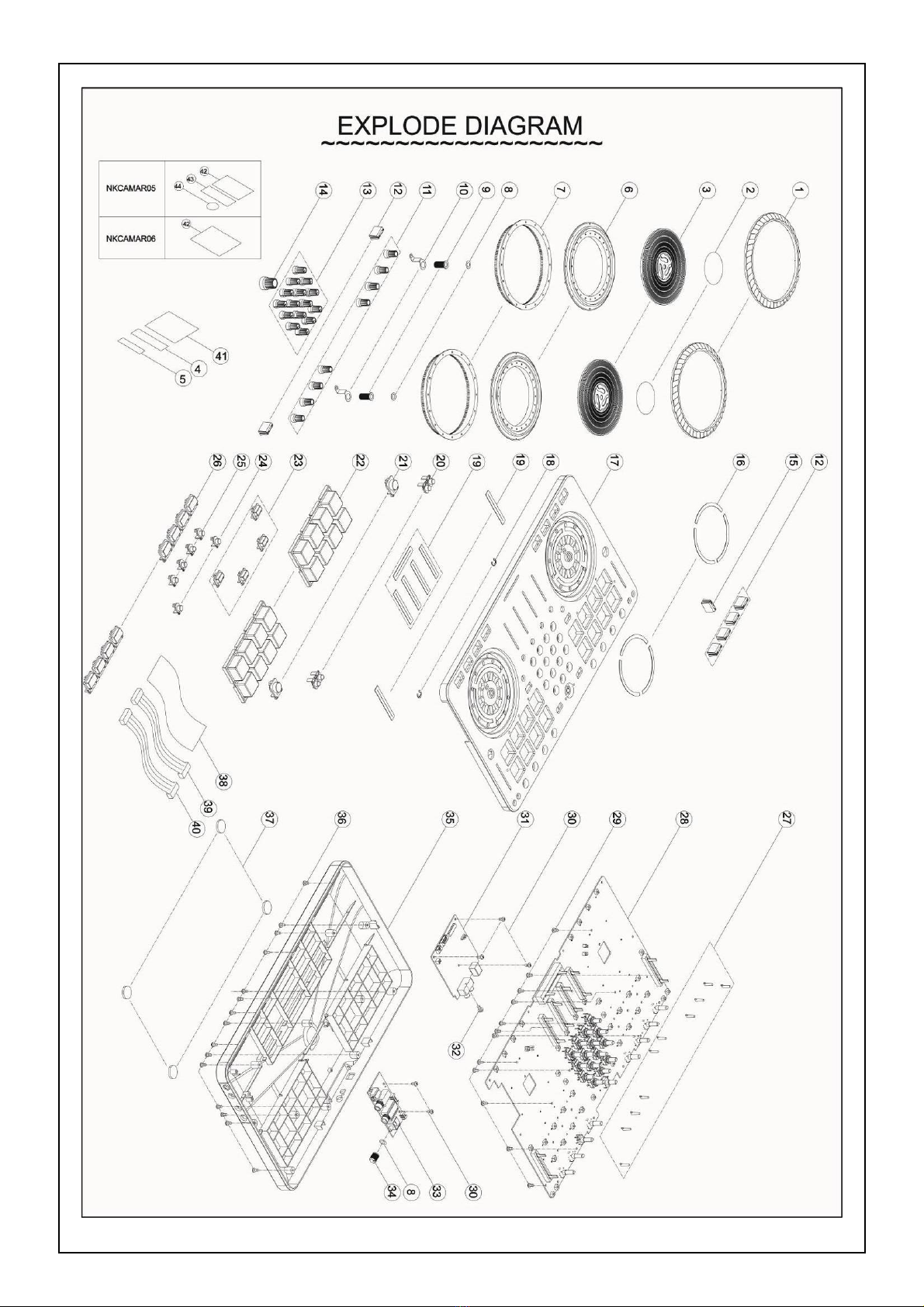

P/N DESCRIPTION QTY REF

0.1 BART-K00703 Rotate Knob 1 34

0.1 CA040218002 Usb Cable 1.8M A/B Black 1

0.1 ERE75 E Ring 5mm 2 18

0.1 FFC1610002502 FFC 16Pin Pitch 1.0mm Length 2 1 38

0.1 K100-1 Wire 1

0.1 LAC22MAR850 Serial Number Label 1 42

0.1 LAC53MAR639 Warning Label 1 41

0.1 LAC62MAR631 Label(date) 1 43

0.1 LAC62MAR852 Bar Code Label(CODE 39) 0.5

0.1 LAC62MAR956 Bar Code Label(GTIN-14) 0.5

0.1 LAC67MAR681 Label(Circle Limpid) 2

0.1 LAC67YAH261 Label φ8mm Green 1

0.1 LAC72MAR943 Softwere Number Label 1

0.1 MT1101858 Ground Plate(Wheel) 2 10

0.1 MT1105559 Copper 2 9

0.1 NM1106115 Velvet Carpet 7 19

0.1 PE04504525 PE 2 2

0.1 LAC32MAR252 INDICATEN LABEL(CS) (35) 1

0.1 LAC42MAR350 LABEL (35) 1

0.1 LAC52MAR254 WARNING LABEL (35) 1

0.1 LAC67MAR303 SAFETY LABEL (36) 1

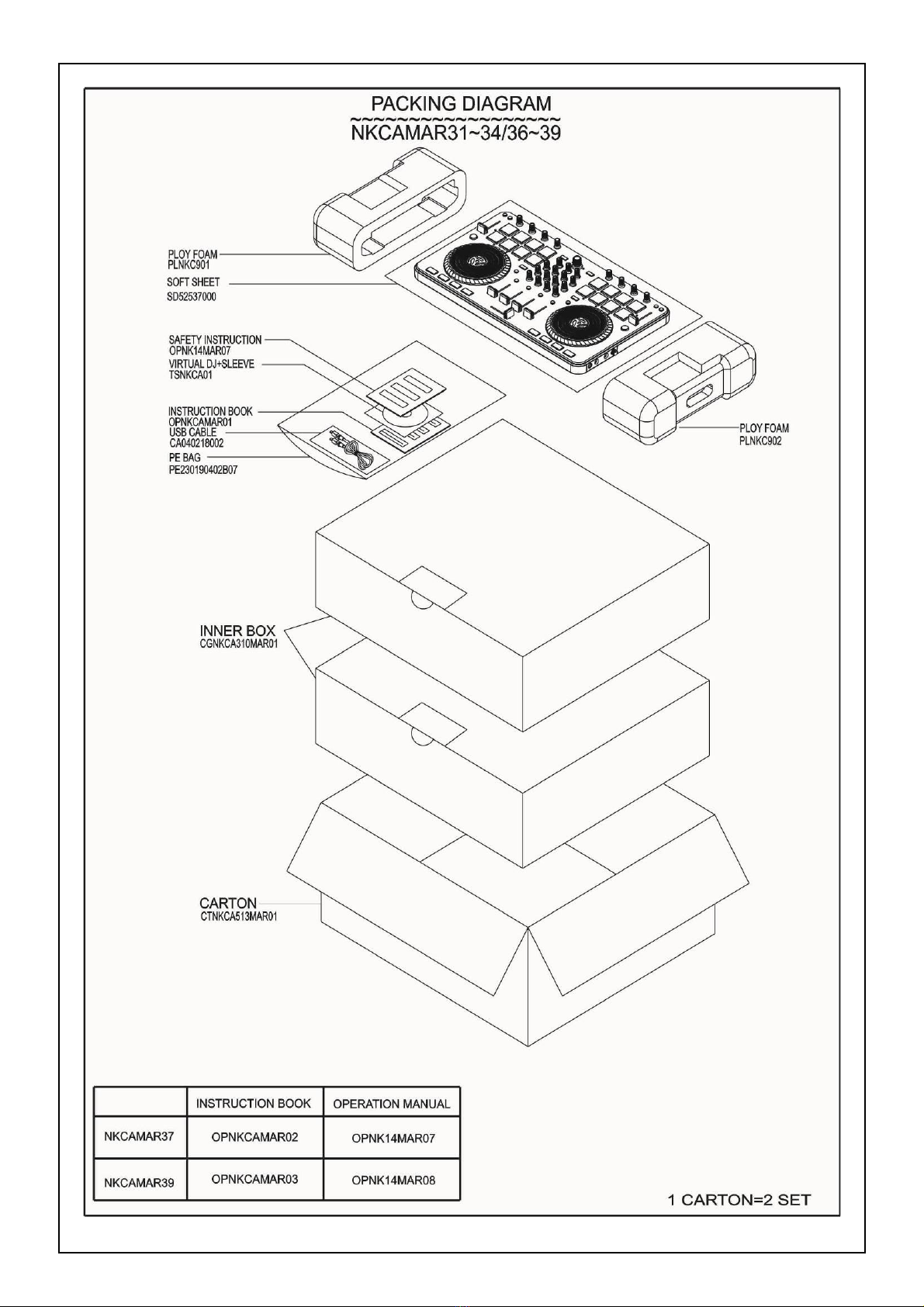

0.1 PNKCAMAR31 Pack Assembly (31/32/33/36/38) 1

..2 CGNKCA310MAR01 Inner Box 1

..2 CTNKCA513MAR01 Carton 0.5

..2 OPNK14MAR07 Operation Manual(V17.9) 1

..2 OPNKCAMAR01 Instruction Book 1

..2 PE230190402B07 Pe Bag 1

..2 PLNKC901 Polyfoam(Left) 1

..2 PLNKC902 Polyfoam(Right) 1

..2 SD52537000 Softsheet 1

0.1 PNKCAMAR34 Pack Assembly (34) 1

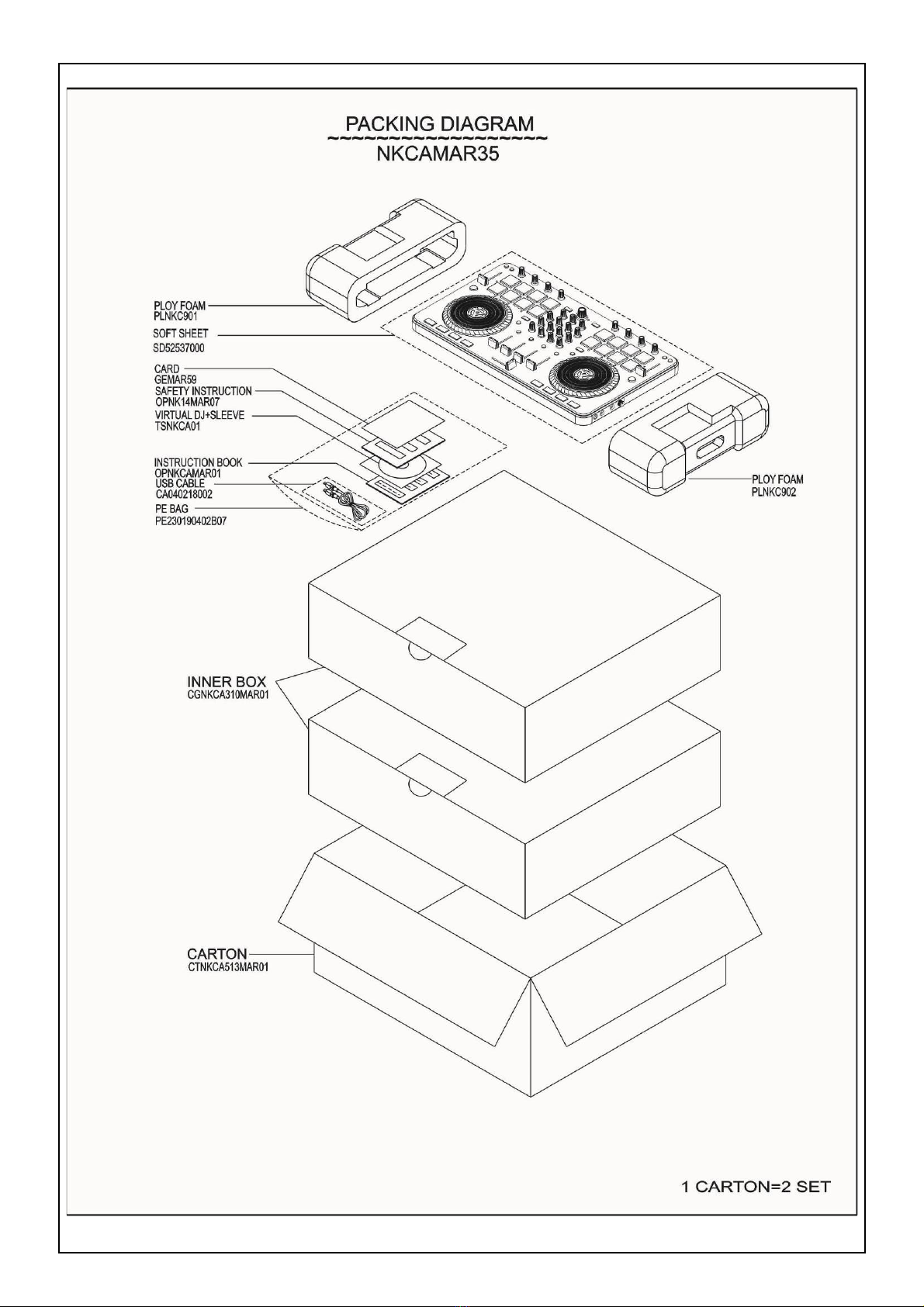

0.1 PNKCAMAR35 Pack Assembly (35) 1

..2 GEMAR59 CARD 1

0.1 PNKCAMAR37 Pack Assembly (37) 1

..2 OPNKCAMAR02 Instruction Book 1

0.1 PNKCAMAR39 Pack Assembly (39) 1

..2 OPNKCAMAR03 Instruction Book 1

..2 OPNK14MAR08 Operation Manual 1

..2 GEMAR92 Guarantee Card 1

0.1 PT0710625307 Button((LAYER)(Printing) 2 21

..2 PT07106253 Button 2

0.1 PT11106226 KNOB 4 23

0.1 PT1110622701 KNOB PRINTING 2 26

..2 PT11106227 KNOB 2

0.1 PT1110631601 Button(Circular)Printing 2 24

..2 PT11106316 Button 2

0.1 PT1110631605 Button(Headphone)Printing 4 25

..2 PT11106316 Button 4

0.1 PT11106443 Bu Painting 2 20

0.1 PT1110645201 Knob(LRG)(Painting) 1 14

..2 PT11106452 Knob(LRG) 1

0.1 PT1110645301 Knob(MED)(Painting) 8 11

..2 PT11106453 Knob(MED) 8

0.1 PT1110646201 VR Knob(CHXF)(Painting) 6 12

NKCAMAR31~39 BOM

..2 PT11106462 VR Knob(CHXF) 6

0.1 PT1110646301 VR KNOB(CHXF)(Painting) 1 15

..2 PT11106463 VR KNOB(CHXF) 1

0.1 PT1110646401 Knob(MEDV)(Painting) 15 13

..2 PT11106464 Knob(MEDV) 15

0.1 PT11106466 Light Pipe 10 27

0.1 PT111075801 Wheel Fram(Painting) 2 1

..2 PT1110758 Wheel Fram 2

0.1 PT1110760 Wheel 2 7

0.1 PT1110772 Wheel Plate Knob 2 6

0.1 PT113002601 Wheel Plate(Printing) 2 3

..2 PT1130026 Wheel Plate 2

...3 MT1105534 AXIS CAP 2

0.1 PT113023401 Cabinet Painting & Printing 1 17

..2 PT1130234 Cabinet 1

0.1 PT113035802 Bottom Chassis Painting &Print 1 35

..2 PT1130358 Bottom Chassis 1

0.1 RU111067301 Rubber Button Painging 2 22

0.1 RU1130728 Rubber Pad 4 37

0.1 SC0306RBNI Screw M3X6 PRN Tapping 5 30

0.1 SC0308RBNI SCREW M3X8 PRN TAPPING 13 29

0.1 SC0310PBNI Screw 1 32

0.1 SC0312RBNI Screw M3X12 PRN Tapping 15 36

0.1 TSNKCA01 VIRTUAL DJ+SLEEVE 1

0.1 WR112620032G6 Isolation Cable 4P Single Row 1 39

0.1 WR112620032G7 Isolation Cable 8P Single Row 1 40

0.1 WS1306505 Washer FLAT 13*6.5*0.5MM 3 8

0.1 WS186076005P Washer 6 16

0.1 TWPC12C01412 I/O PCB Assembly 1

..2 PC12C014 I/O PCB 1

..2 TWPC12C014A12 I/O PCB Assembly 1 31

...3 AL0-17-0221 RESISTOR ARRAY 4X220 1/10W 0603 1 R34

...3 AL2-50-4149 Diode Single 1N4148 100V 200mA 2 D6,7

...3 AL2-51-4401 TRANSISTOR 2N4401 NPN 2 Q2,10

...3 AL2-51-4403 TRANSISTOR 2N4403 PNP 4 Q1,3,8,9

...3 AL2-52-5242 DIODE MMBZ5242B 1 D5

...3 AL2-54-6306 Mosfet FDC6306P 3 U4,11,12

...3 AL2-61-2985 IC LP2985IM5 1 U1

...3 AL2-61-7223 IC NJU7223DL1-33 3.3V 1 U6

...3 AL2-75-4344 IC CS4344-CZZ 24bit 192KHz Ste 2 U5,8

...3 AL2-85-0403 IC TPS60403 1 U2

...3 AL4-08-0402 Con USB 4-Pin Female PC-MNT Ho 1 J6

...3 CS101J5003NPO CCAP SMD 100pF/50V 5% 0603 NPO 1 C23

...3 CS101J5005NPO CCAP SMD 100pF/50V 5% 0805 NPO 6 C34~37,68,69

...3 CS102J5003NPO CCAP SMD 1nF/50V 5% 0603 NPO 1 C22

...3 CS102J5005NPO CCAP SMD 1nF/50V 5% 0805 NPO 4 C25~28

...3 CS104K5003X7R CCAP SMD 0.1uF/50V 10% 0603 X7R 6 C20,29,31,43,46,55

...3 CS104K5005X7R CCAP SMD 0.1uF/50V 10% 0805 X7R 19 C1,2,6,7,9,10,16,30,39,40,42,44,45,52,56,6

3,64,70,71

...3 CS105K1003X5R CCAP SMD 1uF/10V 10% 0603 X5R 1 C50

...3 CS105K1605X7R CCAP SMD 1uF/16V 10% 0805 X7R 7 C5,8,11,38,58,59,65

...3 CS106K0605X5R CCAP SMD 10uF/6.3V 10% 0805 X5R 3 C21,24,51

...3 CS330J5003NPO CCAP SMD 33pF/50V 5% 0603 NPO 2 C18,19

...3 CS470J5003NPO CCAP SMD 47pF/50V 5% 0603 NPO 2 C61,62

...3 CS475K1606X7R CCAP SMD 4.7uF/16V 10% 1206 X7R 2 C3,4

...3 ECS10616B Capacitor Electrolytic 10uF/16V 10 C12~15,32,33,53,54,72,73
