NUVE BM 15 Bedienungsanleitung

NÜVE SANAYİ MALZEMELERİ İMALAT VE TİCARET A.Ş.

BM 15-BM 30

STIRRED WATER BATHS

INSTRUCTION MANUAL

Z14.K 25 098 Rev. No: 03 Rev. Tarihi: 01/2016

Dear Nüve User,

We would like to take this opportunity to thank you for preferring this Nüve product. Please

read the operating instructions carefully and keep them handy for future reference.

Please detain the packing material until you see that the unit is in good condition and it is

operating properly. If an external or internal damage is observed, contact the transportation

company immediately and report the damage. According to ICC regulations, this responsibility

belongs to the customer.

While you are operating the instrument please;

obey all the warning labels,

do not remove the warning labels,

do not operate damaged instrument,

do not operate the instrument with a damaged cable,

do not move the instrument during operation.

In case of a problem contact your Nüve agent for an authorized service or maintenance.

The validity of the guarantee is subject to compliance with the instructions and precautions

described in this manual.

Nüve reserves the right to improve or change the design of its products without any obligation

to modify previously manufactured products.

Information contained in this document is the property of Nüve. It may not be duplicated or

distributed without its permission.

NÜVE

SANAYİ MALZEMELERİ

İMALAT VE TİCARET A.Ş.

Saracalar Mah. Saracalar Kümeevleri No: 4/2

Akyurt 06750 Ankara-TURKEY

Tel : (90.312) 399 28 30 (pbx)

Fax : (90.312) 399 21 97

Sales : [email protected]

Technical Service: [email protected]

WARRANTY CERTIFICATE

1. Nüve warrants that the equipment delivered is free from defects in material and

workmanship. This warranty is given for a period of two years. The warranty period begins

from the delivery date.

2. Warranty does not apply to parts normally consumed during operation or general

maintenance or any adjustments described in the operating instructions provided with the

instrument.

3. Nüve does not accept any liability in case where the goods are not used in accordance with

their proper intent.

4. The warranty may not be claimed for damages incurred during the shipment, for damages

resulting from improper handling or use, abuse, fire, liquid spillage, tampering or

unauthorized repairs by any persons, use of defective or incompatible accessories, exposure

to abnormally corrosive conditions, use of the product in non-standard environmental

conditions, including but not limited to failure to meet requirements of ambient

temperature, lubrication, humidity or magnetic field influences, from the defects in

maintenance, negligence, bad functioning of auxiliary equipment, in the case of force

majeure or accident and incorrect power supply.

5. Any injury, loss or damage caused; due to a failure resulting from negligence of the

instructions given in this manual; is beyond the scope of the warranty conditions.



BEFORE OPERATING THE INSTRUMENT THIS MANUAL SHOULD BE READ CAREFULLY.



THE VALIDITY OF THE GUARANTEE IS SUBJECT TO THE OBSERVATION OF THE

INSTRUCTIONS AND PRECAUTIONS DESCRIBED IN THIS MANUAL.

INFORMATION CONTAINED IN THIS DOCUMENT IS THE PROPERTY OF NÜVE. IT MAY

NOT BE DUPLICATED OR DISTRIBUTED WITHOUT PERMISSION.

PLEASE REGISTER ONLINE TO VALIDATE YOUR WARRANTY:

To register your warranty online, please visit our webpage www.nuve.com.tr and fill in the

“Warranty Registration Form”.

CONTENT

Page

1. INTRODUCTION 5

1.1. USE AND FUNCTION 5

2. TECHNICAL SPECIFICATIONS 6

2.1. TECHNICAL SPECIFICATIONS TABLE 6

2.2. OPTIONAL ACCESSORIES 6

3. PRECAUTIONS AND LIMITATIONS ON USE 7

4. SYMBOLS 8

5. INSTALLATION 8

5.1. ENVIRONMENTAL CONDITIONS 8

5.2. HANDLING AND TRANSPORTATION 8

5.3. UNPACKING 9

5.4. MAINS SUPPLY 9

5.5. POSITIONING 9

5.6. GENERAL PRESENTATION 10

5.7. CONTROL PANEL 10

5.8. PRIOR TO OPERATION 11

5.8.1. FILLING LIQUID 11

6. OPERATING PRINCIPLES 12

6.1. OPERATING THE UNIT 12

6.2. PROGRAMMING 12

6.3. COMPLETION OF THE OPERATION 13

7. PERIODIC MAINTENANCE AND CLEANING 14

7.1. PERIODIC MAINTENANCE 14

7.2. CLEANING 14

8. DISPOSAL MANAGEMENT CONCEPT 14

9. TROUBLESHOOTING 14

9.1. ERROR CODES 14

9.2. FUSE REPLACEMENT 14

10. ELECTRICAL CIRCUIT DIAGRAM 15

1. INTRODUCTION

1.1. USE AND FUNCTION

BM 15 and BM 30 Water Baths are designed to be used in bacterial culturing, cell culture,

coagulation tests, coliform determination, enzyme reactions and other general and special

applications.

The BM Series provide temperatures between 5°C above the ambient temperature and 99.9 °C

and keeps the temperature stable within the given tolerances.

BM Series have circulation function. The circulation pump and etched foil heaters which are

placed at the outer sides of the tank provide absolutely homogenous temperature distribution

in the tank. They offer excellent temperature control of liquid producing a uniform and stable

heating environment for the applications.

The baths has a microprocessor control system. The heating is based on PID controlled system.

There are two digital displays for heating function. One of them is temperature display the other

is timer which can be programmed up to 99.9 hours and including HOLD position.

All components which are in contact with the liquid are made of high grade stainless steel to

resist corrosion. The tank is insulated with glass wool for operating homogenous temperature

distribution.

The BM Series Water Baths are manufactured according to the following standards:

EN 61010-1, EN 61000-6-3, EN 50419.

This device is in compliance with WEEE Regulation.

If mentioned warnings in this manual are not considered, NÜVE will not be responsible from

their results.

2. TECHNICAL SPECIFICATIONS

2.1. TECHNICAL SPECIFICATIONS TABLE

TECHNICAL SPECIFICATIONS

BM 15

BM 30

Type

Circulated

Temperature Range

Ambient temperature +5°C –99.9°C

Temperature Sensor

Fe-Const

Control System

Programmable PID Microprocessor

Displays

LED displays for temperature and time

Temperature Set and Display Sensitivity

0,1°C

Temperature Variation (at 37.5°C)

<±0,1°C*

Temperature Fluctuation (at 37.5°C)

≤±0.01°C*

Timer

99.9 hours + Hold Position

Delayed Start Timer

1 minute to 99.9 hours

Power Consumption

750 W

1550 W

Power Supply

230 V, 50-60 Hz.

Useful Volume (Liters)

Tank Volume (Liters)

Useful Water Height (mm)

165

Pump Capacity (liter/minute)

Internal Material

Stainless Steel

External Material

Epoxy-polyester powder coated stainless steel

Internal Dimensions (WxDxH) mm

300x240x200

300x503x195

External Dimensions (WxDxH) mm

332x280x375

332x540x375

Packing Dimensions (WxDxH) mm

430x535x420

430x680x495

Net / Packed Weight (kg)

8 / 11

11 / 14

*At ambient 22°C and closed lid.

2.2. OPTIONAL ACCESSORIES

A 08 021 Tube rack 27xØ18 mm, wide 70 mm

A 08 049 Tube rack 12xØ30 mm, wide 70 mm

A 08 050 Tube rack 30xØ16 mm, wide 70 mm

A 08 051 Tube rack 52xØ13 mm, wide 70 mm

K 04 286 Plexiglass lid for BM 15 (resists up to 60°C)

K 52 020 Stainless steel lid for BM 15

K 04 289 Plexiglass lid for BM 30 (resists up to 60°C)

K 52 019 Stainless steel lid for BM 30

K 52 008 Lid with 4 holes for BM 15 (Hole dia 95 mm)

K 52 005 Lid with 4 holes for BM 30 (Hole dia 95 mm)

K 52 006 Lid with 6 holes for BM 30 (Hole dia 95 mm)

K 52 014 Lid with 8 holes for BM 30 (Hole dia 95 mm)

S 09 032 Blood Bag Basket for BM 30

R 01 045 Shelf for 6 x 100 ml flasks for BM 15

R 01 046 Shelf for 4 x 250 ml flasks for BM 15

R 01 047 Shelf for 2 x 500 ml flasks for BM 15

R 01 080 Shelf for 4 x 500 ml flasks for BM 15

R 01 048 Shelf for 1 x 1000 ml flasks for BM15

R 01 049 Shelf for 12 x 100 ml flasks for BM 30

R 01 032 Shelf for 6 x 250 ml flasks for BM 30

R 01 051 Shelf for 4 x 500 ml flasks for BM 30

R 01 033 Shelf for 2 x 1000 ml flasks for BM 30

3. PRECAUTIONS AND LIMITATIONS ON USE

Do not operate the instrument for purposes other than its main purpose.

The instrument should only be used by authorized and trained staff after the instruction

manual has been read carefully. Only authorized technical staff can handle the product in

case of a failure.

Only original spare parts and original accessories supplied by Nüve should be used.

Correctly grounded power supply should be used.

Liquids should not be heated in sealed containers.

The samples which may liquefy and expand should not be in a closed container.

The set temperature should not be higher than the boiling points of the samples.

The sizes of the containers of the liquids which may expand during heating should be so big

that they do not overflow.

The set temperature should not destroy the structure of the samples.

Ensure that the vapor and gases generated during the operation are not harmful to human

health or flammable or explosive.

Never operate the pump without water.

4. SYMBOLS

Symbol in the operating instructions:

Attention, general hazard area.

This symbol refers to safety relevant warnings and indicates possibly dangerous

situations.

The non-adherence to these warnings can lead to material damage and injury to

personal.



Symbol in the operating instructions:

This symbol refers to important circumstances.

Labels on the device:

Earthed Wall Socket

BM 15 Fuses(2 x 5A)

BM 30 Fuses(2 x 9A)

5. INSTALLATION

5.1. ENVIRONMENTAL CONDITIONS

The water bath is designed to operate safely under the following conditions:

Indoor use only

Ambient temperature: 5°C to 40°C.

Maximum relative humidity for temperature up to 22°C: 80%.

Maximum altitude: 2000 m.

Temperature for maximum performance: 15°C / 25°C.

5.2. HANDLING AND TRANSPORTATION

All handling and transportation must be carried out by using proper equipment and experienced

staff. The instrument must be supported underneath and never be turned upside down.

5.3. UNPACKING

Open the packing cardboard box. Remove the nylon packing wrapped around the device. The

items provided with the device are listed below, please check them.

•1 ea. user’s manual and warranty certificate

•1 ea. power cable

•1 ea. perforated grid

5.4. MAINS SUPPLY

The stirred water bath requires 230 V, 50/60 Hz.

Please make sure that the supplied mains matches the required power ratings which are written

on the name plate of the instrument located at the back of the steam sterilizer

Always plug-in the instrument to correctly grounded sockets.

A supply fitted with a circuit breaker should be used for protection against indirect

contact in case of an isolation fault.

5.5. POSITIONING

Check that no damage occurred during transportation.

Check that the positioning is suitable for the users.

Check that the water bath is stable on its four feet.

Check that the user will be able to follow up the operation even when he deals with

something else.

Check that the positioning of the water bath prevents interference with other equipment in

the near surrounding.

Check that the place of the water bath is clean.

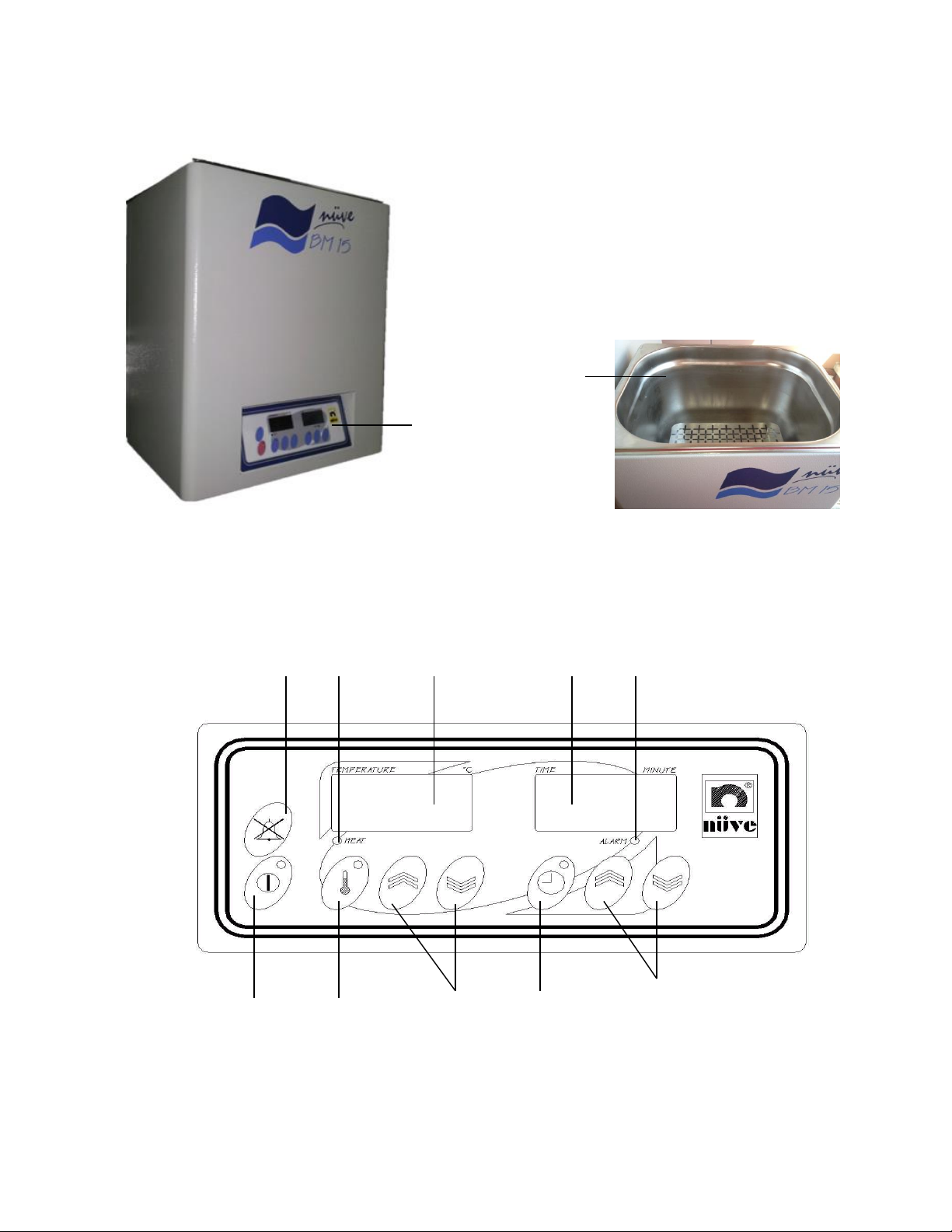

5.6. GENERAL PRESENTATION

Figure 1

Figure 2

5.7. CONTROL PANEL

Figure 3

CONTROL PANEL

STIRRED

TANK

3 9 1 2 10

4 5 6 7 8

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NUVE Laborausrüstung Handbücher

NUVE

NUVE ST 30 Bedienungsanleitung

NUVE

NUVE NF 048 Bedienungsanleitung

NUVE

NUVE NF 200 Bedienungsanleitung

NUVE

NUVE OT 020 Bedienungsanleitung

NUVE

NUVE OT 020 Bedienungsanleitung

NUVE

NUVE FN 300 Bedienungsanleitung

NUVE

NUVE NC 23S Bedienungsanleitung

NUVE

NUVE ST 30 Bedienungsanleitung

NUVE

NUVE NF48 Bedienungsanleitung

NUVE

NUVE NB 5 Bedienungsanleitung

NUVE

NUVE NF 200 Bedienungsanleitung

NUVE

NUVE NC 300 Bedienungsanleitung

NUVE

NUVE NC 23B Bedienungsanleitung

NUVE

NUVE EN 300 Bedienungsanleitung

NUVE

NUVE NF 1200 Bedienungsanleitung

Beliebte Laborausrüstung Handbücher anderer Marken

Qiagen

Qiagen DML 3000 Bedienungsanleitung

Queensgate

Queensgate NANOSCAN OP400 Programmierhandbuch

Conviron

Conviron GEN1000-GE Bedienungsanleitung

Parr Instrument

Parr Instrument 4560 Bedienungsanleitung

IKA

IKA IC control Bedienungsanleitung

Integra

Integra DOSE IT Bedienungsanleitung

Agilent Technologies

Agilent Technologies 5800 ICP-OES Bedienungsanleitung

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Bedienungsanleitung

NI PXI-5422 Handbuch

Collomix

Collomix Aqix Bedienungsanleitung

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Bedienungsanleitung

Ocean Insight

Ocean Insight FLAME-NIR+ Bedienungsanleitung

Parker

Parker ALIGN-MG-NA Bedienungsanleitung

BD 644787 Bedienungsanleitung

DENTAURUM

DENTAURUM Compact Megaplus Bedienungsanleitung

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Bedienungsanleitung

VWR

VWR SAS Super IAQ Bedienungsanleitung

illumina

illumina MiSeqDx Bedienungsanleitung
