NCZ-3011 DOOR / WINDOW SENSOR
User Guide
Product Summary:
Nyce Control’s NCZ-3011 is a wireless Door / Window sensor using the ZigBee radio protocol. It is used
in conjunction with a low RF transmit power wireless ZigBee network to monitor the open or closed state
of doors or windows. The NCZ-3011 can only detect the state of the item that it is attached to.
• Button functions: Identify/join Network
• Switch functions: Dry reed switch actuated by the movement of an external permanent magnet
• Accurate battery voltage level measurement and reporting back to co-ordinator
• Network operation based on the ZigBee open profile Home Automation
• 4-5 years projected battery life
Correct installation orientation of magnet and sensor
Magnet Sensor
Installation Guidelines:
Note: Installing the sensor on metal can reduce its transmission range. Test the sensor from its desired
location prior to permanent installation.
• If using double sided tape for mounting sensor and magnet, thoroughly clean the surface to
ensure proper adhesion because dust and particles can reduce the adhesion of the tape
• Mount the rear cover housing on door frame using double sided tape or supplied screws
• Place the NCZ-3011 indoors and away from sources of water/moisture and extreme weather
conditions
• Mount the magnet on the door such that it is spaced no more than 2 cm from the sensor when the
door is closed. Use double sided tape or screws.
• Insert the coin cell battery into the front cover (see diagram), noting the correct polarity of the
battery
• Press the button once to join the network
• Snap in front cover to mounted rear cover.

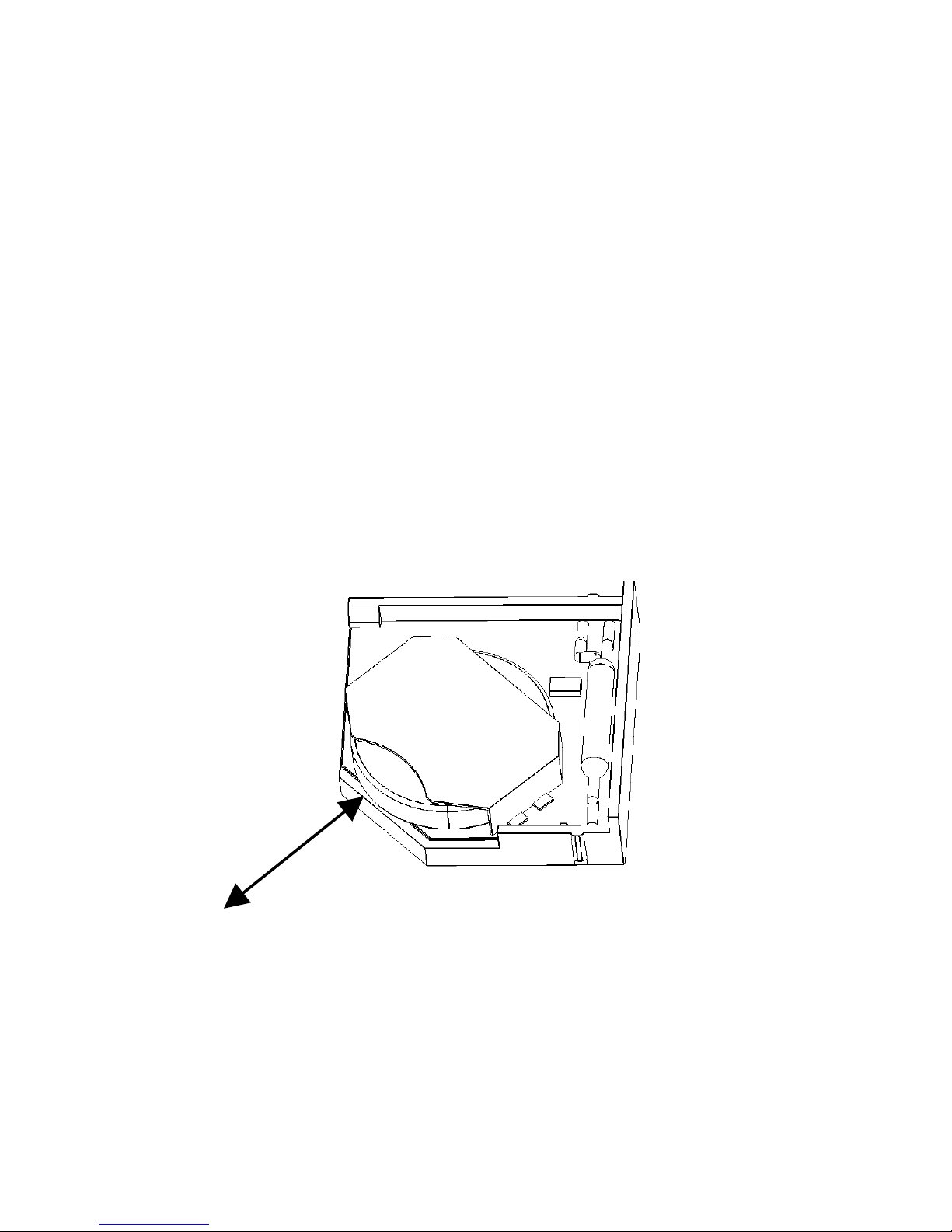

Battery Removal / Replacement
Troubleshooting:
To improve communication:
• Reposition the sensor
• Relocate the sensor
• Move a ZigBee router / range extender closer to the sensor
• If necessary, replace the sensor
Technical Specifications:
• Model Number: NCZ-3011
• Battery Type: 3.0 V CR2032 Lithium coin cell
• RF Frequency: ZigBee channels 11-26, 2.48 GHz
• Operating Temperature: -10
o
C to 50
o
C (14
o
F to 122
o
F)
• Dimensions (LxWxH): 1.2 in. (30mm) x 1.2 in. (30mm) x 0.37 in. (9.4mm)
Battery Replacement:
• Remove front cover to expose battery
• Replace with 3.0 volt CR2032 Lithium coin cell battery, noting the correct polarity of the battery
MODEL #: NCZ-3011
FCC ID: Y8R-Z30111
IC ID: 9488A-Z30111
Compliance Statements:
For complete declarations and certifications please visit:
www.nycecontrol.com/compliance
