Ocean Matrix OMX-01HMHM0004 Bedienungsanleitung

OMX-01HMHM0004

KVM Extender Supports 4K 30Hz HDMI

up to 375 Feet

Supports HDMI 10Gbps, up to 4K@30Hz 4:4:4

HDCP 1.4, 2.2 Compliant

Extends 1080p or 4K HDMI Signal up to 375 Feet (114 meters) Over a Single

CAT5e/6 Cable

Supports USB 1.1 KVM extension up to 375 Feet

Transmitter Supports HDMI Loop Out

Automatic Down Scaling Supported; 4K to 1080p

Supports Bi-Directional 12V PoC

The OMX-01HMHM0004 extends your 4K 60Hz HDMI, USB, or KVM signal up to 375

feet. This kit supports 4K/UHD video, as well as HDMI data rates up to 10.2Gbps and is

HDCP 1.4 & 2.2 compliant. With video resolution down-scaling support, the 4K input can

be automatically downscaled to a 1080p output for compatibility with older displays.

Description:

Features:

Specifications:

Input: HDMI In

Output: HDMI Out, CAT5e/6 RJ45 Out, USB Type-A Out

Input: CAT5e/6 RJ45 In

Output: HDMI Out

Control: 2 Type-A USB In

Video Resolution: Up to 4K@30Hz 4:4:4

HDMI Audio Format: Supports LCM 2/5.1/7.1 CH, Dolby Digital 2.5.1 CH, DTS 2/5.1

CH, DTS 96/245.1 CH

HDMI Transmission Distance: Up to 375 Feet

USB Extension Distance: Up to 375 Feet

HDMI Version: 1.4

HDCP Version: 2.2

USB Version: 1.1

Power Supply: Input: 100 to 240V AC, 50/60Hz Output: 12V DC 1A

Power Consumption: 4.5W (MAX)

Operating Temperature: -5 to 55°C (23 to 131°F)

Storage Temperature: -25 to 70°C (-13 to 158°F)

Dimensions: (LxWxH) 102mm x 16mm x 95mm (4.02" x 0.63" x 3.74")

Unit Weight: 176g each unit / 6.21oz

Transmitter:

Receiver:

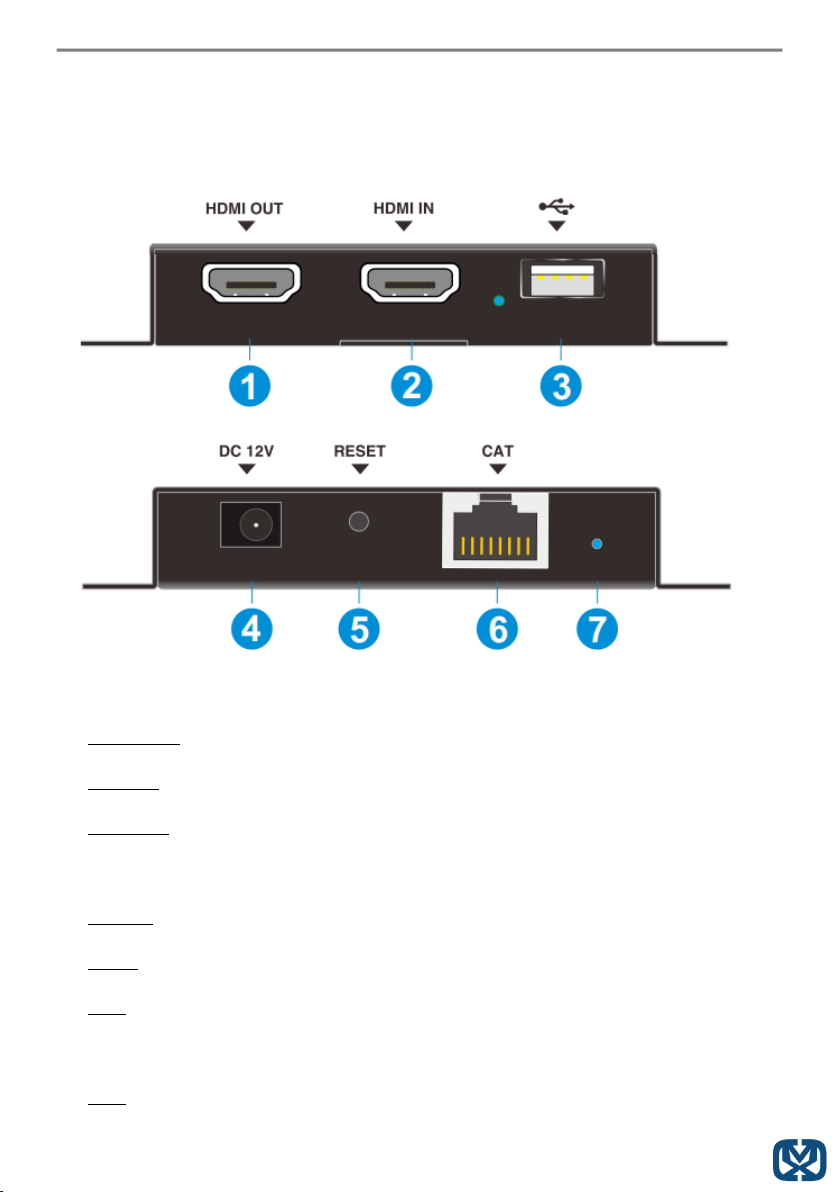

Operation Controls and Functions:

HDMI OUT - Connect to HDMI display device.

HDMI IN - Connects to HDMI source device.

USB Port- Connects source device (e.g. desktop) that needs to be controlled by

USB devices at receiver end.

DC 12V - DC connector for the power adapter connection.

Reset - Press the button to reboot the transmitter.

CAT - RJ45 port to connect the CAT port of receiver by CATx cable. It supports 12V

PoC to power the receiver.

Link - Illuminates when there is a valid HDMI signal input.

Transmitter:

Operation Controls and Functions:

HDMI OUT - Connect to HDMI display device.

USB Ports - Connects USB devices (e.g Mouse, Keyboard) to control the source

device (e.g. PC) at transmitter end.

DC 12V - DC connector for the power adapter connection.

Reset - Press the button to reboot the receiver.

CAT - RJ45 port to connect the CAT port of transmitter by CATx cable.

Link - Illuminates when there is a valid HDMI signal input.

Receiver:

If the HDMI output of transmitter is connected to display device, the source

device will automatically learn the EDID of the local display device, otherwise, the

source device will invoke built-in EDID (4K@30Hz 4:4:4).

EDID Management:

HDCP Handling:

Connection Diagram:

If the source device has no HDCP content, both the TX HDMI loop out and

RX HDMI out also has no HDCP content.

The HDCP content of HDMI loop out on TX automatically follows the source

device’s.

The HDCP content of HDMI out on RX automatically follows the RX display

device’s.

The unit should be serviced by qualified service personnel if:

(a) The DC power supply cord or AC adaptor has been damaged

(b) Objects or liquids have gotten into the unit

(d) The unit does not operate normally or exhibits a marked change in performance; The unit has been

dropped or the cabinet is damaged.

(2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating

instructions. Refer all other servicing to authorized servicing personnel.

(3) Replacement parts: When parts need replacing ensure the servicer uses parts specified by the

manufacturer. Unauthorized substitutes may result in fire, electric shock, or other hazards.

(4) Safety check: After repairs or service, ask the servicer to perform safety checks to confirm that the unit is

in proper working condition.

Damage requiring service:

PRODUCT SERVICE

Always follow basic safety precautions to reduce the risk of fire, electrical shock and

injury to persons.

To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this

product near water.

Never spill liquid of any kind on or into this product.

Never push an object of any kind into this product through any openings or empty slots

in the unit, as you may damage parts inside the unit.

Do not attach the power supply cabling to building surfaces.

Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

Do not allow anything to rest on the power cabling or allow any weight to be placed

upon it or any person walk on it.

To protect the unit from overheating, do not block any vents or openings in the unit

housing that provide ventilation and allow for sufficient space for air to circulate around

the unit

Please read all instructions before attempting to unpack, install or operate this equipment

and before connecting the power supply.

Please keep the following in mind as you unpack and install the unit:

SAFETY PRECAUTIONS

812 Kings Highway | Saugerties, NY 12477 | 845-246-7500 | www.oceanmatrix.com

100% Employee Owned Division of Tower Products Incorporated

WARRANTY

1 Year
