Oki C9600hdn Bedienungsanleitung

Banner Tray Installation Guide

1

Step 1: Checking the parts

The banner tray has the three parts.

a. Guide base

b. Sheet guide

c. Stacker

Step 2: Assembling the Banner

Tray

1. Press the button on the right side of the printer

(a) to open the multi-purpose tray (b). Open

the paper supporter (c).

2. Open the top cover.

3. Hold the guide base with both hands. Install the

guide base as shown, laying it on top of the

multi-purpose tray.

Note: Be sure the paper tray is on top of the

extended multipurpose tray.

4. Make sure the guide base is securely in place.

5. Close the top cover.

c

a

c

b

2

6. Flip the sub-stacker (a) in the direction indi-

cated by the arrow so that it rests on the plastic

piece that extends from the printer (b). Be sure

the sub-stacker is in place before you go to the

next step.

7. Hook the stacker to the shaft of the guide base

and pull back so it is secure.

8. Insert the sheet guide into the holes in the

guide base.

9. Flip the stacker over onto the guide base.

b

a

3

10. Make sure that

•thestacker(a) is on the sheet guide (b).

• the sub-stacker (c) is on the plastic

extension piece on the printer (d).

Step 3: Loading Banner Paper

Note: You can load a maximum of 20 banner

sheets at 30 lb basis weight.

1. Flip the stacker over the printer (1). Adjust the

multi-purpose tray’s paper guides to the size of

the paper (2).

2. Insert the front edge of the paper in the manual

guide along the sheet guide (1) and place the

back edge over the stacker (2) as shown.

3. Flip the stacker onto the guide base while rolling

the paper along the contour of the stacker.

d

c

a

b

4

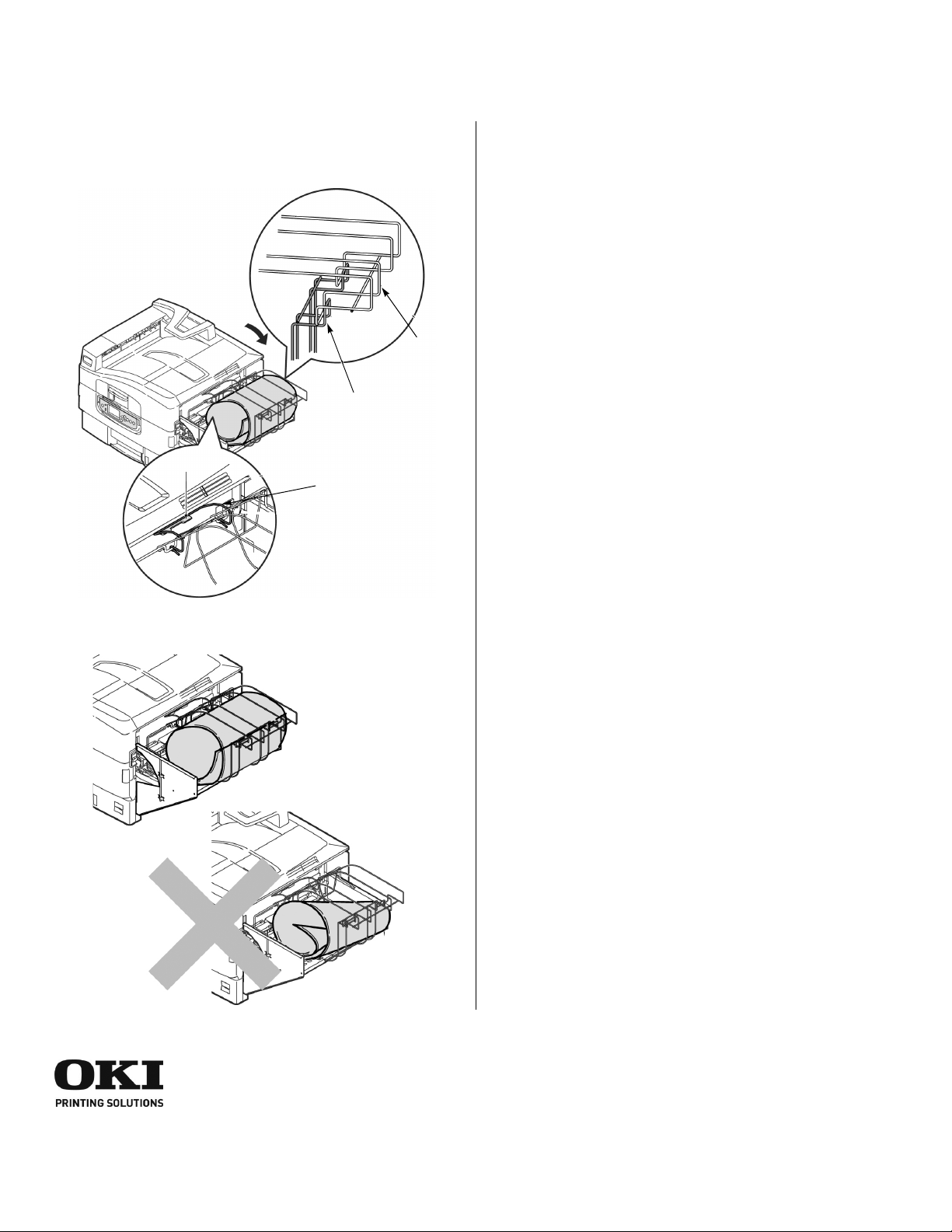

4. Make sure that

•thestacker(a) rests on the sheet guide (b).

• the sub stacker (c) is on the plastic

extension piece on the printer (d).

•Thepaperisstraight.

5. To print, define the banner paper size in the

printer driver, and specify Multi-Purpose Tray for

paper source. For details, refer to "Custom

Page Size" in your online Printing Guide.

dc

b

a

58376201

© 2006 Oki Data Americas, Inc.
