Before using the unit

Contents

Before using the unit

Introduction .................................................................................................. 3

Intended use ................................................................................................. 3

Important safety instructions ...................................................................... 4

1. Know your unit ....................................................................................... 7

2. Guide to using the Comp Air ................................................................ 9

Operating instructions

3. Preparing the nebuliser for use .......................................................... 10

4. Taking medication ............................................................................... 14

Care and maintenance

5. Cleaning and daily disinfecting .......................................................... 17

5.1 Cleaning............................................................................................. 17

5.2 Disinfecting the nebulising parts ........................................................ 18

6. Maintenance and storage .................................................................... 20

7. Changing the air filter .......................................................................... 21

8. Troubleshooting ................................................................................... 22

9. Technical data ...................................................................................... 23

10. Optional parts and accessories .......................................................... 27

NE-C28_main.book Page 2 Thursday, February 11, 2010 8:16 AM

Introduction

Thank you for purchasing the OMRON Comp Air.

This product was developed in conjunction with respiratory therapists for the

successful treatment of asthma, chronic bronchitis, allergies and other respiratory

disorders. The compressor forces air to the nebuliser. When the air enters the

nebuliser, it converts the prescribed medication into an aerosol of microscopic

droplets that can easily be inhaled.

The Comp Air is a medical device. Operate this device only as instructed by your

doctor and/or respiratory therapist.

Medical Purpose This product is intended to be used for inhaling medication

for respiratory disorders.

Intended User • Legally certified medical experts, such as doctor, nurse and

therapist, or healthcare personnel or patient under the

guidance of qualified medical experts.

• The user should also be capable of understanding general

machine operation and the content of instruction manual.

Intended Patients This product should not be used by patients, who are

unconscious or are not breathing spontaneously.

Environment This product is intended for use in a medical facility, such as

Hospital, clinic and doctor’s office, and in a room of general

household.

Durable period Durable periods are as follows, provided the product is used

to nebulise saline 3 times a day for 10 minutes each time at

room temperature (23°C).

Durable period may vary depending on usage environment.

Main unit 5 years

Nebuliser Kit

(Cap, Inhalation Air Inlet, Baffle, Medication Cup) 1 year

Mouthpiece 1 year

Air Tube 1 year

Air Filter 60 days

Child Mask 1 year

Adapter for Child Mask 1 year

Precautions for use Warnings and cautions described in the instruction manual

should be observed.

Intended use

NE-C28_main.book Page 3 Thursday, February 11, 2010 8:16 AM

Important safety instructions

Read all the information in the instruction manual and any other literature included

in the box before using the device.

When using an electrical product, especially when children are present, basic

safety precautions should always be followed including the following:

Warning:

Indicates a potentially hazardous situation which, if not avoided, could result in

serious injury.

(Usage)

• For type, dose, and regime of medication follow the instructions of your doctor or

respiratory therapist.

• Do not use only water in the nebuliser, for nebulising purposes.

• Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or

masks before using them for the first time after purchase, if the device has not

been used for a long period of time, or if more than one person uses the same

device.

• Be sure to wash the parts after use, and ensure that they are thoroughly

disinfected and dried, and stored in a clean location.

• Keep the device out of the reach of unsupervised infants and children. The

device may contain small pieces that can be swallowed.

• Store the device and accessories in a clean location.

• Do not store the air tube while there is moisture or medication remaining inside it.

• Always rinse the nebulising parts with clean hot tap water after disinfecting them.

Never leave the cleaning solution in the medication tank or mouthpiece.

• Do not use or store the device where it may be exposed to noxious fumes or

volatile substances.

• Do not use the device where it may be exposed to flammable gas.

• Do not block the ventilation slots. Never place the device where the ventilation

slots may be obstructed during operation. Do not cover the compressor with a

blanket or towel etc., during use.

• Make sure that the nebuliser kit is clean before use.

• Always dispose of any remaining medication after use, and use fresh medication

each time.

• Do not use in anaesthetic or ventilator breathing circuits.

(Risk of electrical shock)

• Never unplug the power cord with wet hands.

• The compressor and power cord are not waterproof. Do not spill water, or other

liquids, on these parts. If liquid does spill on these parts, immediately unplug the

power cord and wipe off the liquid with gauze or other absorbent material.

NE-C28_main.book Page 4 Thursday, February 11, 2010 8:16 AM

Important safety instructions

• Do not immerse the main unit in water or other liquid.

• Do not use or store the device in humid locations, such as a bathroom.

• Do not operate the unit with a damaged cord or plug.

• Keep the power cord away from heated surfaces.

Read and follow the “Important information regarding Electro Magnetic

Compatibility (EMC)” in the Technical Data Section.

Caution:

Indicates a potentially hazardous situation which if not avoided, may result in minor

or moderate injury, or physical damage.

(Usage)

• Provide close supervision when this device is used by, on, or near children or

invalids.

• Make sure that the parts are attached correctly.

• Make sure that the vaporiser head is correctly installed before use.

• Make sure that the air filter is correctly attached.

• Make sure that the air filter is clean. If the air filter has changed colour, or has

been used on average for more than 60 days, replace it with a new one.

• Do not spill liquid or medication on the compressor.

• Do not tilt the nebuliser kit so that it is at an angle of greater than 45°, or shake it

while in use.

• Do not use or store the device while the air tube is creased.

• Use only original nebulising parts, air tube, air filter and filter cover.

• Do not add more than 7 ml of medication to the medication tank.

• Do not carry or leave the nebuliser kit while the medication tank contains

medication.

• Do not leave the unit unattended with infants or persons who cannot express

their consent.

• Do not subject the device or the parts to any strong shocks such as dropping the

device on the floor.

• Do not distort the vaporiser head, or jab the nozzle of the medication tank with a

pin etc.

• Do not insert fingers or objects inside the compressor.

• Do not disassemble or attempt to repair the compressor or power cord.

• Do not block the air filter cover.

• When sterilising parts by boiling, make sure that the container does not boil dry.

• Never place, or attempt to dry the compressor, the power cord or nebuliser in a

microwave oven.

• Do not use the device while sleeping or if drowsy.

NE-C28_main.book Page 5 Thursday, February 11, 2010 8:16 AM

Important safety instructions

• To avoid injury to the nose mucosa, do not squeeze the nosepiece into the back

of the nose.

• Do not block the slit between the cap and the inhalation air inlet.

• Do not use a microwave oven or hair dryer to dry the nebulising parts.

• Approved for human use only.

(Risk of electrical shock)

• Always unplug the device from the power outlet after use and before cleaning.

• Plug the device into the appropriate voltage outlet. Do not overload power outlets

or use extension cords.

• Do not wind the power cord around the main unit.

• Changes or modifications not approved by OMRON Healthcare will void the user

warranty.

General Safety Precautions:

• Inspect the device and parts before using them each time, and check that there

are no problems. In particular, be sure to check the following:

- That the vaporiser head, nozzle or air tube are not damaged.

- That the nozzle is not blocked.

- That the compressor operates normally.

• When using this device, there will be some noise and vibration caused by the

pump in the compressor. There will also be some noise caused by the emission

of compressed air from the nebuliser kit. This is normal and does not indicate a

malfunction.

• Operate the device only as intended. Do not use the device for any other

purpose.

• Do not use the device at temperatures greater than +40°C.

• Make sure that the air tube is securely attached to the compressor (main unit)

and nebuliser kit, and does not come loose. Twist the airtube plug slightly when

inserting it into the connectors to avoid the tube disconnecting during use.

• The plug is provided so that the unit can be completely isolated from the power

source. To completely isolate the unit from the power source unplug the plug from

the power source.

Read and follow the “Correct Disposal of This Product” in the Technical Data

Section when disposing of the device and any used accessories or optional parts.

Save these instructions for future reference.

NE-C28_main.book Page 6 Thursday, February 11, 2010 8:16 AM

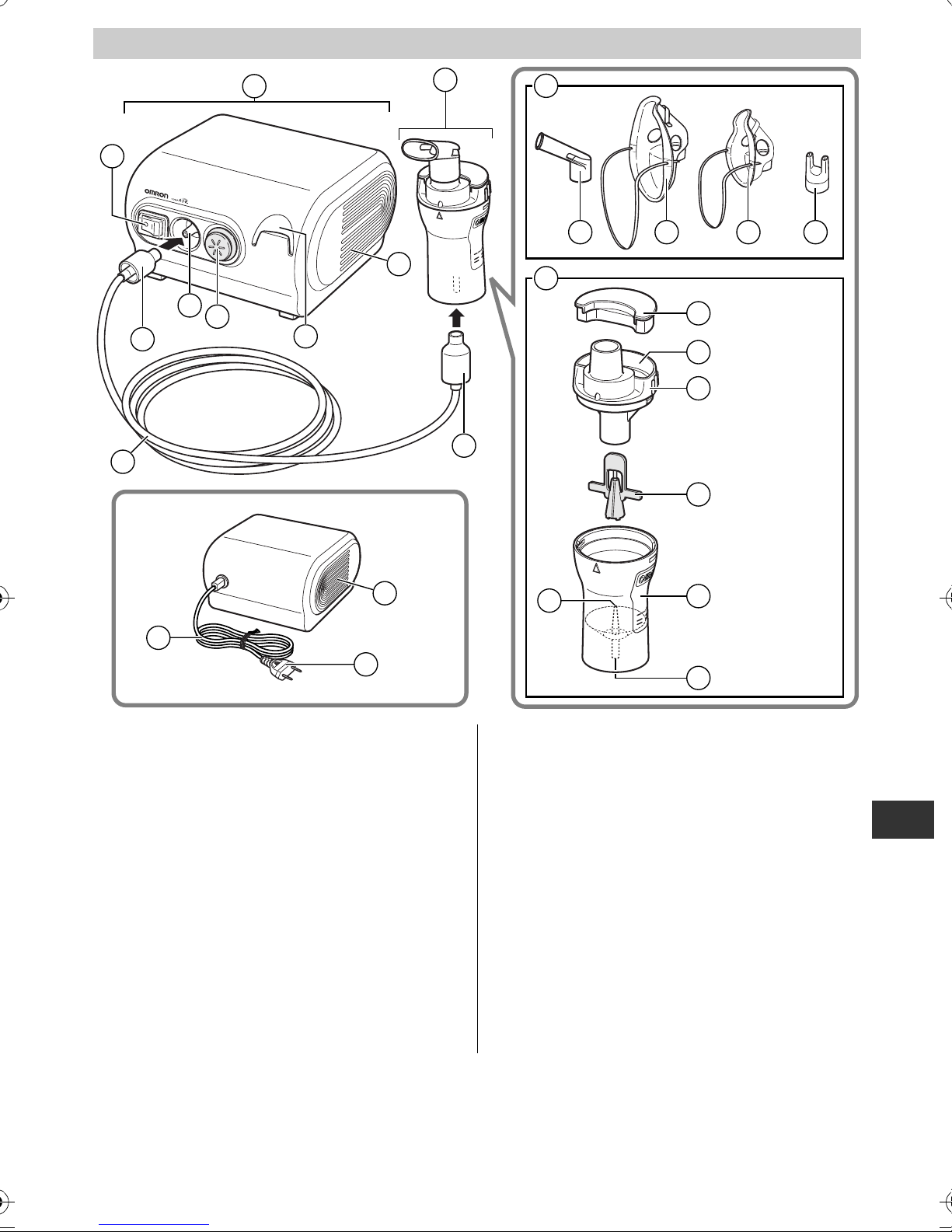

1. Know your unit

A. Compressor (Main Unit)

A1.Power Switch

A2.Air Connector

A3.Filter Cover (* Air filter inside.)

A4.Nebuliser Kit Holder

A5.Ventilation Slots

A6.Power Cord

A7.Power Plug

B. Air Tube (PVC, 207cm)

B1.Air Plug

B2.Air Plug

C. Nebulising Parts

D. Inhalation Attachments

D1.Mouthpiece

D2.Adult Mask (PVC)

D3.Child Mask (PVC)

D4.Nosepiece

E. Nebuliser Kit

E1.Cap

E2.Inhalation Air Inlet

E3.Inhalation Top

E4.Vaporiser Head

E5.Medication Tank

E6.Nozzle

E7.Air Tube Connector

ACD

D2 D3D1 D4

Rear View

NE-C28_main.book Page 7 Thursday, February 11, 2010 8:16 AM

1. Know your unit

Accessories

Material of attachment

• Also applicable Section 10. Optional parts and accessories.

F. Spare Air Filters x 5

G. Carrying Bag

H. Instruction Manual

I. Warranty Card

Nebuliser Kit, Mouthpiece, Nosepiece, Adapter for

Child Mask (SEBS): Polypropylene

Adult Mask (PVC), Child Mask (PVC): PVC

Adult Mask (SEBS), Child Mask (SEBS): SEBS

Air Tube: PVC and Polypropylene

Air Filter: Polyester

Air Filter Cover: ABS

FG H I

NE-C28_main.book Page 8 Thursday, February 11, 2010 8:16 AM

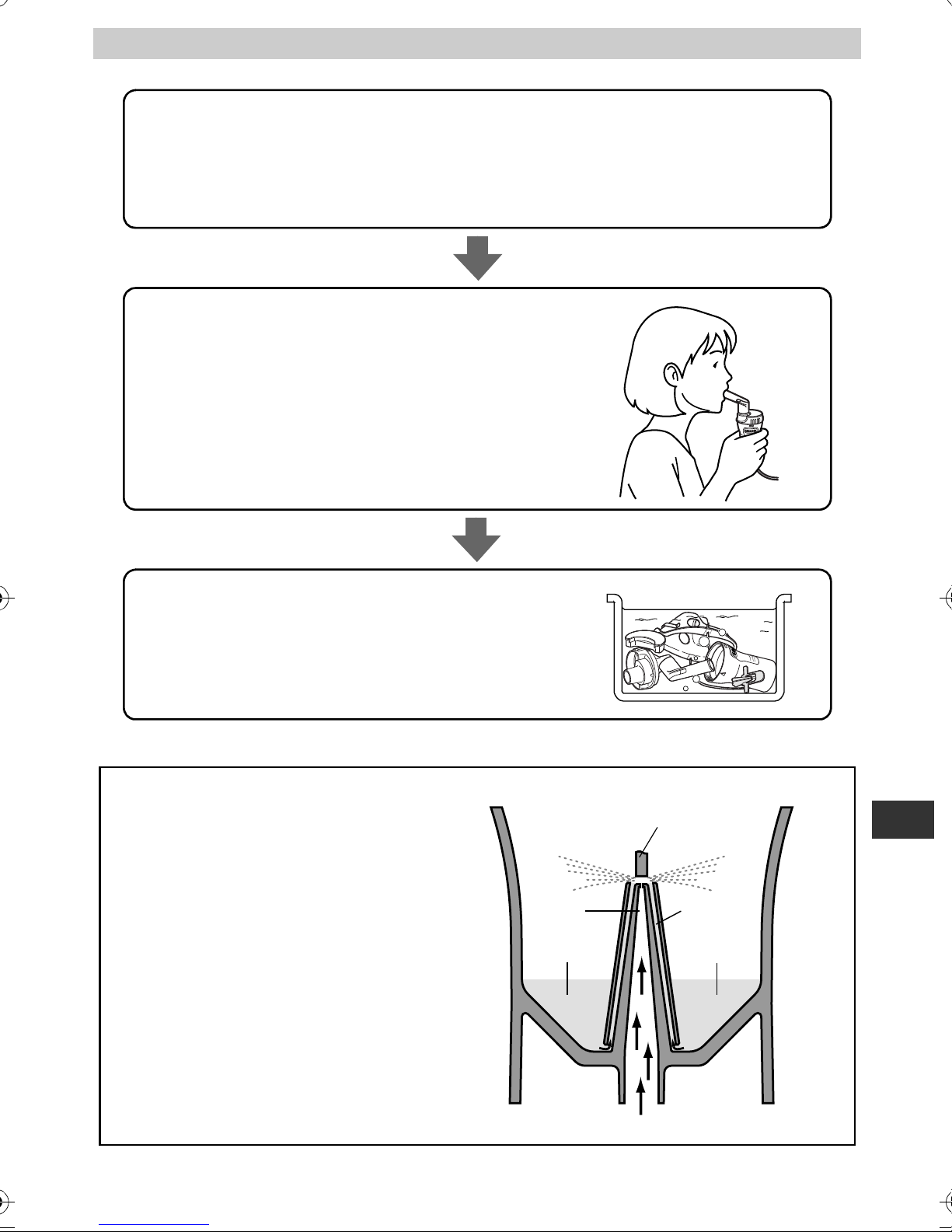

2. Guide to using the Comp Air

Preparing the Nebuliser for Use (Section 3)

Note: Clean and disinfect the nebuliser kit and applicable inhalation

attachments before using the device for the first time, or if it has not

been used for more than one week.

Taking Medication (Section 4)

Notes:

• Do not tilt the nebuliser kit so that it is at an

angle of greater than 45°.

• Do not crease or fold the air tube.

max

Cleaning Parts After Use (Section 5)

Note: Failure to clean the nebulising parts

after use may lead to infection.

How the nebuliser kit works

The compressed air from the

compressor is forced through the

nozzle, as it does so, it is mixed with

the medication in the vaporiser head

and forced upwards. The medication

is then turned into a fine aerosol and

directed upwards by the baffle,

where it is broken down into many

smaller aerosol particles.

Baffle

Aerosol

Vaporiser

Head

Medication

Compressed Air

Aerosol

Medication

Nozzle

NE-C28_main.book Page 9 Thursday, February 11, 2010 8:16 AM

Operating instructions

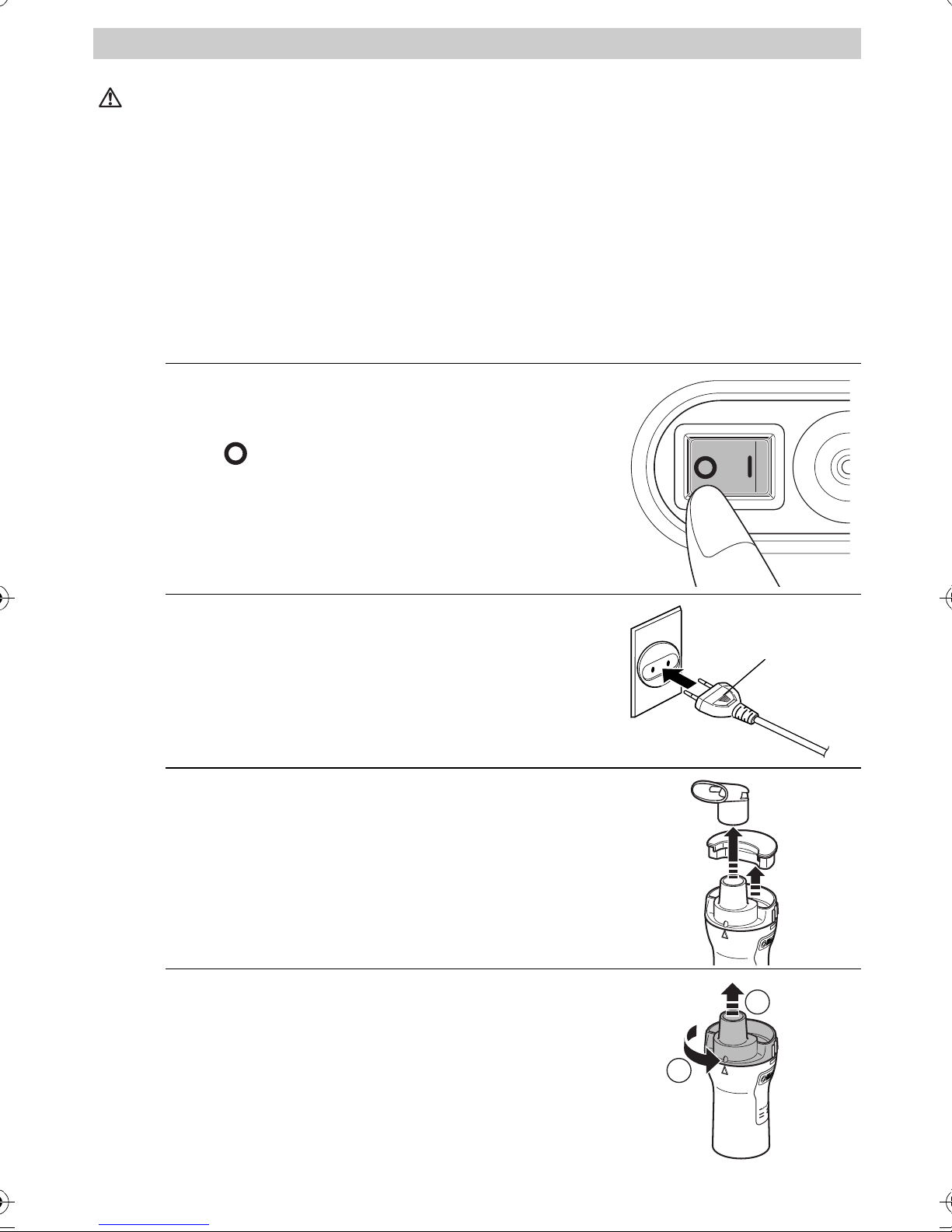

3. Preparing the nebuliser for use

Warning:

Clean and disinfect the nebuliser kit, mouthpiece and optional nosepiece or

masks before using them for the first time after purchase, if the device has

not been used for a long period of time, or if more than one person uses the

same device.

For directions on cleaning and disinfecting the parts of the device refer to Section 5

in this instruction manual.

Note: Make sure that the air filter is changed regularly. (See Section 7 “Changing

the air filter”.)

1. Make sure that the power switch is turned off.

Check that the power switch is

in the position.

2. Plug the power plug into a power outlet.

3. Remove the mouthpiece and cap from the

nebuliser kit.

4. Remove the inhalation top from the medication

tank.

1) Rotate the inhalation top anti-clockwise.

2) Lift the inhalation top out of the medication

tank.

Power Plug

NE-C28_main.book Page 10 Thursday, February 11, 2010 8:16 AM

Andere Handbücher für NE-C28-E

Inhaltsverzeichnis

Andere Omron Medizinische Geräte Handbücher

Omron

Omron HV-F021-EW Bedienungsanleitung

Omron

Omron Y-506W Bedienungsanleitung

Omron

Omron HeatTens HV-F311-UK Bedienungsanleitung

Omron

Omron H-CR24 Bedienungsanleitung

Omron

Omron HV-F013 Bedienungsanleitung

Omron

Omron IntelliSense HEM-907 Bedienungsanleitung

Omron

Omron CX3 Bedienungsanleitung

Omron

Omron Pocket Pain Pro PM400 Bedienungsanleitung

Omron

Omron electro THERAPY Bedienungsanleitung

Omron

Omron NE-C28-E Bedienungsanleitung

Omron

Omron LD-60 Bedienungsanleitung

Omron

Omron CL2 Bedienungsanleitung

Omron

Omron HVF-F127 Bedienungsanleitung

Omron

Omron PMLLPAD Bedienungsanleitung

Omron

Omron electro Therapy Pocket Pain Pro Bedienungsanleitung

Omron

Omron HJ-320-E Bedienungsanleitung

Omron

Omron electroTHerapy PM3030 Bedienungsanleitung

Omron

Omron HBP-1320 Bedienungsanleitung

Omron

Omron Total Power + Heat PM800CAN Bedienungsanleitung

Omron

Omron PocketTens Bedienungsanleitung

Omron

Omron Comp Air Elite NE-C30-E Bedienungsanleitung

Omron

Omron NE-C24 Bedienungsanleitung

Omron

Omron CompAIR CXpro Bedienungsanleitung

Omron

Omron GENTLY Bedienungsanleitung

Beliebte Medizinische Geräte Handbücher anderer Marken

TekTone

TekTone Tek-CARE160 Bedienungsanleitung

NeuroMetrix

NeuroMetrix Quell 2.0 Bedienungsanleitung

AMT

AMT XLR8 Bedienungsanleitung

Medipost-Nutristoma

Medipost-Nutristoma MD300K2 Bedienungsanleitung

EDAN

EDAN SONOTRAX Pro Bedienungsanleitung

Restorative Therapies

Restorative Therapies RT300 Bedienungsanleitung

Gendex

Gendex Expert DC Bedienungsanleitung

Dexcowin

Dexcowin ADX4000W Bedienungsanleitung

Libelium

Libelium MySignals Bedienungsanleitung

Acelity

Acelity V.A.C.ULTA 4 Bedienungsanleitung

Caputron

Caputron ActivaDose II tDCS Bedienungsanleitung

FujiFilm

FujiFilm Sonart Betriebsanleitung

Plinth 2000

Plinth 2000 93CDT Bedienungsanleitung

GE SENOGRAPHE 800T Bedienungsanleitung

GE Definium 5000 Bedienungsanleitung

Kanmed

Kanmed GE-1380 Bedienungsanleitung

Huntleigh

Huntleigh FD1 Bedienungsanleitung

Stryker

Stryker SPR Plus Bedienungsanleitung
