OPL972X/CRD972X OPTICON - 1

OPL 972X

DCL-1530

CRD 972X

USER'S MANUAL

Opticon Article Code O0220000410

2 - OPTICON OPL972X/CRD972X

LIMITED WARRANTY AND DIS-

CLAIMERS

BY OPENING THE PACKAGE OF THIS PRODUCT YOU

AGREE TO BECOME BOUND BY THE LIABILITY AND

WARRANTY CONDITIONS AS DESCRIBED BELOW.

UNDER ALL CIRCUMSTANCES THIS MANUAL

SHOULD BE READ ATTENTIVELY, BEFORE INSTALL-

ING AND OR USING THE PRODUCT.

Serial number

A serial number appears on all Opticon products. This offi-

cial registration number is strictly related to the device pur-

chased. Make sure that the serial number appearing on

your Opticon device has not been removed. Removing the

serial number might affect the warranty conditions and lia-

bility disadvantageously, so please be strict at maintaining

the label with serial number on the Opticon product.

Warranty / Warranty period / Liability

Unless otherwise agreed in a contract, all Opticon prod-

ucts are warranted for the period of two years after pur-

chase, covering defects in material and workmanship.

Opticon will repair or, at its opinion, replace products that

prove to be defective in material or workmanship under

proper use during the warranty period. Opticon will not be

liable in cases where modifications are made by the cus-

tomer. In such case the standard repair charge will be

applicable. The standard charge for repair will also be

applicable in cases where no defect is found at all. These

rules also apply for products that are still under warranty.

Under no circumstance will Opticon Sensors Europe, be

liable for any direct, indirect, consequential or incidental

damages arising out of use or inability to use both the

hardware and software, even if Opticon has been informed

about the possibility of such damages.

Packaging

The packing materials are not harmful for the environment.

We recommend that you save all packing material, as it

should be used whenever you need to transport your scan-

ner (eg. for service). Damage caused by improper repack-

ing is not covered by the warranty.

Trademark

Trademarks used are property of their respective owners.

Version 4, printed 12/2005

CAUTION: This information is subject to change

without prior notice.

This manual may not, in whole or in part, be cop-

ied, photocopied, reproduced, translated or con-

verted to any electronic or machine readable form

without prior written consent of Opticon Sensors

Europe.

THE GENERAL USE AND FUNCTIONING OF

THE BAR CODE DATA COLLECTOR TOGETHER

WITH THE CRADLE IS DESCRIBED IN THIS

MANUAL. THE EXACT BEHAVIOUR OF THE BAR

CODE DATA COLLECTOR DEPENDS ON THE

USER APPLICATION THAT IS RUNNING. FOR

INSTRUCTIONS ABOUT APPLICATIONS CON-

SULT THE DOCUMENTATION OF THAT SOFT-

WARE.

OPL972X/CRD972X OPTICON - 3

CONTENTS

I.. INTRODUCTION .................................4

A.. Unpacking............................................5

A.. Detailed view .......................................6

1.. Barcode data collector details..............6

1.. cradle details........................................7

A.. Handling instructions ...........................8

I.. GET STARTED....................................9

A.. Fix Hand strap ...................................10

A.. Battery instructions ............................10

1.. How to charge the battery..................10

1.. How to (re)place the battery .............. 11

A.. Installation instructions ......................12

1.. Connect charging cradle....................12

1.. Connect RS232 cradle.......................13

1.. Connect RS232 multicradle ...............14

1.. Connect USB ..................................... 15

1.. Connect RS485 multicradle network .16

A.. DIP Switch settings............................17

A.. Bluetooth installation..........................18

1.. Set or search Bluetooth device address:

1.. Security..............................................19

A.. Communication ................................. 20

1.. RS32 interface .................................. 20

1.. USB interface .................................... 20

1.. multicradle single communication ..... 20

1.. Bluetooth bar code data collector...... 20

I.. READING BAR CODES ................... 21

I.. TROUBLE SHOOTING ..................... 22

A.. Communication malfunctioning......... 22

A.. Read operation malfunctioning ......... 23

A.. Barcode data collector malfunctioning ..

4 - OPTICON OPL972X/CRD972X

1 INTRODUCTION

The bar code data collector

This product is well suited for a variety of portable

applications. Using a built-in laser scanner they can

read all popular types of bar code labels at varying

distances. There are several models to meet a vari-

ety in use. All models are equipped with data mem-

ory to collect the scanned data.

User's applications can be downloaded to the bar

code data collector to adapt it to the user's situa-

tion. As a tool to develop an application Opticon

can supply a compiler and a development kit.

Operating power is supplied by the rechargeable

battery. For recharging there are several cradles

available. A single cradle can charge one data col-

lector. A multi cradle can charge up to 5 data col-

lectors.

For communication the IrDA interfaced models can

communicate through a communication station. In

common the cradle supports communication for

one bar code data collector. There is also a model

available that supports communication up to 5 bar

code data collectors.

The Bluetooth model can communicate with the

SIG certified Bluetooth devices. The SPP and DUN

profile are supported.

The USB interfaced model can communicate

directly to USB devices.

The cradle

The cradle provides functionality for charging and/

or communication in several combinations. The

combinations are supported in different models:

• Charging cradle: A charging station for the bar

code data collector that charges the recharge-

able battery as soon as the bar code data collec-

tor is placed.

• Single cradle: A regular communication and

charging station. It charges the rechargeable bat-

tery as soon as the bar code data collector is

placed. Data will be transmitted to the host

through RS232 or USB.

• Multicradle, single communication, multiple

charging: A multi cradle equipped with 5 slots to

keep up to 5 data collectors. One slot supports

communication, data will be transmitted to the

host through RS232 or USB. All slots charges the

rechargeable battery as soon as the bar code

data collector is placed.

• Multicradle, multiple communication, multiple

charging: A multi cradle equipped with 5 slots to

keep up to 5 data collectors, extended with

RS485 connection. All slots have the same func-

tionality. They charge the rechargeable battery as

soon as the bar code data collector is placed.

Data will be transmitted to the host through

RS232 or USB. The RS485 feature enables to

create a network of multicradles.

OPL972X/CRD972X OPTICON - 5

1.1 UNPACKING

When you remove the packing, please check for

any physical damage. We recommend that you

save all packing material, as it should be used

whenever you need to ship your barcode data col-

lector (eg. for service). Damage due to improper

repacking is not covered by the warranty.

Apart from the bar code data collector, charger or

cradle, additional items might be ordered and sup-

plied. If there are any missing parts please contact

your supplier.

Data collector contents:

• Bar code data collector: model applicable as sup-

plied (A)

• Battery: model applicable as supplied (B)

• Hand strap (C)

Cradle contents:

• Cradle: model applicable as supplied (a)

Cradle accessories

• Interface cable(s): model applicable as supplied,

can be supplied as separate item (b)

• Power supply, supplied as separate item (c)

Do not remove the product label!

On the back of every unit you will find a product

label. This is attached by the manufacturer and

includes product information and serial number. Do

not remove it.

6 - OPTICON OPL972X/CRD972X

1.2 DETAILED VIEW

1.2.1 BARCODE DATA COLLECTOR DETAILS

Depending on the supplied model, the following

options are applicable:

1. Reading window / Optical window

For the emission of laser beam for bar code read-

ing / optical data transmission

2. Indicator

LED indicator or buzzer can be used to indicate

results, for example bar code reading / status of

communication / status of charging

3. LCD Display

For displaying information

4. Operating key(s)

Definable by application

• 1-key model:

Typical use as trigger key to switch laser beam on

for bar code reading

• other models:

Typical use of middle key as trigger key to switch

laser beam on for bar code reading.

Typical use of left and right key as menu scroll

keys or yes/no input

• keyboard:

Typical use of top middle key as trigger key to

switch laser beam on for bar code reading.

Typically basic functions for data input, as below:

: scroll up

: scroll down

+ SHIFT : scroll left

+ SHIFT: scroll right

BS : Back space

CLR : Cancel input

ENT : (Enter) to confirm input

The standard appearance of the alphanumeric

keys is the numeric value. Together with the

SHIFT key the alpha characters appear.

5. Connector

For direct data transmission to external device.

6. Hand strap pillar

For attaching hand strap

7. Battery case cover

For housing battery

8. Charging contacts

For power supply from cradle to bar code data col-

lector

9. Product label

Contains product information and serial number.

Do not remove it!

OPL972X/CRD972X OPTICON - 7

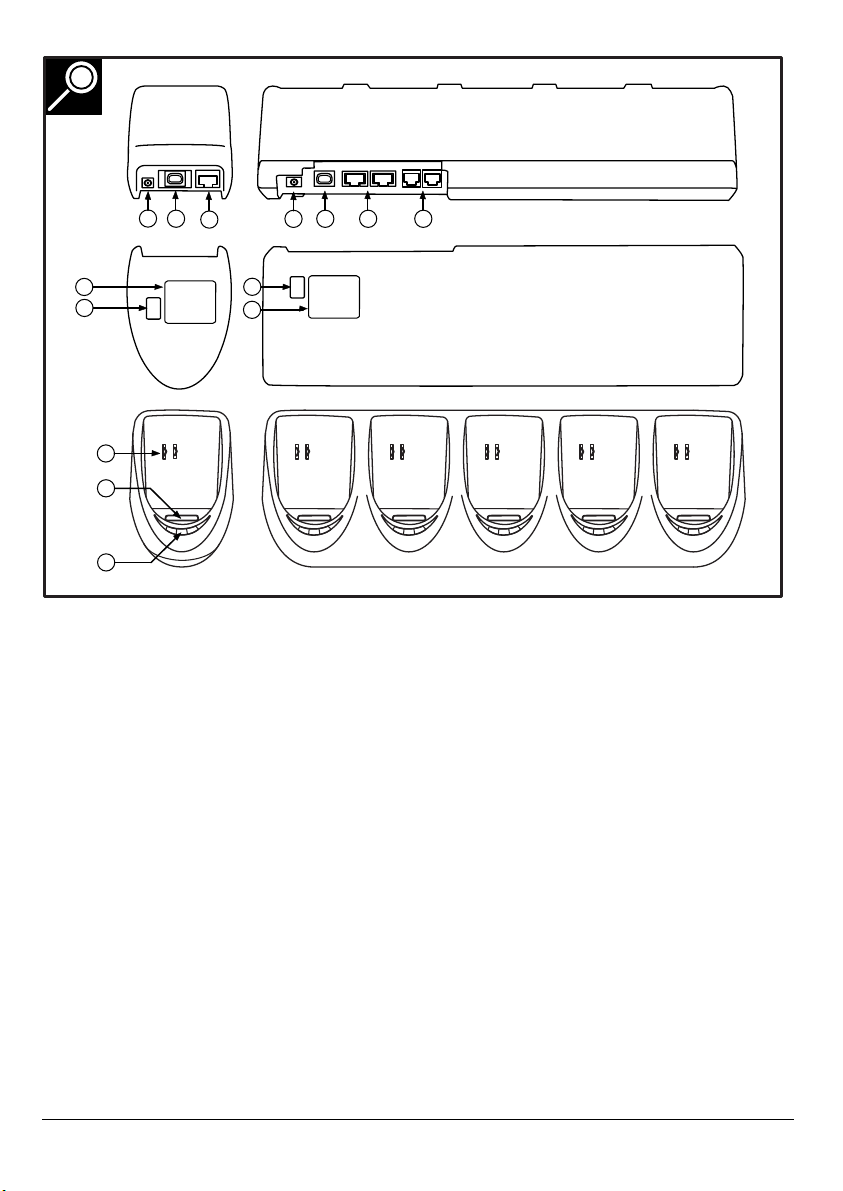

1.2.2 CRADLE DETAILS

Depending on the supplied model, the following

options are applicable:

1. DC input socket

Input for AC power supply

2. RS 232-C socket

Left connector (RS232C-1): for connection to PC

through Opticon RS232 cable

Right connector (RS232C-2): for optional connec-

tion to second device

3. USB socket

For connecting to PC, through Opticon USB cable

4. RS 485 socket

For connection of cradle network

5. Product label

Contains product information and serial number.

Do not remove it!

6. DIP switches

Set parameters of the optical communication inter-

face, do not change unnecessary.

7. Electrical contacts

If the OPL972X bar code data collector is inserted

the battery will automatically be charged.

8. Optical window

Optical communication interface for data transmis-

sion

9. LED indicator

Show current status. Read more at the installation

instructions.

1212

3 4

8 - OPTICON OPL972X/CRD972X

1.3 HANDLING INSTRUCTIONS

To avoid malfunctioning and to ensure years of

trouble free operation, pay attention to the follow-

ing:

A. Temperature conditions

Use in area's between 0 and 40 °C.

Do not expose the scanner for a long time to

extreme conditions - like direct sunlight, near a

heater, or in a car - or in areas that are very cold,

humid, moisturized or dusty.

Do not expose the product to rain or water splash.

Avoid temperature changes. Sudden temperature

changes can cause condensation to form on the

bar code data collector. Using the bar code data

collector while condensation is present can cause

malfunction. Always wait until the condensation

clears naturally before attempting operation.

B. Shock

Do not subject the product to very strong impact,

do not throw or drop the bar code data collector

from large heights.

Do not allow a mechanical shock to the product.

Do not leave the bar code data collector in an area

where static charge is accumulated, or near

devices where electromagnetic emission is gener-

ated.

Do not place any objects on top of the bar code

data collector. Do not lay the bar code data collec-

tor face down. Doing so can cause accidental oper-

ation of the key(s).

C. Use of the cradle

Do not place any product other than the OPL972X-

type bar code data collector in the CRD972X cra-

dle.

ADEB

0 C

+ 40 C

OPL972X/CRD972X OPTICON - 9

D. Cleaning instructions

Clean the reading window periodically with a soft

dry cloth.

Clean the exterior by wiping it with a soft, dry cloth.

Do not use thinner, white spirit or other solvents.

These can discolour the case and the keys and has

a negative effect on the lifetime of the keys.

Clean the electrical contacts of the bar code data

collector and the cradle with a soft dry cloth, or cot-

ton bud.

Avoid touching the contacts The contacts must stay

as clean as possible to maintain optimal charging

capacity.

Do not use water when cleaning the cradle. This

can cause malfunction.

E. Maintenance

There are no user-serviceable parts inside the bar

code data collector or the cradle. So do not try to

take it apart. The manufacturer will not be liable for

any damage caused by the customer. In case of

serious malfunction, please consult your supplier.

F. Recycling & Disposal instructions

The icon on the product or package indicates that

the product should not be thrown in the home

waste bin. The product must be recycled as an

electronic product. For proper treatment of end-of-

life products consult the section for Environmental

care on www.opticon.com.

2 GET STARTED

DATA COLLECTOR:

Fix hand strap to bar code data collector.

Use the hand strap properly to avoid drop.

Read instructions in this manual.

Insert battery.

To be sure of proper operation, it is advised to start

with a fully charged battery.

Read instructions in this manual.

CRADLE:

Place the cradle in normal office conditions.

Avoid a place under strong light. Otherwise infra

red communication may be disturbed.

Read instructions in this manual.

Use properly.

Take notice that the CRD972X cradle is designed

for the OPL972X bar code data collector.

10 - OPTICON OPL972X/CRD972X

2.1 FIX HAND STRAP

Instructions

1. Fix the small thin cord of the strap around the pil-

lar of the bar code data collector. (ref. 1)

2. Insert the handle cord of the strap into the thin

loop in order to fix the hand strap. (ref. 2)

TO AVOID DROP HOLD THE HAND STRAP

AROUND THE WRIST WHEN CARRYING THE

BAR CODE DATA COLLECTOR. (REF. 3)

DO NOT SWING THE BAR CODE DATA COL-

LECTOR AROUND. (REF. 4)

2.2 BATTERY INSTRUCTIONS

FOLLOW THE INSTRUCTIONS FOR INSTALL-

ING, CHARGING AND REMOVING THE BATTER-

IES VERY STRICTLY.

WRONG USE OF BATTERIES MIGHT CAUSE

SERIOUS DAMAGE TO THE BAR CODE DATA

COLLECTOR OR TO THE CRADLE.

THE PRODUCTS ARE NOT WARRANTED FOR

DAMAGE, DEFECTS, MALFUNCTION OR LOSS

OF DATA, RESULTING FROM INCORRECT USE

OF BATTERIES.

Never remove the battery while the bar code

data collector is turned on.

Doing so can cause data in the bar code data col-

lector to be deleted. If you have data stored, make

sure the data is transmitted to the host system.

Use proper battery

Only use the battery as specified from Opticon.

Insert the battery correctly.

The bar code data collector may be damaged by

wrong insertion. Handle properly and do not force.

When using the rechargeable battery: Use the

cradle to charge battery

The rechargeable battery of Opticon can only be

charged inside the bar code data collector.

2.2.1 HOW TO CHARGE THE BATTERY

When the bar code data collector is equipped with

AAA batteries follow the instructions of the supplier.

If the bar code data collector is equipped with the

Opticon rechargeable battery, the battery is

charged in the cradle. Hereto the complete data

collector is placed in the cradle, the voltage and the

required charging time will be automatically deter-

mined and the cradle will charge for a maximum of

8 hours. For the first charge it is adviced to charge

for the full 8 hours. The charging procedure is fully

automated.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Opticon Barcode-Lesegerät Handbücher

Opticon

Opticon NLV-3101-HD Bedienungsanleitung

Opticon

Opticon LGZ 7225 Bedienungsanleitung

Opticon

Opticon NLB-1000 Bedienungsanleitung

Opticon

Opticon OPN2002 Bedienungsanleitung

Opticon

Opticon PX-35 Bedienungsanleitung

Opticon

Opticon OPL-9815 Bedienungsanleitung

Opticon

Opticon PHL 2700 Bedienungsanleitung

Opticon

Opticon OPN2002 Bedienungsanleitung

Opticon

Opticon RFI3793B Bedienungsanleitung

Opticon

Opticon OPN-2006 BLUETOOTH Programmierhandbuch

Opticon

Opticon OPV 1001 Bedienungsanleitung

Opticon

Opticon RS-2006 Bedienungsanleitung

Opticon

Opticon IRU 4100 Bedienungsanleitung

Opticon

Opticon NFT 2100 Bedienungsanleitung

Opticon

Opticon NFT 1125 Series Bedienungsanleitung

Opticon

Opticon 8000 Benutzerhandbuch

Opticon

Opticon OPL 7836 Bedienungsanleitung

Opticon

Opticon OPR 3201 Bedienungsanleitung

Opticon

Opticon OPR 3101 Bedienungsanleitung

Opticon

Opticon LH2 Bedienungsanleitung

Opticon

Opticon OPR 3001 Bedienungsanleitung

Opticon

Opticon LPN 1736 Bedienungsanleitung

Opticon

Opticon NFT 1125 Series Bedienungsanleitung

Opticon

Opticon OPH1000 Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
