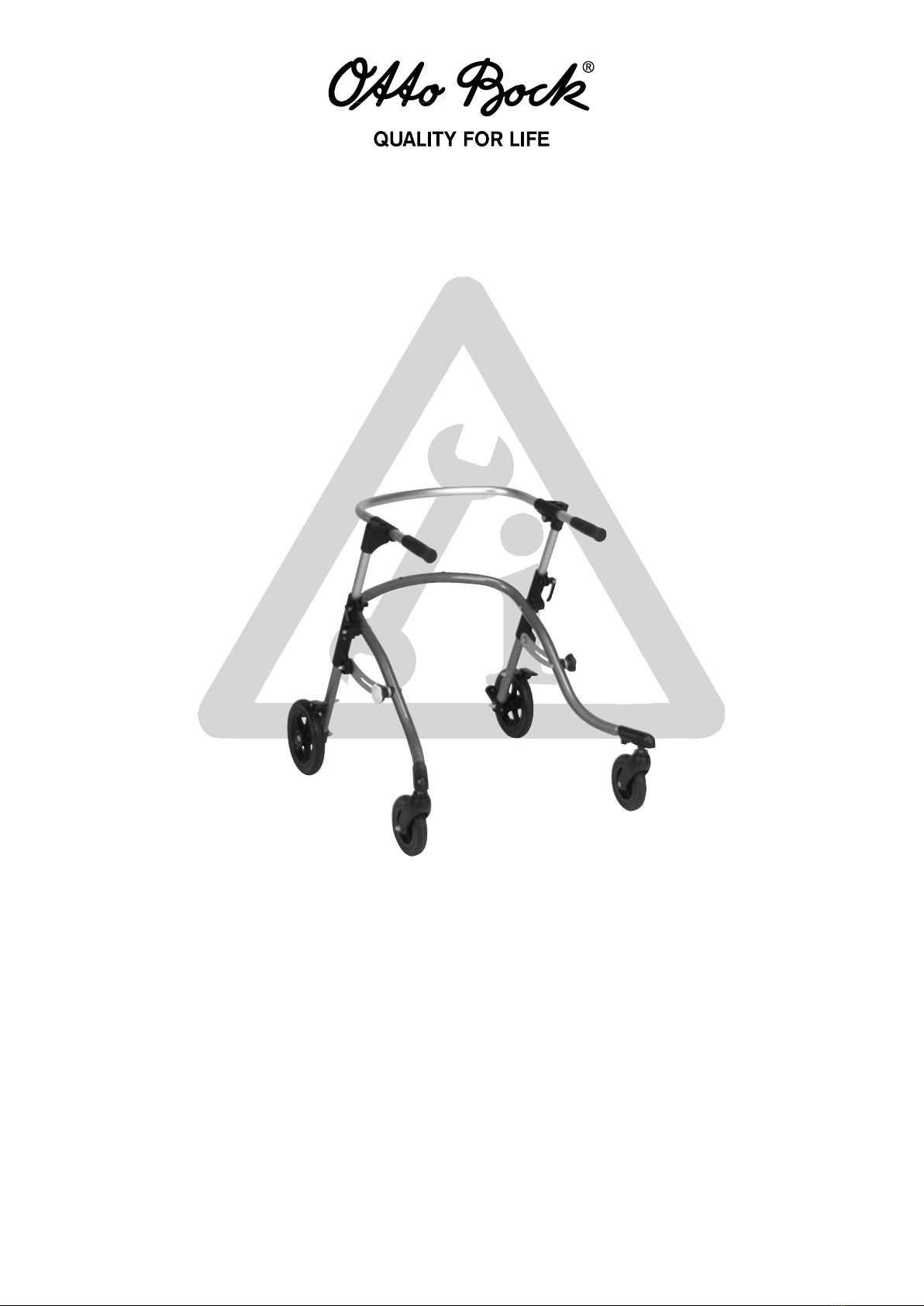

Otto Bock Nurmi Neo Bedienungsanleitung
Nurmi Neo
Service Manual
1
Table of Contents
1 Preface ...................................................................................................................................... 2
2 Safety .... ....................................................................................................................................2
3 Maintenance Schedule and Required Tools ............................................................................. 3
4 Settings / Retrofit / Exchange .................................................................................................. 6
4.1 Anterior Frame ....................................................................................................... 6
4.2 Posterior Frame ...................................................................................................... 7
4.3 Folding Mechanism ................................................................................................. 8
4.4 Grip Bar ................................................................................................................. 9
4.5 Front Wheel .......................................................................................................... 12
4.6 Rear Wheel .......................................................................................................... 14
4.7 Reverse-roll Lock .................................................................................................. 15
4.8 Storage Basket .................................................................................................... 16
4.9 Driving Brake and Wheel Lock ............................................................................. 18
4.10 Gluteal Support .................................................................................................... 20
4.11 Combined Pelvic and Gluteal Support .................................................................. 20
4.12 Anti-tipper ............................................................................................................. 21
4.13 Caster Swivel Lock ............................................................................................... 22
4.14 Friction Brake ....................................................................................................... 24
4.15 Seat ..................................................................................................................... 25
2
1 Preface
Regular maintenance is important – it increases safety and service life of the product.
All rehab products should be checked and serviced once a year.
It is however recommended that rehab products be checked, readjusted and possibly serviced every 6
months if they
are used frequently or if the user is growing or the user‘s clinical picture changes.
For all service and maintenance work, use only original spare parts.
The service and maintenance work described in this manual should be performed by skilled specialist staff
only and not by the user of the product.
This service and maintenance manual refers to the respective spare parts catalogs and instructions for use
of the described products; therefore, please use all documents together.
Please use the maintenance schedules (check list) for duplication. Keep the completed maintenance schedu-
les and hand over a copy to the customer.
Instructions for Use Spare Parts Catalog
Nurmi Neo 647G224 646K73
2 Safety
For all maintenance and repair work, there are a few points you should always observe:
Use suitable tools. (refer to page 3 and the following pages)
Wear appropriate clothing as well as gloves and safety glasses, if necessary.
Secure the product to prevent it from tipping over or falling off the workbench, for example.
Study the service and maintenance instructions before beginning your work.
You should become familiar with the functions of the product first. If you do not know the product,
please first study the instructions for use before inspecting the product.
If no instructions for use are available to you, please order them from the manufacturer (refer to
the overview of all Otto Bock Branches „Otto Bock Worldwide“).
You can also download the document from our homepage under www.ottobock.de or
www.ottobock.com.
Clean / Disinfect the product before starting inspection. Please also refer to the instructions for
use regarding any care instructions or specific product inspection information.
Many of the screw fastenings use thread lock or nylock nuts. If you have to undo such screw
connections, please replace the respective nut or screw with a new thread and/or nylock nut. If
new thread lock or nylock nuts are not available, use a liquid thread lock substance with medium
strength (e.g. Loctite 241 or Euro Lock A24.20).
3
3 Maintenance Schedule and Required Tools
The following list shows you the tools and auxiliaries mentioned in the text.
Flex ratchet and
Socket wrench bits sizes 8 -19
Torque wrench
Measurement range 10 -25 Nm
Wrenches
Sizes 8 -19
Allen wrenches
Size 2.5 – 6
Screwdrivers
Blade width 2.5 mm
Phillips head screwdriver size 2
Plastic hammer Hammer approx. 300 g Water pump pliers DIN 8976
Handle width up to 32 mm
Side cutting pliers Hand drill Twist drill
Ø 4 mm
4
Stanley knife with sickle hooked
blade and standard blade
Liquid thread lock “medium strength” Pop rivet gun for rivets up to Ø 5 mm
5
Maintenance Schedule
for Regular Service
Nurmi Neo
Gait Trainers
Customer:
Item Range Inspection (check list)
Serial Number: 1.)
Function / Setting
(Refer to 647G224 Instructions for Use)
2.)
Damages/ Defor-
mations
3.)
Screw Connections
Nurmi Neo
4.1 Anterior Frame x x
4.2 Posterior Frame - Height adjustment of the grip bar
- Anti-tipper holder
x
x
x
x
4.3 Folding Mechanism - Folding mechanism x x
4.4 Grip Bar - Depth adjustment
- Hand grip
- Grip width adjustment (optional)
- Forearm pads (optional)
- Padding for forearm pads (option)
x
x
x
x
x
x
x
x
4.5 Front Wheel - Tires
- Running behaviour of the wheels
- Swiveling of the wheel forks
x
x
x
x
x
4.6 Rear Wheel - Tires
- Running behavior of the wheels
x
x
x
x
4.7 Reverse-roll Lock - Reverse-roll lock x x
Accessories
4.8 Storage Basket - Basket
- Holder
x
x
x
x
4.9 Driving Brake and Wheel Lock - Wheel Locks x x
4.10 Gluteal Support - Support
- Holder
x
x
x
x
4.11 Gluteal and Pelvic Support - Supports
- Holder
x
x
x
x
4.12 Anti-Tipper - Anti-tipper x
4.13 Caster Swivel Lock - Opening and closing the caster
swivel lock
- Straight drive
- Bumper ball
x
x
x
x
x
x
4.14 Friction Brake - Friction brake x x
4.15 Seat - Folding mechanism
- Seat pad
x
x
x
x
Do the settings of the gait trainer
comply with the user‘s require-
ments?
The maintenance was carried out by: on:
6
4 Settings / Retrofit / Exchange
Exchanging the Anterior Frame
Loosen and remove the marked screw connections,
left and right, between the anterior frame and the
folding mechanism (refer to 4.3) and the screw con-
nections between the posterior and anterior frame.
Attention!
When you disassemble the frame parts, the gait
trainer folds together. Lay all parts carefully
on the work surface.
Then disassemble the front wheels and the wheel
forks (refer to 4.5).
For re-assembly, please proceed in reverse order.
Use new, self-locking nuts.
4.1 Anterior Frame
7
Exchanging the Posterior Frame and the Anti-tipper Holder
It is possible to individually exchange the right and left posterior frame on models size 1 and 2. Model size 3
allows only the complete exchange of the posterior frame.
First remove the grip bar (refer to 4.4).
Loosen and remove the marked screw connections (left figure), on the corresponding side,
between the posterior frame and the folding mechanism (refer to 4.3) and the screw connections between
the posterior and anterior frame.
Then remove the rear wheel (refer to 4.6) and the reverse-roll lock (refer to 4.7).
After loosening and removing the rear wheel, you can pull the anti-tipper holder off the posterior frame and
exchange it.
For re-assembly, please proceed in reverse order.
Use new, self-locking nuts.
4.2 Posterior Frame

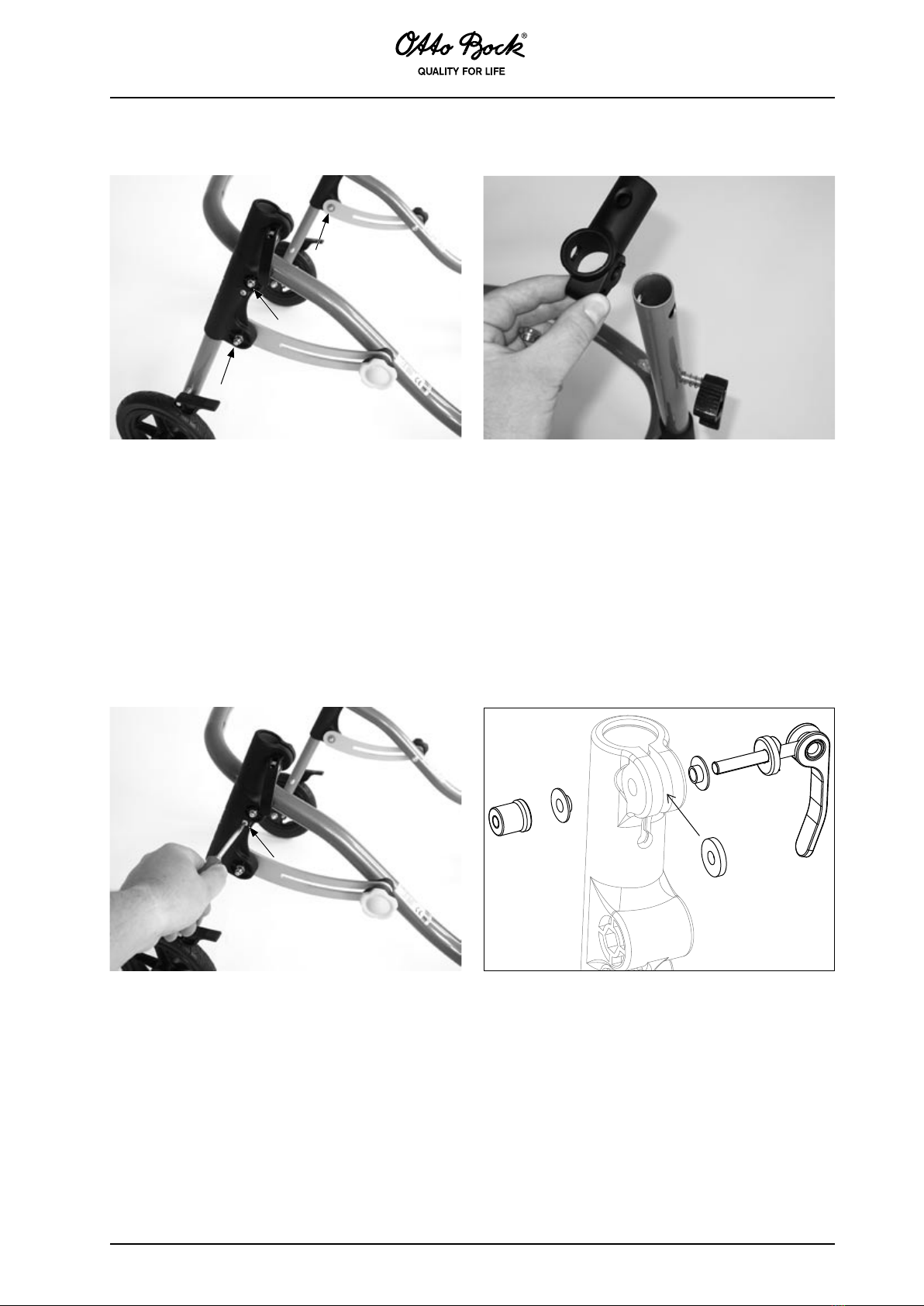

Exchanging the Multifunction Part
Loosen and remove the marked screw connections
on the multifunction part.
Afterwards you can pull the posterior frame tube out
of the multifunction part.
A mandrel that prevents the turning of the posterior
frame is located in the multifunction part.
For re-assembly, please proceed in reverse order.
Exchanging the Quick-release Mechanism
First pay attention to the arrangement of the bu-
shings and washers so that you can reassemble the
quick-release mechanism later.
Loosen and remove the knurled nut and pull the
quick-release mechanism and all the bushings and
washers out of the multifunction part.
Follow the instructions for adjusting the quick-re-
lease mechanism in the instructions for use.
For re-assembly, please proceed in reverse order.
8
Exchanging the Folding Mechanism
First unscrew the clamping handle completely and
remove it.
Loosen and remove the screw connection between
the folding lever and the posterior frame and pull off
the folding lever with all the washers and bushings.
4.3 Folding Mechanism
Finally, loosen and remove the safety bushing and
the oval head Allen screw.
Proceed in the same manner as described with the
folding mechanism on the opposite side.
For re-assembly, please proceed in reverse order.
Use new, self-locking nuts.
9
4.4 Grip Bar
Exchanging the Grip Bar (all models)
Loosen the quick-release mechanism on both sides and pull the grip bar out until the height arrest
engages.
Then press in the tripod spring button and completely remove the grip bar from the posterior frame.
For re-assembly, please proceed in reverse order.
When setting the height and depth of the grip bar, please observe the specifications in the
Instructions for Use
Exchanging the Hand Grips (all models)
Carefully cut open the hand grip with a blade and remove the hand grip from the grip bar tube.
