Outback CD100 Bedienungsanleitung

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only

firelighters complying to EN1860-3!

• Do not move the appliance during use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

Photographs are not to scale.

Specifications subject to change

without prior notice.

Assembly and Operating Instructions for

Outback® Half Drum Charcoal BBQ

CD100

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

CODE PART QTY Outback® Half Drum

Charcoal BBQ

BODY

B1 Barbecue Body 1 

B2 Upper Bracket 1 

B3 Trolley Handle 1 

B4 Tool Hook 3 

B5 Side Shelf 1 

B6 Side Shelf Bracket 2 

B7 Left Wind Shield 1 

B8 Right Wind Shield 1 

B9 Rear Wind Shield 1 

B10 Charcoal Grill 2 

B11 Cooking Grill Lower Support 1 

B12 Cooking Grill 2 

B13 Cooking Grill Upper Support 1 

B14 Grill Lifting Handle 2 

TROLLEY

C1 Left Front Leg 1 

C2 Left Rear Leg 1 

C3 Right Front Leg 1 

C4 Right Rear Leg 1 

C5 Screen 1 

C6 Trolley Base 1 

C7 Axle Spacer 2 

C8 Locknut 2 

C9 Axle 1 

C10 Wheel 2 

C11 Wheel Hubcap 2 

HARDWARE

D1 M6x15 Bolt 22 

D2 M6x35 Bolt 14 

D3 M6 Nut 24 

D4 R Shape Clip 4 

D5 Side Shelf Pin 4 

D6 ST4.0x10 Screw 6 

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B10

B12

B14

B11

B13

C10

C11

Hardware Reference Diagram

Specifications subject to change without prior notice.

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal components or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Rear Leg (C2) and Right Rear Leg (C4) onto the trolley base assembly using the

M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).

Attach the Left Front Leg (C1) and Right Front Leg (C3) onto the Trolley Base (C6) using the

M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).

NOTE: Holes

to fix screen

Unscrew the Locknuts (C8) from both ends of the Axle (C9).

Slide the axle through the corresponding holes in the left legs. Slide the Axle Spacer (C7) and the

Wheels (C10) over each end of the axle. Secure the wheels into place with the locknuts. Place

the Wheel Hubcaps (C11) onto the outside of the wheels.

Attach a Upper Bracket (B2) onto the Barbecue Body (B1) using the M6x35 Bolt (D2) and M6 Nut

(D3). Repeat above process for other upper bracket.

C10

C11

C9C8

Inside

Outside

Carefully place the barbecue body assembly onto the trolley assembly and fix using

M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs) as shown.

Attach the Trolley Handle (B3) onto the Barbecue Body (B1) using the M6x15 Bolts (D1x2pcs).

Attach a Side Shelf Bracket (B6) onto the Barbecue Body (B1) using the M6x15 Bolts

(D1x2pcs) and M6 Nuts (D3x2pcs). Slide the Side Shelf Pin (D5) through the upper fixing

hole in Side Shelf Bracket(B6), and secure with a R Shape Clip (D4) as shown. Repeat above

process for other side shelf bracket.

Attach the Side Shelf (B5) to the barbecue using the Side Shelf Pins (D5x2pcs) and R Shape

Clips (D4x2pcs) as shown.

Hook the shelf onto the upper pins to extend it to its normal horizontal position.

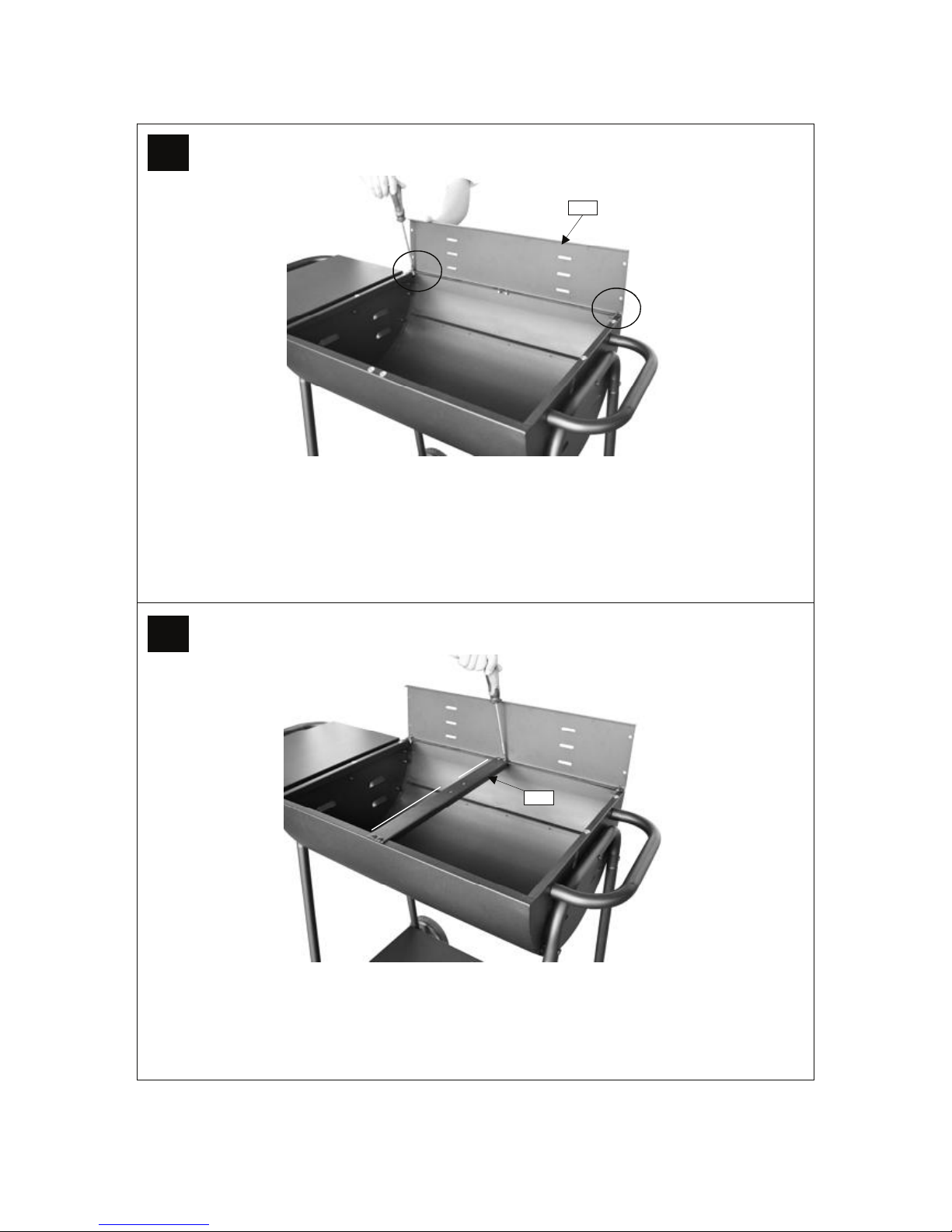

Attach the Rear Wind Shield (B9) onto the barbecue body using the

M6x15 Bolts (D1x2pcs) .

NOTE: Only fixed both ends.

Attach the Cooking Grill Lower Support (B11) onto the barbecue body

using the M6x15 Bolts (D1x4pcs) .

Note: Ensure that Long end of the cooking grill lower support at

the front of the barbecue.

LongShort

B11

Attach the Left Wind Shield (B7) and the Right Wind Shield (B8) onto the barbecue body using

the M6x15 Bolts (D1x8pcs) and M6 Nuts (D3x4pcs) .

NOTE: The left wind shield and the right wind shield should be on the inside of the rear

wind shield.

Attach the Cooking Grill Upper Support (B13) onto the Cooking Grill Lower Support (B11)

using the M6x15 Bolts (D1x2pcs) and M6 Nuts (D3x2pcs).

B7 D1

D1 D1

D1 D3

B13
