Outback MS4464 Bedienungsanleitung

0359

Assembly and Operating Instructions for Outback®

Meteor Stainless Steel 4 and

Meteor Stainless steel 6 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MS4464 MS5664

CODE PART QTY

Outback®

Meteor Stainless Steel

4 Burner Gas BBQ

Outback®

Meteor Stainless Steel

6 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1  

A2 Hood Handle 1  

A3 Warming Rack 1  

BODY

B1 Barbecue Body 1  

B2 Burner 4 6

B3 Control Panel 1  

B4 Knob 4 6

B5 Hose and Regulator Assembly 1  

B6 Lava Rock 1  

B7 Lava Rock Basket 1  

B8 Cooking Grill 1  

B9 Cooking Griddle 1  

B10 Drip Tray Left Bracket 1  

B11 Drip Tray Right Bracket 1  

B12 Drip Tray 1  

B13 Drip Pan 1  

B14 Ignition Button 1  

TROLLEY

C1 Side Burner Shelf 1  

C2 Side Burner Shelf Panel 1  

C3 Side Shelf 1  

C4 Side Shelf Panel 1  

C5 Side Burner Grid 1  

C6 Side Burner Lid 1  

C7 Side Burner Lid Axle 1  

C8 Side Burner Firebox 1  

C9 Side Burner Electrode 1  

C10 Knob Bezel 1  

C11 Side Burner Knob 1  

C12 Sear Burner 1  

C13 Side Burner Drip Tray 1  

C14 Body Support A 2  

C15 Body Support B 2  

C16 Left Cabinet Panel Assembly 1 

C17 Right Cabinet Panel Assembly 1 

C18 Upper Support 1  

C19 Door Handle 2 

C20 Left Door 1  

C21 Right Dorr 1  

C22 Basket 1 

C23 Bottom Panel 1  

C24 Front W heel Skirt 1  

C25 Left Wheel Skirt 1 

C26 Right W heel Skirt 1  

C27 Balance Weight 1  

C28 Lockable Caster 2  

C29 Caster 2  

HARDWARE

D1 M6x40 Bolt 16  

D2 M6x15 Bolt 20  

D3 M4 Nut 7  

D4 ST4.0x10 Screw 16  

D5 ST4.0x10 Screw F# 1  

D6 M6 Nut 12  

D7 M5x15 Bolt 2  

D8 M4x10 Bolt 21  

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B10 B11

B14

C26

B12

C23

C19

C24

C12

C11

C10

C25

C20 C21

B13

C29

C28

C22

C27

C18

C2 C4

C13

C17C16

C15

C14

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1 D2

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

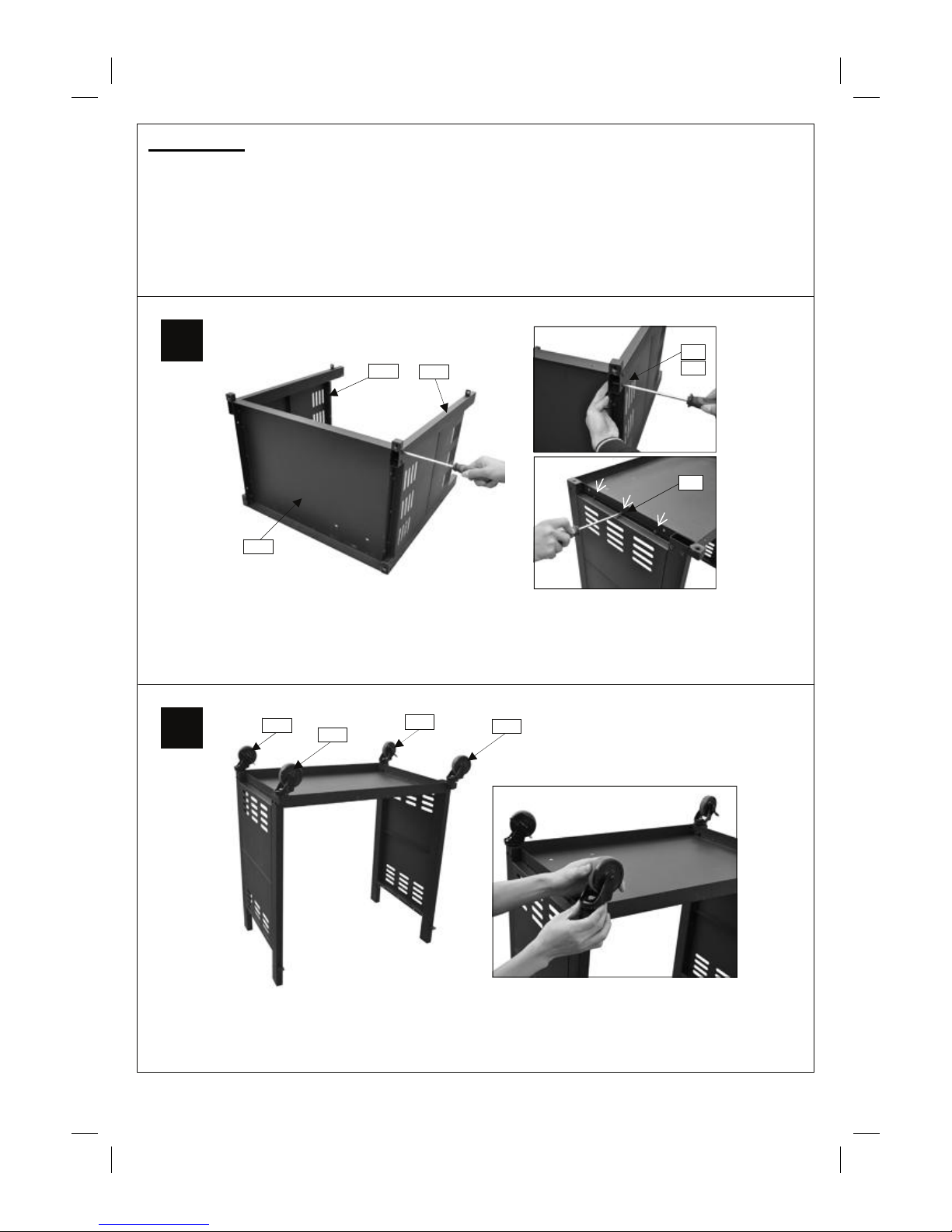

Attach the left cabinet panel assembly (C16) and right cabinet panel assembly (C17) to

the Bottom Panel (C23) using M6x40 Bolts (D1x8pcs) and M6 Nuts (D6x8pcs),

ST4.0x10 Screw (D4x6pcs) as shown.

C23

Carefully turn the cabinet upside-down.

Attach the Casters (C29x2pcs) into the front legs and the Lockable Casters (C28x2pcs)

into the rear legs.

C29

C28

C29

C28

C16 C17

Attach the Wheel Skirt (C24, C25, C26) to the bottom panel using M4x10 Bolts (D8x7pcs) and

M4 Nuts (D3x7pcs) as shown, Then fix the left / right wheel skirts onto the front wheel skirt

using ST4.0x10 Screw (D4x2pcs) as shown.

Unscrew the retaining bolts and retaining nuts from the Balance Weight (C27).

Attach the balance weight to the bottom panel using the retaining bolts and

retaining nuts as shown.

C24

C25

C26

C27

Carefully turn the assembled cabinet right side up.

Attach Drip Tray Left Bracket (B10) to the right legs using ST4.0x10 Screws (D4x2pcs) as shown.

Repeat above process for Drip Tray Right Bracket (B11).

Attach the Upper Support (C18) to the front legs using M6x15 Bolts (D2x4pcs).

C18

Front Side

Rear Side

B10

Attach the Door Handle (C19) onto the Left Door (C20) using M6x15 Bolts (D2x2pcs).

Repeat above process for Right Door (C21).

C19

C20

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

Attach the Basket (C22) onto the right door as shown.

C22

Carefully place the Barbecue Body (B1) onto the body supports and fix using M6x40 Bolts

(D1x8pcs) as shown.

Attach Body Support A (C14) onto the left rear leg and right front leg using M4x10 Bolts

(D8x4pcs) , and attach Body Support B (C15) onto the right rear leg and left front leg using

M4x10 Bolts (D8x4pcs) as shown.

C14

C15

Attach Side Shelf Panel (C4) onto Side Shelf (C3) using M6x15 Bolts (D2x2pcs) and

M6 Nut (D6x2pcs) as shown.

Attach the side shelf assembly to the barbecue body using ST4.0x10 Screw (D4x2pcs) and

M6x15 Bolts (D2x4pcs) as shown.
