Assembly and Operating Instructions for Outback®
Bondi 2, Bondi 3, and Bondi 4 Burner Gas BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
WARNING
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas bottle after use.
• Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
• Retain these instructions for future reference.
• Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
• For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
MH4330 MH3230 MH5430
2
CODE PART QTY Outback® Bondi 2
Burner Gas BBQ
HOOD
A1 Hood (Pre-Assembled to
Body) 1
A2 Hood Handle 1
A3 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 2
B3 Control Panel 1
B4 Knob 2
B5 Hose and Regulator
Assembly 1
B6 Lava Rock in Basket 2
B7 Cooking Grill 2
B8 Drip Tray Left Bracket 1
B9 Drip Tray Right Bracket 1
B10 Drip Tray 1
B12 Ignition Button 1
TROLLEY
C1 Side Shelf 2
C2 Left Side Shelf Panel 1
C3 Right Side Shelf Panel 1
C4 Left Leg 2
C5 Right Leg 2
C6 Front Upper Panel 1
C7 Front Lower Panel 1
C8 Wire Base 1
C9 Wheel 2
C10 Wheel Hubcap 2
C11 Axle 1
HARDWARE
D1 ST4.0x10 Screw 10
D2 M5x15 Bolt 4
D3 Ø5 Washer 4
D4 M5 Nut 4
D5 M6x15 Bolt 12
D6 M6x65 Bolt 12
D7 Ø6 Washer 4
D8 M6 Nut 8
D9 Locknut 2
Outback® Bondi 4
Burner Gas BBQ
4
4
Outback® Bondi 3
Burner Gas BBQ
3
3
B11 Drip Tray Handle 1
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
3
Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
A3
B5
B8 B9
B10
C8
C11
C3
C2
C9
C6
C7
C5C4
B3
A2
A1
D9
B7
B6
C10
B2
B1
B4
C1
B12
B11
4
Hardware Reference Diagram
Specifications subject to change without prior notice.
D6
D7 D8
D5 D1
D5
D6
D8
D3 D4D2
5
C4
C5
D6
Remove any internal components or packaging from the Hood and Body.
Insert the M6x65 Bolts (D6x4pcs) through the guide holes of legs (C4,C5) and screw into
barbecue body tightly.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or
becomes damaged when it is set on the ground.
Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
• Remove any internal component or packaging from the barbecue body.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the Legs (C4,C5) to the Panels (C6,C7) using ST4.0x10 Screws (D1x8pcs) as shown.
Rear view
Front view
C5C4
C6
C7
D1
6
3
4
C8
C5
D6

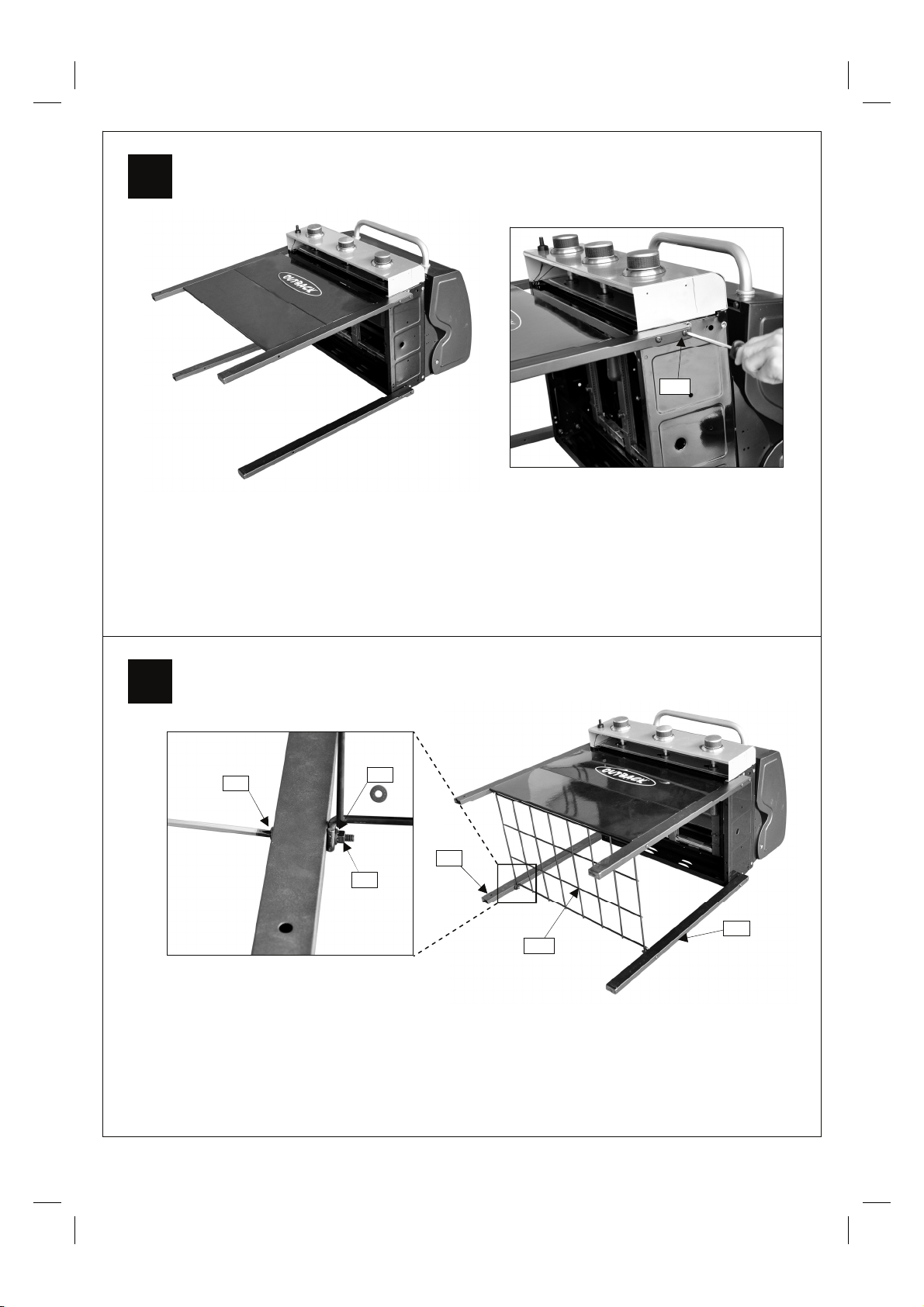

Insert the M6x65 Bolts (D6x4pcs) through the guide holes of Front Panel Assembly and screw
into barbecue body tightly (2 people required) .
Attach the front panel assembly and the Legs (C4,C5) to the Wire Base (C8) by inserting the
M6x65 Bolts (D6x4pcs) through the legs, wire base, Ø6 Washers (D7x4pcs) and secure with M6
Nuts (D8x4pcs). Ensure that the holes in the top of each leg which to fix barbecue body are in the
front of the side.
D6 D7
D8
C4
7
Unscrew the Locknuts (D9) from both ends of the Axle (C11).
Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C9) over each
end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps
(C10) onto the outside of the wheels.
CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly
or becomes damaged when it is set on the ground.
C11
5
6
D6
Connect the Hose and Regulator Assembly (B5) to the barbecue.
Ensure the mating faces of the connection are clean and not damaged. Do not use any sealing
tape, paste, or liquid on the connection. The nut must be tightened with the use of a spanner.
Do not use force which may damage the assembly.
B5
C9
D9
C10
8
7
8
Attach the Left Side Shelf Panel (C2) onto one Side Shelf (C1) using M6x15 Bolts (D5x2pcs) and
M6 Nuts (D8x2pcs).
C2
C1
D5
D5
D1
Attach the left side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and
M6x15 Bolts (D5x4pcs) as shown.
D8
9
9
10
Attach the Right Side Shelf Panel (C3) onto the other Side Shelf (C1) using M6x15 Bolts
(D5x2pcs) and M6 Nuts (D8x2pcs).
C3
C1
D5
D5
D1
D8
Attach the right side shelf assembly to the barbecue body using a ST4.0x10 Screw (D1) and
M6x15 Bolts (D5x4pcs) as shown.
10
11
12
Attach the Drip Tray Right Bracket (B9) to the barbecue body using M5x15 Bolts (D2x2pcs),
Ø5 Washers (D3x2pcs) and M5 Nuts (D4x2pcs) as shown. Repeat the above process for the
Drip Tray Left Bracket (B8).
NOTE: Ensure that the big tabs of the brackets which stop the drip tray are located at
the front of the barbecue.
B9
D3
Unscrew retaining bolts from Drip Tray Handle (B11) ,and fix the drip tray handle onto Drip Tray
(B10) using the retaining bolts.
Insert the Drip Tray (B10) by sliding it underneath the barbecue body.
D2
B11B10
