Outback Omega 100 Bedienungsanleitung

Omega 100 Omega 300Omega 200

Assembly and Operating Instructions for

Outback® Omega 100, Omega 200 and Omega 300 Gas Barbecues

WARNING

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

• For outdoor use only.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check

the hose connections are tight and leak test each time you reconnect the gas

bottle.

Photographs are not to scale.

Specifications subject to change

without prior notice. 0359

A. Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue model.

OUTBACK® OMEGA RANGE

CODE PART QTY OMEGA 100 OMEGA 200 OMEGA 300

Body

Assembly

A1 Lava Rock Rack 1   

A2 Burner 1   

A3 Hood Handle 1   

A4 Hood 1   

A5 Body 1   

A6 Grease Cup Holder 1   

A7 Grease Cup 1   

A8 Cooking Grill 1   

A9 Lava Rock (Packaged) 1   

A10 Gasket 8   

A11 Upper Hinge Bracket 2   

A12 Lower Hinge Bracket 2   

A13 Gas Collector Box 1   

A14 Main Electrode 1   

A15 Warming Rack 1 

Upper

Trolley

B1 Control Panel 1   

B2 Ignitor Pushbutton 1   

B3 Knob 2   

B4 Trolley Handle 1 

B5 Arch Support 2   

B6 Hose/Regulator Assembly 1   

B7 Plastic Side Shelf 2 1

B8 Side Burner Knob 1 

B9 Side Burner Grid 1 

B10 Side Burner Shelf 1 

B11 Side Burner 1 

B12 Side Burner Electrode 1 

Lower

Trolley

C1 Short Leg 2   

C2 Short Axle 2   

C3 Wheel 2   

C4 Hubcap 2

  

C5 Screen 1   

C6 Long Support Rod 2 

C7 Leg Endcap 2   

C8 Long Leg 2   

C9 Short Support Rod 2 

C10 Bottom Shelf 1  

Hardware

D1 ST4.0x10 Screw 2   

D2 M5x10 Bolt 2   

D3 M6x15 Bolt 4 

D4 M6x25 Bolt 4   

D6 M6x40 Bolt 8 

D7 M6x50 Bolt 4   

D8 Axle-Clip 2   

D9 M6 Nut 4 20 20

D11 Shelf Washer 8 

D5 M6x30 Bolt 4   

D10 Shelf Spacer 8 

 Pre-Assembled

 Quantity and specification varies according to model purchased.

B1. Parts Diagram: Omega 100

Quantities vary according to model purchased. Specifications subject to change without prior notice. For more

details on hardware, please see ‘Hardware Reference Diagram: Omega 100.’

Pre-assembled body unit includes

the following individual parts:

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C6 C9

C4 C3

C1 C8

B2. Hardware Reference Diagram: Omega 100

Specifications subject to change without prior notice.

D3 D7

D4, D9 D5

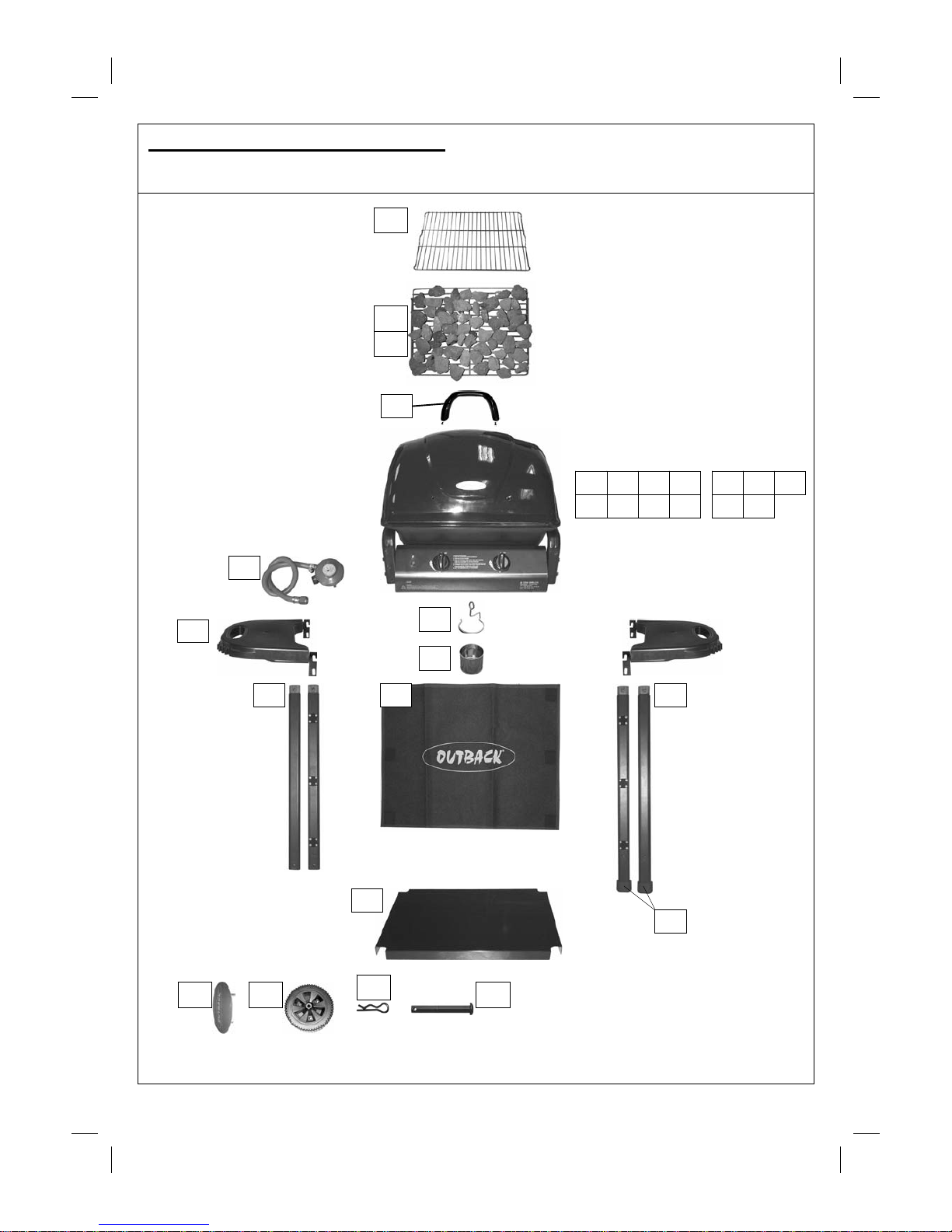

C1. Parts Diagram: Omega 200

Quantities vary according to model purchased. Specifications subject to change without prior notice.

For more details on hardware, please see ‘Hardware Reference Diagram: Omega 200.’

C10

C5C1 C8

Pre-assembled body unit

includes the following individual

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B5 B6

C4 C3 C2

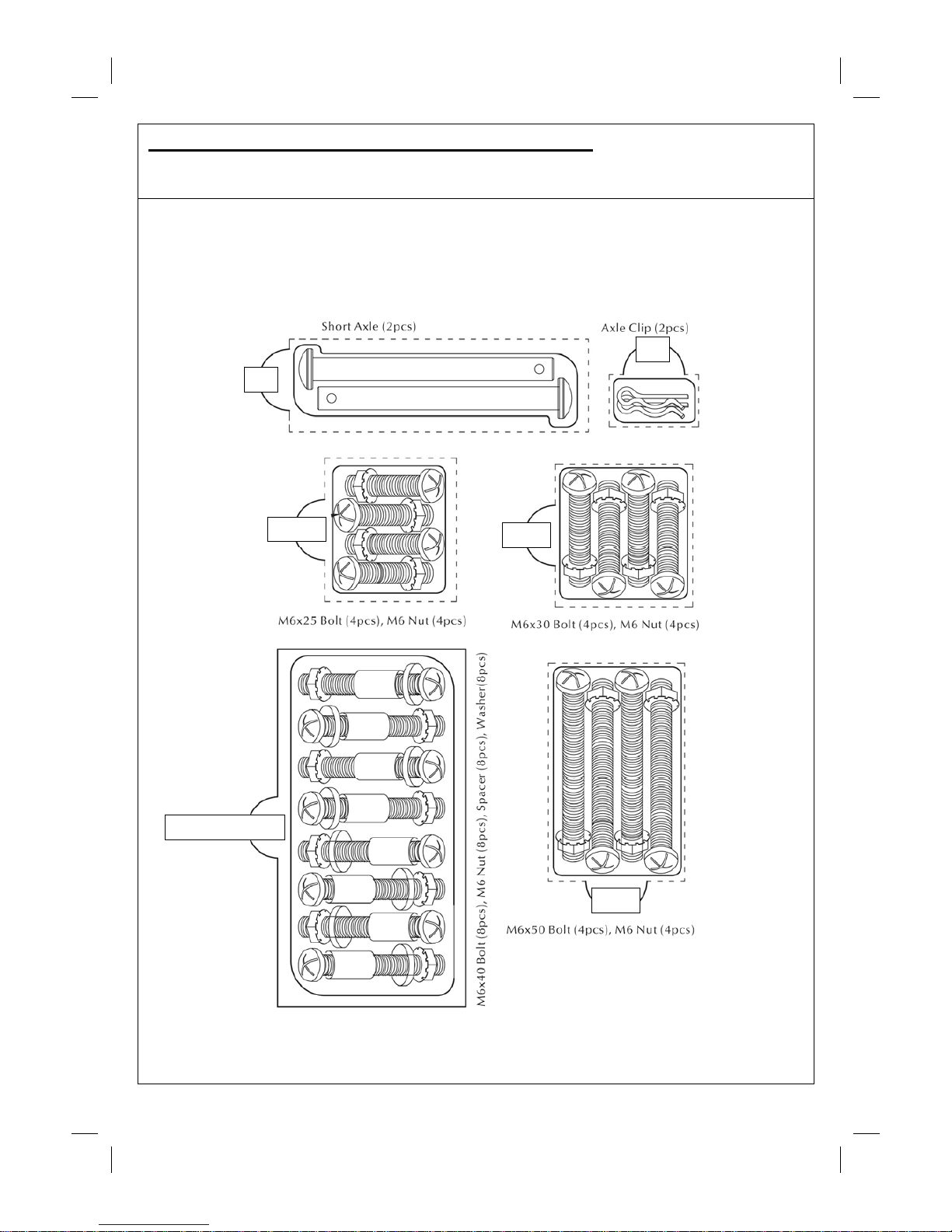

C2. Hardware Reference Diagram: Omega 200

Specifications subject to change without prior notice.

D4, D9 D5, D9

D6, D9, D10, D11

D7, D9

D1. Parts Diagram: Omega 300

Quantities vary according to model purchased. Specifications subject to change without prior notice.

For more details on hardware, please see ‘Hardware Reference Diagram: Omega 300.’

C10

Pre-assembled body unit

includes the following individual

A2 A4 A5 A10 B1 B2

A11 A12 A13 A14

B6 B8

B10

B11

B12

C5C1 C8

A15

C4 C3 C2

D2. Hardware Reference Diagram: Omega 300

Specifications subject to change without prior notice.

D4, D9 D5, D9

D6, D9, D10, D11

D7, D9

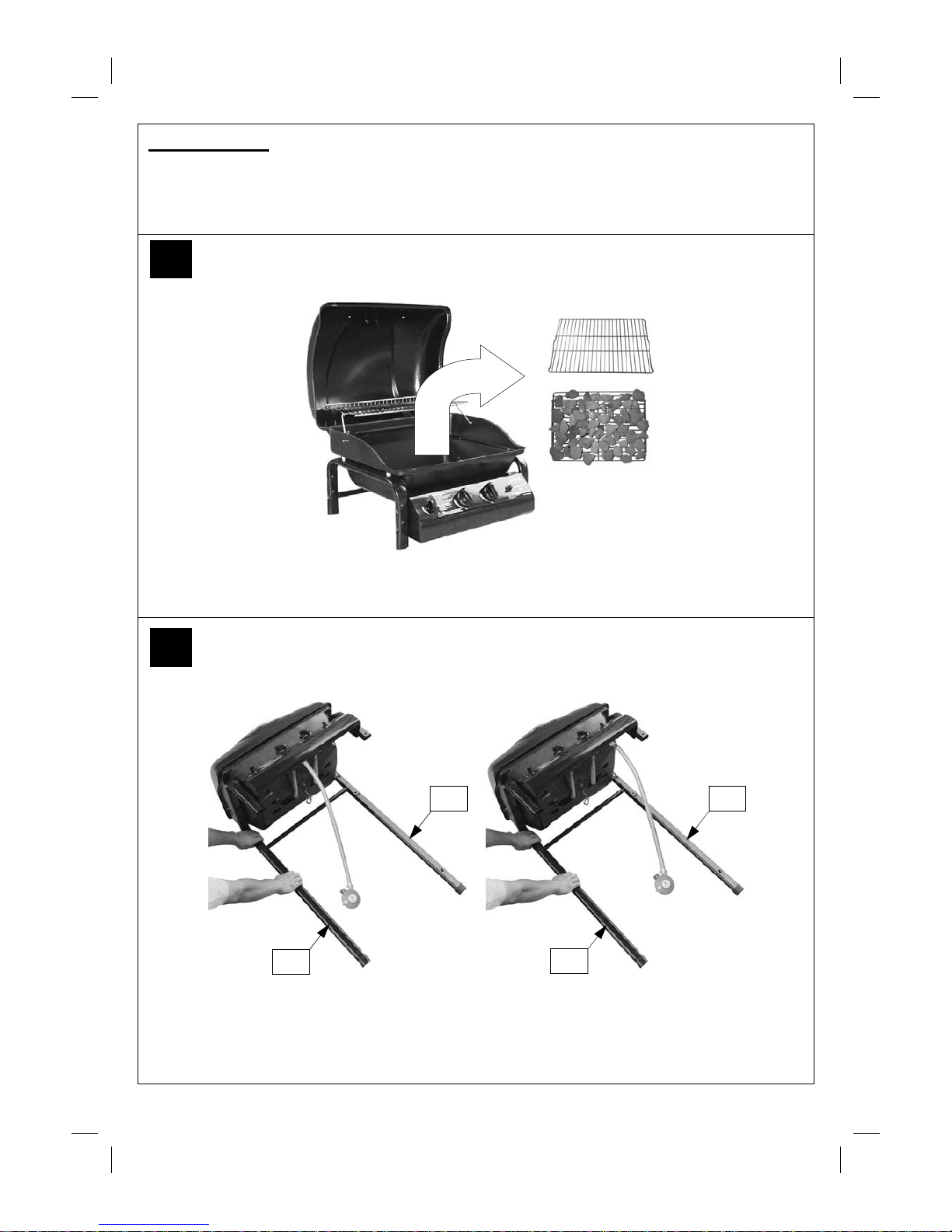

E. Assembly

TOOLS NEEDED FOR ASSEMBLY:

Medium size flat blade or Philips/crosspoint screwdriver, adjustable spanner or metric spanner set

Please lay out all nuts and bolts and check lengths before assembling.

Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp

edges are present.

Warning: Care must be taken to ensure hood does not fall open unexpectedly.

1  Omega 100  Omega 200  Omega 300

 Omega 100  Omega 200  Omega 300

Omega 100 and Omega 200 Omega 300

*NOTE: The Warming Rack is not supplied for Omega 100 and Omega 200

*NOTE: Take care to fix the legs with Velcro attached as shown in the illustration.

3  Omega 100  Omega 200  Omega 300

4  Omega 100  Omega 200  Omega 300

Omega 100 and Omega 200 Omega 300
