Outback Outback Excel 210 Bedienungsanleitung

EX310T

EX210T

Assembly and Operating Instructions for Outback®

Excel 210, and Excel 310 Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice.

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions

could result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets

away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check

that the hose connections are tight and leak test each time you reconnect the

gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other

flammable vapours or liquids in the vicinity

of this or any other appliance.

2. A gas bottle not connected for use must not

be stored in the vicinity of this or any other

appliance.

0359

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

 Pre-Assembled Component

 Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

CODE PART QTY OUTBACK®

EXCEL 210 GAS

OUTBACK®

EXCEL 310 GAS

HOOD

A1 Hood (Pre-Assembled to Body)

1 √ √

A2 Hood Handle 1 √ √

A3 Warming Rack 1 √ √

A4 Heat Indicator 1 √ √

BODY

B1 Barbecue Body 1 √ √

B2 Burner 1 √ √

B3 Control Panel 1 √ √

B4 Knob (Pre-Assembled) 2 √ √

B5 Hose and Regulator Assembly 1 √ √

B6 Lava Rock in Basket 1 √ √

B7 Cooking Grill 1 √ √

B8 Ignition Button (Pre-Assembled) 1 √ √

B9 Control Panel Heat Shield 1 √ √

B10 Main Electrode 1 √ √

B11 Hinge Bracket (Pre-Assembled) 2 √ √

B12 Body Heat Shield 1 √ √

B13 Body Support 2 √ √

B14 Grease Cup Holder 1 √ √

B15 Grease Cup 1 √ √

C1 Side Shelf (with bracket)  1

C2 Side Shelf (without bracket) 1 √ √

C3 Side Shelf Bracket A 1 √ √

C4 Side Shelf Bracket B 1 √ √

C5 Side Burner Knob  1

C6 Side Burner Grid  1

C7 Side Burner Shelf  1

C8 Side Burner  1

C9 Side Burner Electrode  1

C10 Side Burner Valve / Hose Assembly  1

C11 Left Front Leg 1 √ √

C12 Left Rear Leg 1 √ √

C13 Right Front Leg 1 √ √

C14 Right Rear Leg 1 √ √

C15 Gas Bottle Holder 1 √ √

C16 Leg End Loop 1 √ √

C17 Wheel Spacer 2 √ √

C18 Wheel 2 √ √

C19 Axle 1 √ √

C20 Bottom Shelf 1 √ √

C21 Gas Bottle Strap 1 √ √

HARDWARE

D1 M6x15 Bolt 28 √ √

D2 M5x10 Bolt 4 √ √

D3 M4x10 Bolt  1

D4 ST4.0x10 Screw 7 √ √

D5 ST4.0x15 Screw 4 √ √

D6 ST4.8x15 Screw 2 √ √

D7 M8 Locknut 2 √ √

D8 M5 Nut 2 √ √

D9 Spacer  10 6

D10 Hose Tidy 1 √ √

TROLLEY

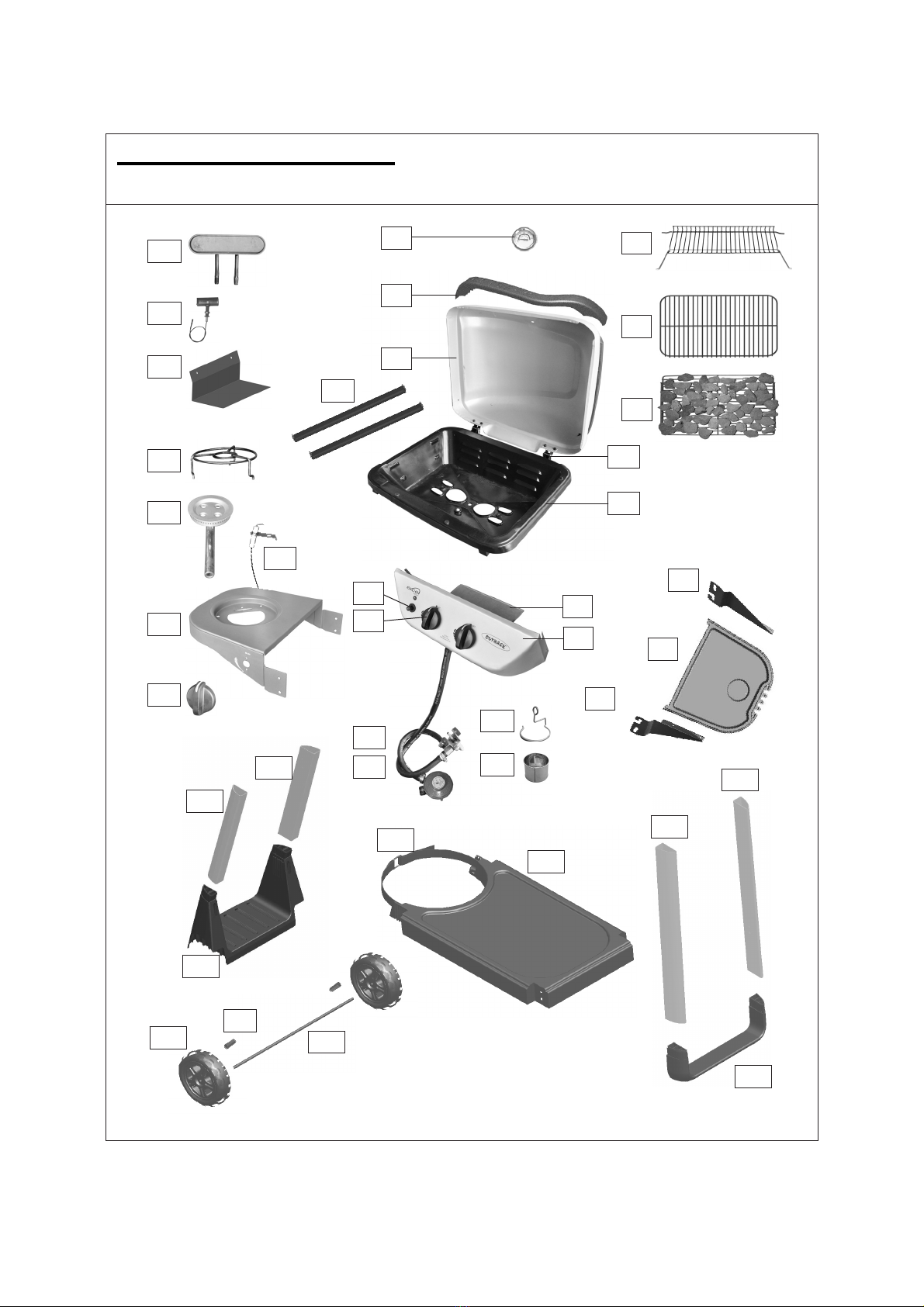

Parts Diagram: Excel 210

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B12

B13

B10

C12

C21

C15

C18 C19

C16

C13

C14

C20

C11

C17

B11

B15

B14

Hardware Reference Diagram: Excel 210

Specifications subject to change without prior notice.

D10

B11

Parts Diagram: Excel 310

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B12

B13

B10

B15

B14

C12

C21

C15

C18 C19

C16

C13

C14

C20

C11

C17

C10

Hardware Reference Diagram: Excel 310

Specifications subject to change without prior notice.

D2D4

D9 D5 D7D6

D10

C14

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 The assembly of this barbecue requires 2 people.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Front Leg

(C11) and Left Rear Leg

(C12) to the Gas Bottle

Holder (C15) using

ST4.0x10 Screws(D4).

C16 Attach the Right Front Leg

(C13) and Right Rear Leg

(C14) to the Leg End Loop

(C16). The legs are a push

fit onto the leg end loop. In

case of difficulty, they may

need tapping with a soft

faced mallet. Take care not

to damage the parts.

1 Excel 210 Excel 310

Excel 210 Excel 310

C11

C12

C15

C13

C14

Attach the Bottom Shelf (C20) to the Gas Bottle

Holder (C15) using ST4.8x15 Screws (D6). Take

care not to over tighten these screws which will

damage the plastic gas bottle holder.

Note: This step assembly requires 2 people.

Attach the leg assembly to the

bottom shelf assembly using

M6x15 Bolts (D1).

3 Excel 210 Excel 310

Excel 210 Excel 310

C20

C15 D6

Slide the Wheels (C18) over

each end of the axle. Secure

the wheels into place with the

M8 Locknuts (D7).

Insert the Axle (C19) through the clamping brackets underneath

the Gas Bottle Holder (C15) and tighten the clamping screws.

Take care not to over tighten these screws which will damage the

plastic gas bottle holder.

Slide a Wheel Spacer (C17) over each end of the Axle (C19).

Note: the spacers are packed in a plastic bag with the main elec-

trode, grease cup holder and grease cup.

Attach the Body Support (B13) to the legs

using M6x15 Bolts (D1).

Carefully turn the completed trolley over, right

side up.

5 Excel 210 Excel 310

Excel 210 Excel 310

C15

C19

C17

C18

B13

√

a. Unscrew the nut from the Heat Indicator(A4).

Place the heat indicator through the hole on the

top of Hood(A1). Tighten the heat indicator with

the nut.

b. Attach the Hood Handle (A2) to the Hood

(A1) using the M5x10 Bolts (D2).

Carefully place the Barbecue Body (B1) onto the tops of the legs.

Attach the barbecue body to the trolley assembly using the M6x15 Bolts (D1). Ensure the tabs on the

body fit over the legs as shown in the diagram and do not go down inside of the legs.

WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN

PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.

7 Excel 210 Excel 310

Excel 210 Excel 310
