Work-Shed Vac

1100 Watt

Operation Manual

3 Year Replacement Warranty

WVG-951

To view the full range visit: www.ozito.com.au

0209

SPECIFICATIONS – MODEL NO. WVG-951

Motor: 1100W

Input: 220 - 240V ~ 50Hz

Max. vacuum: 15.5 Kpa

Hose length: 2m

Hose diameter: 64mm

Tank capacity: 20 litres

Features: Wet & dry vacuuming

Blowing function

Hose attachments included

Carry handle

Cord retention hooks

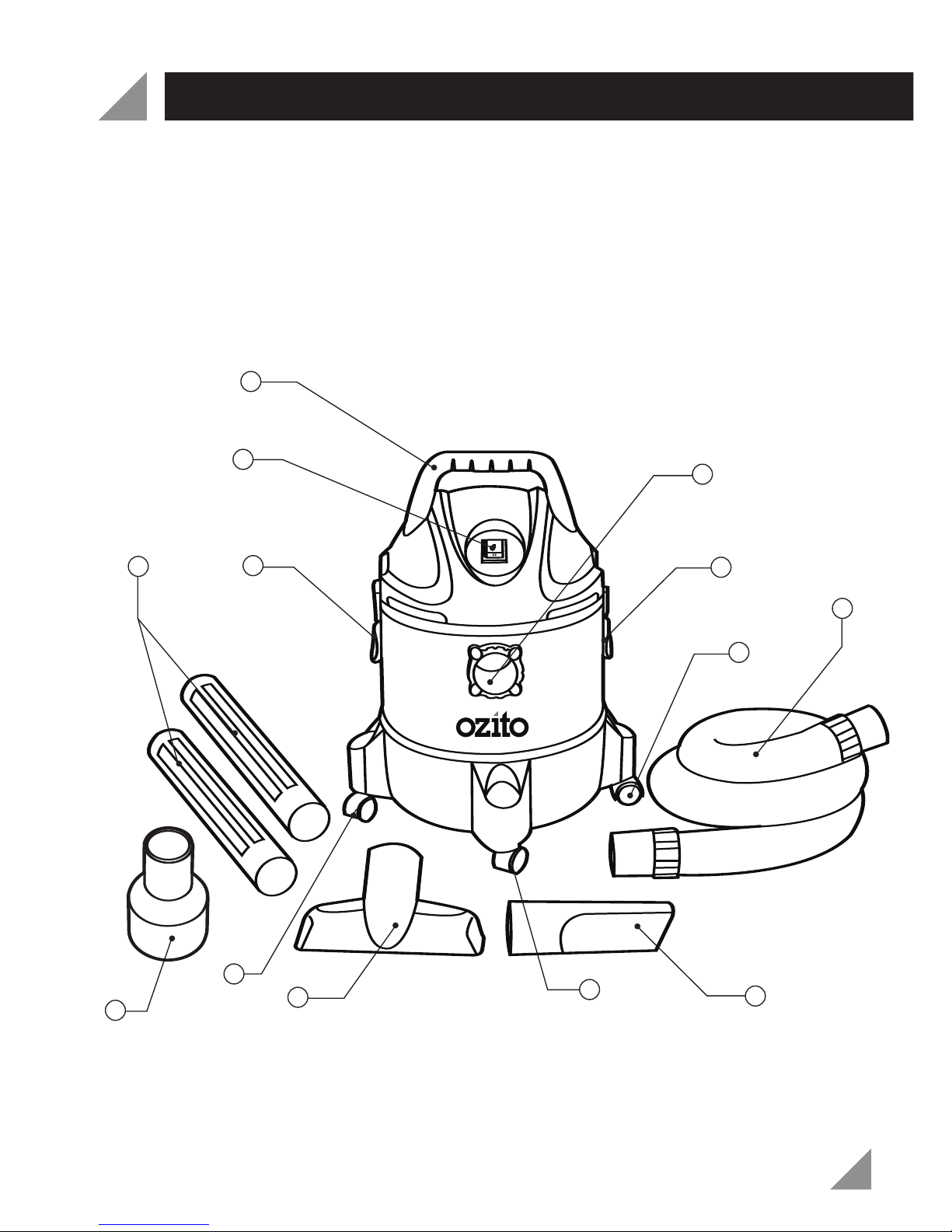

1. Extension tubes

2. Motor securing clips

3. On/Off switch

4. Carry handle

5. Vacuum inlet

6. Castor wheels

7. 2m Hose

8. Crevice tool

9. Floor attachment

10. Adaptor

INTRODUCTION

SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

Warning! When using mains-powered equipment, basic safety precautions,

including the following, should always be followed to reduce risk of fire,

electric shock, personal injury and material damage.

Read and understand the manual prior to operating this tool.

Save these instructions and other documents supplied with this tool for future reference.

The electric motor has been designed for 230V and 240V only. Always check that

the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for

Australia and New Zealand.

This tool is double insulated in accordance with AS/NZS 3100: 2002;

therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool

repairer in order to avoid a hazard.

Note: Double insulation does not take the place of normal safety precautions when

operating this tool. The insulation system is for added protection against injury

resulting from a possible electrical insulation failure within the tool.

Congratulations on purchasing an Ozito Work-Shed Vac.

We aim to provide quality tools at an affordable price.

We hope you will enjoy using this product for many years.

Your Work-Shed Vac WVG-951 has been designed for both

wet and dry vacuuming and also has a blower function. Ideal

for cleaning up spills or something as simple as removing

water from a blocked sink. It can also be used as a workshed

vac to clean up around the home and shed after renovation

or DIY projects. It is intended for DIY use only.

ELECTRICAL SAFETY (cont.)

GENERAL

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before

use, inspect the extension lead for signs of damage, wear and ageing. Replace the

extension lead if damaged or defective. When using an extension lead on a reel,

always unwind the lead completely. Use of an extension lead not suitable for the

power input of the tool or which is damaged or defective may result in a risk of fire

and electric shock.

1. Keep work areas clean. Cluttered work areas and benches can cause accidents.

2. Consider work area environment. Do not expose your tool to high humidity or

rain. Keep the work area well lit. Do not use your tool where there is a risk of

causing fire or explosion, e.g. in the presence of flammable liquids and gases.

3. Keep children away. Do not allow children, visitors or animals to come near the

work area or to touch the tool or power lead.

4. Dress appropriately. Do not wear loose clothing or jewellery, as these can be

caught in moving parts.

5. Head protection. Always use safety glasses. Use a face or dust mask whenever the

operations may produce dust or flying particles.

6. Guard against electric shock. Prevent body contact with earthed or grounded

surfaces (e.g. pipes, radiators, cookers and refrigerators). Electric safety can be further

improved by using a high sensitivity (30 mA / 30 ms) residual current device (RCD).

7. Do not overreach. Keep proper footing and balance at all times.

8. Stay alert. Watch what you are doing. Use common sense. Do not operate the

tool when you are tired.

9. Extension leads. Before use inspect the extension leads and replace if damaged.

10. Use appropriate tool. The intended use is described in this instruction manual.

Do not force small tools or attachments to do the job of a heavy duty tool. The

tool will do the job better and safer at the rate for which it was intended. Do not

force the tool.

Warning! The use of any accessory or attachment, or performance of any

operation with this tool other than those recommended in this instruction manual

may present a risk of personal injury.

11. Check for damaged parts. Before use carefully check the tool and power lead

for damage. Check for misalignment and seizure of moving parts, breakage of

parts, damage to guards and switches and any other conditions that may affect

its operation. Ensure that the tool will operate properly and perform its intended

function. Do not use the tool if any parts are damaged or defective. Do not use

the tool if the switch does not turn it on and off. Have any damaged or

defective parts repaired or replaced by an electrician or a power tool repairer.

Never attempt any repairs yourself.

12. Unplug the tool. Shut off the power and wait for the tool to come to a

complete standstill before leaving it unattended. Unplug the tool when it is not

in use, before changing any parts of the tool, accessories or attachments and

before servicing.

13. Avoid unintentional starting. Do not carry the tool with a finger on the on/off

switch. Make sure the tool is switched off when plugging in.

14. Do not abuse the cord. Never carry the tool by its cord or pull it to disconnect

from the socket. Keep the cord away from heat, oil and sharp edges.

15. Connect dust extraction equipment. If devices are provided for the

connection of dust extraction and collection facilities, ensure that these are

connected and properly used.

16. Store idle tools. When not in use, tools should be stored in a dry, locked up or

high place, out of reach of children.

17. Maintain tools with care. Keep tools clean and in good condition for better

and safer performance. Follow the instructions for maintenance and changing

accessories. Keep handles and switches dry, clean and free from oil and grease.

18. Have your tool repaired by an electrician or a power tool repairer.This

power tool complies with relevant safety requirements. To avoid danger,

electrical appliances must only be repaired by qualified technicians using

original spare parts; otherwise this may result in considerable danger to the user.

19. Users. This appliance is not intended for use by young children or infirmed

persons without supervision. Young children should be supervised to ensure

that they do not play with this appliance.

20. Replacement of the supply cord. If the supply cord is damaged, it must be

replaced by an electrician or a power tool repairer in order to avoid a hazard.

GENERAL (cont.)

SAFETY INSTRUCTIONS FOR VACUUM CLEANERS

Keep the supply cord dry and out of water.

Do not aim the hose at other persons or animals.

Never pick up asbestos or asbestos dust.

Wood dust and shavings in a confined area can give rise to fire or an explosion.

Guard against possible ignition sources.

Do not pick up any material that is burning or smouldering such as metal grinding

dust, cigarette ends, matches etc.

Never try to move the Vac via the mains lead.

Do not vacuum dry matter without the cartridge filter assembled.

Do not vacuum liquids without the foam filter assembled.

Always switch the unit off before changing attachments, filters and emptying the tank.

Unpack the Work-Shed Vac and all its contents from the carton. Release the two motor

retaining clips on the side of the Vac and remove the motor from the tank body.

Remove the components from with in the tank.

Castor Wheels

Place the tank body upside-down, assemble the castor wheels to the base of the tank

by firmly pushing the ribbed ends into the four holes. Once fitted, they will remain in

place permanently.

Hose and Attachments

Insert the smaller end of the hose into the matching vacuum inlet on the side of the

orange tank body. Secure by pushing and slightly rotating the hose end. Fit the two

extension tubes together then insert the remaining end of the hose into the larger end

of the joined extension tubes.

Two attachments have been included:

1 x Crevice nozzle

1 x Floor attachment

These can be fixed to the end of the extension tube by firmly inserting the extension

tube into the matching end of the attachment.

Fitting Floor attachment

Fit the adaptor (10) onto the end of the extension tube (1).

Fit the floor attachment (9) to the adaptor (10).

ASSEMBLY

On/Off Switch

To turn the unit on, press the switch on top of the unit to the “I” setting. To turn

the unit off press the switch to the “0” setting.

Note: Prior to turning on the unit, always fully unwind the power cord.

Vacuuming Dry Matter

1. Disconnect the unit from the power supply.

2. Release the two motor securing clips and lift the motor from the top of the

tank. If the foam filter is assembled to the motors black bracket, remove it. Fit

the cartridge filter (with the rubber seal) over the bracket.

3. Ensure the inside of the tank and underside of the motor are both dry.

4. Fit the motor with the cartridge filter assembled back to the tank and secure in

place by refastening the two motor securing clips. Do not use the foam filter

when dry vacuuming.

Note: When vacuuming dry matter always have the cartridge filter assembled.

Failure to do so could cause the motor to fail. Do not use the foam filter when

vacuuming dry matter. Damage caused by incorrect operation will not be

covered under warranty.

If the suction power remains low after emptying the tank the filter may need

to be cleaned.

To clean the cartridge filter, first remove it from the motor bracket. Shake or brush

off excess dirt or rinse (from the inside of the filter) with soap and water. Allow the

filter to dry completely before using.

Vacuuming Liquid

1. Disconnect the unit from the power supply.

2. Release the two motor securing clips and lift the motor from the top of the

tank. If the cartridge filter (with the rubber seal) has been previously assembled,

remove it. Fit the foam filter over the bracket.

3. Remove all dirt and debris found in the tank.

4. Fit the motor with the foam filter assembled back to the tank and secure in

place using the two motor securing clips. Do not use the cartridge filter

when wet vacuuming.

5. Re-connect the unit to the power supply.

6. When vacuuming liquids never fully submerge the end of the hose into the water.

Always ensure only half the end of the hose is submerged in the liquid. This allows

airflow which is needed for the Vac to work effectively. By not allowing airflow,

unnecessary load is placed on the motor which could lead to motor failure.

7. After vacuuming liquids, raise the hose to drain excess liquid into the tank

before turning off the unit.

OPERATION

OPERATION (cont.)

8. The tank has an internal float which rises with the liquid level until it seats itself

against a seal at the intake of the motor, when this happens the suction is shut off.

When the suction is shut off the motor will develop a higher than normal pitched

noise. Do not continue vacuuming when this happens. Switch the motor off.

Disconnect the power supply, remove the motor from the tank. Proceed to empty

the tanks contents into a suitable drain. Use special care when emptying heavily

loaded tanks.

After completing the job, disconnect the power supply. Remove the motor and empty

the liquid from the tank. Clean and dry the tank and underside of the motor before

storing the unit. Clean the filter, especially after vacuuming sticky liquids. To clean the

foam filter, first remove it from the motor bracket then rinse with soap and water.

Note: When vacuuming liquids always have the foam filter assembled. Failure to

do so may cause the motor to fail. Do not use the cartridge filter when vacuuming

liquids, this will prematurely damage the cartridge filter and will also harm the

motor. Damage caused by incorrect operation will not be covered under warranty.

Blowing

To utilise this function remove the hose from the vacuum inlet and push it into the into

the blower port in the top of the motor housing. Switch the unit on as per usual. This

can be used to clear matter from surfaces and also clear obstructions in the hose.

•Ensure the Vac has been fully emptied of any dry matter or liquid before it is stored.

• Wrap the power cord around the cord retention hook (above one of the rear castor

wheels) and the blower port.

•Keep all the accessories with the unit to avoid losing them.

• Keep in a dry place out of reach of children.

• To prolong the life of the motor filter and dust bag, periodically clear them of dust

and debris by giving them a good shake.

•When necessary replacement motor filters are available through Ozito Industries.

• Do not oil the motor.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the

repair of the product by an unauthorised person or by mishandling of the product.

STORING

MAINTENANCE

1 x Work-Shed Vac WVG-951 4 x Castor wheels

1 x Hose 1 x Foam filter

2 x Extension tubes 1 x Cartridge filter (assembled)

1 x Crevice tool 1 x Adaptor

1 x Floor attachment 1 x Instruction manual

CONTENTS

OZITO INDUSTRIES PTY LTD

AUSTRALIA (Head Office)

1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175

Telephone: 1800 069 486

Facsimile: +61 3 9238 5588

Website: www.ozito.com.au

Email: [email protected]

WARRANTY

THIS WARRANTY FORM AND CONFIRMED BUNNINGS REGISTER RECEIPT SHOULD

BE RETAINED BY THE CUSTOMER AT ALL TIMES

The warranty is only made available by returning the product to your nearest

Bunnings Warehouse with a confirmed Bunnings register receipt.

PURCHASED FROM: ________________________________________________

DATE PURCHASED: _________________________________________________

3 YEAR REPLACEMENT WARRANTY

Your Ozito tool is guaranteed for a period of 36 months from the original date of

purchase and is intended for DIY (Do it yourself) use only.

WARNING

The following actions will result in the warranty being void.

•Professional, Industrial or high frequency use.

• If the tool has been operated on a supply voltage other than that specified on

the tool.

•If the tool shows signs of damage or defects caused by or resulting from abuse,

accidents or alterations.

• If the tool is disassembled or tampered with in any way.

Note: Warranty excludes consumable parts such as hoses, attachments and filters.

PRIOR TO RETURNING THIS PRODUCT

FOR WARRANTY OR REPAIR

PLEASE TELEPHONE OUR CUSTOMER SERVICE LINE

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER

AND DATE OF PURCHASE AVAILABLE.

AN OZITO CUSTOMER SERVICE REPRESENTATIVE

WILL TAKE YOUR CALL AND ADVISE YOU OF THE PROCEDURE TO

FOLLOW TO OBTAIN A SPEEDY OUTCOME TO YOUR ENQUIRY.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Ozito Staubsauger Handbücher

Ozito

Ozito VWD-1425PT Bedienungsanleitung

Ozito

Ozito VWD-1220PT Bedienungsanleitung

Ozito

Ozito PXC PXHVS-218 Bedienungsanleitung

Ozito

Ozito VWD-1530 Bedienungsanleitung

Ozito

Ozito VWD-1212 Bedienungsanleitung

Ozito

Ozito PXHVS-250U Bedienungsanleitung

Ozito

Ozito WDVB-1312 Bedienungsanleitung

Ozito

Ozito VWD-1212U Montageanleitung

Ozito

Ozito OZDE1015WA Bedienungsanleitung

Ozito

Ozito VWD-1220U Bedienungsanleitung

Ozito

Ozito PXWDVS-1080 Bedienungsanleitung

Ozito

Ozito WMV-1200 Bedienungsanleitung

Ozito

Ozito HVR-006 Bedienungsanleitung

Ozito

Ozito VWD-1235PT Bedienungsanleitung

Ozito

Ozito VWD-1225PT Bedienungsanleitung

Ozito

Ozito PXHVS-250 Bedienungsanleitung

Ozito

Ozito HVR-006 Bedienungsanleitung

Ozito

Ozito Work-Shed Vac WVG-951 Bedienungsanleitung

Ozito

Ozito PXVWDS-1818 Bedienungsanleitung

Ozito

Ozito VWD-1220 Bedienungsanleitung

Ozito

Ozito VWD-1220S Bedienungsanleitung

Ozito

Ozito VWD-1212 Bedienungsanleitung

Ozito

Ozito PXVWDS-1818U Bedienungsanleitung

Ozito

Ozito VWD-1220PT Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
