LASER TYPE

PARTICULATE MATTER (PM) SENSOR

SN-GCJA5L

Evaluation Kit Instruction Manual

na.industrial.panasonic.com/laser-type-pm-sensor-eval-kit

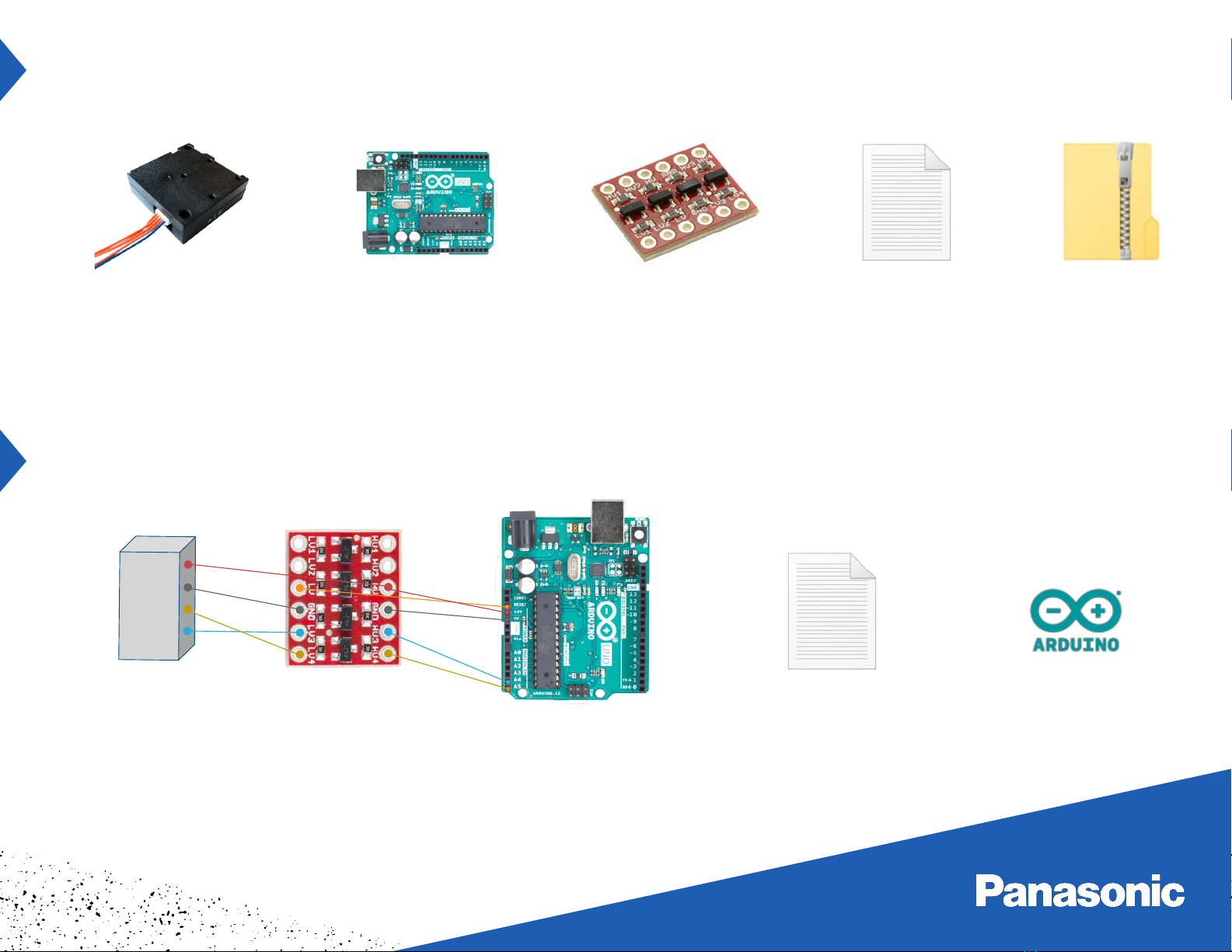

ITEMS NEEDED FOR EVALUATION:

Panasonic Laser PM Sensor

And Lead Wire With Connector

Software For

Arduino Uno

Software For

Arduino Uno

Software For

PC application

Arduino IDE (Driver)

https://www.arduino.cc/en/Main/Software

w x

v w

BOB-12009 Bidirectional I2C

Voltage Level Shifter Using FET

WIRING AND CONNECTION TO ARDUINO®UNO

BOB-12009

Bidirectional I2C Voltage

Level Shifter Using FET Switch Science

Arduino UNO Board

Switch Science

Arduino UNO Board

JST Connector

SHR-05V-S

*NC(blue lead) is NA

*Recommended Lead Wire AWG26

VDD

GND

SCL

SDA

TEST BOARD SETUP MANUAL

Software For PC Application

PM25TestChecker

180702.zip

PM25TestChecker

180702.zip

Arduino Drivers

PM25TestChecker

180702

PM25TestChecker

180702.exe

Arduino Drivers

PM25TestChecker

180702.exe

WIRING AND CONNECTION TO ARDUINO UNO (CONT.)

1 Unzip "PM25TestChecker180702.zip"

2 In the “PM25TestChecker180702”, there are “Arduino Drivers” folder and "PM25TestChecker180702.exe" folder.

• "Arduino Drivers" folder is for (Arduino Uno board’s driver install).

• "PM25TestChecker180702.exe" is for (how to get the data with Arduino Uno board)

TEST BOARD DRIVER INSTALL

1 Connect Arduino Uno board to Windows PC by USB cable. The PC Windows version should be Windows7.

2 Install the driver automatically. (If install fails, go to number 3).

3 Start the device manager.

4 If display ”Unknown device”, click this file.

If nothing, right-click the Arduino like icon inside ”port (COM and LPT)” and click software update.

5 Select ”refer the driver software on this computer”.

6 Select the “Arduino Drivers” folder. Check to “search sub folder also” and next.

7 Finish the install and confirm there is “Arduino UNO” on the port (COM and LPT). Note the port number.

8 If “Arduino Uno” not shown, please try again.

1 Make a copy “PM25TestChecker180702.exe” on PC.

2 Connect the Arduino Uno board and sensor by the connector.

3 Click and start “PM25TestChecker180702.exe”.

4 Under “COM Port” please click on “COMM Search.

5 Otherwise click on “COMM Search.

6 Click on “START” and begin measuring.

7 Click on “STOP” to stop measuring.

8 Click on “SAVE LOG” to save data

* Interval time is fixed

{ |

DATA RETRIEVAL

INSTRUCTIONS FOR PM2.5 MONITORING

Number of measurement

Log data

PM1.0 mass-density value

PM2.5 mass-density value

PM10 mass-density value

Interval time is fixed

Stop Measurement

Clear Log Save Log

PM25TestChecker

180702.exe
