Panasonic AJ-YAD455 Bedienungsanleitung

AJ- P

Digital Video Interface Board

Operating Instructions

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

1(E)

THE AJ-YAD455P IS A DIGITAL VIDEO INTERFACE

BOARD WHICH IS DESIGNED TO BE USED ONLY

WITH THE AJ-D455 DIGITAL VTR: IT CANNOT BE

USED WITH EITHER THE AJ-D450 OR AJ-D440.

REFER MOUNTING OF THE AJ-YAD455P INTO THE

AJ-D455 TO AUTHORIZED SERVICE PERSONNEL.

ODo not touch this product with wet hands.

ODo not drop this product or subject it to other strong

shocks.

ODo not attempt to modify this product. Doing so may

cause it to malfunction.

The AJ-YAD455P is a digital video interface board for use

exclusively with the AJ-D455.

By installing it in the AJ-D455, AV signals and time codes

can be transferred digitally to personal computers or digital

VTRs. (Compliant with the IEEE1394-1995 standard)

ODepending on the application software program of the

computer concerned, it may not be possible to transfer

the signals and time codes.

AJ-D455 digital VTR

Features

Model supported:

Precautions

2(E)

ENGLISH

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Model supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation in AJ-D455 . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

AJ-D455 settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Precautions for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setup menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

DIAG menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Contents

3(E)

$Digital video interface board

Dimensions (WtHtD):

5-11/16˝t5-9/16˝t9/16˝ (143t140t13 mm)

Weight:

0.246 lb (112 g)

$Input/output facility

Connector:

6-pin type

Transfer rate:

100 Mbps

Transfer data:

Compliant with IEC-61883/FDS (Part-1, 2)

Control commands:

Compliant with AV/C command set

Accessories

Connector board (t1)

Connecting cable (t1)

Specifications

4(E)

ENGLISH

The AJ-YAD455P must be installed in the AJ-D455 in order

for it to be used. Follow the procedure below for installation.

Coin screws

2. Check that the DIP switches on the AJ-YAD455P are

set to the positions shown in the figure below.

SW-1

SW-2

Installation in AJ-D455

3. Remove the 2 coin screws and top panel from the unit.

1. Disconnect the power cord from the unit.

Consult your dealer concerning the installation of

the digital video interface board.

5(E)

Screw

Screws

Board clamp

Rear panel

Installation in AJ-D455

4. Remove the screw and the board clamp.

5. Remove the 6 screws and pull the rear panel directly

backwards to remove.

6(E)

ENGLISH

Screw

Connector board

Screw

Blank panel

Installation in AJ-D455

6. Remove the screw and remove the blank panel from the

rear panel.

7. Attach the accessory connector board to the rear panel.

Pass the wiring through the rear panel, attach the top

side of the connector board and secure the lower side

of the board in place with the screw, as shown in the

diagram below.

7(E)

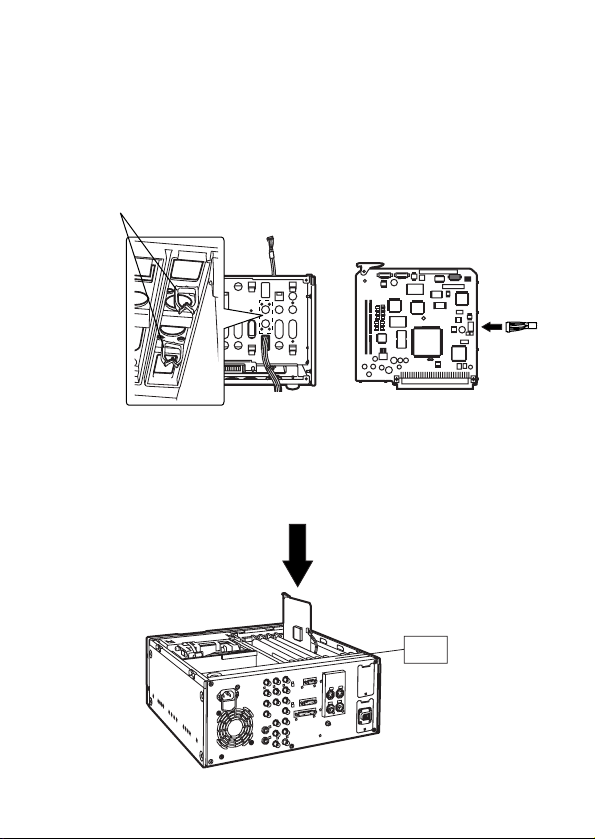

9. Insert the interface board into the front panel side of the

slot marked “F3”.

Installation in AJ-D455

Clampers View from rear

8. Pass the wiring through the unit and secure the rear

panel with the 6 screws. Ensure that wiring and

connections are as shown in the respective diagrams

below.

Connections DiagramWiring Diagram

8(E)

ENGLISH

Installation in AJ-D455

Screw

Coin screws

Board clamp

10. Attach the board clamp with the screw and secure the

top panel to the unit with the 2 coin screws.

9(E)

<Note>

OWith some types of recording tapes, the input data format

is converted automatically.

AJ-D455 settings

Recording tape

DVCPRO

Input data Recording format

DVCPRO DVCPRO

DVCPRO

DVCPRO (21)

21: “CH1/CH2”or “CH3/CH4”can be selected by setup

menu item No.889 (DIF AUD IN) when 32 KHz/4CH

audio data is input.

1. Check that the setup menu item No.220 (AV/C CMD

SEL) is set to “ON.”

3. When inputting signals from the digital video interface

board, set the VIDEO IN switch on the front panel to

“DV/DVCPRO.”

2. Check that “AUTO”has been selected as the setup

menu item No.882 (DIF IN CH) and No.883 (DIF OUT

CH) settings.

NTSC regions
