Order Number SD1106M61AE

Rechargeable Shaver

Model No. ES-LF51

Middle East

TABLE OF CONTENTS PAGE PAGE

1 Warning-------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Disassembly and Assembly Instructions ---------------- 3

4 Schematic Diagram---------------------------------------------- 4

5 Exploded View and Replacement Parts List ------------ 5

Please file and use this manual together with the service manual for Model No. ES-LA93/ES-LA63, Order

No.SD0904E30CE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3 Disassembly and Assembly Instructions

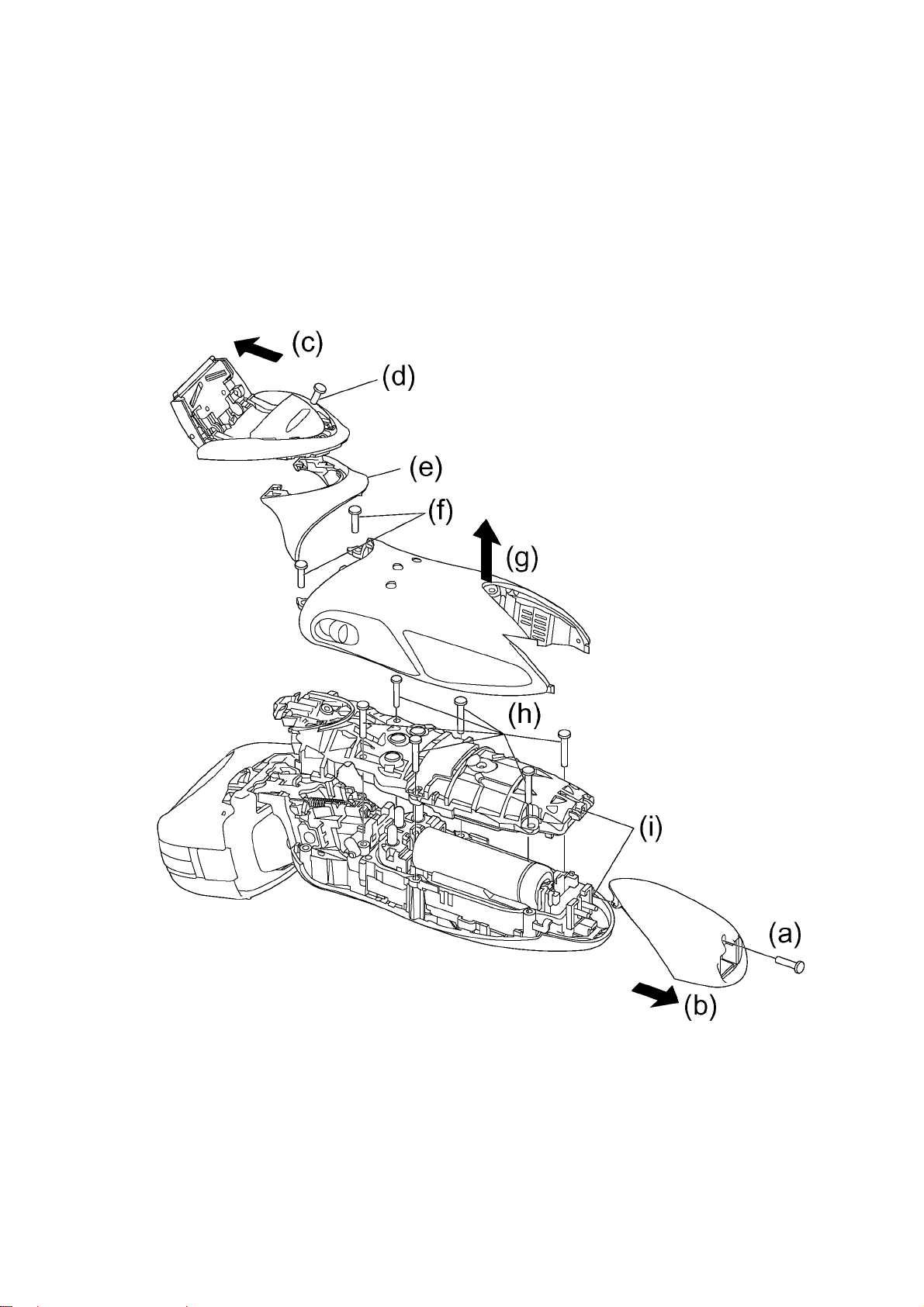

Follow the procedure below to disassemble the main body.

(a) Loosen a screw.

(b) Remove the bottom cover

(d) Loosen a screw.

(e) Remove the upper rear panel.

(f) Loosen two screws.

(g) Remove the rear panel.

(h) Loosen six screws.

(i) Remove the housing B.

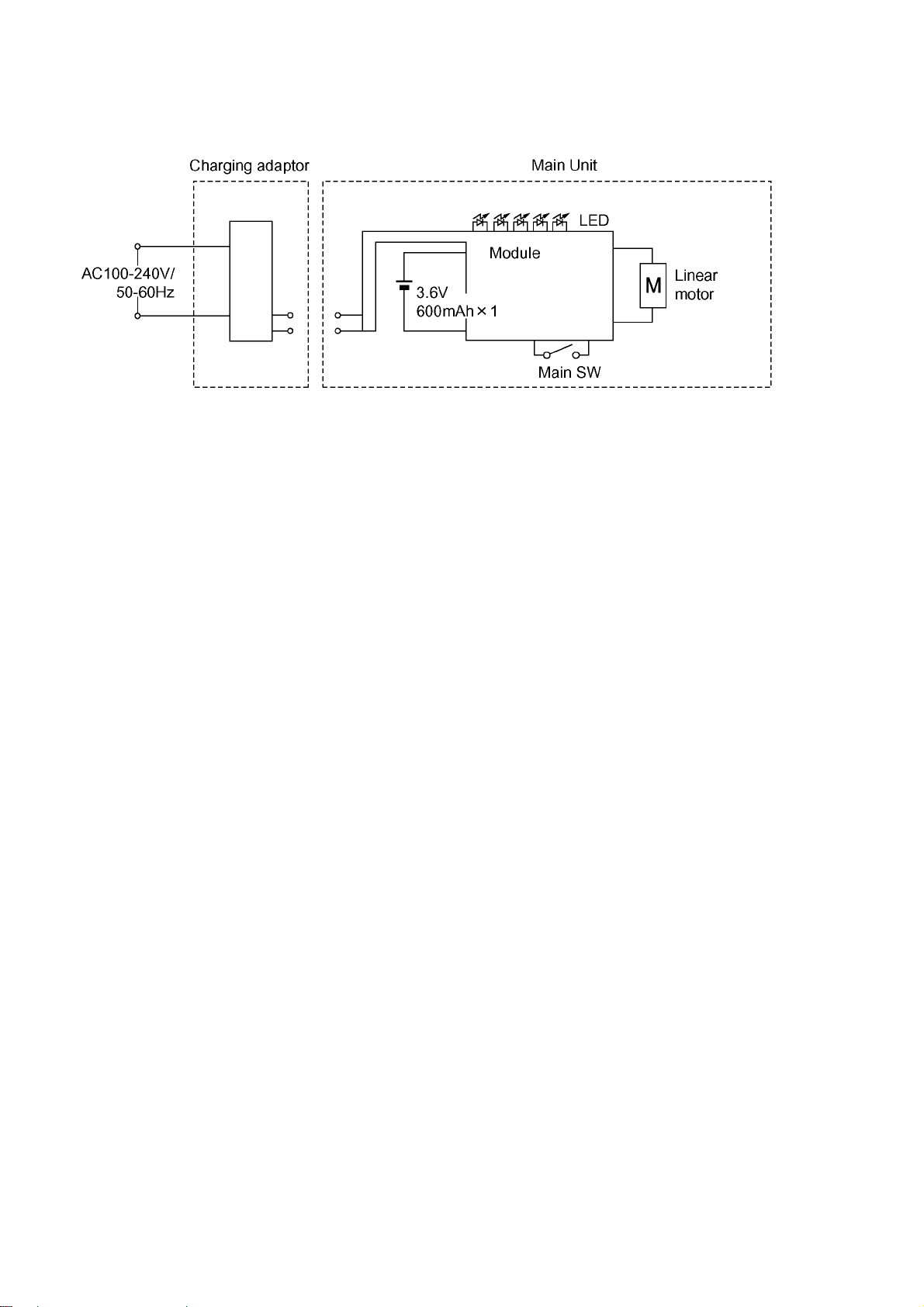

4 Schematic Diagram

Model No. : ES-LF51 Exploded View

5 Exploded View and Replacement Parts List

Model No. : ES-LF51 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

1 WESLF70X7158 PROTECTIVE CAP 1

2 WESLF70S0047 OUTER FOIL FRAME 1

3 WES9167E OUTER FOIL 1

4 WES9068E INNER BLADE 1ST

5 WESLF70L1007 LINEAR MOTOR ASSEMBLY 1

6 WES8258L1087 TRIMMER DRIVING BAR 1

7 WES8258L1077 SLIT BLADE DRIVING BAR 1

8 WES8258L1177 FINISHING BLADE DRIVING BAR 1

9 WES8258L0327 WATERPROOF RUBBER 1

10 WESLF70K3267 FOIL RELEASE BUTTON 2

11 WES8258L0537 TUBE HOLDER 1

12 WESLF51S3058 HOUSING A 1

13 WES8258H3067 HOUSING B 1

14 WES8255L0497 REAR COVER 1

15 WES8176L6007 P TIGHT SCREW 6 (M2-12)

16 WESLF51L2128 MODULE 1

17 WES8176L2508 RECHARGEABLE BATTERY 1 (LI-ION TYPE)

18 WESLF70S1507 TRIMMER 1

19 WES8238L6007 P TIGHT SCREW 1 (M2-6)

20 WES8258S3857 REAR PANEL (UPPER) 1

21 WESLF70K3367 REAR PANEL 1

22 WESLF51S3121 BOTTOM COVER 1

23 WES8176L6057 TAPPING SCREW 3 (M2-8)

24 WESLF51S3031 BODY BLOCK 1

24 WESLV90K7663 CHARGING ADAPTOR 1 (C-2 PLUG)

26 WES8259K7018 SOFT CASE 1

27 WES8093H7057 CLEANING BRUSH 1

28 WES8196X7918 OIL 1

- WESLF51S8001 INDIVIDUAL BOX 1

- WESLF51S8101 OPERATING INSTRUCTIONS 1

ORDER NO. SD1107M60PE

Model No. ES-LF51 <Correction for S/M SD1106M61AE>

Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.

If new part numbers are shown, be sure to use them when ordering parts.

Reason for Change *The circled item indicates the reason. If no marking, see the Notes in the bottom column.

1. Improve performance

2. Change of material or dimension

3. To meet approved specification

4. Standardization

5. Addition

6. Deletion

7. Correction

8. Other

Interchangeability Code **The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.

Parts Set Production

Original Early

A New Late Original or new parts may be used in early or late production set.

Use original parts until exhausted, then stock new parts.

Original Early

B New Late Original parts may be used in early production sets only. New parts may be used in early or late

production sets. Use original parts where possible, then stock new parts.

Original Early

C New Late New parts only may be used in early or late production sets.

Stock new parts.

Original Early

D New Late Original parts may be used in early production sets only. New parts may be used in late production

sets only. Stock both original and new parts.

E Other

Part Number

Model No. Ref. No. Original Part No. New Part No. Notes(*,**) Part Name & Descriptions

ES-LF51 22

WESLF51S3121 WESLF51S3120 *8, **A BOTTOM COVER

ES-LF51 24

WESLF51S3031 WESLF51S3030 *8, **A BODY BLOCK

File this Parts Change Notice with your copy of the Service Manual.
