Panasonic ES518 Bedienungsanleitung

Operating Instructions

Card Sized Shaver

Model No.

ES518

Before operating this unit, please read these instructions completely.

ES518(アジア)09.3.1310:43ページ1

INDEX

ENGLISH Page 4

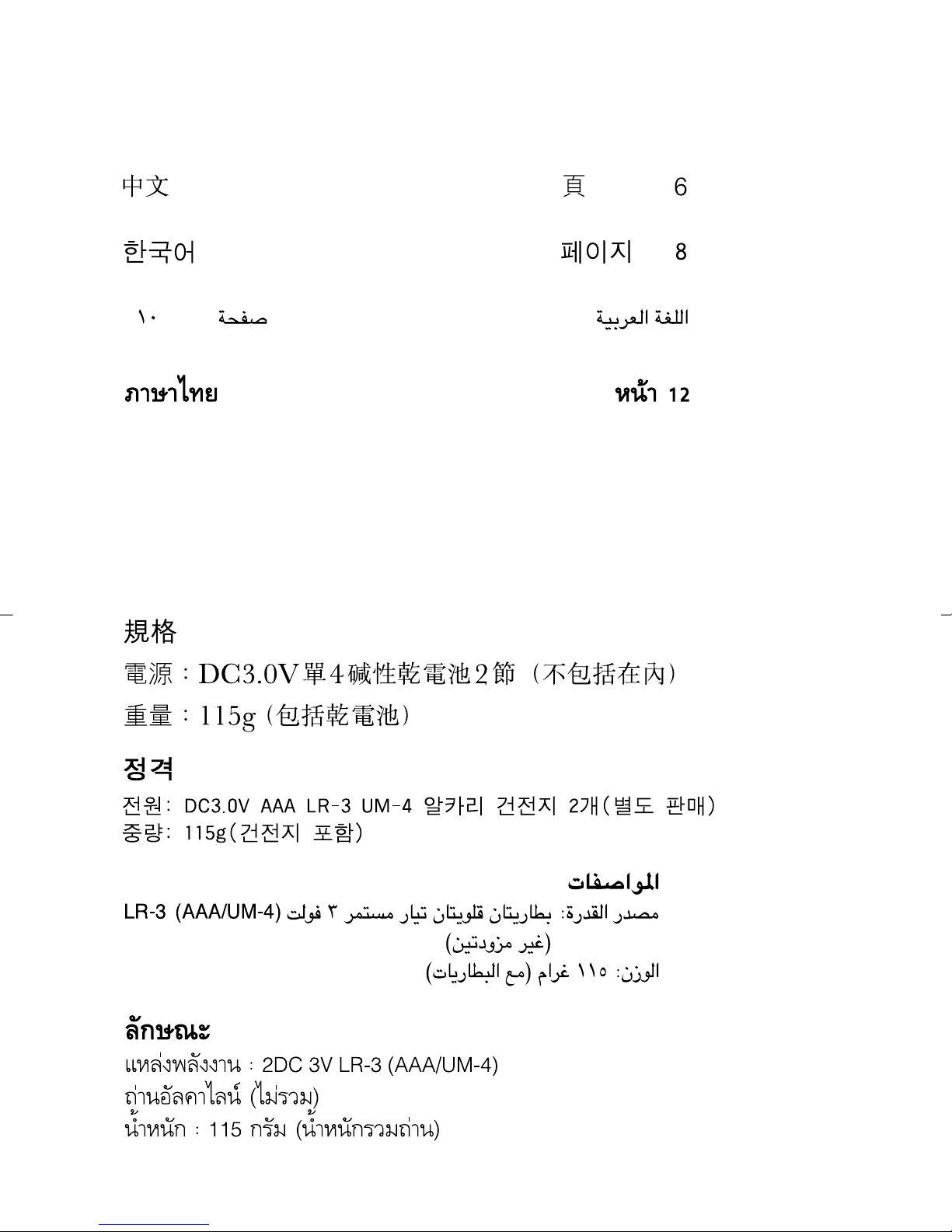

Specifications

Power source: Two DC 3V LR-3 (AAA/UM-4)

alkaline batteries (not included)

Weight: 115g(including batteries)

ES518(アジア)09.3.1310:43ページ2

1 3

ES518(アジア)09.3.1310:43ページ3

Before use

This unit will give you excellent

service over a long period if you

follow a few simple suggestions.

This booklet is designed to help

you get the best possible use

from this unit.

READ ALL INSTRUCTIONS

BEFORE USE.

Parts identification

(See Fig. 1)

AProtective cap

Keep it on the shaver when

the shaver is not in use. To

remove it, put upward.

BOuter foil

This is a precision foil. Do

not handle it roughly.

Dropping the shaver can

result in damage to this deli-

cate foil.

CFoil cassette release button

DInner blade

EInner blade mount

FSwitch

Slide the switch upward to

turn the shaver on.

GBottom cover

Replacing batteries

(See Fig.2)

When the blade speed

decreases, this indicates that the

batteries should be replaced with

new ones. Do not use this

shaver with weak batteries.

Turn the shaver so the bottom is

facing up and remove the bottom

cover.

Insert two LR-3 alkaline

(AAA/UM-4) batteries observing

the Positive (+) and Negative (-)

positions indicated beside the

battery compartment.

Attach the bottom cover.

CDo not press the razor area

when attaching the cover.

Do not combine an old battery

with a new one, or use different

types of batteries together.

CLR-3 alkaline (AAA/UM-4) bat-

teries allow one month of

usage, assuming one two-

minute shave each day.

CUse of batteries other than LR-

3 alkaline (AAA/UM-4) batteries

will reduce power and shorten

shaver life.

Remove the batteries when not

using the appliance for a long

time.

Using your shaver

Remove the protective cap then

switch the shaver on. Using light

pressure, move the shaver

against the direction of beard

growth.

ES518(アジア)09.3.1811:28ページ4

Maintenance

Cleaning

Push the foil cassette release but-

ton and detach the foil frame as

shown. (See Fig. 3)

Grasp inner blade firmly at each

side, and pull straight up. (See

Fig. 4)

Clean away the clippings with the

cleaning brush provided. (See

Fig. 5)

Reassemble the shaver parts in

the reverse order.

Replacing shaving

head components

With daily use, the outer foil may

need to be replaced once every

12 months and the inner blade

every 2 years.

Replacing the outer foil

(WES9933) (See Fig. 3)

Squeeze the foil cassette release

buttons and lift the outer foil up-

ward to remove it.

Insert the new outer

foil (See Fig. 3)

Press down until the outer foil

snaps into place.

Replacing the inner

blade (WES9932) (See

Fig. 4)

Remove the inner blade by grasp-

ing it firmly at both sides and pull-

ing straight away from the shaver.

Inserting the new inner

blade (See Fig. 4)

Hold the inner blade at both sides

and guide it onto the inner blade

mount. Press it firmly into the

mount until it snaps in place.

Caution

Do not wash with water.

CIt may damage the shaver.

Do not leave the shaver where

the temperature is below 0°C

(32°F) or above 40°C (104°F),

where it will be exposed to

direct sunlight or a heat source,

or where there is much mois-

ture.

Do not wipe the shaver body

using anything other than mild

soapy water.

CIt may alter the color of the

shaver.

Do not use the shaver if it has a

damaged foil and/or blade, as in-

jury can result.

Use this shaver for its intended

use, as described in this manual.

ES518(アジア)09.3.1310:43ページ5

ES518(アジア)09.3.1310:43ページ6

ES518(アジア)09.3.1310:44ページ7

ES518(アジア)09.3.1310:44ページ8

ES518(アジア)09.3.1310:44ページ9

ES518(アジア)09.3.1310:44ページ10
