© Panasonic Electric Works Co., Ltd. 2010.

All rights reserved. Unauthorized copying and distri-

bution is a violation of law.

Order Number SD1009U64CE

E6

Rechargeable Shaver

Model No. ES-LT41

North America

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

5 Schematic Diagram ---------------------------------------------10

6 Exploded View and Replacement Parts List -----------11

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

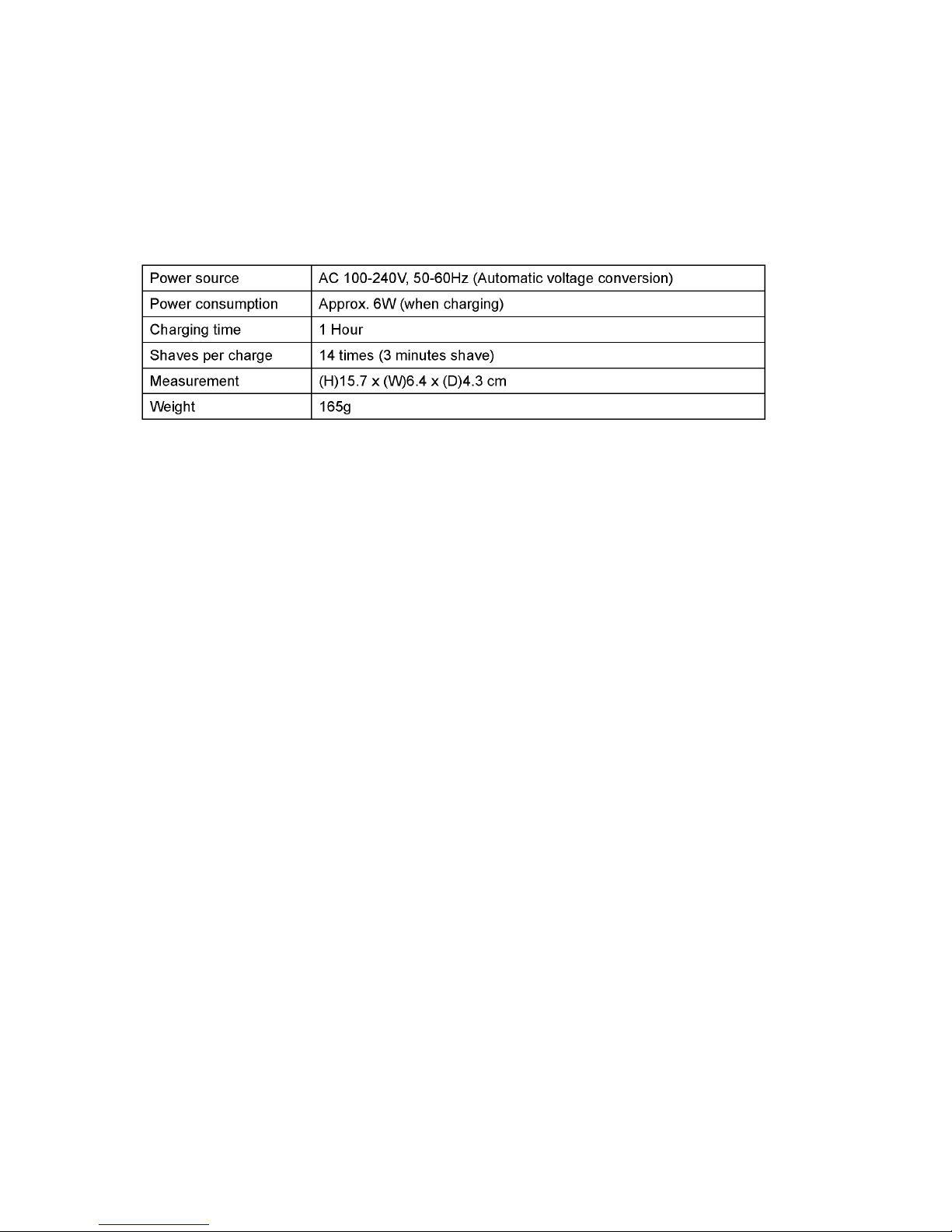

2 Specifications

3

3 Troubleshooting Guide

3.1. Main unit and charging adaptor

4

5

4 Disassembly and Assembly Instructions

4.1. Disassembly Instructions

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil and the inner blade.

2. How to disassemble the housing A and B.

a. Loosen a screw.

b. Remove the bottom cover.

c. Slide the trimmer handle up.

d. Pull out the trimmer vertically.

e. Unhook the bottom of trimmer handle and pull out.

f. Lift up the bottom of rear panel on both side.

g. Remove the rear panel.

h. Loosen eight screws.

i. Remove the housing B.

3. To remove the trimmer driving bar or the slit blade driving

bar, press bars outward.

4. Pull up the battery and chassis block from the linear

motor side first. Then, slide it upward and take it out from

the housing A.

NOTE:

Do not pull the battery and chassis block forcefully

due to connecting the linear motor by the lead wires.

6

5. Take out the battery from the chassis.

6. Take out the tube holder.

7. Move gently the linear motor assembly down and unhook

it and remove the float springs from housing A.

8. Unsolder the lead wires from the module.

7

4.2. Caution in Assembly

NOTE:

When reassembling, replace the new waterproof seal. Make sure whether there is NO foreign substance sticking around a part

covered with waterproof seal.

1. Solder the lead wires with the module.

NOTE:

Make sure of the color of lead wires.

2. When inserting the module and chassis block into the

housing A, confirm if the module does not get any dam-

age or deformation.

3. Twist the lead wires and place them in the ribs.

8

4. Set the linear motor assembly on the housing A and slid-

ing it upward to hook. Confirm that the lead wire tube fits

to the housing A firmly and no foreign substance sticking

around. Attach the tube holder with the lock lever shaft to

housing A with care of the direction.

5. When putting the housing A and the housing B together,

make sure if the waterproof seal must be fitted properly

and no foreign substance sticking around.

6. Tighten the six screws.

NOTE:

Make sure to attach the connecting plate.

7. Insert two hooks on top of the rear panel into the dent of

housing first and attach the rear panel firmly. Set the rear

panel with the position “LOCK”.

NOTE:

Make sure of the smooth movement of the lock lever

shaft.

9

8. Attach the bottom cover and tighten a screw.

9. Set the trimmer driving bar and the slit blade driving bar.

10. Set the trimmer where removing it and click the hook. If

the position is not properly, it makes the deformation of

the hook.

10

5 Schematic Diagram
