Panasonic ES-SL41 Bedienungsanleitung
© Panasonic Corporation, 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
Order Number SD1203A33CE
Rechargeable Shaver
Model No. ES-SL41
Asia
Middle East
TABLE OF CONTENTS PAGE PAGE
1 Warning-------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide----------------------------------------- 3
4 Disassembly and Assembly Instructions ---------------- 4
5 CAUTIONS IN ASSEMBLY------------------------------------- 8
6 Schematic Diagram---------------------------------------------11
7 Exploded View and Replacement Parts List -----------12
2
1Warning
Caution:
• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-
ing iron, please be careful not to heat too long.
• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

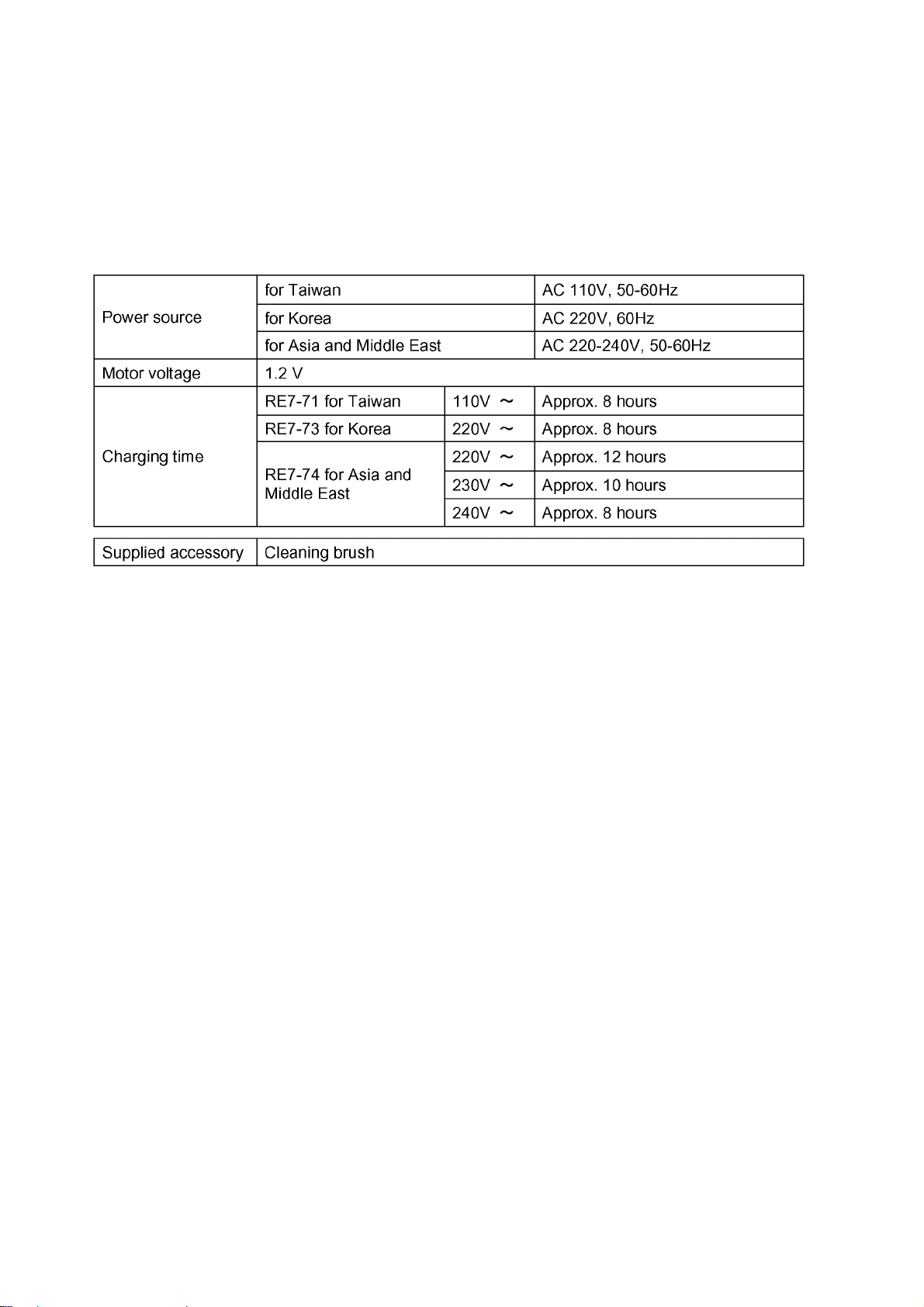

2 Specifications
3
3 Troubleshooting Guide
4
4 Disassembly and Assembly Instructions
Follow the procedure below to disassemble the main unit.
1. Remove the cap, the outer foil with foil frame and the
inner blades.
2. Slide the trimmer handle up to open the trimmer and
unhook the trimmer handle by inserting something like a
slotted screwdriver or plastic spatula into a slit.
NOTE:
Make sure not to scratch or damage on the housing.
3. Loosen a screw from inside of trimmer assembly.
4. Loosen a screw from bottom cover.
5. Remove the bottom cover.
5
6. Insert the something like a slotted screwdriver into the
internal left side of the trimmer assembly as the figure.
NOTE:
Confirm the location. If the screwdriver is inserted
right side, the trimmer hooks may be broken.
7. Remove the trimmer assembly from the left side.
8. Push down the cleaning shutter lever.
6
9. Insert the something like a slotted screwdriver into the right side of the cleaning shutter cover. Remove it from the upper side.
NOTE:
There are three hooks, top, right and left side.
If the screwdriver is inserted into the left side, the hooks may be broken or caused any scratch.
10. Insert the something like a slotted screwdriver into the right side of the front panel to raise it up as the figure.
And then, insert a slotted screwdriver into the left side of the front panel and remove it from the left side.
NOTE:
There are seven hooks on top, right and left side. If the screwdriver is inserted into the left side first, the hooks may be
broken.
11. Loosen four screws from housing A.
12. Loosen four screws from housing B. And remove the housing B.
7
13. Slide the module and battery assembly to slant upward.
14. Remove the battery with o-ring and washer from the
chassis.
* For driving block disassembly.
15. Remove the trimmer driving bar or the slit blade driving
bar with pressing bars outward.
16. Loosen two screws on top and remove retaining plate.
17. Remove waterproof rubber and two driving heads.
18. Loosen a screw on top. Fit the shape of motor balancer
and the hole of housing A and take out the motor from
housing A.
8
5 CAUTIONS IN ASSEMBLY
NOTE:
When reassembling, replace the new waterproof rubber.
Make sure whether there is NO foreign substance sticking
around a part covered with the water seal.
NOTE:
Make sure to assemble the battery last in order to avoid
short-circuited.
5.1. Motor
Place the red mark on upper side. Fit the shape of motor bal-
ancer and the hole of housing A and insert into housing A.
5.2. Driving heads
Insert a tip pin of driving head 'B' into the hole of motor arm.
And fit the projections of housing into the hole of driving head
B.
Place a motor tip pin toward you. Insert a motor tip pin into the
hole of driving head 'A' and fit the projections of housing into
the hole of driving head A.
5.3. Waterproof rubber
The waterproof rubber must be fitted the right way around.
Install as shown in figure by inserting firmly to the set position.
5.4. Driving bars
Set the trimmer driving bar and the slit blade driving bar.
9
5.5. Rechargeable battery
Insert the rechargeable battery into chassis. Attach the battery
o-ring and washer to the battery.
5.6. Side terminal
Insert the side terminals on both sides.
5.7. Module chassis assembly
Confirm the correct wiring.
1. Place RED lead wire.
2. Move BLUE lead wires aside.
3. Place BLACK lead wire in right position.
Place module chassis assembly in the housing.
NOTE:
Press fit the lead wire neatly to avoid any pinching
especially for the both side.
10

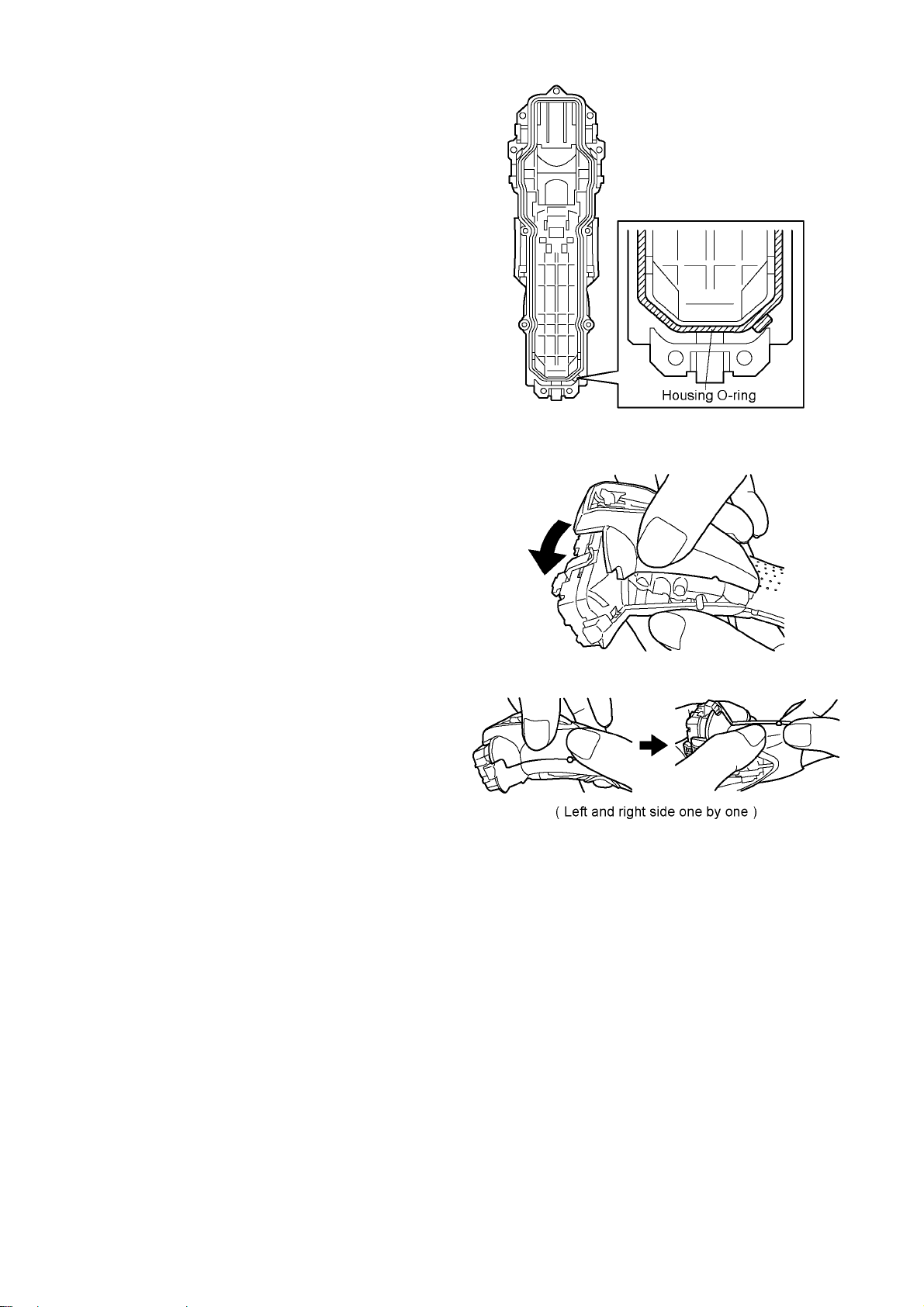

5.8. Housing O-ring
Place fit the housing O-ring.
5.9. Trimmer assembly
1. Assemble the trimmer assembly from the upper side.
2. Close the trimmer assembly from the left side first.
And confirm the right side of trimmer assembly com-
pletely.
NOTE:
If failure to do, the hooks may be broken.
5.10. Screw
Tighten screws with 1.47±4.9N•cm to prevent the breakage of
housing or making a crevice in the housing.
