Panasonic ES?ST25 Bedienungsanleitung

bution is a violation of law.

Order Number SD1305X31CE

Rechargeable Shaver

Model No. ES-ST25

Europe

CIS

Oceania

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

5 Disassembly Instructions ------------------------------------- 8

6 Schematic Diagram ---------------------------------------------12

7 Exploded View and Replacement Parts List -----------13

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3 Troubleshooting Guide

3.1. Main unit and charging adaptor

4 Disassembly and Assembly Instructions

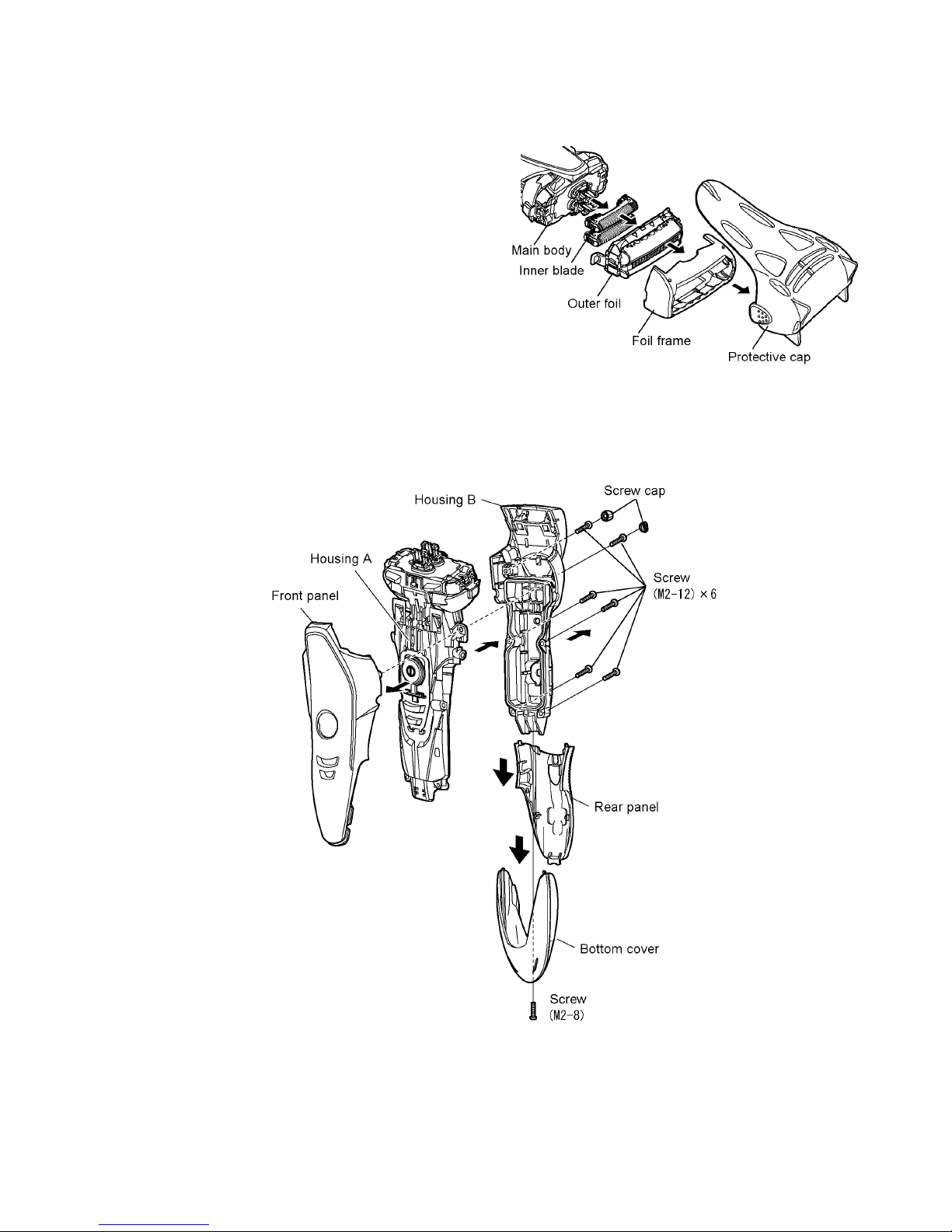

Follow the procedure below to disassemble the main unit.

1. Remove the cap, the outer foil with foil frame and the

inner blades.

2. Loosen one screw and take out the bottom cover.

3. Take out the screw caps and rear panel.

4. Loosen six screws from housing.

5. Remove the front panel and separate housing A and B.

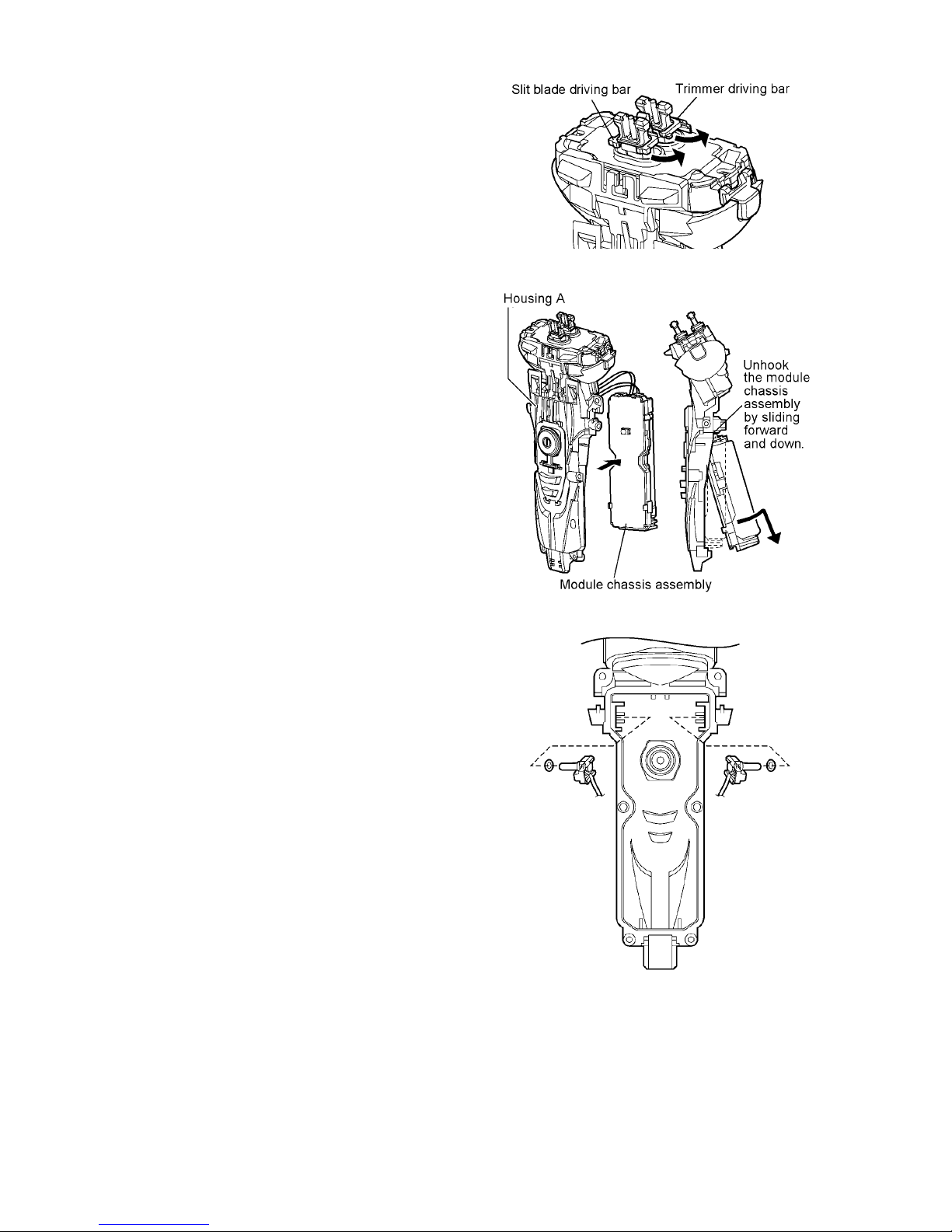

6. Remove the trimmer driving bar or the slit blade driving

bar with pressing bars outward.

NOTE:

Driving bars replacement is required only when

replacing the linear motor assembly.

7. Remove the module and chassis assembly from the

housing A.

8. Remove the side terminals from the housing A.

NOTE:

Make sure not to loose O-rings.

9. Remove the battery from the chassis.

10. Remove the linear motor assembly from the hosing A.

11. Unsolder the lead wires.

5 Disassembly Instructions

NOTE:

When reassembling, replace the new waterproof rubber.

Make sure whether there is NO foreign substance sticking

around a part covered with water seal.

1. Solder the lead wires.

NOTE:

Make sure of the polarity.

NOTE:

Use lead-free solder. Set the temperature of solder-

ing iron between 350-380°C and touch within three

seconds.

2. Attach the housing O-ring.

NOTE:

Make sure of the position and no foreign substance.

3. Attach the O-ring to the housing A first. And assemble

the side terminals on both sides.

NOTE:

Do not attach the O-ring to the side terminal first as it

makes pinching the O-ring when assembling the

housing.

4. Before assembling the linear motor assembly to the hous-

ing A, attach the cleaning shutter from the bottom side.

5. Slid up the cleaning shutter and confirm whether two

hooks are assembled firmly.

6. Assemble the battery and chassis block into the housing.

NOTE:

Make sure not to scratch or deform the module.

7. Insert the rechargeable battery into chassis. Confirm the

direction of battery. Once battery is disassembled, the

battery is reset. Connect the battery with the charging

adaptor about 10 seconds first.

8. Place the wire as shown the figure.

NOTE:

Press fit the lead wire neatly to avoid any pinching.

9. Set the trimmer driving bar and the slit blade driving bar.

10. Place fit the housing O-ring.

NOTE:

Make sure if there is no foreign substance sticking

around and not to pinching.

11. Attach the switch button to the housing A and assemble

the front panel.
