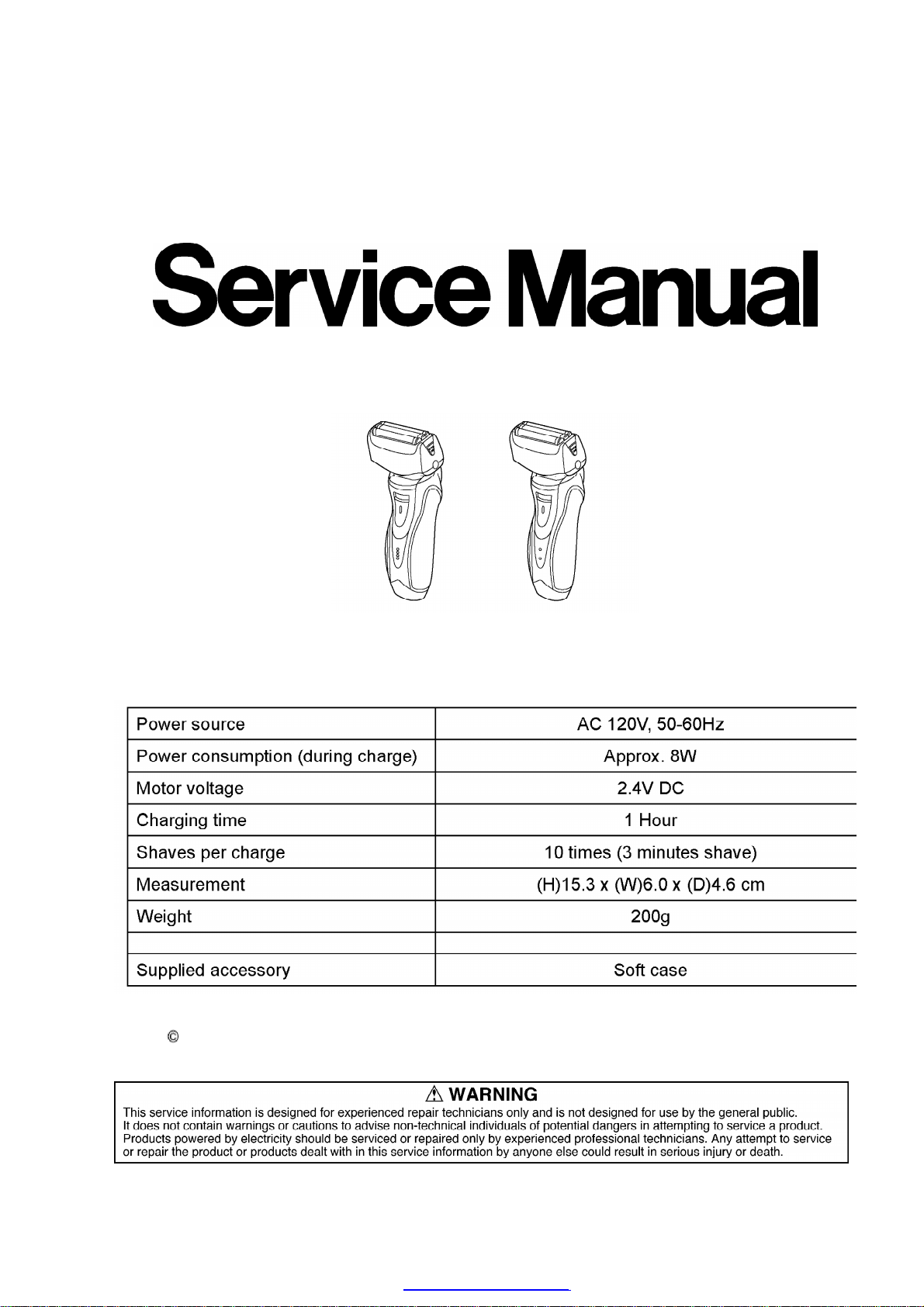

Panasonic ES7035-U1 Bedienungsanleitung

ORDERNO. SD0509U43C1

Wet/DryRechargeableShaver

ES7035-U1 / ES7037-U1

SPECIFICATIONS

Unauthorized copying and distribution isaviolation of law.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

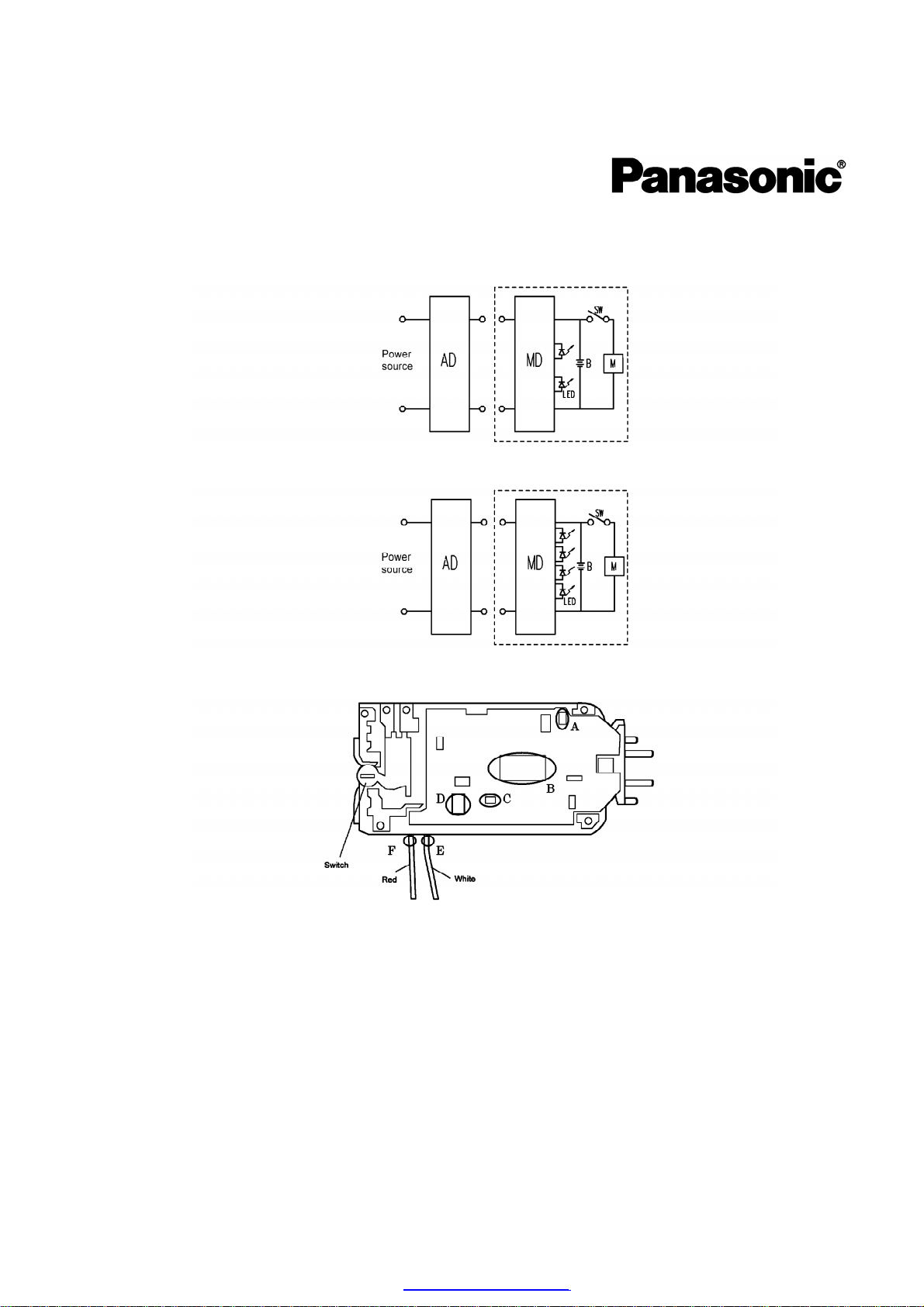

1. SCHEMATIC DIAGRAM

1.1. ES7035

1.2. ES7037

2. WIRING CONNECTION DIAGRAM

3. DISASSEMBLY INSTRUCTION

Followthe procedure belowtodisassemble the mainunit.

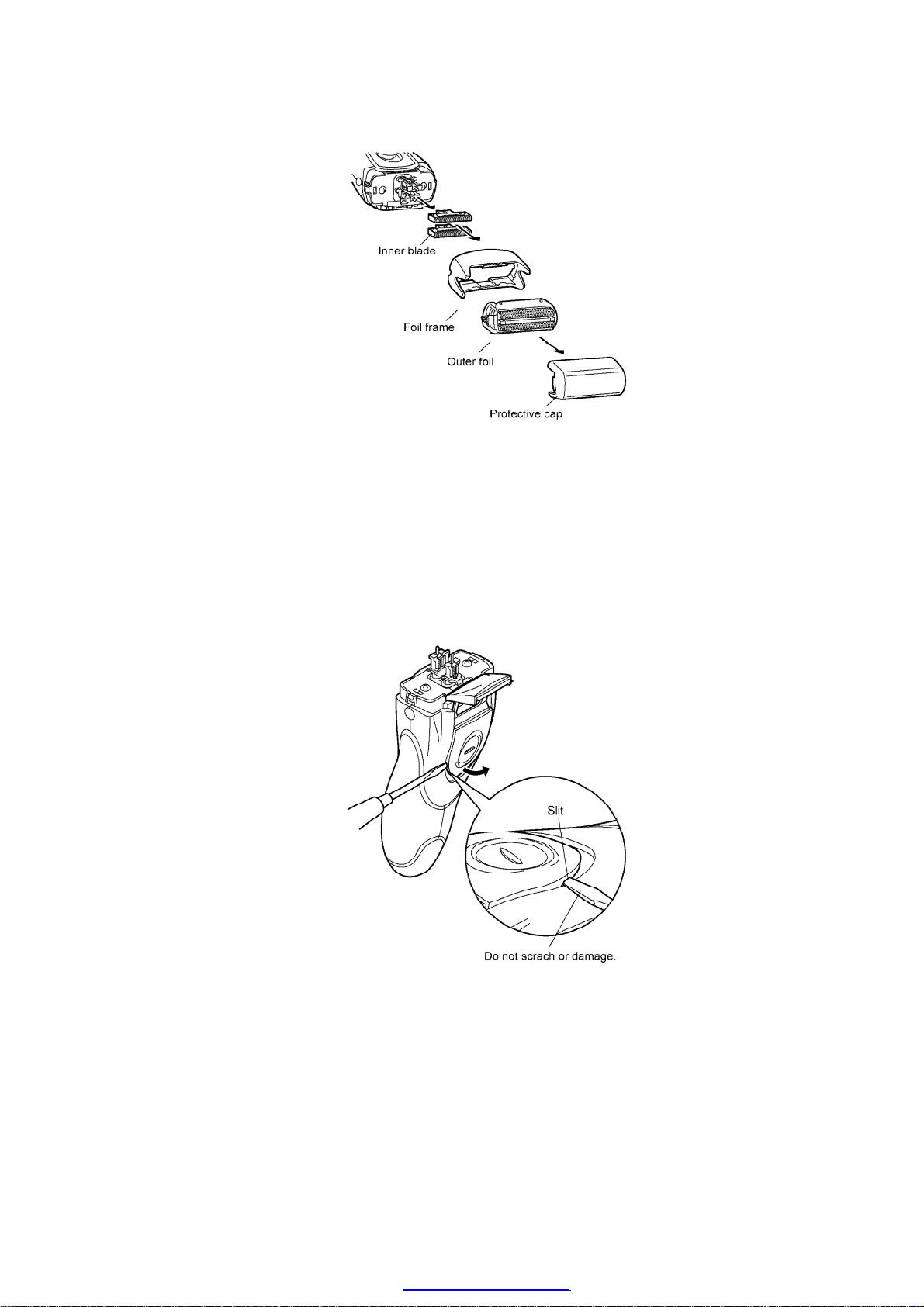

1. Remove the cap, the outer foil with foil frame and the inner blade.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2. Slide the trimmer handleup to open the trimmer and unhook the

trimmer handlebyinserting something like asloted screwdriver

or plasticspatulainto aslit.

NOTE: Make sure not toscratchordamage on the housing.

3. Remove trimmer and trimmer handle.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

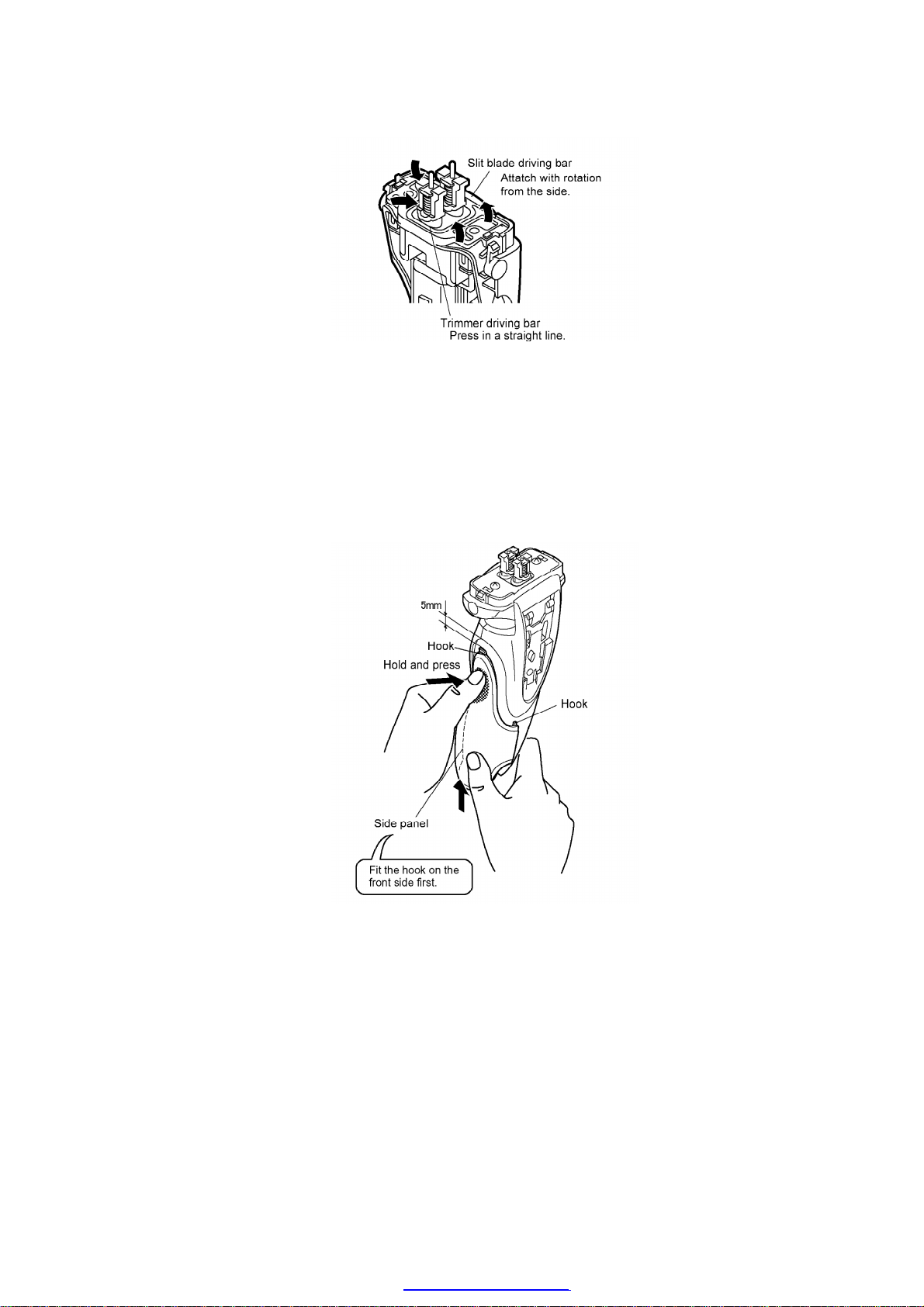

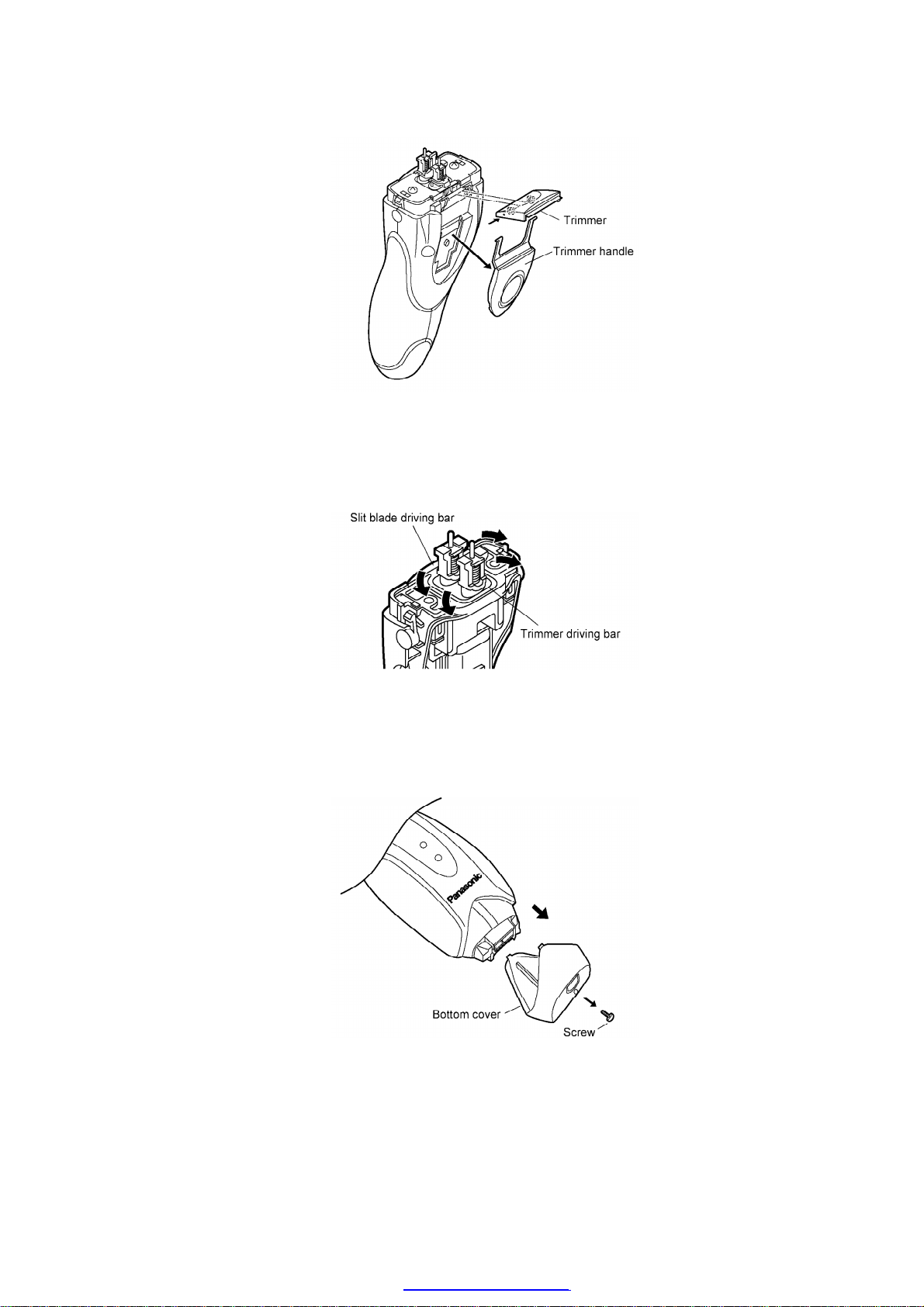

4. To remove the trimmer driving bar or the slitblade driving bar,

press bars outward.

5. Loosen ascrew and remove the bottom cover.

6. Slide downthe side panelsfor both sides.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

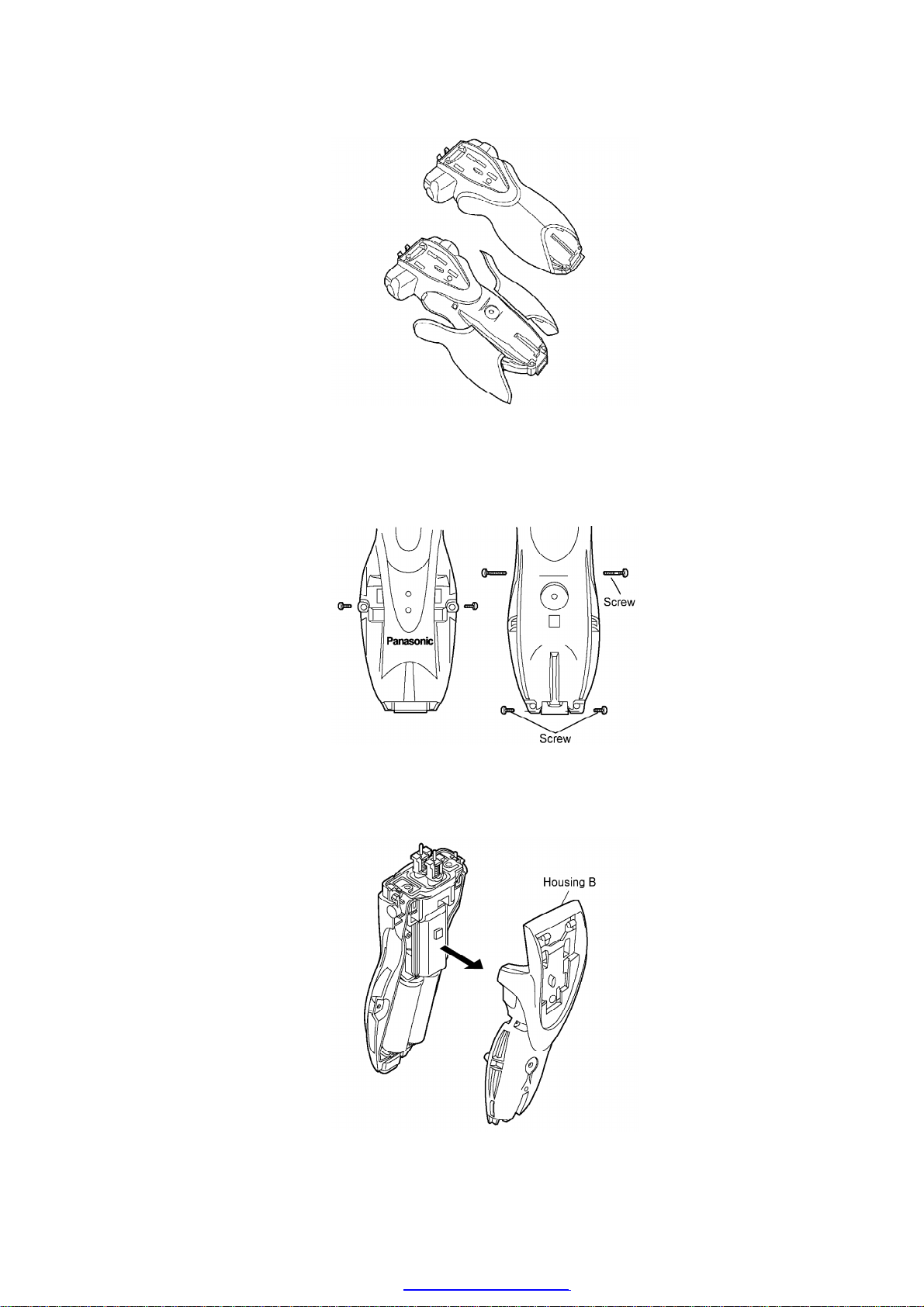

7. Loosen twoscrewson front and four screwson the back side,

and remove twohousing clips.

8. Take out the housing B.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

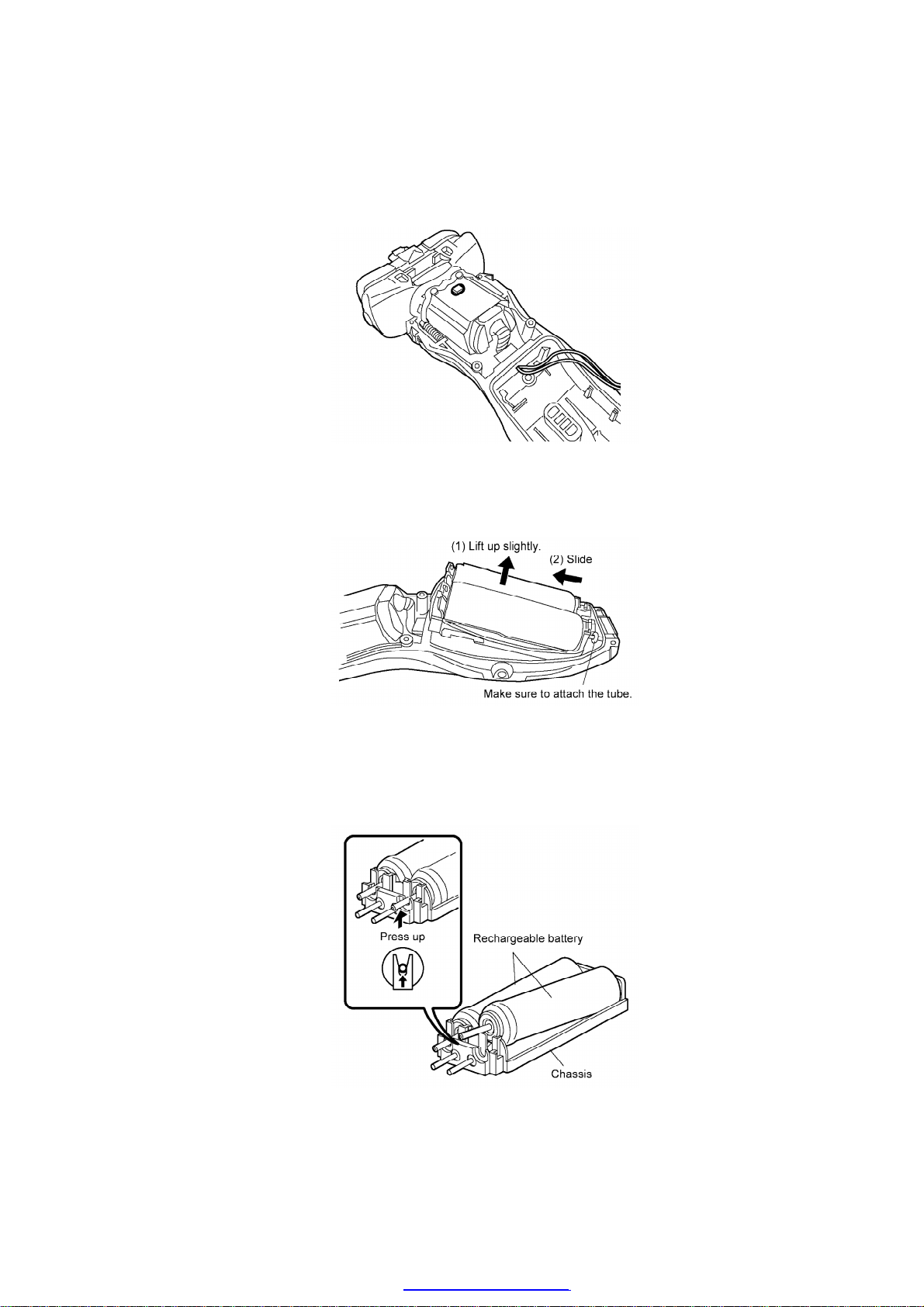

9. Remove the motor assemblyand tube holder.

10. And take out the batteryassemblyfrom housing A.

11. Remove the batteryo-ring and washer ineach battery. Take out

the rechargeablebatteries from the chassis.

4. CAUTION IN ASSEMBLY

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

NOTE: Whenreassembling, replace the newwaterproof rubber. Make sure whetherthere is NO

foreign substance sticking around a part coveredwithwaterseal.

4.1. Motor

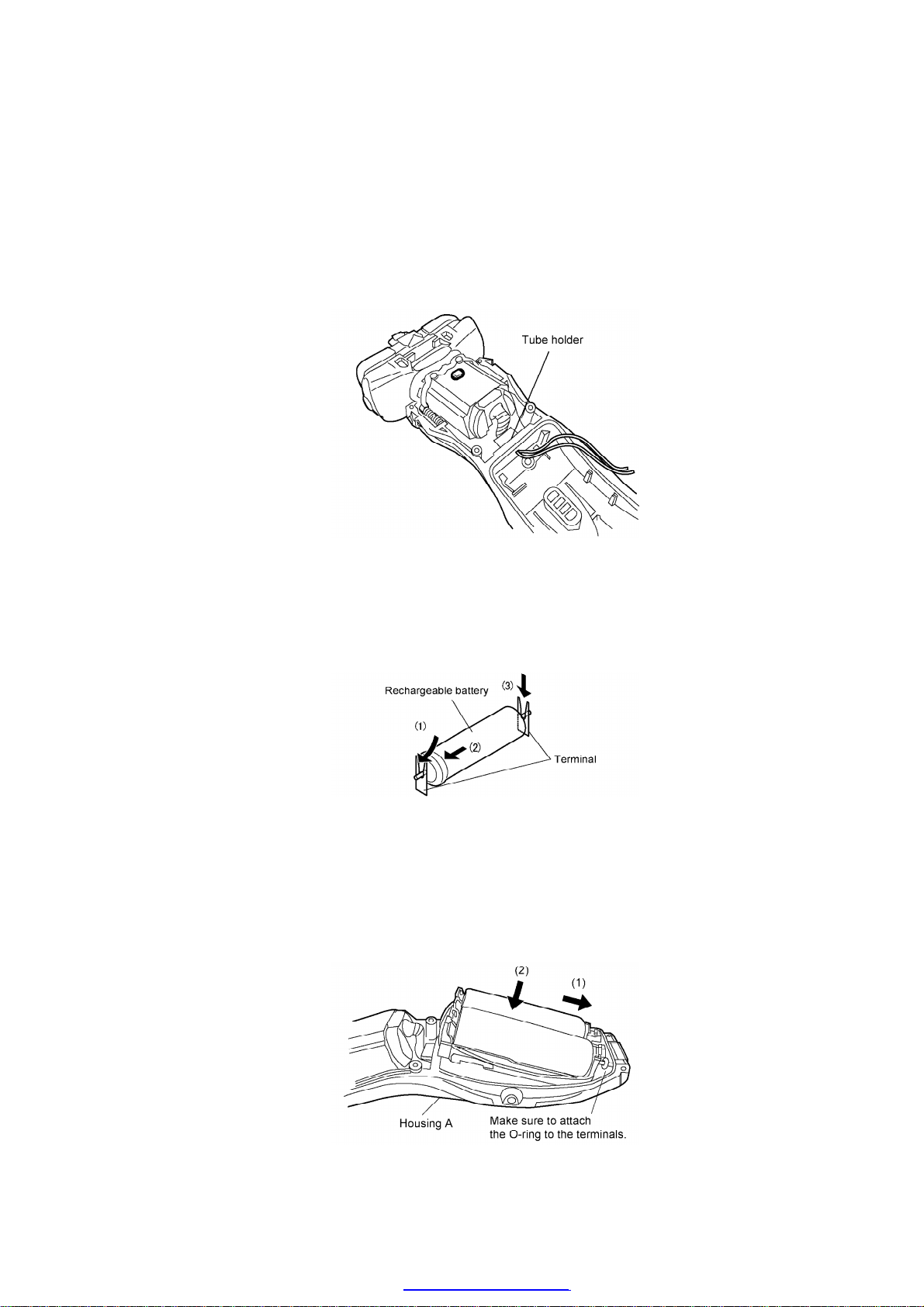

Insert the motorand press fit the waterproof tube neatlyunderthe tube holder. And put the float

spring propery.

4.2. Rechargeablebatteries

Insert the rechargeable batteries intochassis. Attachthe batteryo-ring and washertothe

battery.

Put the batteryassemblyfromthe batteryterminal side intohousing A, and insert the motor

side intohousing A.

NOTE: Press fit the leadwire neatlyinordertoprevent pinching.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

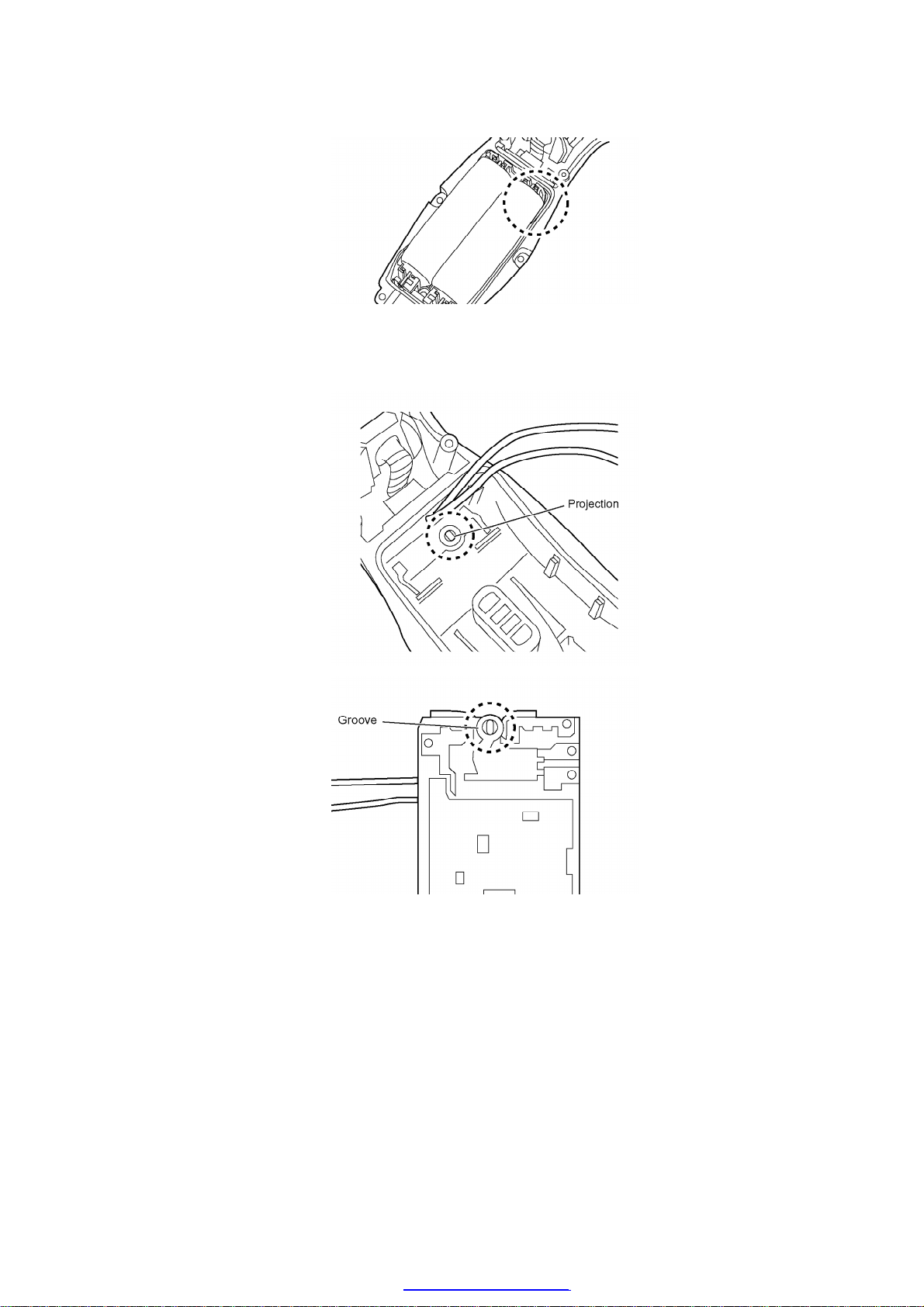

4.3. Module

Align the projection of switchselect button on housing A withthe groove of switchplate on

module.

4.4. Driving bars

Set the trimmerdriving barand the slit blade driving bar.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4.5. Side panel

Set the side panel on the bodyand slide it up until clicking the hook of panel at three locations.

NOTE: Make sure that the left and right side panels are firmlyfittedon bothrearand front side.

Fit the front side of hook first, thenon top and rearside.

4.6. Trimmer

1. Make sure ifthe bosses of handlearm insert into the holes of

trimmer.

2. Align the bosses of housing with the holes of trimmer, and hook

the trimmer handle.

3. Confirm its operation or smooth movement of trimmer.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5. TROUBLESHOOTING GUIDE

(Referto WIRING CONNECTION DIAGRAM)

<TROUBLE> <CHECK.> <

REMEDY>

Motordoes not

rotate. <CHECK CHARGING ADAPTOR.> NO Replace

charging

Does not

charge.

Connect the ratedvoltage tothe normal mainunit bythe

charging adaptor. adaptor.

Functions fora

mo- Check if the charge status lampof mainunit is lit.

ment and stops. Supplythe ratedvoltage tothe adaptorand measure the

voltage. OK if it is

Does not

operate by approximatelyDC 5.8V betweenthe terminals of the plug

withno-loadoperation.

AC power

source. OK

<CHECK RECHARGEABLE BATTERIES.> NO Replace

both

recharge-

Okayif the voltage of rechargeable batteries is more than

approximately able

batteries

the same

1.2V DC between(+) and (-) terminals. time.

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
